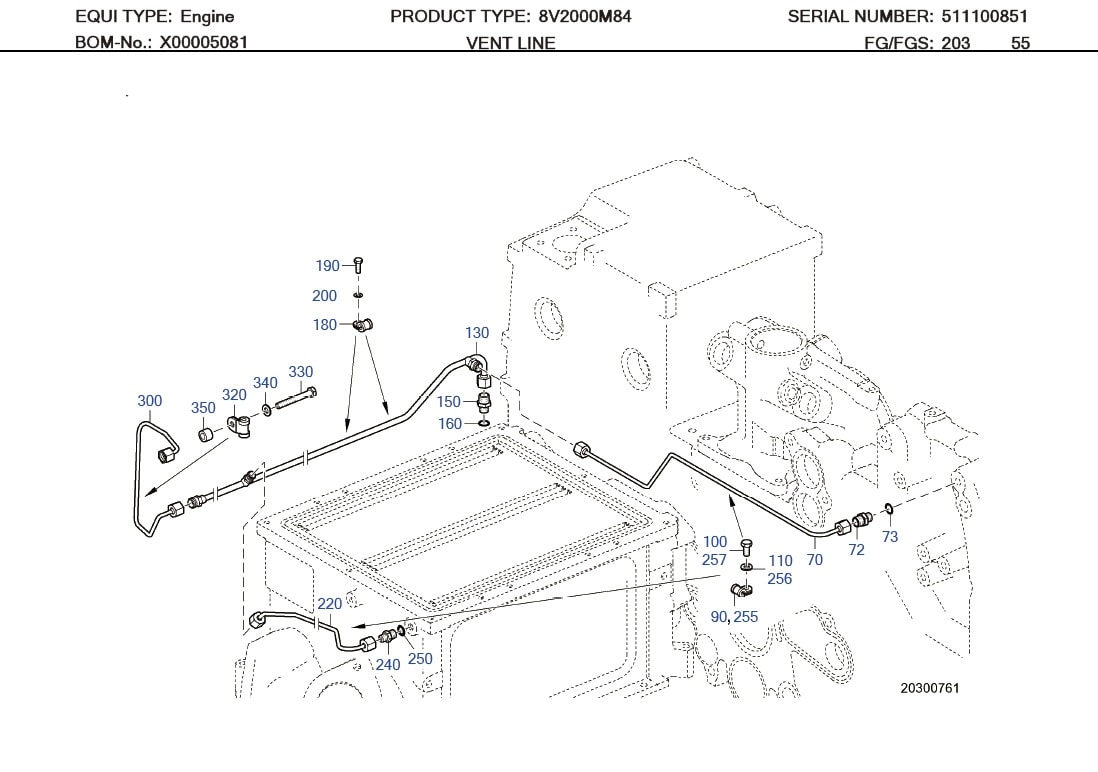

C/N | Description | Part-Number | Qty |
---|---|---|---|
70 | VENT LINE | 5322000258 | 001 |
72 | UNION | 915013006002 | 001 |
73 | COPPER SEALING RING | 007603012111 | 001 |

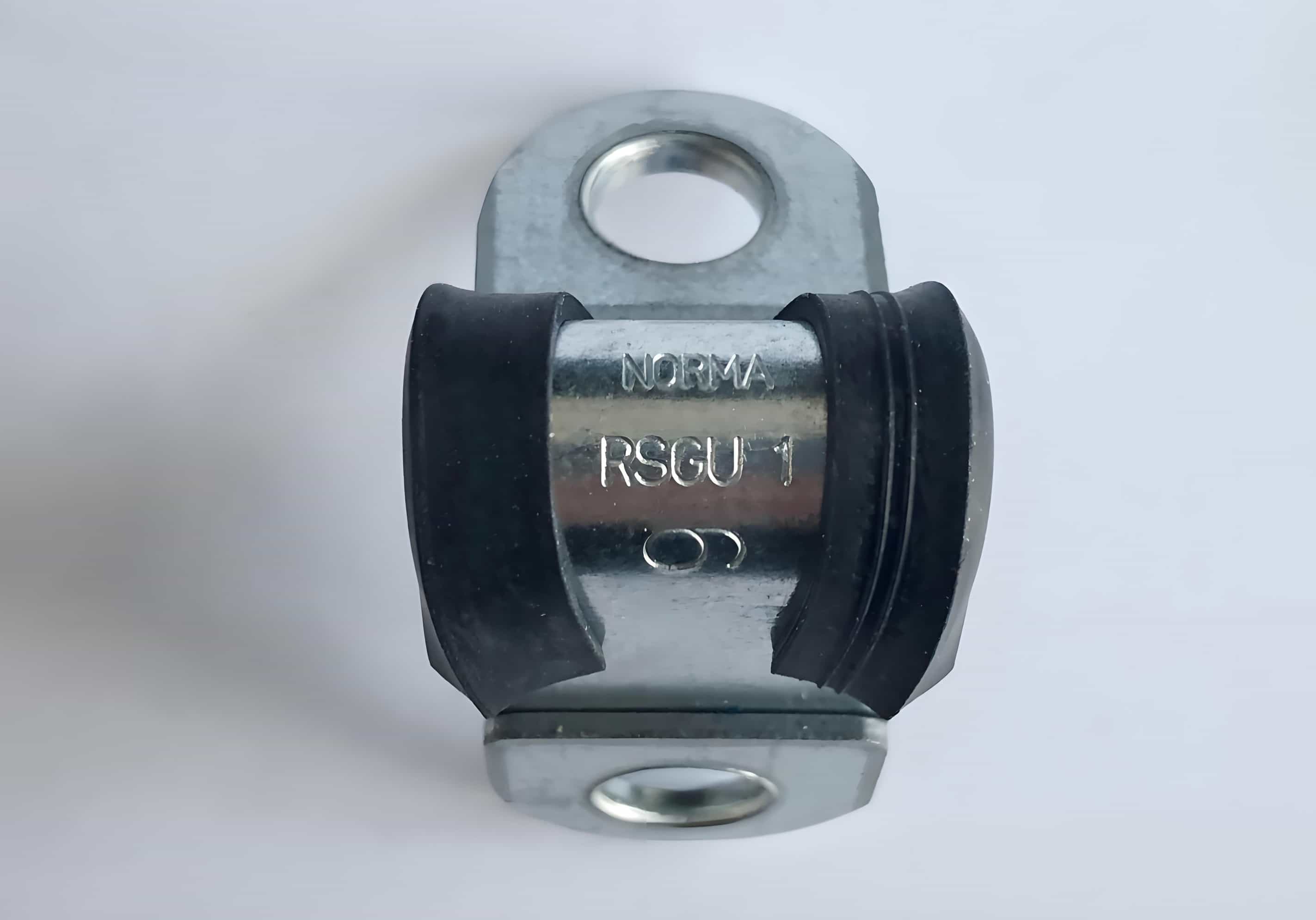

90 | CLAMP | 916016006202 | 001 |
100 | HEX SCREW | 304017008077 | 001 |
110 | WASHER | 000125008427 | 001 |
130 | VENT LINE | 5322000358 | 001 |
150 | UNION | 915013006002 | 001 |
160 | COPPER SEALING RING | 007603012111 | 001 |
180 | CLAMP | 916016008200 | 002 |
190 | HEX SCREW | 000933006175 | 002 |
200 | WASHER | 000125006431 | 002 |
220 | VENT LINE | 5322000458 | 001 |
240 | UNION | 915013004002 | 001 |
250 | SEALING RING | 007603010112 | 001 |
255 | CLAMP | 916016006202 | 001 |
256 | WASHER | 000125008427 | 001 |
257 | HEX SCREW | 304017008079 | 001 |
300 | VENT LINE | 5322000558 | 001 |
320 | CLAMP | 916016006202 | 001 |
330 | HEX SCREW | 000931008227 | 001 |
340 | WASHER | 000125008427 | 001 |
350 | SPACER SLEEVE | 5500780453 | 001 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 916016006202 | 0009952301 | N/A |
02 | 916016006202 | 916016006207 | 2012/06/07 |
03 | 916016006202 | 916016006202 | 2015/11/10 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
