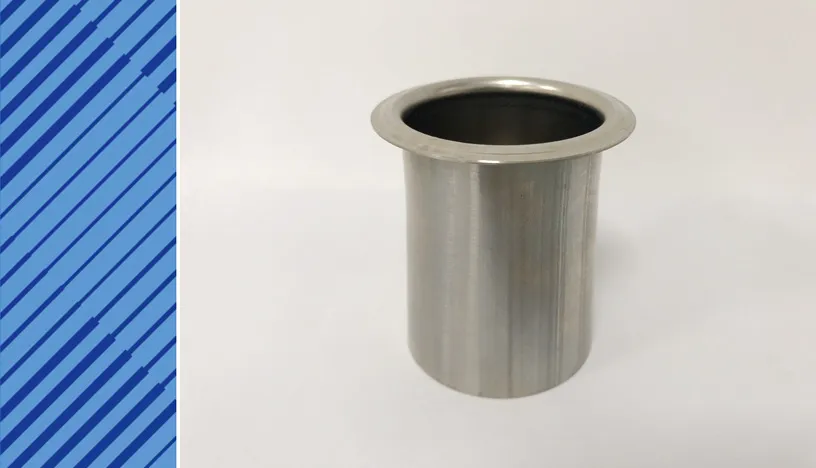

| PART NUMBER | 5361420025 |
| ENGINE TYPE | MTU 2000 ENGINE |
| DESCRIPTION | DIFFUSER EXHAUST |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.070 KG |
| HS CODE | 84099900 |
| NATO-VERS.-NR. | 2990123768494 |
| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 20 | EXH MFLD | X00006256 | 001 |
| 25 | EXH MFLD | X00006266 | 001 |

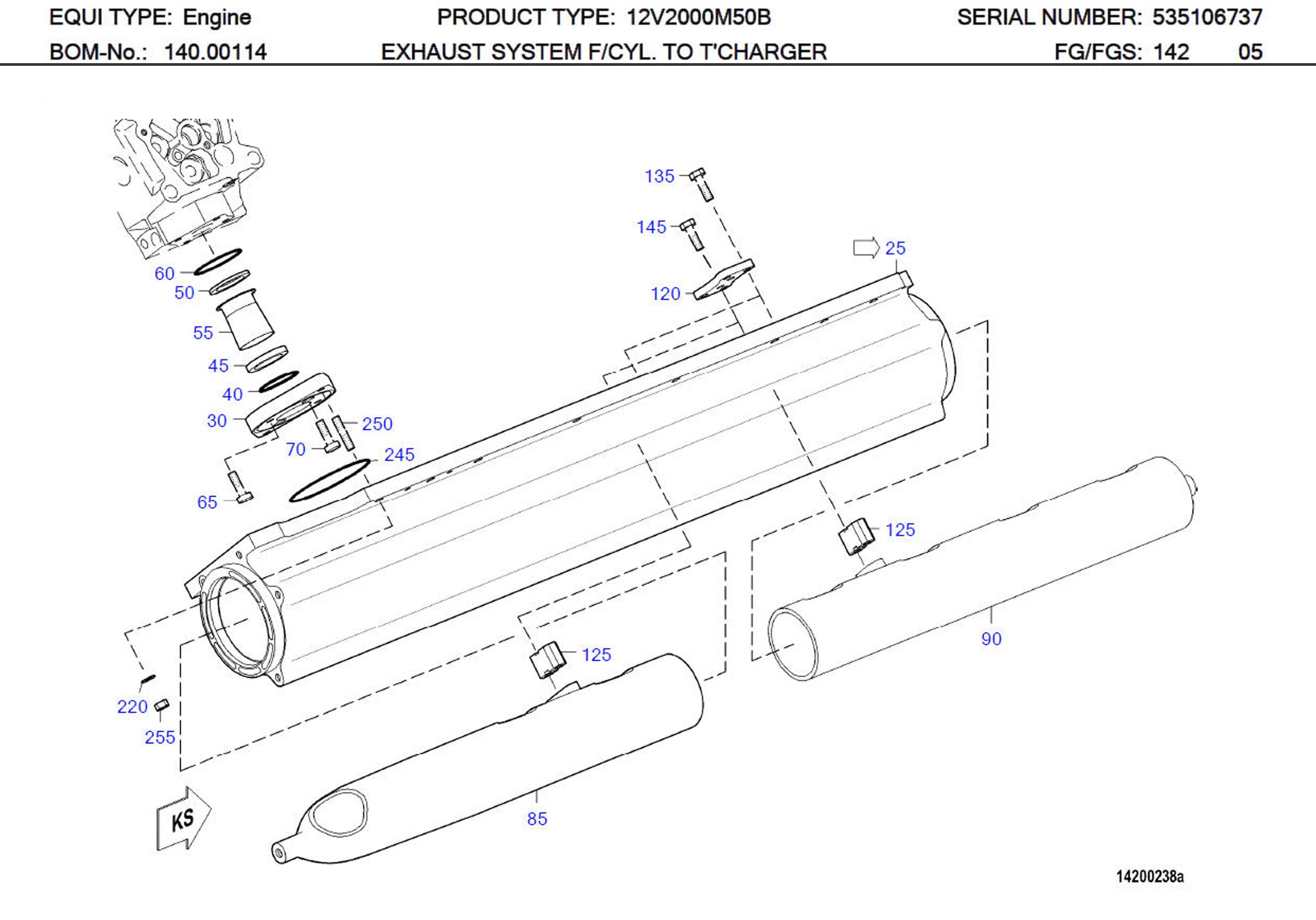

| 30 | FLANGE INTERMEDIATE | 5361420715 | 012 |
| 40 | SPRING | 5362370026 | 012 |
| 45 | RING CLAMPING | 5361420358 | 012 |
| 50 | RING | 5361420458 | 012 |
| 55 | DIFFUSER EXHAUST | 5361420025 | 012 |
| 60 | O-RING | 700429065002 | 012 |
| 65 | BOLT HEX SOC HD | 000912010012 | 024 |
| 70 | BOLT HEX SOC HD | 000912010003 | 024 |
| 80 | MANIFOLD EXHAUST LEFT | 5351420609 | 001 |
| 85 | MANIFOLD EXHAUST RIGHT | 5351420709 | 001 |
| 90 | MANIFOLD EXHAUST | 5361421109 | 002 |
| 100 | SLEEVE EXPANSION WTR CLD MANIF | 5351420186 | 004 |
| 105 | BOLT | 200933012003 | 004 |
| 110 | WASHER | 5590770176 | 004 |
| 115 | PASTE ULTRA THERM MTU | 50547 | 001 |
| 120 | PLATE | 5361420033 | 004 |
| 125 | FLANGE SPACER | 5361420365 | 004 |
| 135 | HEX BOLT | 000933010035 | 016 |
| 145 | BOLT AH HEX | 200931010010 | 008 |
| 155 | CAP RIGHT EXHAUST HOUSING | 5361420491 | 001 |
| 160 | CAP LEFT EXHAUST HOUSING | 5361420591 | 001 |

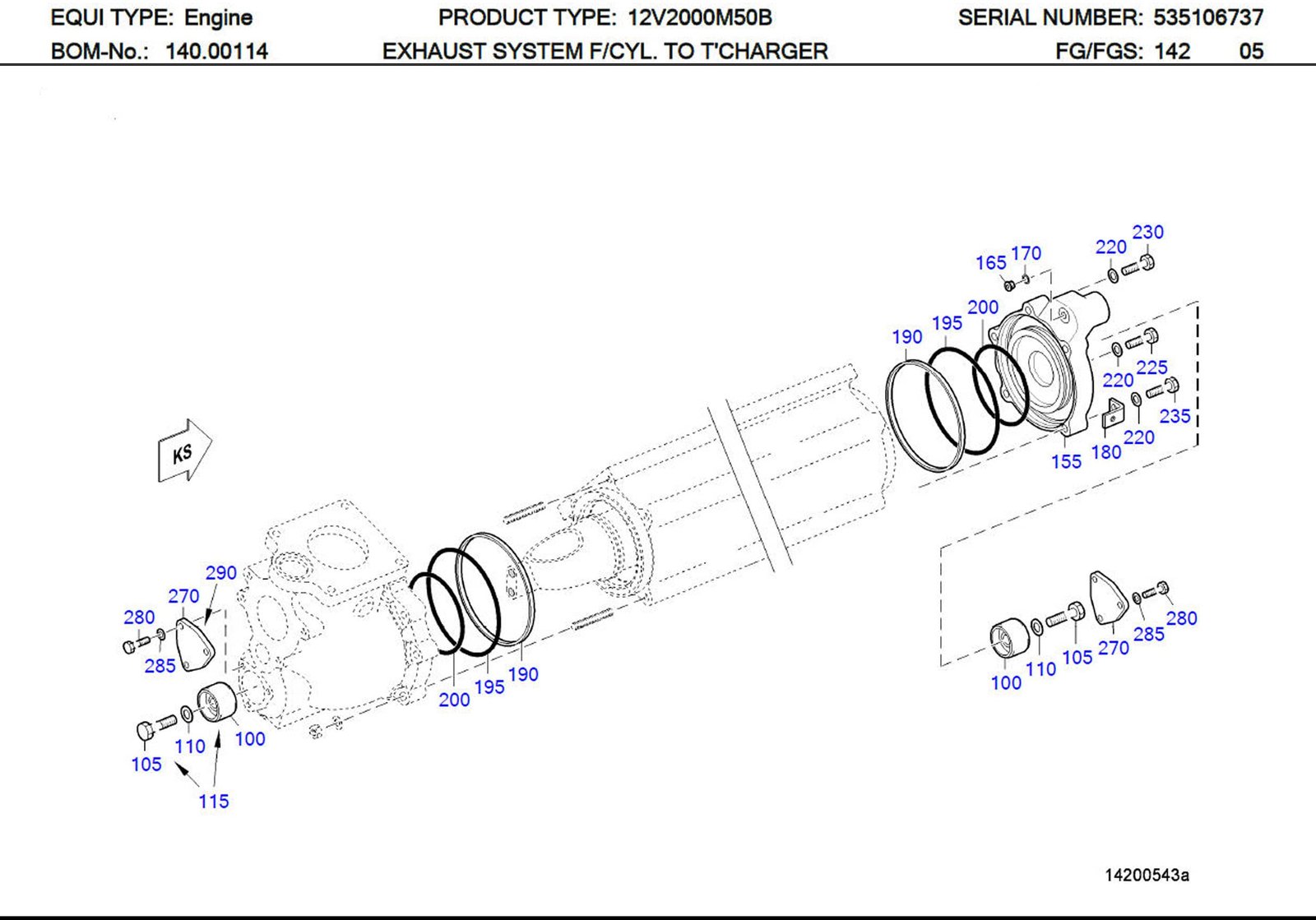

| 165 | SCREWED PLUG | 000908010002 | 002 |
| 170 | WASHER A COP | 007603010110 | 002 |
| 180 | BRACKET L H:51 S2000/4000 | 5551870640 | 001 |
| 190 | SEAL RING EXHAUST HOUSING | 5361420058 | 002 |
| 195 | O-RING | 700429148001 | 002 |
| 200 | O-RING | 700429110002 | 002 |
| 220 | WASHER | 000125010524 | 010 |
| 225 | BOLT HEX | 000933010095 | 004 |
| 230 | BOLT HEX | 000933010192 | 005 |
| 235 | BOLT HEX | 000933010073 | 001 |
| 245 | O-RING | 700429115001 | 012 |
| 250 | STUD | 000939010056 | 024 |
| 255 | NUT HEX | 000934010005 | 024 |
| 270 | COVER | 5351420191 | 002 |

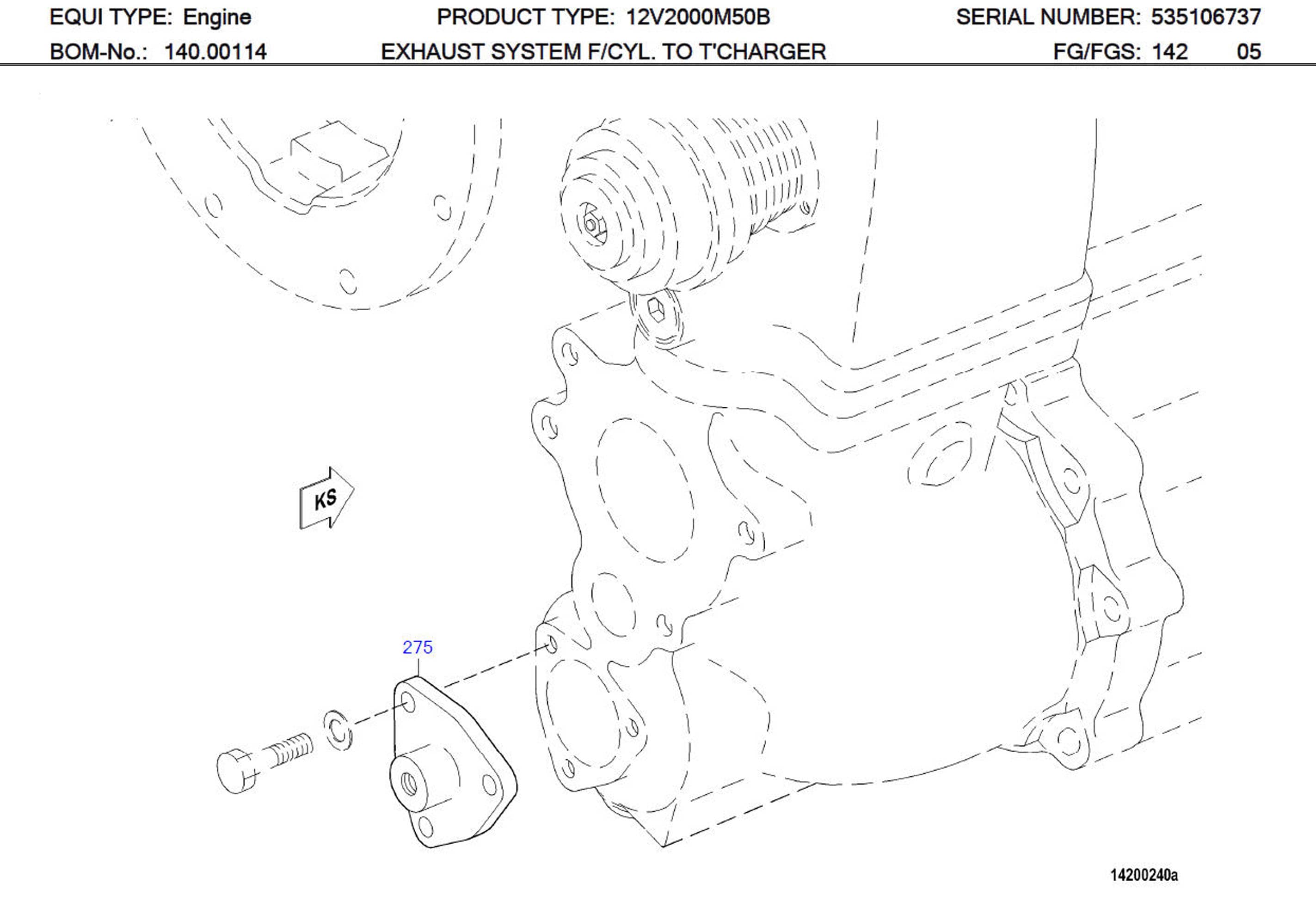

| 275 | BASE PLATE | 5361400033 | 002 |
| 280 | BOLT HEX | 304017008079 | 012 |
| 285 | WASHER | 000125008427 | 012 |
| 290 | PASTE (SEALING) ELASTOSIL N 189 | 50546 | 001 |

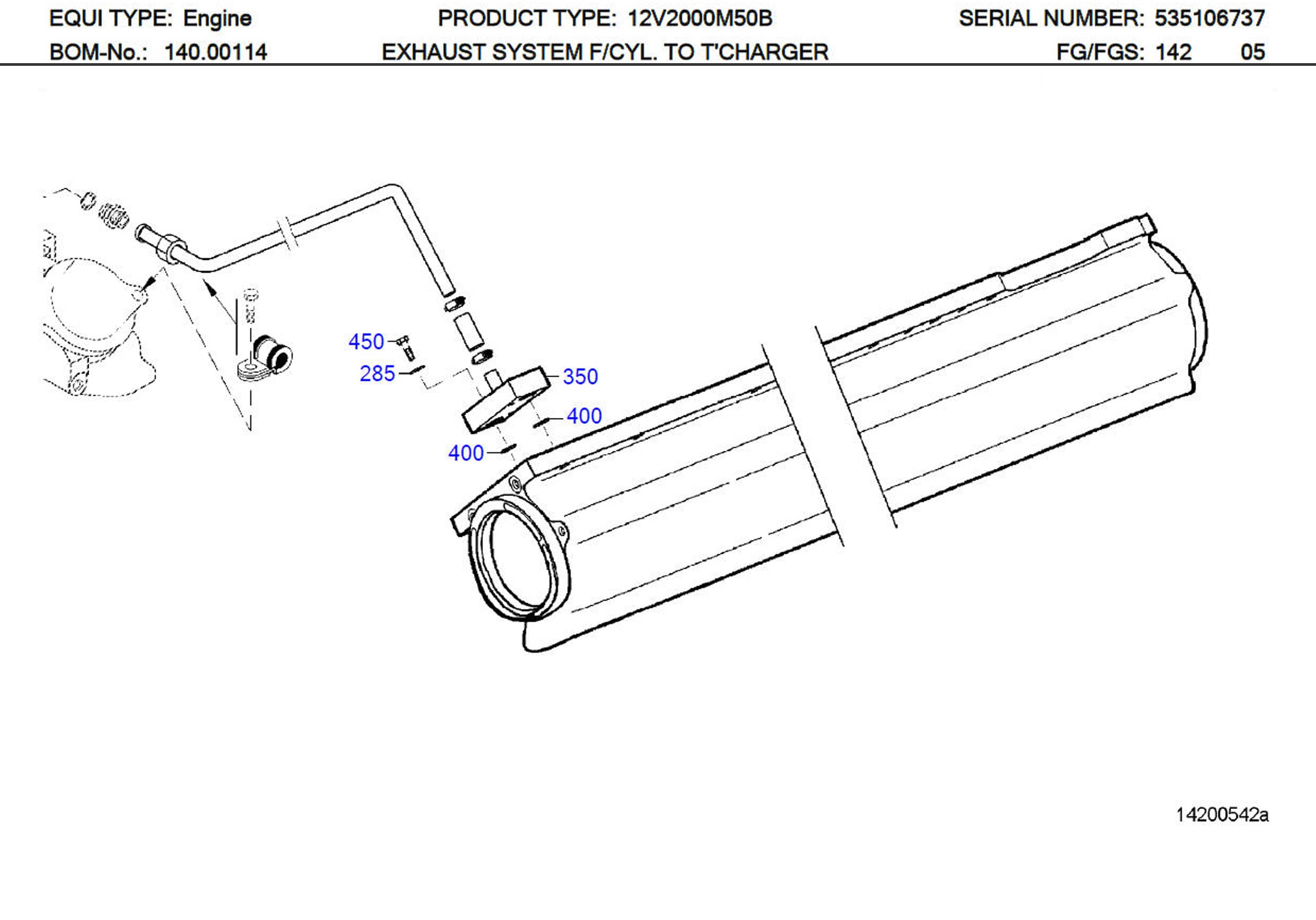

| 350 | CONNECTING PIECE | 5362000284 | 002 |
| 400 | O-RING | 700429021002 | 004 |
| 450 | BOLT HEX A3C | 304017008083 | 004 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
