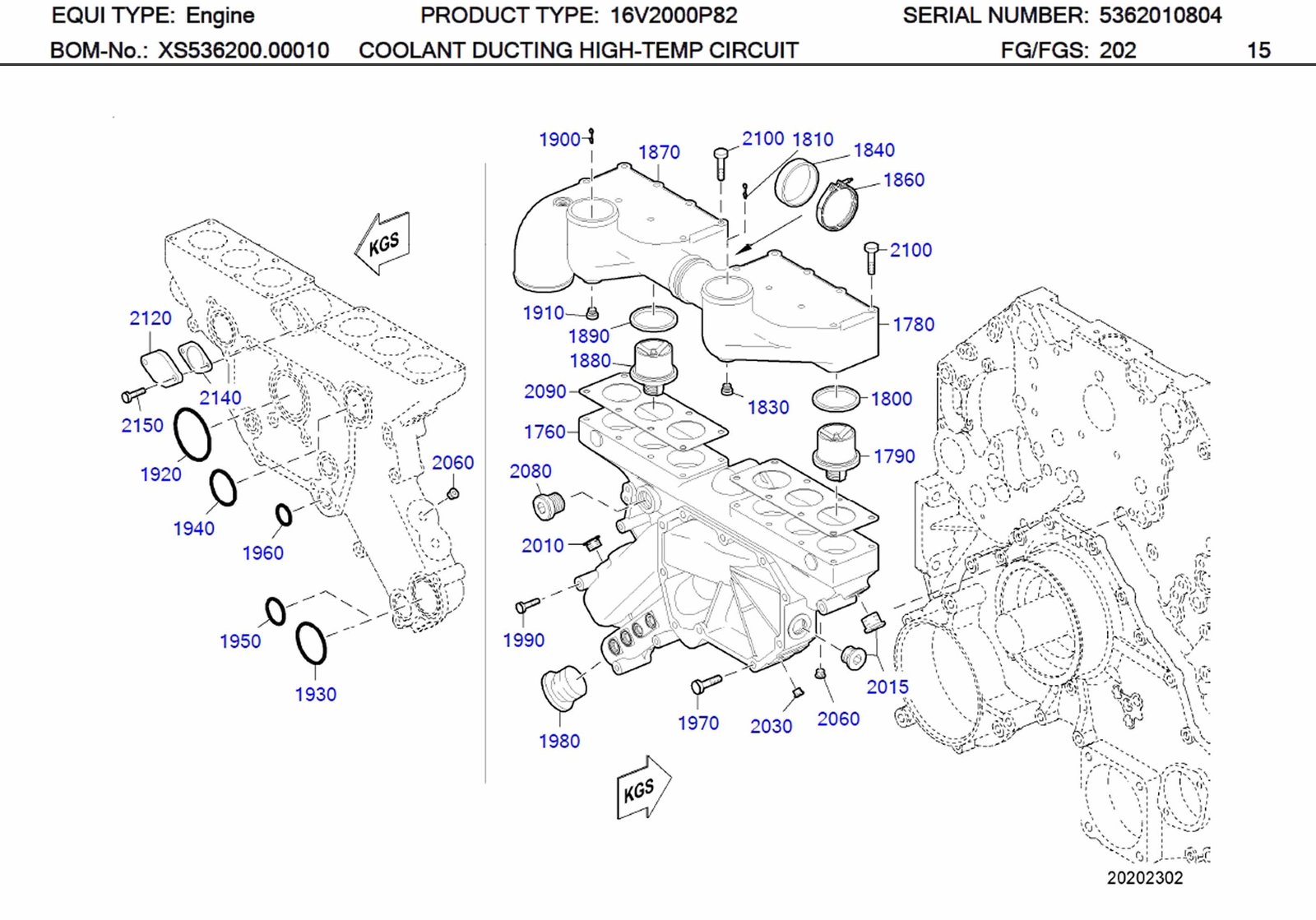

C/N | Description | Part-Number | Qty |
---|---|---|---|
1760 | HOUSING WATER/OIL DISTRIBUTION | 5362031173 | 001 |
1780 | THERMOSTAT HOUSING A-BANK SIDE | 5362030573 | 001 |
1790 | THERMOSTAT | 23503826 | 003 |
1800 | SEALING RING | 05132155 | 003 |
1810 | PIN JIGGLE | 05128234 | 001 |
1830 | PLUG | 735210012001 | 001 |
1840 | SEAL | 05122439 | 001 |
1860 | CLAMP T-BOLT HOSE 2 15/16 MIN W/SPCR | 05144768 | 001 |
1870 | THERMOSTAT HOUSING B-BANK SIDE | 5362030673 | 001 |
1880 | THERMOSTAT | 23503826 | 001 |
1890 | SEALING RING | 05132155 | 003 |
1900 | PIN JIGGLE | 05128234 | 001 |
1910 | PLUG | 735210012001 | 001 |
1920 | SEALING RING | 5369970245 | 001 |
1930 | SEALING RING | 5369970345 | 001 |
1940 | SEALING RING | 5369970445 | 003 |
1950 | SEALING RING | 5369970545 | 001 |
1960 | SEALING RING | 5369970645 | 003 |
1970 | BOLT PHOS HEX FLG LRG | 11509526 | 003 |
1980 | PLUG | 735210042001 | 001 |
1990 | BOLT PHOS HVY HEX FLG | 11509515 | 002 |
2000 | WASHER | 000125008427 | 001 |
2010 | PLUG | 735210022001 | 001 |
2030 | PLUG | 735210012001 | 002 |
2050 | PLUG | 735210027001 | 002 |
2060 | PLUG | 735210014002 | 003 |
2080 | PLUG | 735210033001 | 001 |

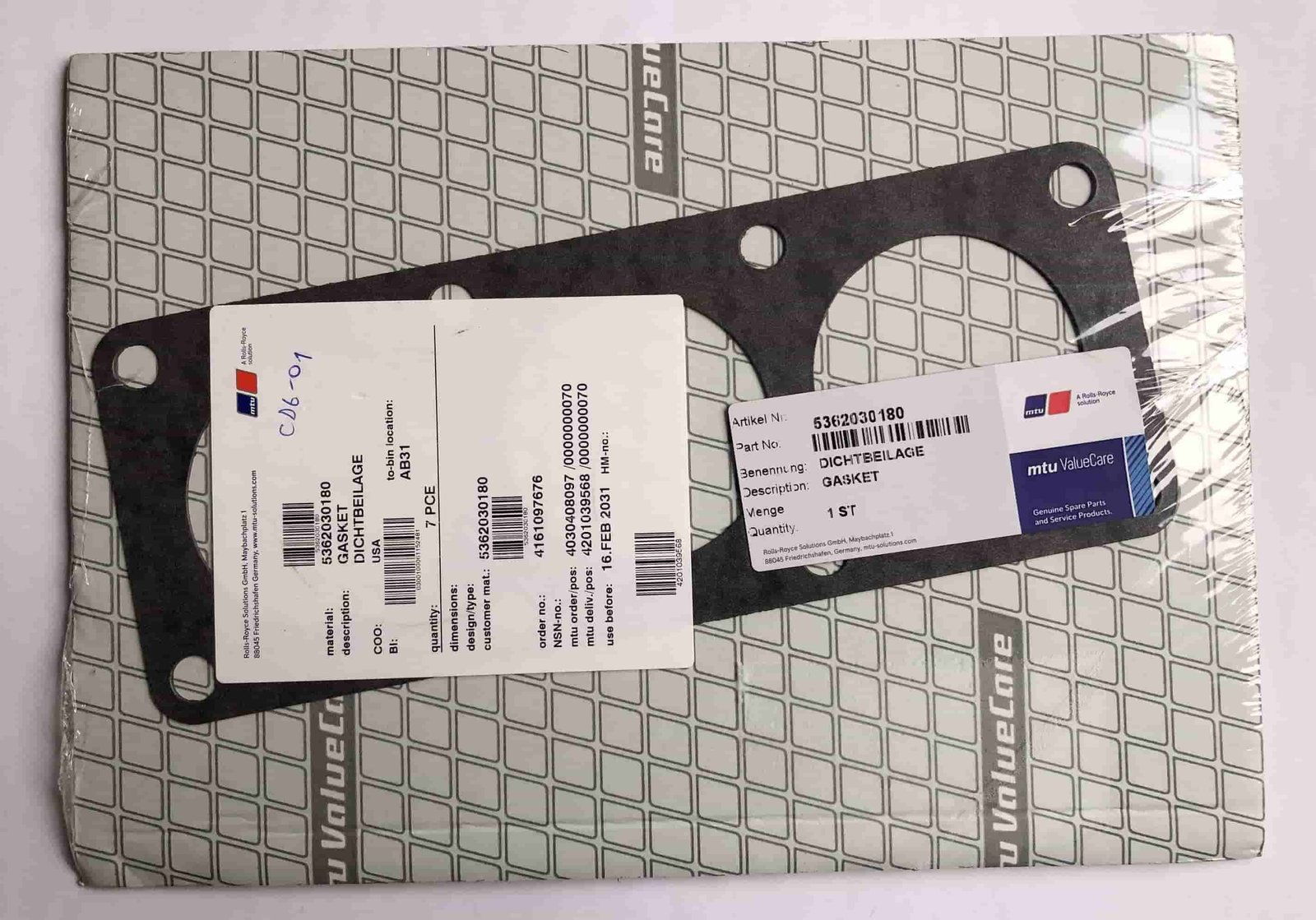

2090 | GASKET | 5362030180 | 002 |
2100 | BOLT PHOS HEX FLG LRG | 11509524 | 004 |
2120 | INLET COVER | 5361870196 | 001 |
2140 | GASKET | 5311880080 | 001 |
2150 | BOLT PHOS HVY HEX FLG | 11509511 | 002 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
