PART NUMBER 5320980080
ENGINE TYPE MTU 2000 ENGINE
DESCRIPTION GASKET
DIMENSIONS N/A
UNIT WEIGHT 0.014 KG
HS CODE 40169991
NATO-VERS.-NR. 5330123844743
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

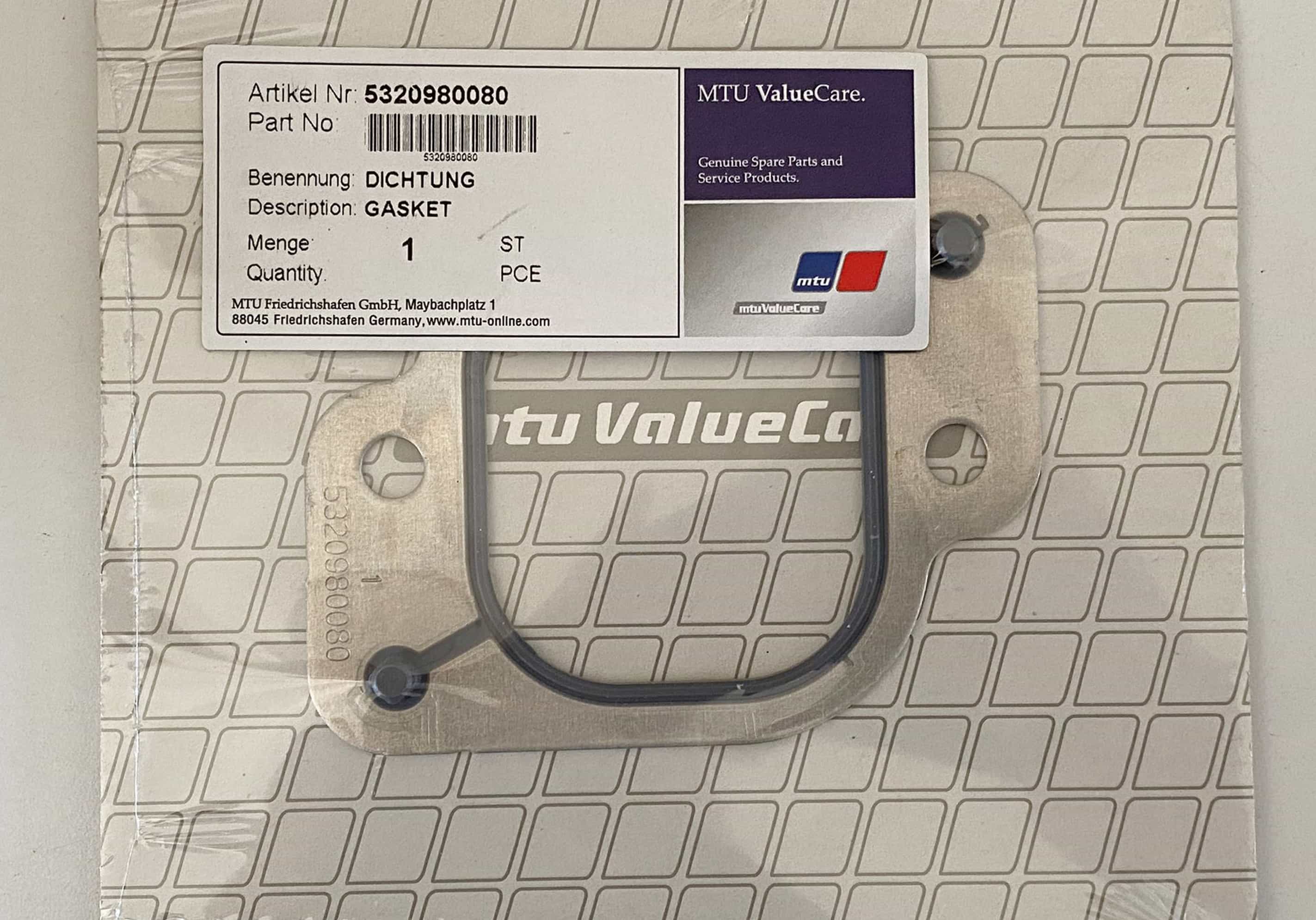

MTU 5320980080 CHARGE-AIR DUCTING GASKET

MTU 5320980080 CHARGE-AIR DUCTING GASKET

MTU 5320980080 CHARGE-AIR DUCTING GASKET

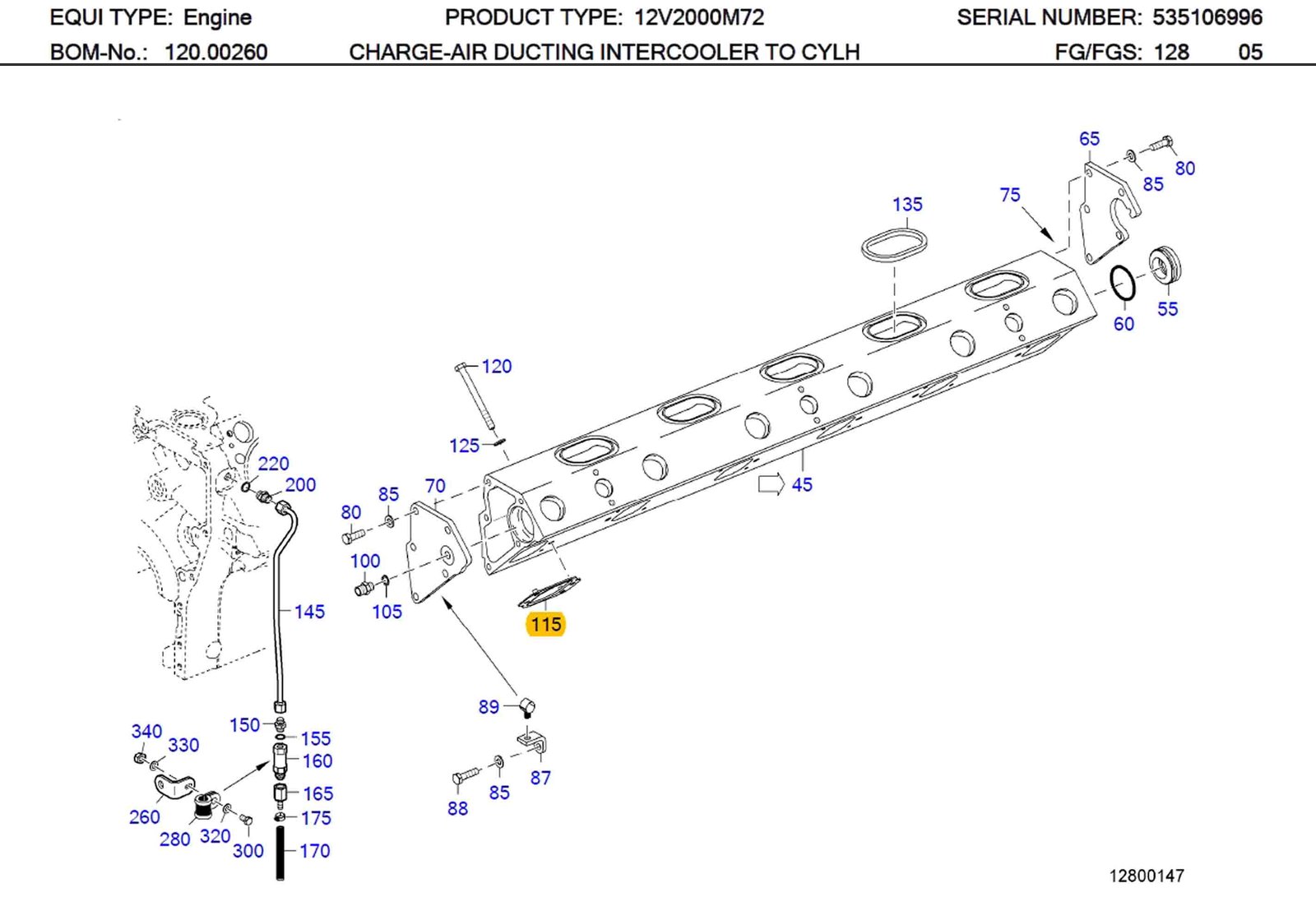

C/N Description Part-Number Qty
45 CHARGE-AIR LINE X51512400005 002
55 GUIDE BUSHING 5350700054 002
60 O-RING 700429042001 002
65 COVER FOR CHARGE-AIR LINE 5350980043 012
70 COVER 5350980243 002
75 SILCONE RUBBER LOCTITE 5970 50773 001
80 HEX SCREW 304017008081 019
85 WASHER 000125008427 020
87 BRACKET 5502030043 001
88 HEX SCREW 304017008083 001
89 CLAMP CABLE DN10 0001596440 001
100 UNION 915013004002 001
105 WASHER A COP 007603010110 001
115 GASKET 5320980080 012
120 HEX SCREW 000931008207 012
125 WASHER 000125008427 012
135 SEALING RING 5350980065 012
145 VENT LINE 531SK5256 001
150 SCREW-FITTING UNION X51199100004 001
155 RING SEALING A13 X18 CU 705057013000 001
160 CHECK VALVE ASSY. 8996207 001
165 HOSE ADAPTER X51199100003 001
170 HOSE 073379008200 001
175 CLAMP 900288010000 001
200 SCREW NECK 915013008002 001
220 COPPER SEALING RING 007603014102 001
260 RETAINER X51517300004 001
280 CLAMP 916016020201 001
300 HEX SCREW 000933006088 001
320 WASHER 000125006431 001
330 WASHER 007349006004 001
340 NUT HEX 000934006006 001

MTU 2000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 2000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 2000 M72 720 2250 135/156 (5.3/6.1)
10V 2000 M72 900 2250 135/156 (5.3/6.1)
12V 2000 M93 1340 2450 135/156 (5.3/6.1)
16V 2000 M93 1790 2450 135/156 (5.3/6.1)
12V 2000 M92 1220 2450 135/156 (5.3/6.1)
16V 2000 M92 1630 2450 135/156 (5.3/6.1)
12V 2000 M72 1080 2250 135/156 (5.3/6.1)
16V 2000 M72 1440 2250 135/156 (5.3/6.1)
8V 2000 M94 932 2450 135/156 (5.3/6.1)
8V 2000 M84 810 2450 135/156 (5.3/6.1)
8V 2000 M84L 895 2450 135/156 (5.3/6.1)
12V 2000 M61 600 1800 130/150 (5.1/5.9)
16V 2000 M61 800 1800 130/150 (5.1/5.9)
8V 2000 M61 400 1800 130/150 (5.1/5.9)
10V 2000 M86 1015 2450 135/156 (5.3/6.1)
12V 2000 M86 1268 2450 135/156 (5.3/6.1)
16V 2000 M86 1630 2450 135/156 (5.3/6.1)
10V 2000 M96 1120 2450 135/156 (5.3/6.1)
