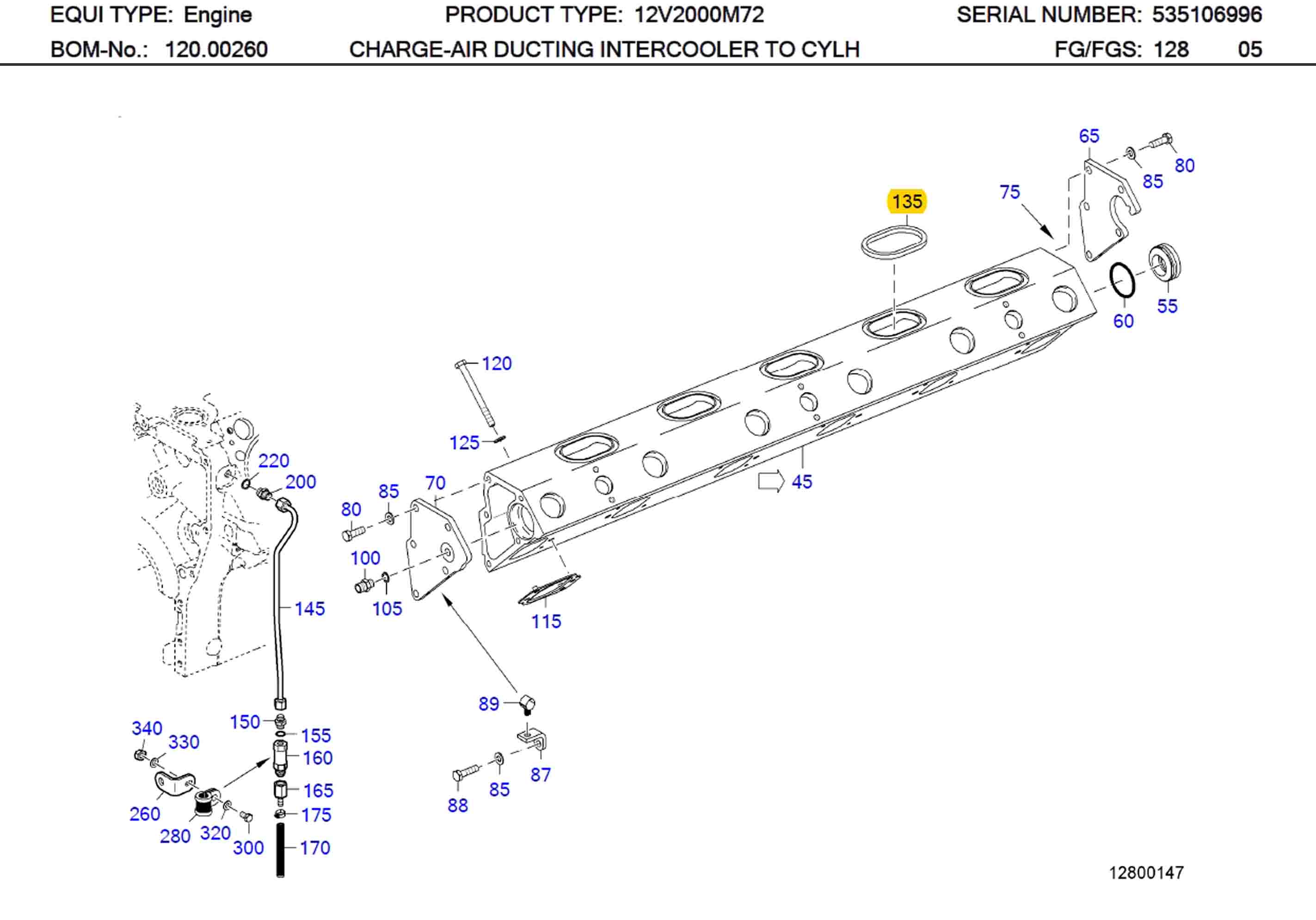

C/N | Description | Part-Number | Qty |
---|---|---|---|
45 | CHARGE-AIR LINE | X51512400005 | 002 |
55 | GUIDE BUSHING | 5350700054 | 002 |
60 | O-RING | 700429042001 | 002 |
65 | COVER FOR CHARGE-AIR LINE | 5350980043 | 002 |
70 | COVER | 5350980243 | 002 |
75 | SILCONE RUBBER LOCTITE 5970 | 50773 | 001 |
80 | HEX SCREW | 304017008081 | 019 |
85 | WASHER | 000125008427 | 020 |
87 | BRACKET | 5502030043 | 001 |
88 | HEX SCREW | 304017008083 | 001 |
89 | CLAMP CABLE DN10 | 0001596440 | 001 |
100 | UNION | 915013004002 | 001 |
105 | WASHER A COP | 007603010110 | 001 |
115 | GASKET | 5320980080 | 012 |
120 | HEX SCREW | 000931008207 | 012 |
125 | WASHER | 000125008427 | 012 |

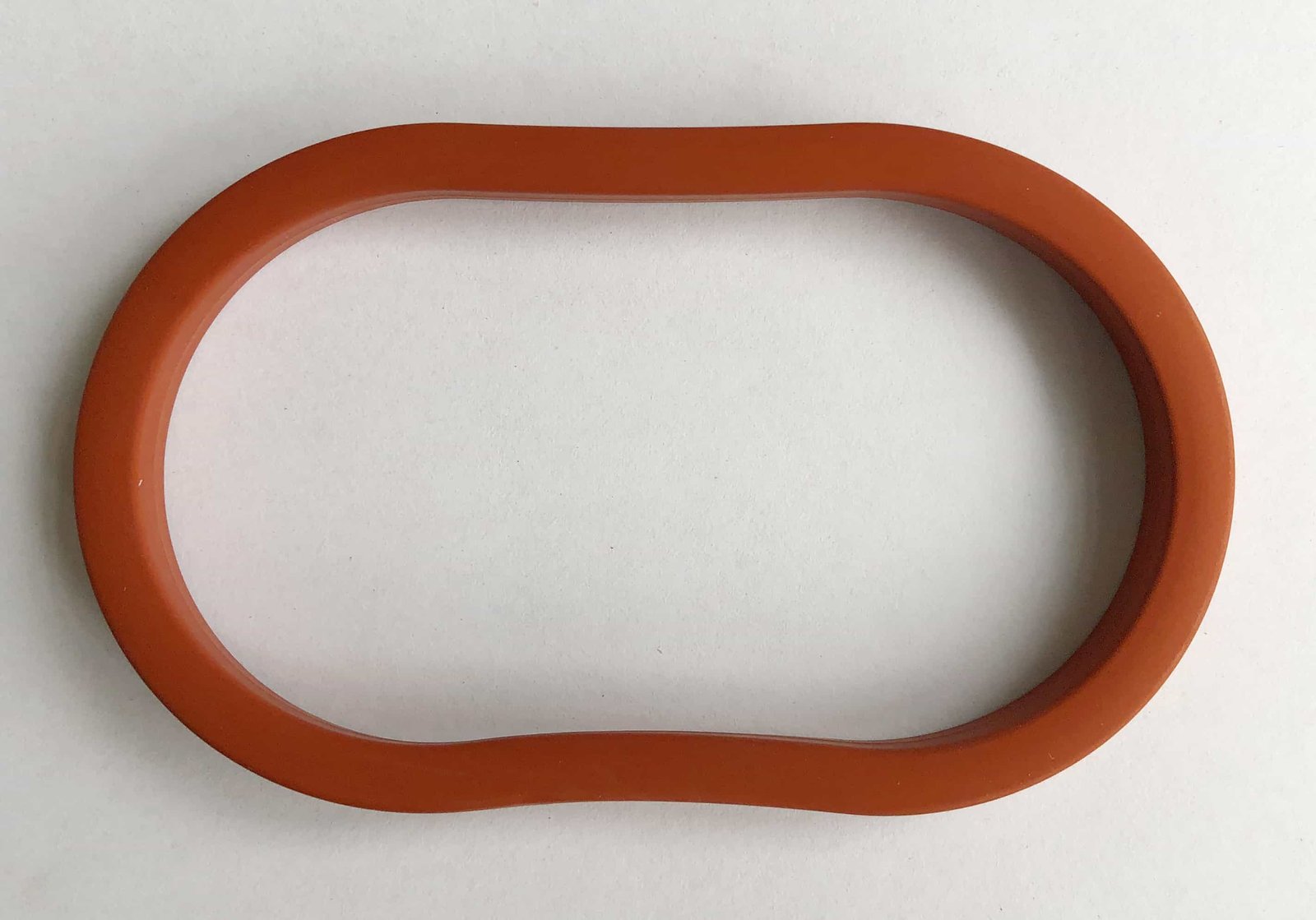

135 | SEALING RING | 5350980065 | 012 |
145 | VENT LINE | 531SK5256 | 001 |
150 | SCREW-FITTING UNION | X51199100004 | 001 |
155 | RING SEALING A13 X18 CU | 705057013000 | 001 |
160 | CHECK VALVE ASSY. | 8996207 | 001 |
165 | HOSE ADAPTER | X51199100003 | 001 |
170 | HOSE | 073379008200 | 001 |
175 | CLAMP | 900288010000 | 001 |
200 | SCREW NECK | 915013008002 | 001 |
220 | COPPER SEALING RING | 007603014102 | 001 |
260 | RETAINER | X51517300004 | 001 |
280 | CLAMP | 916016020201 | 001 |
300 | HEX SCREW | 000933006088 | 001 |
320 | WASHER | 000125006431 | 001 |
330 | WASHER | 007349006004 | 001 |
340 | NUT HEX | 000934006006 | 001 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
