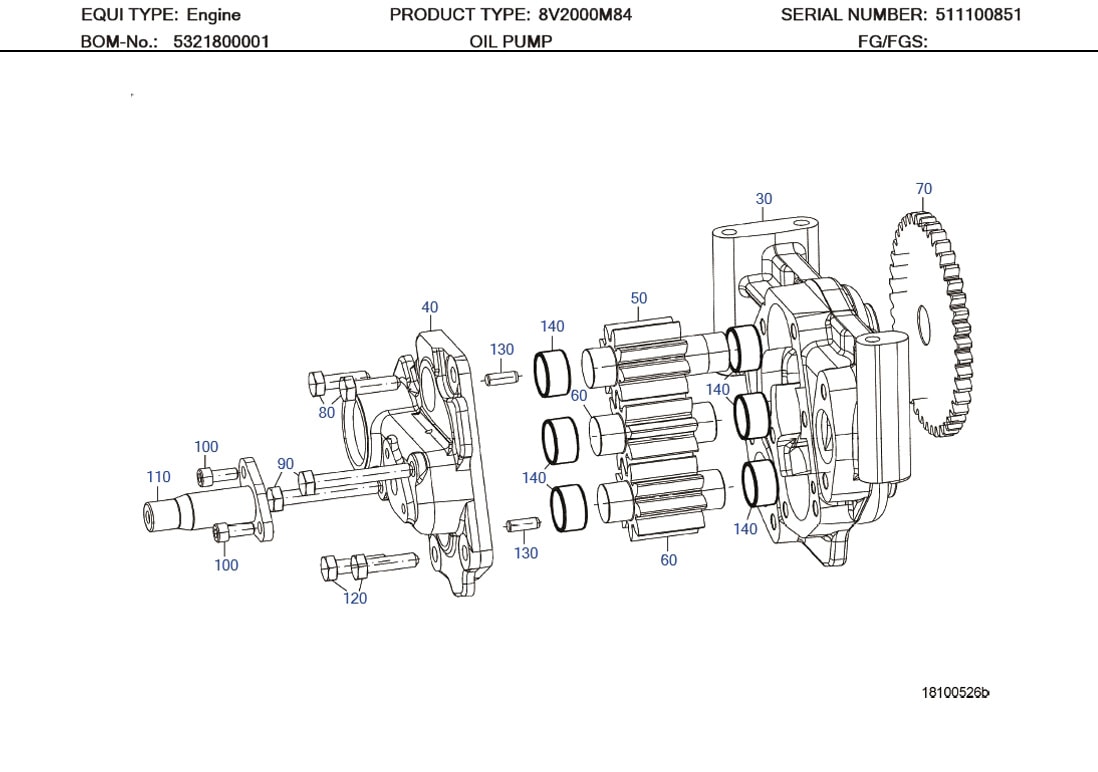

C/N | Description | Part-Number | Qty |
---|---|---|---|
30 | HOUSING | XP53218100001 | 001 |
40 | COVER | XP53218100002 | 001 |
50 | SHAFT WHEEL | XP53218100003 | 001 |
60 | PIN WHEEL | XP53218100004 | 002 |
70 | DRIVE GEAR | XP53218100005 | 001 |
80 | SCREW | XP53218100006 | 002 |
90 | HEX SCREW | 000933010093 | 002 |
100 | SCREW | 000912008201 | 002 |

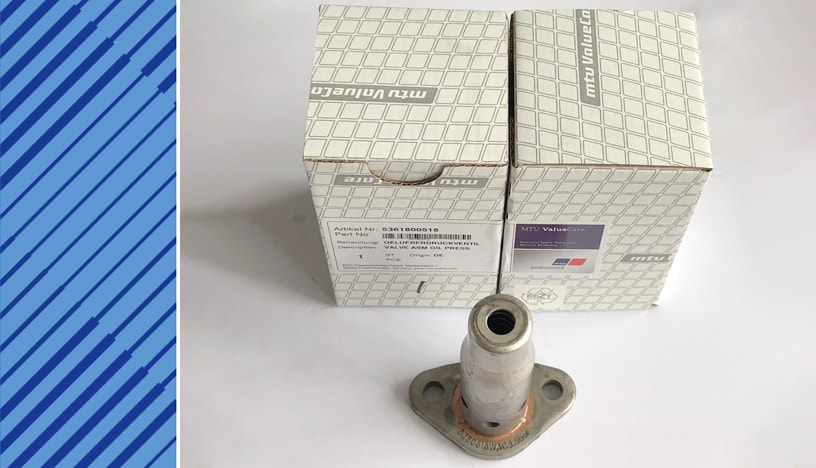

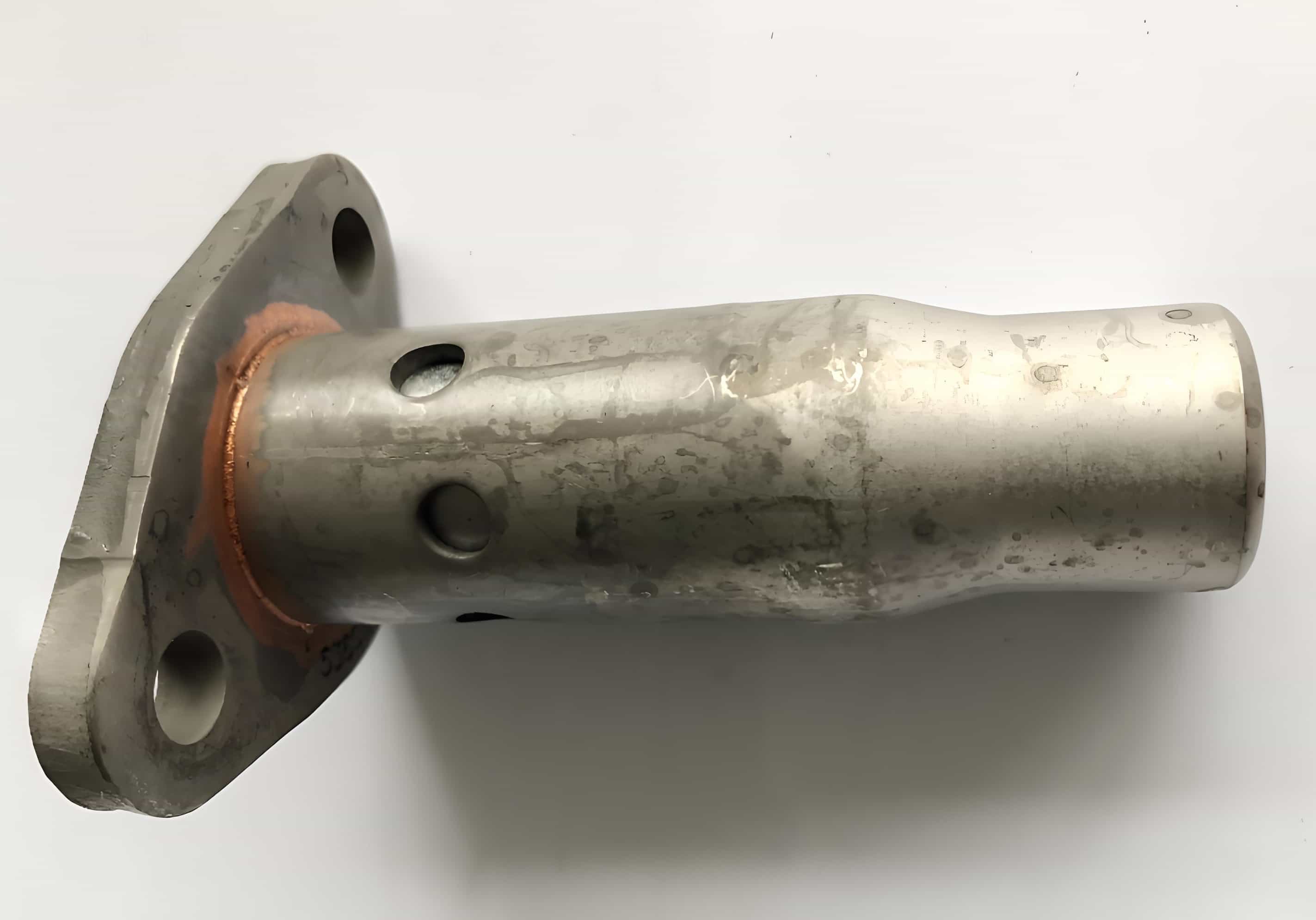

110 | VALVE ASM OIL PRESS RELIEF | 5361800515 | 001 |
120 | HEX SCREW | XP53218100009 | 002 |
130 | PIN | XP53218100010 | 002 |
140 | BUSHING | XP53218100007 | 006 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5361800515 | 5361800115 | N/A |
02 | 5361800515 | 5361800315 | 2002/12/01 |
03 | 5361800515 | 5361800515 | 2003/01/01 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
