| PART NUMBER | 3669900240 |
| ENGINE TYPE | MTU 2000 ENGINE |

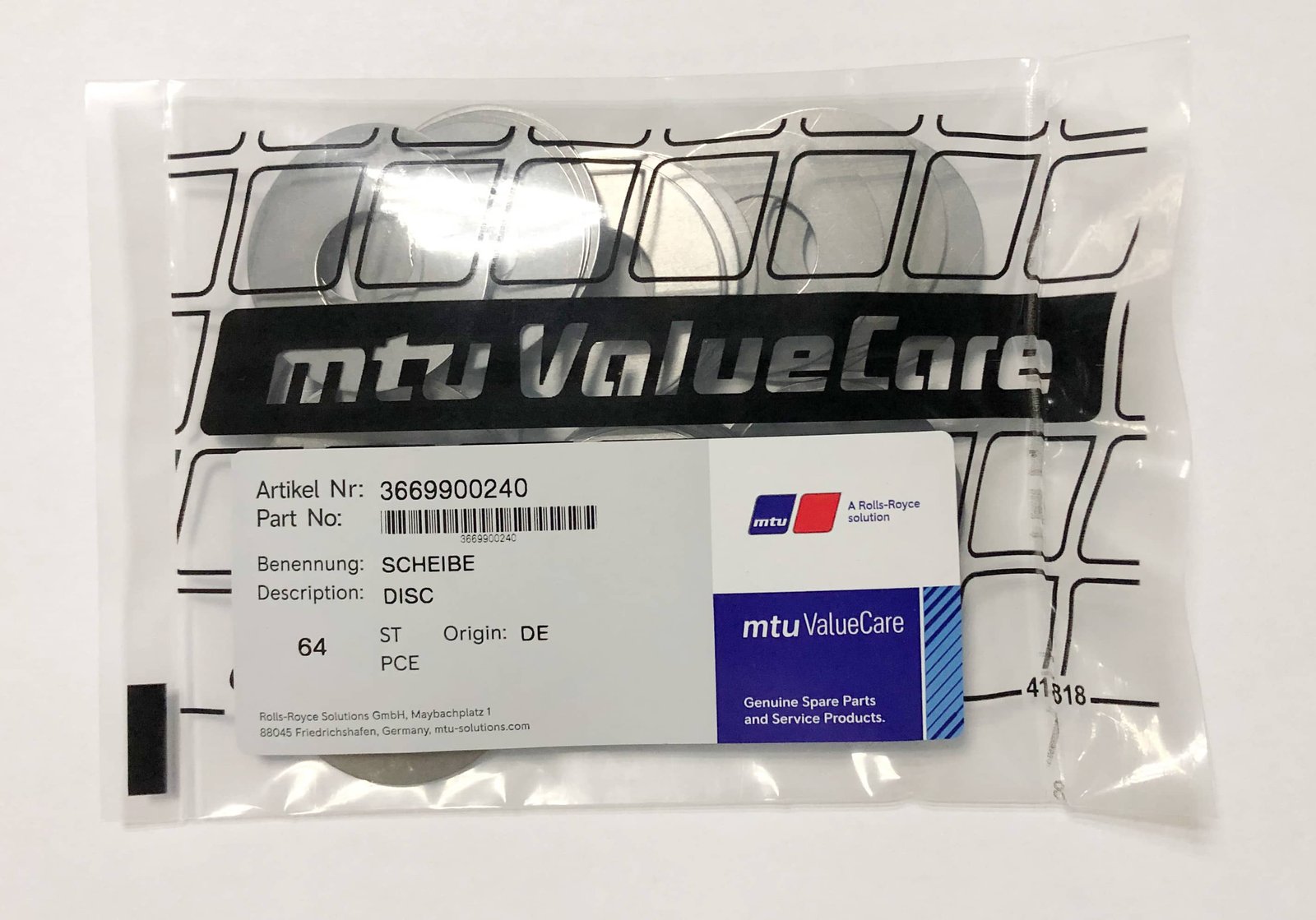

| DESCRIPTION | WASHER VALVE SPRING |
| DIMENSIONS | 34.5x15.6x0.5 |
| UNIT WEIGHT | 2.900 GRM |
| HS CODE | 73182200 |
| NATO-VERS.-NR. | 5310123391458 |

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 10 | CYLINDER HEAD | 5320100520 | 001 |
| 20 | INLET VALVE | 4570530001 | 002 |
| 30 | EXHAUST VALVE | 5410500227 | 002 |
| 40 | VALVE SPRING | 5320530020 | 004 |
| 50 | WASHER | 3669900240 | 004 |
| 60 | VALVE SPRNG RETAINER | 5410530225 | 004 |
| 70 | VALVE COLLET | 5410530226 | 008 |
| 80 | VALVE STEM SEAL | 0000533558 | 004 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 3669900240 | 3529902040 | N/A |
| 02 | 3669900240 | 23550081 | 1995/05/01 |
| 03 | 3669900240 | 3669900240 | 1995/06/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
