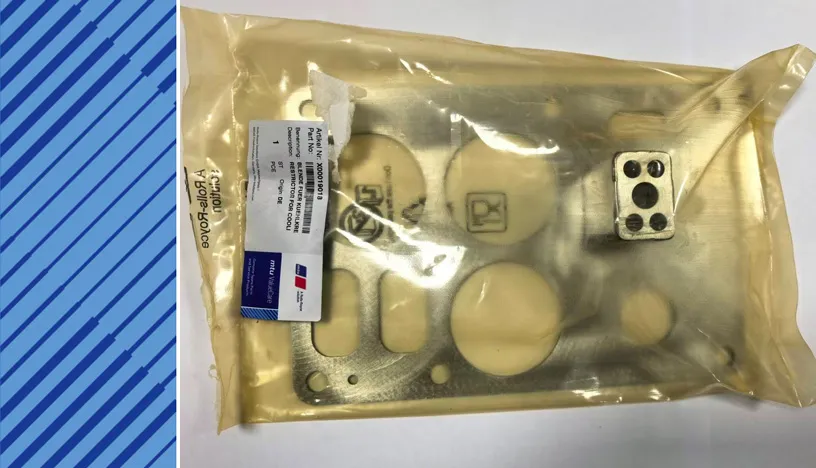

MTU 2000 PARTS | X00019018 | RESTRICTOR FOR COOLING SYSTEM

X00019018 RESTRICTOR FOR COOLING SYSTEM

Other
Other 5360320014 SLEEVE WEAR FRONT CR SHF X51114500001 2/2-WAY SOLENOID VLV 5410370220 PISTON PIN 4421870180 GASKET 5361420025 DIFFUSER EXHAUST 0005357433 SPEED SENSOR EX53620700005/87 SEAWATER PUMP E0070960399 EXHAUST TURBOCHARGER E0070960299 EXHAUST TURBOCHARGER X51699100034 RADIAL-LIP SHFT SEAL AUX PTO 0249975047 SHAFT SEAL RING X00E50203659 LEVEL MONITOR X00E50214075 PRESSURE SENSOR 5320160221 GASKET X51204200003 GASKET X53507500012 INJECTOR 5410180233 DIAPHRAGM F OIL SEPARATOR X51604200016 GASKET X54404200018 CYLINDER HEAD GASKET 5320980080 GASKET 5350980065 SEALING RING X53620200052/87 COOLANT PUMP 4571410080 GASKET X53608200005 FUEL PUMP LOW PRESSURE X00028031 GASKET 0009953502 CLAMP 0031845301 OIL FILTER SPIN-ON 0031845201 OIL FILTER SPIN-ON 8699970498 SEALING RING 5500511710 CAMSHAFT BEARING 5320530020 VALVE SPRING 3669900240 WASHER VALVE SPRING 5410530226 VALVE COLLET 4570530001 INLET VALVE X00005852 PROTECTIVE SLEEVE 8699810033 ANGLR-CONT BALL BRG 8699810032 CYL ROLLER BEARING X51199100026 STRAINER 5320700246 RELIEF VALVE XP51107300001 SUCTION RESTR. VALVE X00E50201022 GOVERNOR 5321800001 OIL PUMP X59320200040 FILTER CARTRIDGE FOR COOLANT X00014782 GASKET 5310900337 CHARGE-AIR LINE 5800150460 SEALING RING X51214200004 GASKET 5090250350 BEARING BUSHING 234110196000 PISTON RING, COMP 0001427157 LAMELLAR RING 5090850060 PISTON RING 5090850160 PISTON RING F/TURBOCHARGER X51299100019 V-RIBBED BELT X51621300033 GENERATOR 5362030180 GASKET 05144768 CLAMP 05122439 SEAL 5314770056 PLUG 5360780441 RETAINER 5369970040 SEALING RING 5360780180 GASKET FOR FUEL 05132155 RING SEALING 5360780131 ELBOW 5360702032 FUEL LINE X00E50209325 LEVEL MONITOR XP51108300002 FILTER CARTRIDGE 5320140022 GASKET X00005363 OIL SEPARATOR 916016012201 CLAMP X51510100022 FLANGE X51610100001 NOZZLE 916016006202 CLAMP 5361800515 VALVE ASM OIL PRESS RELIEF 5321800143 OIL SPRAY NOZZLE XP51529700006 ROTARY SEAL 5320900136 PLUG-IN PIPE 5241840501 LUBE OIL FULL FLOW FILTER 0180945802 CLEANER AIR W/ADAP FTG X53604200004 GASKET PLATE OUTER X53604200005 SEALING PLATE INNER X00028017 GASKET 0020922801 FUEL FILTER SPIN-ON X53220200002 SEALING SLEEVE 5255380580 MEMORY MODULE X00E50208847 PLUG-IN BOARD X00E50200664/76 PLUG-IN BOARD 8699890005 ADHESIVE X00041465 GAITER 5320900001 AIR FILTER 8800110159 SEALING RING 5410337101 CRANKSHAFT BEARING SIZE 0-0 5410330605 CRANKSHAFT BEARING SIZE 0-0 5360330262 THRUST WASHER 5410380250 CONROD BUSHING 5419900501 12-POINT HEAD SCREW X00004882 CYLINDER HEAD GASKET 5410501336 ROCKER SHAFT SUPPORT 5410500227 EXHAUST VALVE 5410530225 VALVE SPRNG RETAINER 5410532131 VALVE SEAT INSERT INLET 5410532730 VALVE GUIDE 5410530532 VALVE SEAT INSERT EXHAUST 5320100130 CYLINDER HEAD COVER X00005152 INJECTOR X00009196 DAMPER RING FOR INJECTOR X00023888 SEALING WASHER 0020921901 FUEL FILTER SPIN-ON 700429126000 O-RING 700429108000 O-RING X00003277 BEARING BUSHING X00010421 WASHER 5090200512 THRUST BEARING X00010425 WASHER 5090250141 RETAINING RING 5090200071 MAGNETIC NUT XT1310100012 MAGNETIC NUT 5090251301 COMPRESSOR WHEEL 700429540000 O-RING 0000180680 GASKET X00012160 WIRING HARNESS TO INJECTOR X00011800 WIRING HARNESS FOR SENSO 0005358233 SPEED SENSOR 0005357933 SPEED SENSOR 0035352531 PRESSURE SENSOR 0035352731 PRESSURE SENSOR 0035351731 PRESSURE SENSOR 5205304531 PRESSURE SENSOR 0035352931 PRESSURE SENSOR 0005356430 TEMPERATURE SENSOR 0005355103 LEVEL MONITOR 0005355303 LEVEL MONITOR 5410100163 OIL SEPARATOR 5360900001 AIR FILTER 0000943268 INDICATOR AIR FILTER RESTRISTER 40041 PASTE MOLYKOTE G-N-PLUS 700429460001 O-RING 50773 SILCONE RUBBER LOCTI X00017269 IMPELLER XP51529700004 ROTARY SEAL XP51529700005 O-RING XP52229700007 TRACK RING 8699970499 RADIAL-LIP SHFT SEAL X00028154 SEALING RING 8699970497 SEALING RING 8692040115 WASHER 8692040113 WASHER 5360900250 FUEL DELIVERY PUMP 5320110027 RING 5320110110 CYLINDER LINER
PART NUMBER X00019018
ENGINE TYPE MTU 2000 ENGINE
DESCRIPTION RESTRICTOR FOR COOLING
DIMENSIONS N/A
UNIT WEIGHT 0.740 KG
HS CODE 73269098
NATO-VERS.-NR. 2930123772169
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 2000 PARTS X00019018 RESTRICTOR FOR COOLING SYSTEM

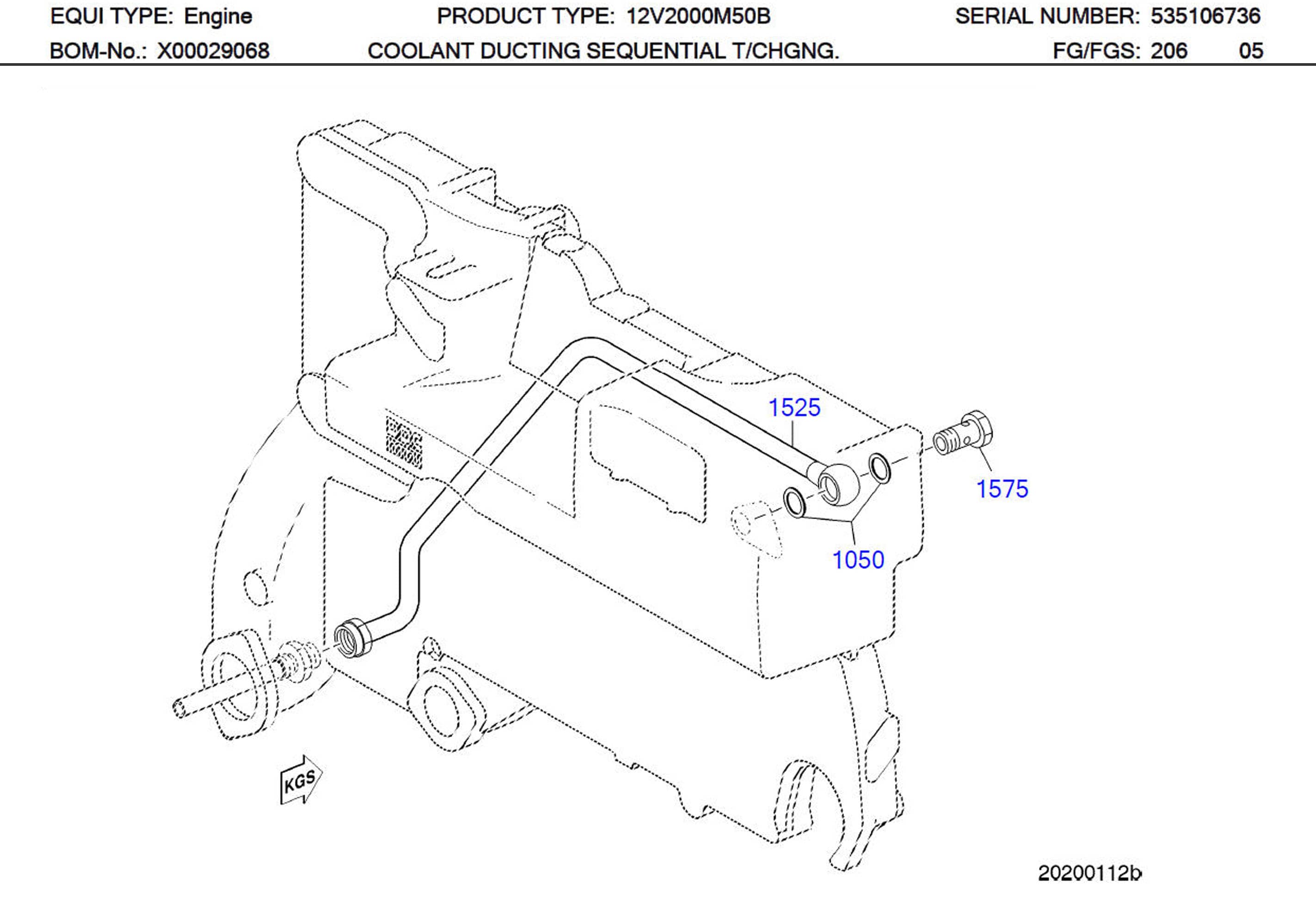

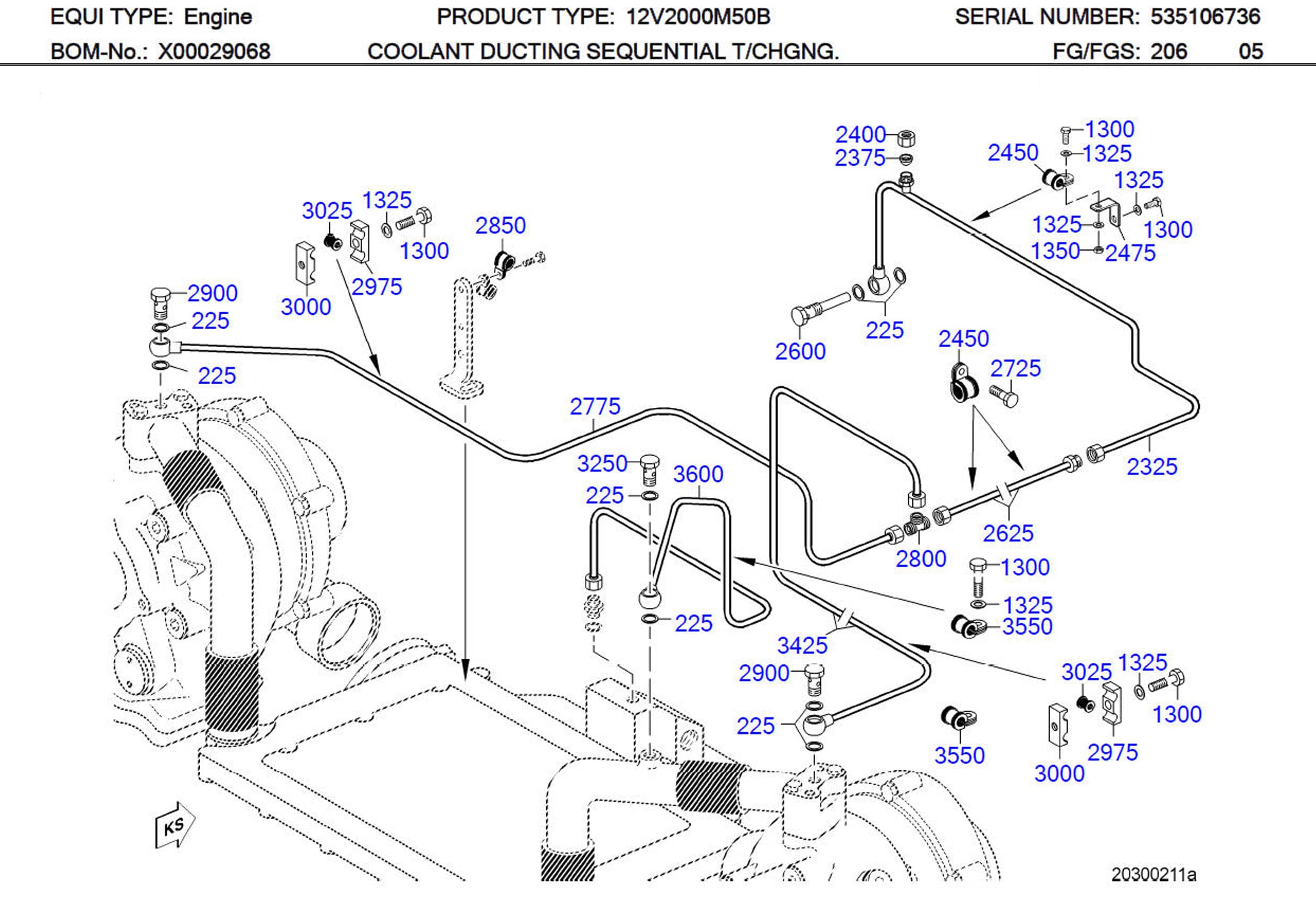

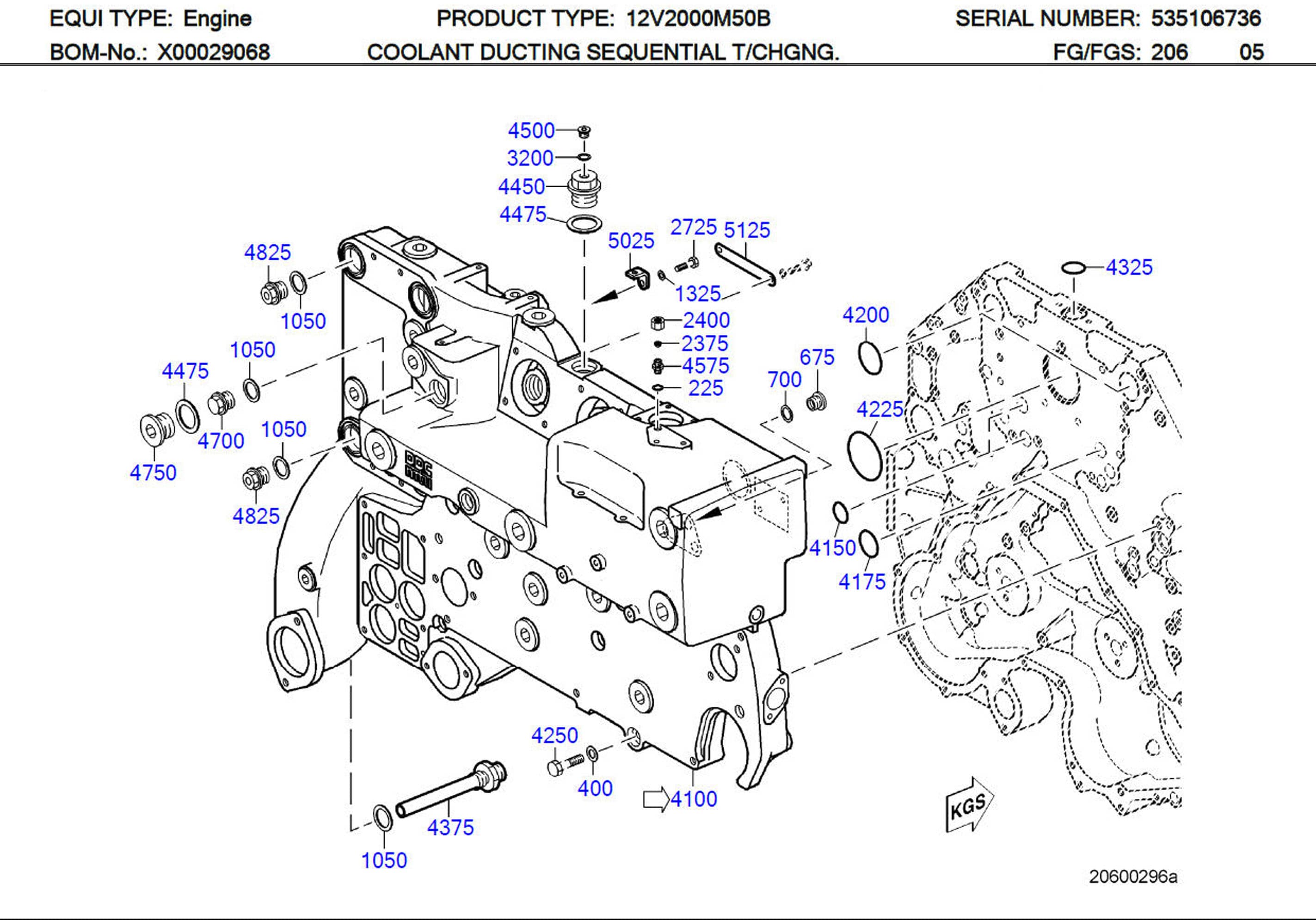

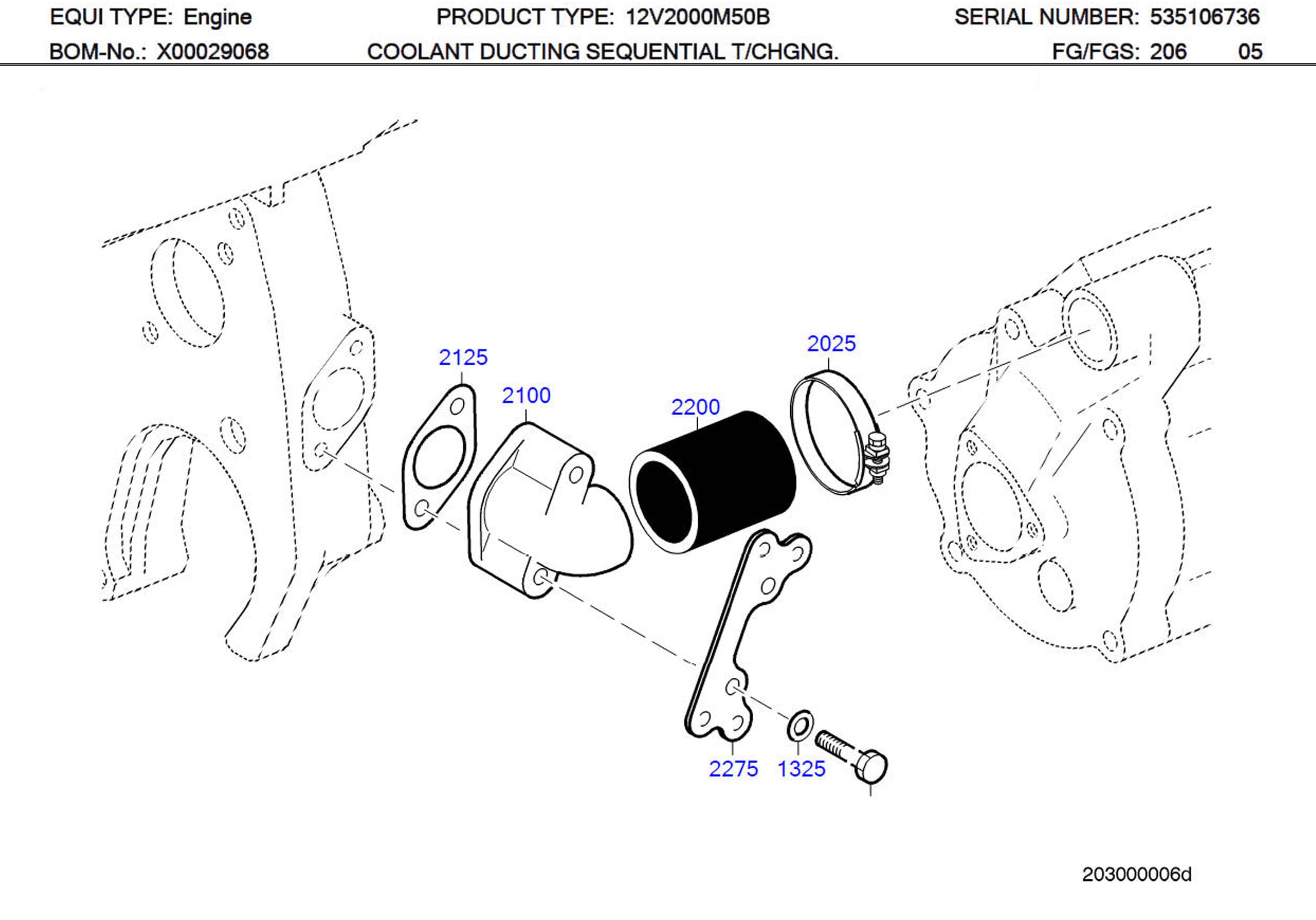

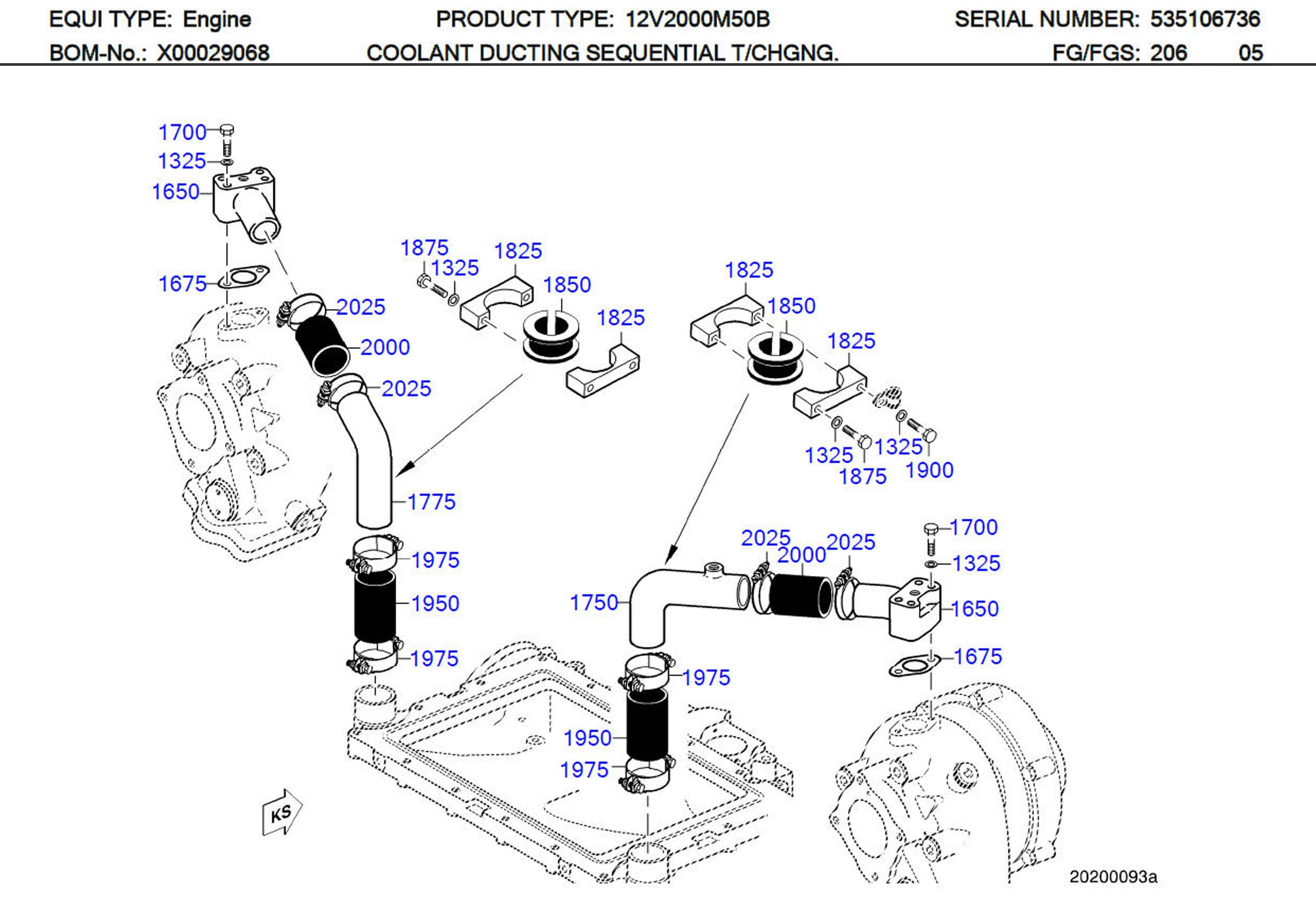

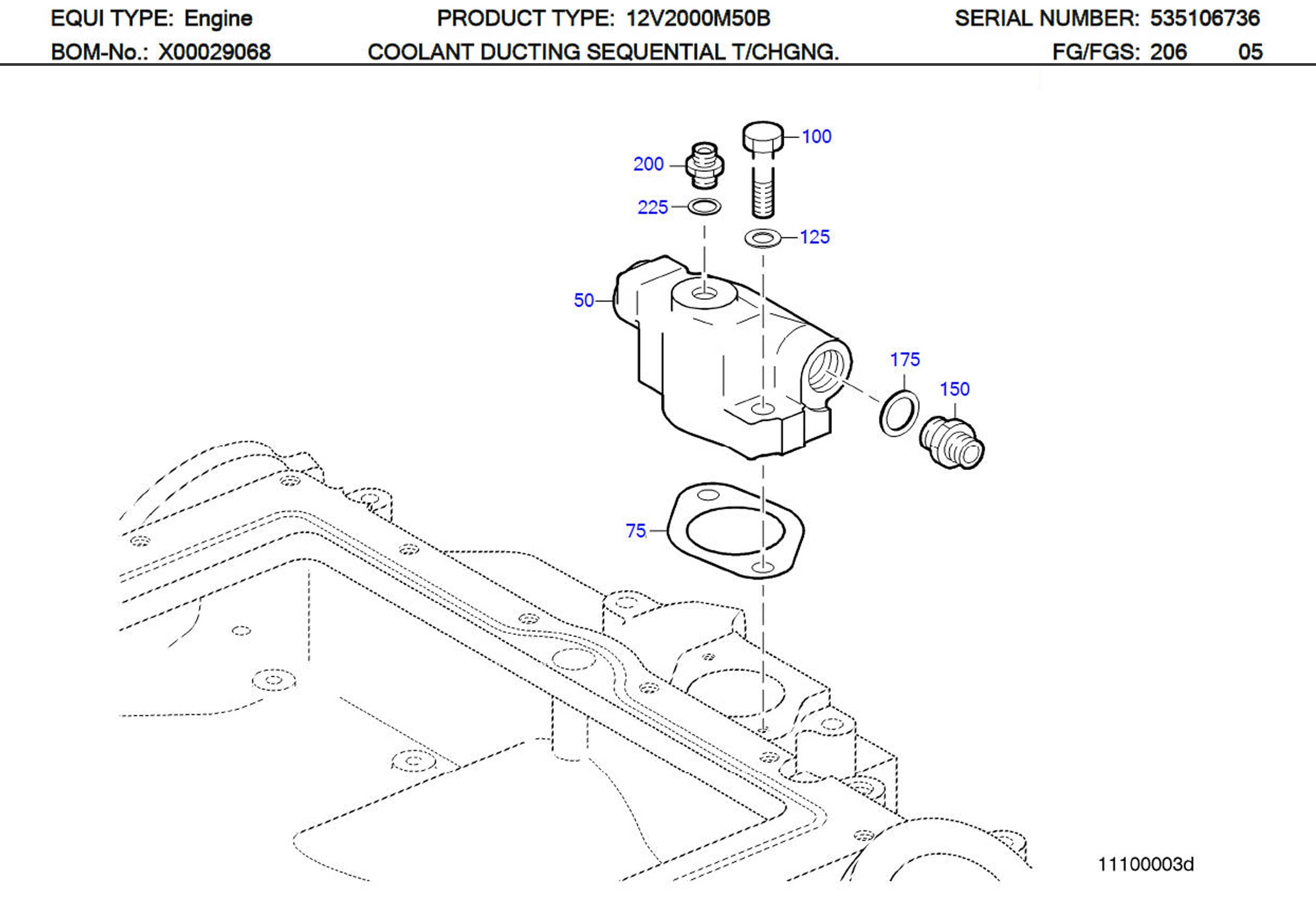

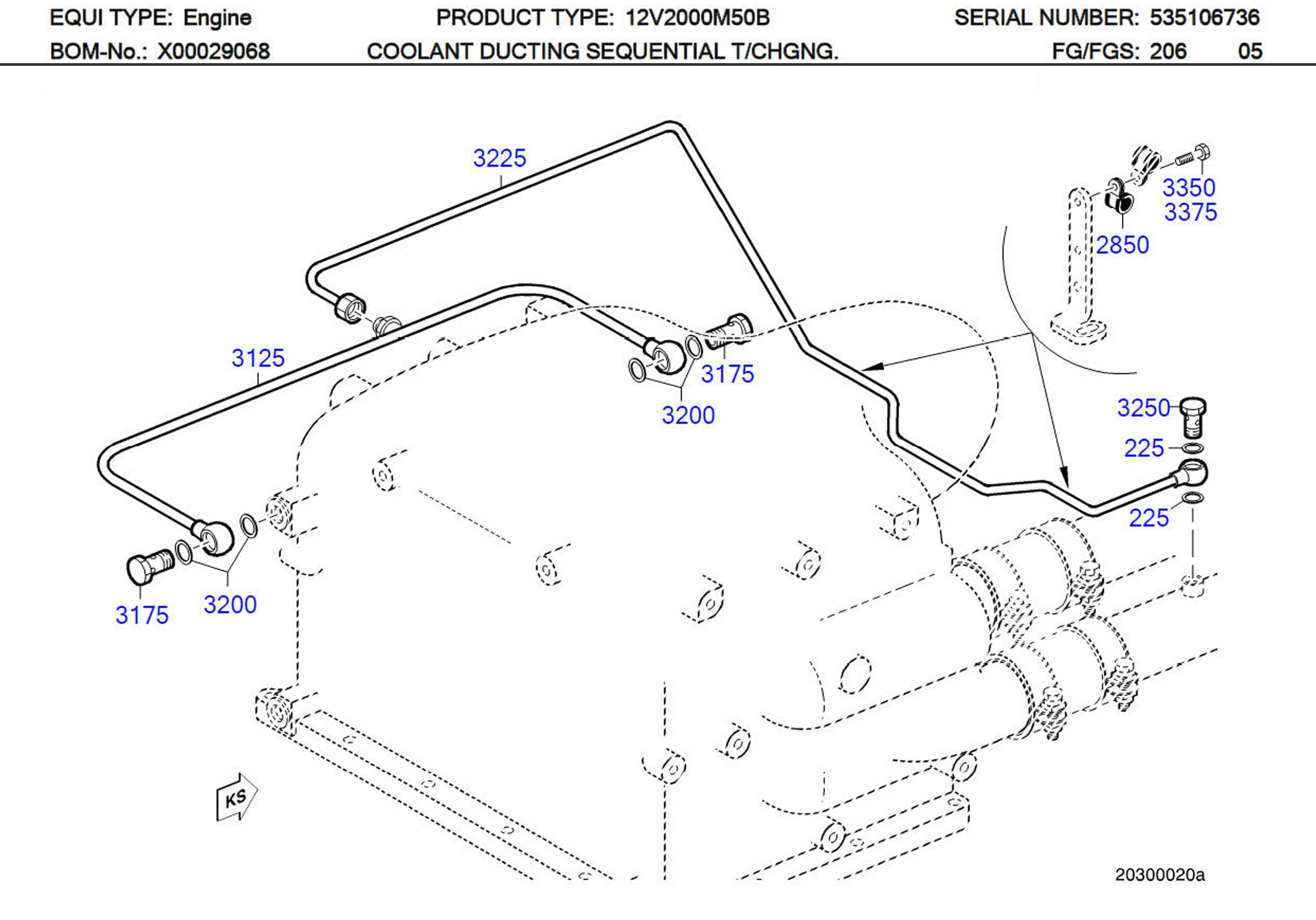

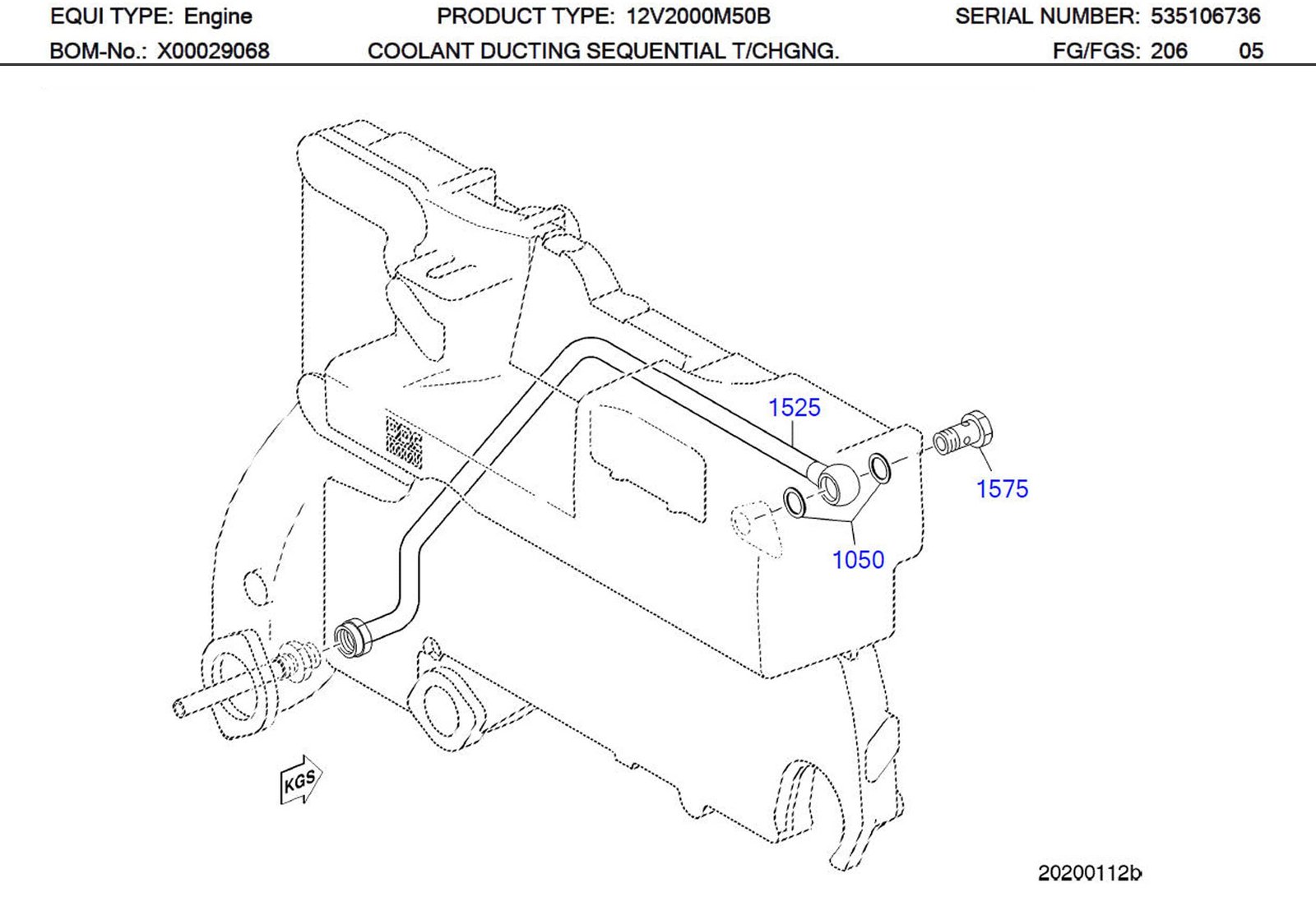

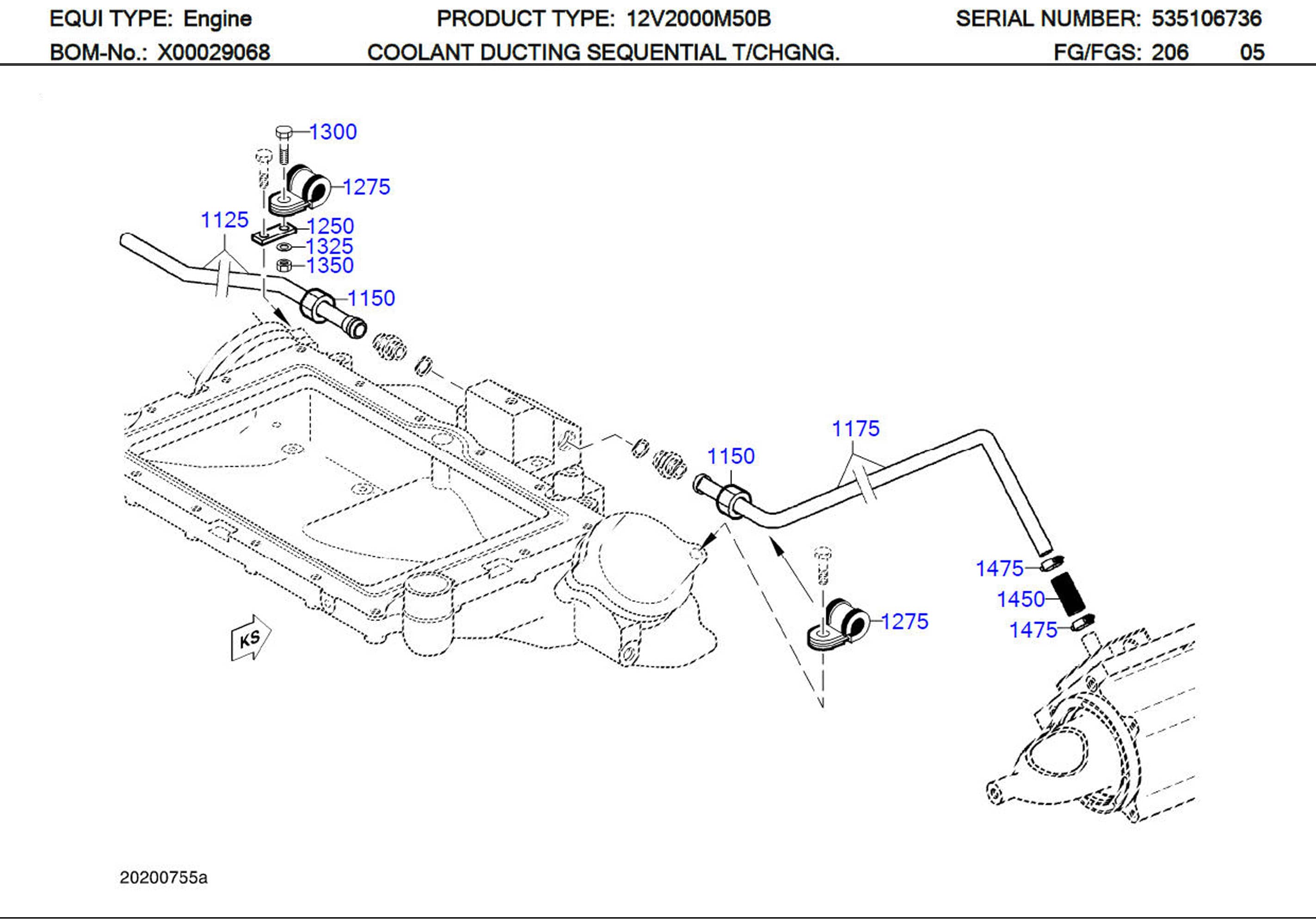

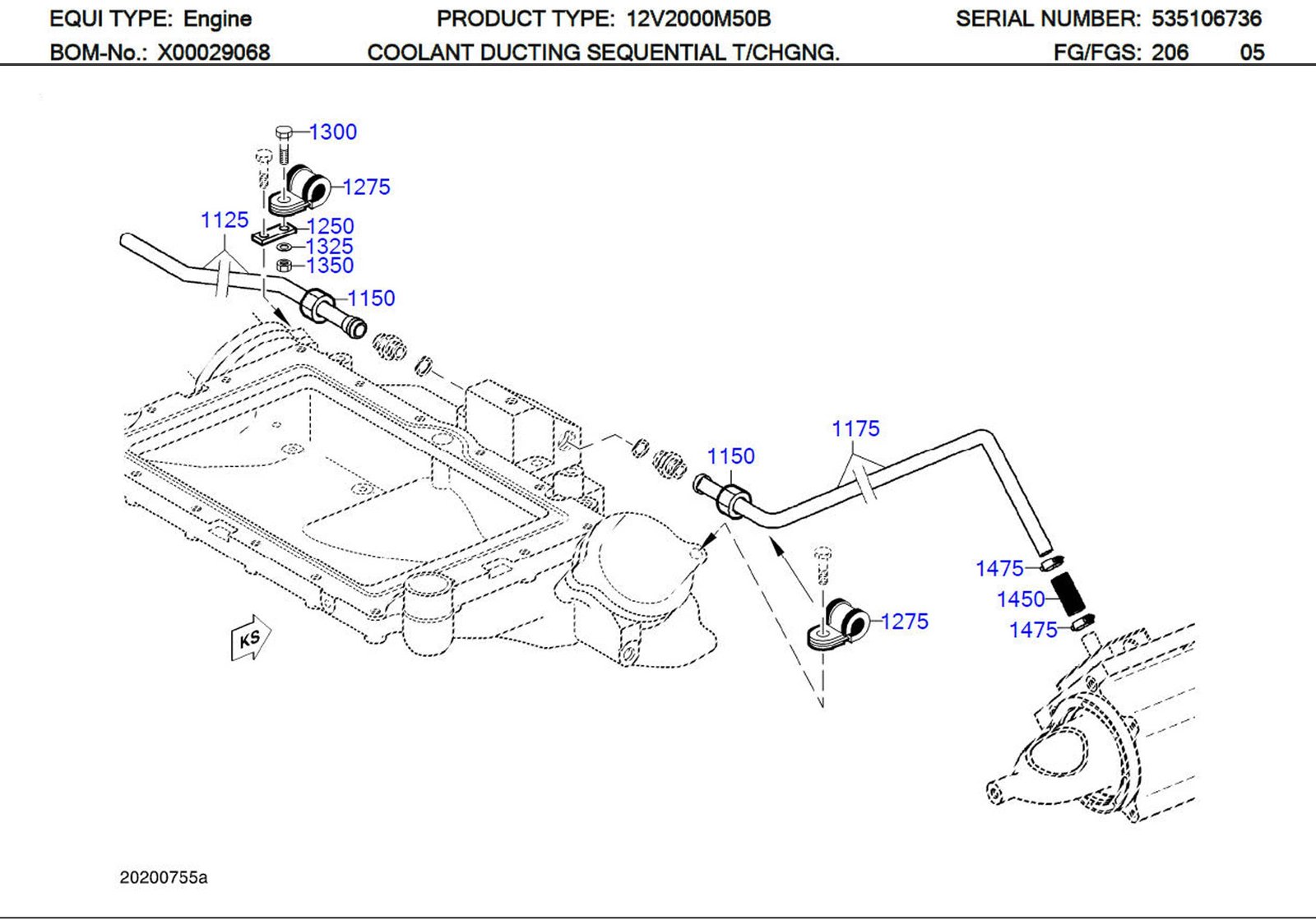

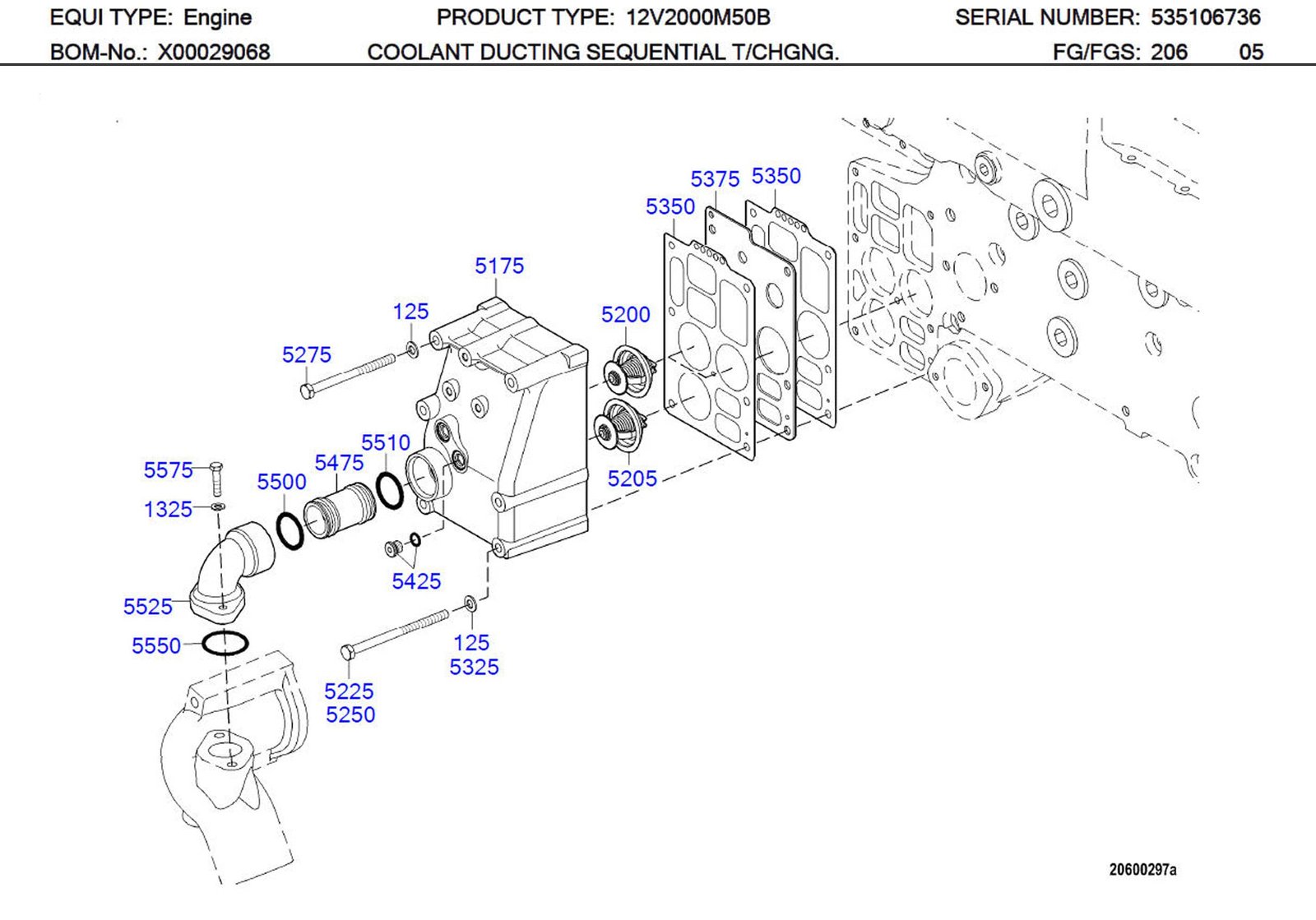

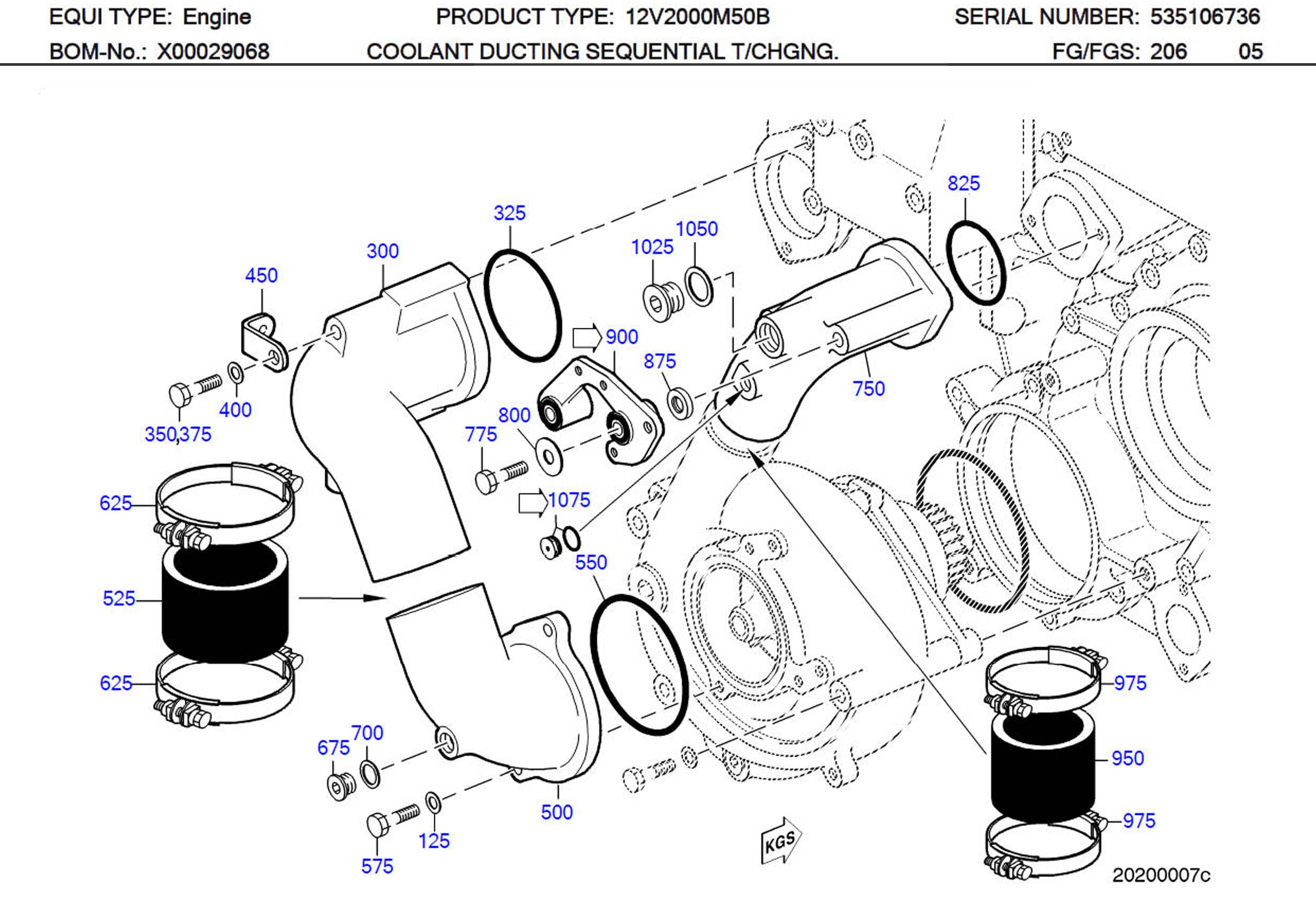

MTU 271511055000 Technical Engineering Exploded View MTU 900288102002 Technical Engineering Exploded View MTU 916016018202 Technical Engineering Exploded View MTU 915011020100 Technical Engineering Exploded View MTU 700368050001 Technical Engineering Exploded View MTU 000000000671 Technical Engineering Exploded View MTU 915011008101 Technical Engineering Exploded View MTU 700325010103 Technical Engineering Exploded View MTU 000931012137 Technical Engineering Exploded View MTU X00019018 Technical Engineering Exploded View

MTU 2000 PARTS X00019018 RESTRICTOR FOR COOLING SYSTEM

C/N Description Part-Number Qty
50 CONNECTING PIECE 5360780568 001
75 GASKET 271511055000 001
100 BOLT HEX 000933010094 002
125 WASHER 000125010524 002
95 UNION 915013016002 002
175 COPPER SEALING RING 007603022102 002
200 UNION 915006004002 001
225 COPPER SEALING RING 007603012111 001
300 COOLANT ELBOW TO WATER PUMP X53620600001 001
325 O-RING 700429090000 001
350 HEX SCREW 000931012216 001
375 BOLT HEX S2000/4000 000931012203 001
400 WASHER 000125013012 002
450 BRACKET L H:52 5315461043 001
500 ELBOW 5362033222 001
525 SLEEVE RUBBER 700368090002 001
550 O-RING 700429120002 001
575 BOLT HEX 000933010092 002
625 CLAMP 900288102002 002
675 PLUG 000908018002 001
700 COPPER SEALING RING 007603018101 001
750 ELBOW 5362033522 001
775 BOLT HEX 000931012168 002
800 WASHER 007349013002 002
825 O-RING 700429070000 001
875 SPACER 735151012200 002
900 RETAINER 5361500873 001
950 SLEEVE RUBBER A 700368070001 001
975 CLAMP 900288082005 002
1025 THREAD PLUG 000908026005 001
1050 COPPER SEALING RING 007603026104 001
1075 PLUG 5366190515 001
1125 LINE COOLANT M91CE 5362001951 001
1150 NUT 16 M26X1.5 BL.GEOELT 915001016004 001
1175 LINE COOLANT 5362002051 001
1250 BRACKET H:03 5500210040 001
1275 CLAMP 916016018202 001
1300 BOLT HEX 304017008079 001
1325 WASHER 000125008427 002
1350 NUT HEX 000934008008 001
1450 SLEEVE RUBBER 700368018002 002
1475 CLAMP 000000000667 004
1525 LINE COOLANT 5362002151 001
1575 BOLT BANJO A 20 915011020100 001
1650 ELBOW 5352030422 002
1675 GASKET 271511030000 002
1700 BOLT HEX A3C 304017008089 004
1750 LINE COOLANT FRT/TURBO RIGHT 5352001451 001
1775 LINE COOLANT 5352001551 001
1825 CLAMP HALF TUBE 1/2 D9-50 700325050100 004
1850 GROMMET 700327042000 002
1875 BOLT HEX 000931008241 003
1900 BOLT HEX A3C S2000/4000 304014008032 001
1950 SLEEVE RUBBER 700368050001 002
1975 CLAMP 900288062006 004
2000 SLEEVE RUBBER 700368042007 002
2025 CLAMP 000000000671 004
2100 ELBOW 5362032922 002
2125 GASKET 917003036005 002
2175 BOLT HEX 000931008173 004
2200 SLEEVE RUBBER 700368045010 002
2275 BRACKET H:53 5315460343 002
2325 LINE VENT 5362003458 001
2375 CONE SEALING 8 915005006000 001
2400 NUT 915001006003 001
2450 CLAMP 916016008202 002
2475 BRACKET L H:26 S4000 S2000 5502036240 001
2600 UNION 5362000130 001
2625 LINE VENT 5352000458 001
2725 BOLT HEX A3C S2000/4000 304017008077 003
2775 LINE VENT 5352000958 001
2800 FITTING TEE 5569970574 001
2850 CLAMP 916016006201 002
2900 BOLT BANJO A4 700223004000 001
2975 CLAMP HALF TUBE 2/1 D9-10 700325010103 001
3000 CLAMP HALF TUBE 2/1 G8-10 700325010202 001
3025 GROMMET 700327006000 002
3125 LINE VENT 5362003358 001
3175 BOLT BANJO A 8 915011008101 002
3200 COPPER SEALING RING 007603014102 004
3225 VENT LINE 5362002558 001
3250 BOLT BANJO A 6 915011006102 001
3350 BOLT HEX 000933006088 002
3375 WASHER 000125006431 002
3425 LINE VENT 5352000858 001
3550 CLAMP 916016006202 001
3600 LINE VENT 5352001058 001
4100 COOLANT DISTRIB HSG 5362000916 001
4150 O-RING 700429030002 002
4175 O-RING 700429040001 001
4200 O-RING 700429054000 002
4225 O-RING 700429076000 001
4250 BOLT HEX 000931012137 006
4325 O-RING 700429032003 001
4375 INJECTOR 5362000029 001
4450 PLUG 5369970030 001
4475 COPPER SEALING RING 007603038101 001
4500 THREAD PLUG 000908014001 001
4575 UNION 915013006002 001
4700 PLUG 000910026000 001
4750 THREAD PLUG 000908038000 001
4825 RESTRICTOR SCREW-IN M91CE 5369970234 001
5025 BRACKET 5502030043 001
5125 BRACKET FLAT H:55 5315460243 001
5175 HOUSING THERMOSTAT X00008130 001
5200 THERMAL ACTUATOR 0052032775 001
5205 THERMOSTAT 0052035875 002
5225 BOLT HEX 000931010332 002
5250 BOLT HEX 000931010339 002
5275 BOLT HEX 000931010336 002
5325 WASHER 007349010002 002
5350 GASKET 531SK1170 002
5375 PLATE THERMOSTAT HSG X00019018 001
5425 PLUG 5366190515 001
5475 PIPE PLUG IN W/RESTRICTOR X00033502 001
5500 O-RING 700429038000 002
5510 O-RING 700429037001 001
5525 ELBOW COOLANT X00034164 001
5550 O-RING 700429048000 001
5575 BOLT HEX A3C 304017008083 002

MTU 2000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 2000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 2000 M72 720 2250 135/156 (5.3/6.1)
10V 2000 M72 900 2250 135/156 (5.3/6.1)
12V 2000 M93 1340 2450 135/156 (5.3/6.1)
16V 2000 M93 1790 2450 135/156 (5.3/6.1)
12V 2000 M92 1220 2450 135/156 (5.3/6.1)
16V 2000 M92 1630 2450 135/156 (5.3/6.1)
12V 2000 M72 1080 2250 135/156 (5.3/6.1)
16V 2000 M72 1440 2250 135/156 (5.3/6.1)
8V 2000 M94 932 2450 135/156 (5.3/6.1)
8V 2000 M84 810 2450 135/156 (5.3/6.1)
8V 2000 M84L 895 2450 135/156 (5.3/6.1)
12V 2000 M61 600 1800 130/150 (5.1/5.9)
16V 2000 M61 800 1800 130/150 (5.1/5.9)
8V 2000 M61 400 1800 130/150 (5.1/5.9)
10V 2000 M86 1015 2450 135/156 (5.3/6.1)
12V 2000 M86 1268 2450 135/156 (5.3/6.1)
16V 2000 M86 1630 2450 135/156 (5.3/6.1)
10V 2000 M96 1120 2450 135/156 (5.3/6.1)
