C/N | Description | Part-Number | Qty |
---|---|---|---|
10 | CYLINDER HEAD | 5320100520 | 001 |

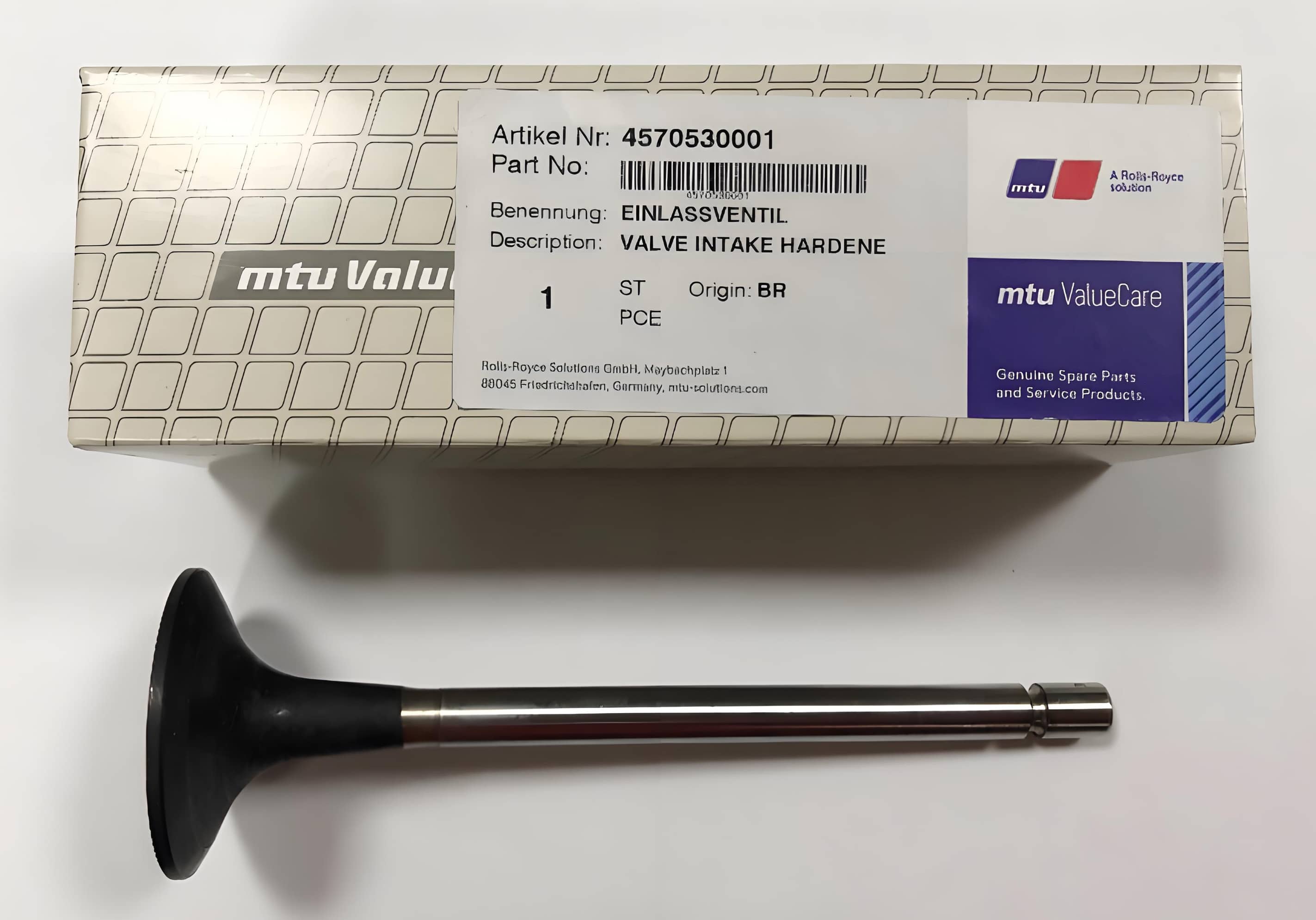

20 | INLET VALVE | 4570530001 | 002 |
30 | EXHAUST VALVE | 5410500227 | 002 |
40 | VALVE SPRING | 5320530020 | 004 |
50 | WASHER | 3669900240 | 004 |
60 | VALVE SPRNG RETAINER | 5410530225 | 004 |
70 | VALVE COLLET | 5410530226 | 008 |
80 | VALVE STEM SEAL | 0000533558 | 004 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 4570530001 | 23550809 | N/A |
02 | 4570530001 | 23525875 | 2004/11/01 |
03 | 4570530001 | 23528101 | 2004/12/01 |
04 | 4570530001 | DDE A4570530001 | 2005/01/01 |
05 | 4570530001 | A4570530001 | 2005/02/01 |
06 | 4570530001 | X51604100025 | 2014/01/01 |
07 | 4570530001 | 4570530001 | 2018/08/01 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
