PART NUMBER X51214200004
ENGINE TYPE MTU 2000 ENGINE
DESCRIPTION GASKET
DIMENSIONS METALLISCHE DICHTUNG, KEIN MHD
UNIT WEIGHT 0.019 KG
HS CODE 84841000
NATO-VERS.-NR. 5330124082338
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

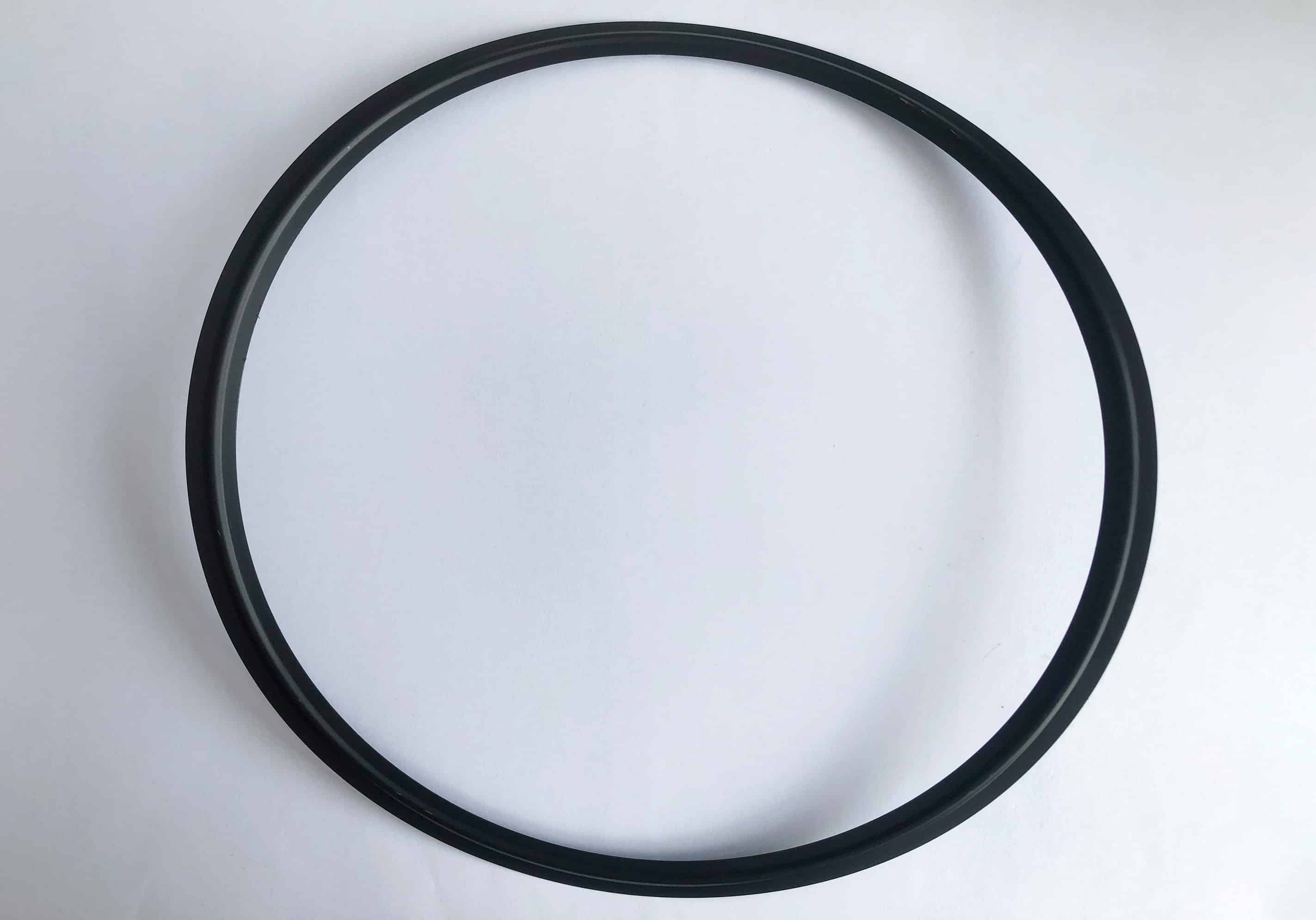

MTU X51214200004 EXHAUST SYSTEM GASKET

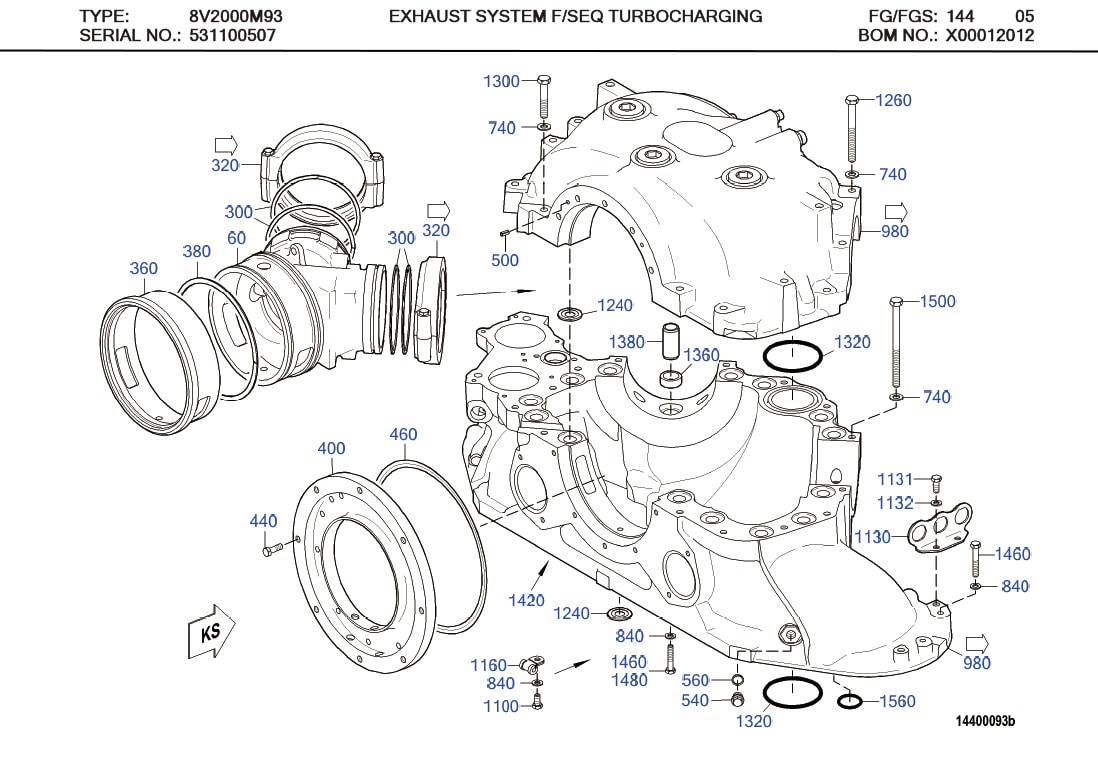

MTU X51214200004 Technical Engineering Exploded View MTU X51214200004 EXHAUST SYSTEM F/SEQ TURBOCHARGING GASKET

MTU X51214200004 EXHAUST SYSTEM GASKET

C/N Description Part-Number Qty
60 FLAP HOUSING 5321421467 001
100 ASSEMBLY PRODUCTS 50547 001
120 EXHAUST FLAP 5321420031 001
140 BEARING BUSHING 5321420050 001
160 BEARING BUSHING 5321420150 001
200 SCREW 200933010002 002
220 SCREW 000000003169 002
260 SCREW 5329900101 001
300 LAMELLAR RING 0001427157 004
320 RING 5351400077 002
360 BUSHING 5321420250 001
380 PISTON RING, COMP. 234110196000 002
400 FLANGE 5321420215 001
440 SCREW 000912008055 010
460 GASKET 5321420080 001
500 SPRING PIN 007346006003 002
540 PLUG 000910014004 002
560 SEALING RING 007603014102 002
600 SHAFT 5321420329 001
620 SHAFT 5321420429 001
640 BUSHING 5321420350 001
660 FLANGE 5321420615 001
680 O-RING 700429017000 001
720 SCREW 000000000906 002
740 WASHER 000125010524 018
780 LEVER 5360980026 001
800 SPRING PIN 001481005030 001
820 SCREW 304017008083 002
840 WASHER 000125008427 041
860 ACTUATING CYLINDER 5360980218 001
900 UNION 5360980035 002
920 SEALING RING 007603010110 002
960 ROD 5361400146 001
980 CARRIER HOUSING 5321401018 001
1040 NUT 999900008000 001
1080 RETAINER 5620984139 002
1100 SCREW 304017008077 004
1160 CLAMP 916016006202 006
1240 GASKET 5321420180 029
1260 SCREW 000931010315 007
1300 SCREW 000933010144 007
1320 O-RING 700429080001 002
1360 SEALING RING 8390780080 002
1380 SLEEVE 5321870053 002
1420 SILICONE RUBBER 50773 001
1460 SCREW 304017008087 024
1480 SCREW 304017008085 001
1500 SCREW 000000001041 002
1560 O-RING 700429030002 002

X51214200004 SUPERSEDED PART AND EFFECTIVE DATE

X51214200004 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X51214200004 5321420080 N/A
02 X51214200004 X51214200001 2007/07/01
03 X51214200004 X51214200004 2007/08/01

MTU 2000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 2000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 2000 M72 720 2250 135/156 (5.3/6.1)
10V 2000 M72 900 2250 135/156 (5.3/6.1)
12V 2000 M93 1340 2450 135/156 (5.3/6.1)
16V 2000 M93 1790 2450 135/156 (5.3/6.1)
12V 2000 M92 1220 2450 135/156 (5.3/6.1)
16V 2000 M92 1630 2450 135/156 (5.3/6.1)
12V 2000 M72 1080 2250 135/156 (5.3/6.1)
16V 2000 M72 1440 2250 135/156 (5.3/6.1)
8V 2000 M94 932 2450 135/156 (5.3/6.1)
8V 2000 M84 810 2450 135/156 (5.3/6.1)
8V 2000 M84L 895 2450 135/156 (5.3/6.1)
12V 2000 M61 600 1800 130/150 (5.1/5.9)
16V 2000 M61 800 1800 130/150 (5.1/5.9)
8V 2000 M61 400 1800 130/150 (5.1/5.9)
10V 2000 M86 1015 2450 135/156 (5.3/6.1)
12V 2000 M86 1268 2450 135/156 (5.3/6.1)
16V 2000 M86 1630 2450 135/156 (5.3/6.1)
10V 2000 M96 1120 2450 135/156 (5.3/6.1)
