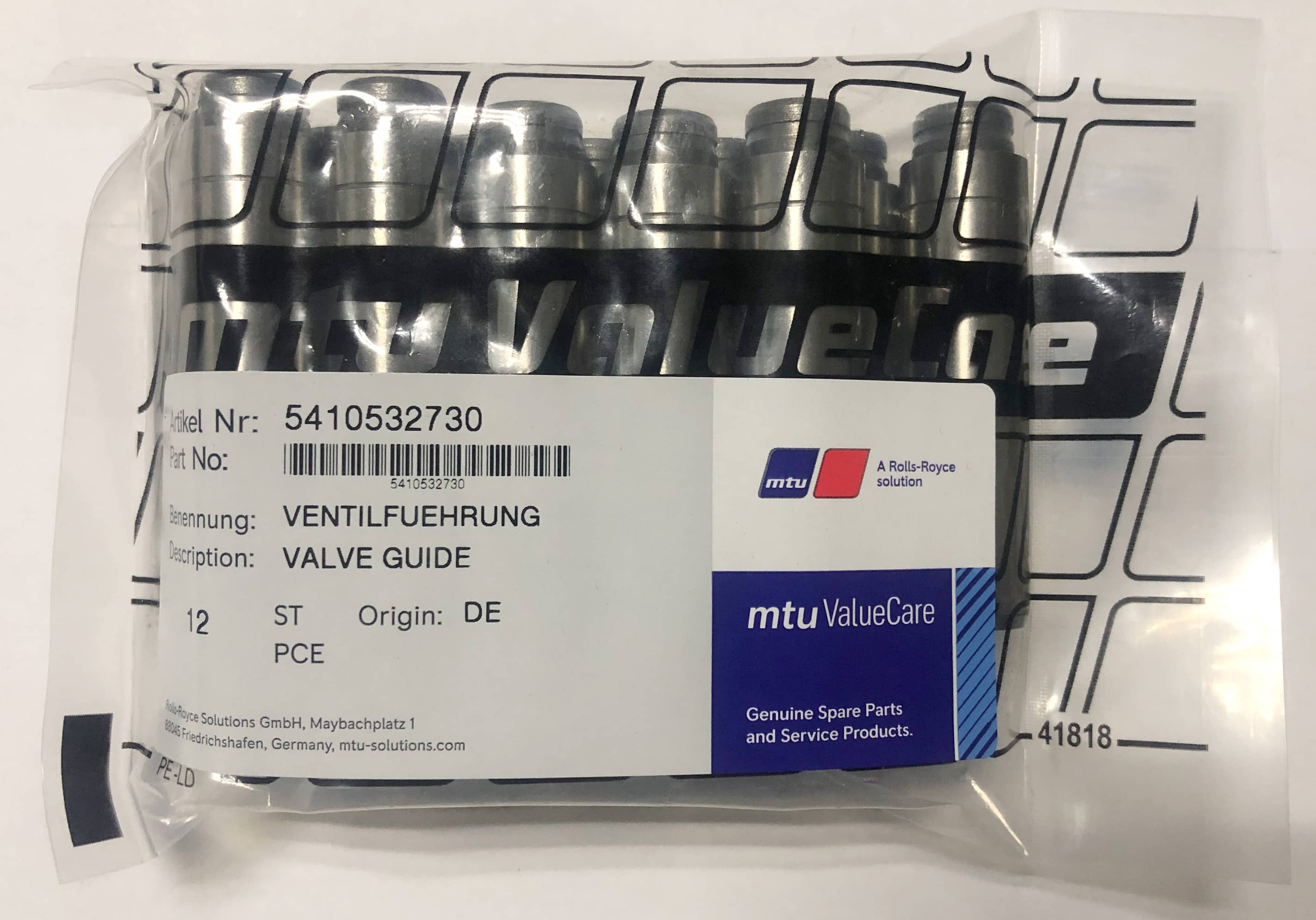

| PART NUMBER | 5410532730 |
| ENGINE TYPE | MTU 2000 ENGINE |
| DESCRIPTION | VALVE GUIDE |
| DIMENSIONS | SIEHE MB TAB 5410532630 |
| UNIT WEIGHT | 0.045 KG |
| HS CODE | 84099900 |
| NATO-VERS.-NR. | 2815123779005 |
| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 10 | CYLINDER HEAD | X00002773 | 001 |
| 20 | VALVE SEAT INSERT INLET | 5410532131 | 002 |
| 30 | VALVE SEAT INSERT EXHAUST | 5410530532 | 002 |
| 40 | VALVE GUIDE | 5410531230 | 004 |
| 50 | O-RING | 5419970745 | 001 |
| 60 | PROTECTIVE SLEEVE | X00005852 | 001 |
| 70 | COVER | 0009974320 | 002 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5410532730 | 4570530830 | N/A |
| 02 | 5410532730 | DDE A4570531230 | 2009/09/01 |
| 03 | 5410532730 | 4570531230 | 2010/10/01 |
| 04 | 5410532730 | 5410531230 | 2010/11/01 |
| 04 | 5410532730 | 5410532730 | 2010/12/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
