| PART NUMBER | 5410180233 |
| ENGINE TYPE | MTU 2000 ENGINE |

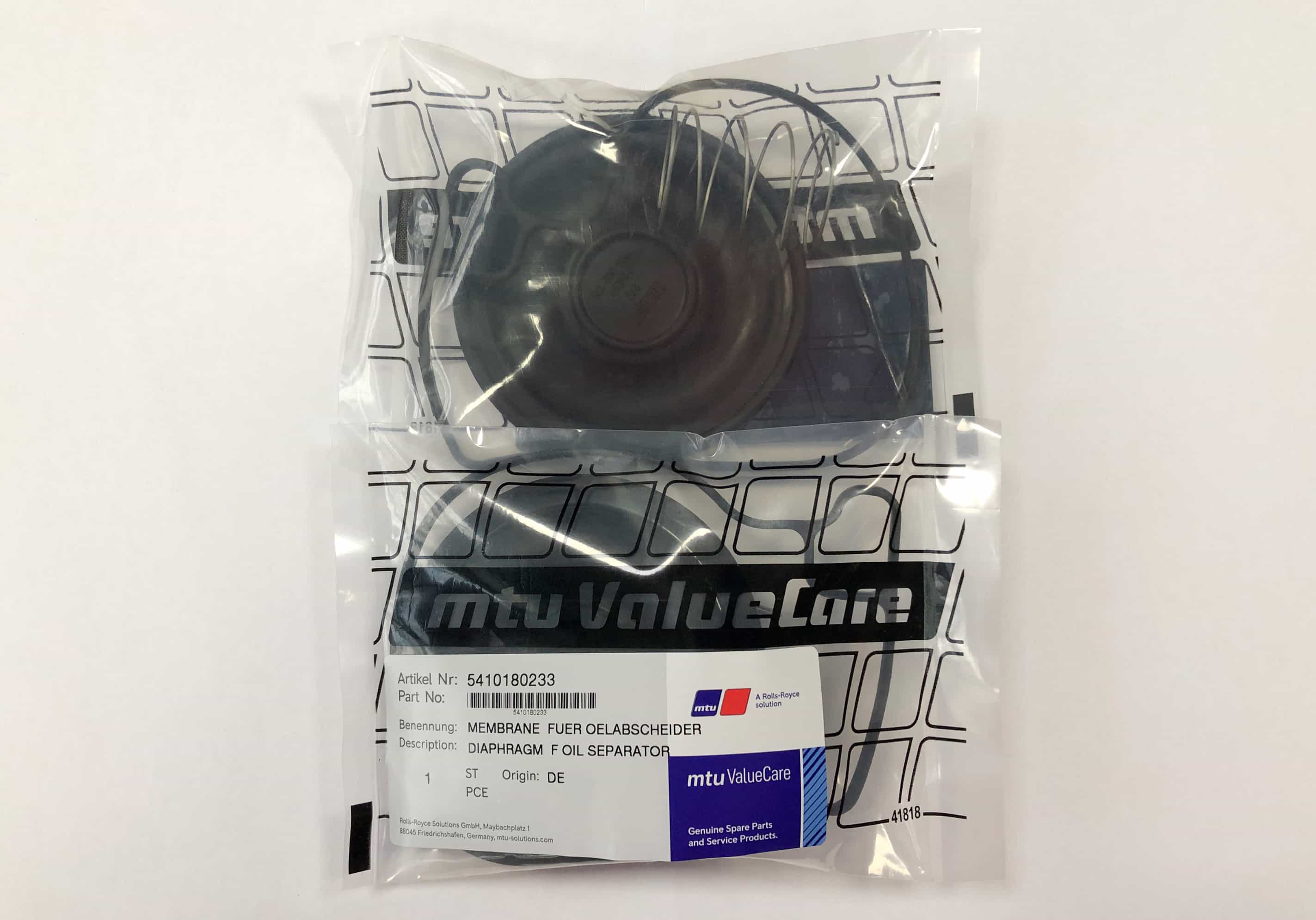

| DESCRIPTION | DIAPHRAGM F OIL SEPARATOR |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.019 KG |
| HS CODE | 84099900 |
| NATO-VERS.-NR. | 4820123595347 |

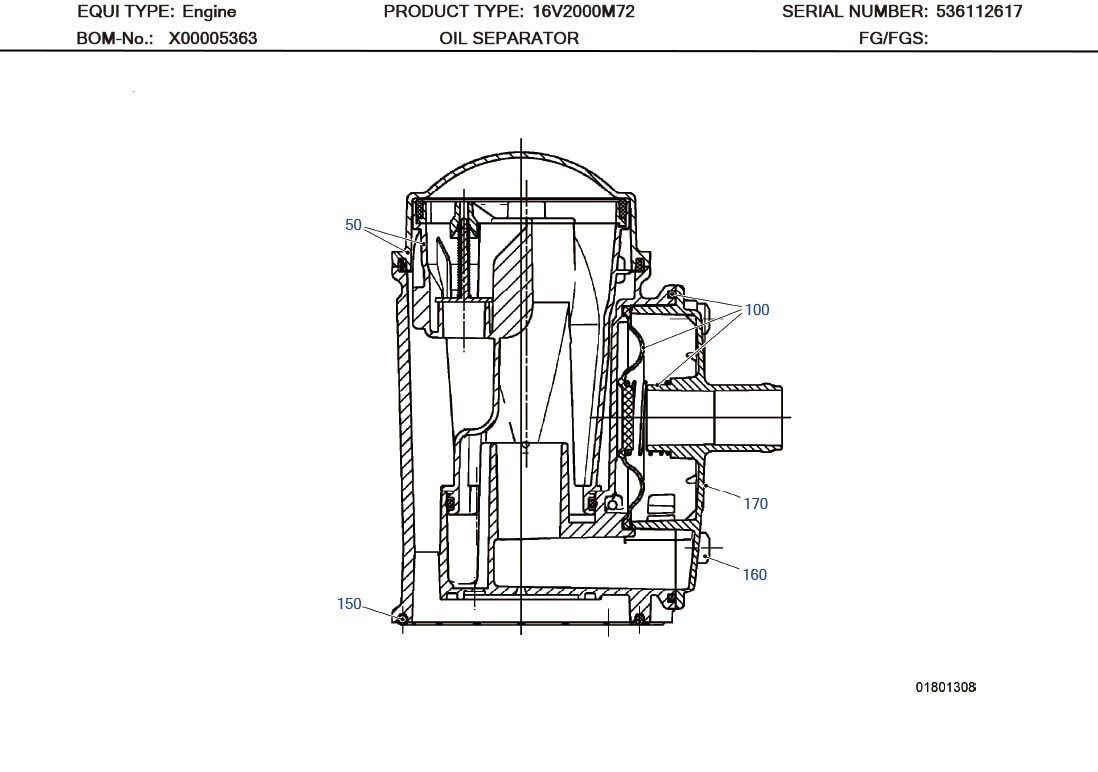

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 50 | INSERT OIL SEPARATOR | 5410100163 | 001 |
| 100 | DIAPHRAGM F OIL SEPARATOR | 5410180233 | 001 |
| 150 | GASKET | 0000180680 | 001 |
| 105 | SCREW | XP52299100029 | 006 |
| 170 | COVER | 5410150209 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5410180233 | 5410180033 | N/A |
| 02 | 5410180233 | 5410180333 | 2003/12/01 |
| 03 | 5410180233 | 5410180233 | 2004/01/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
