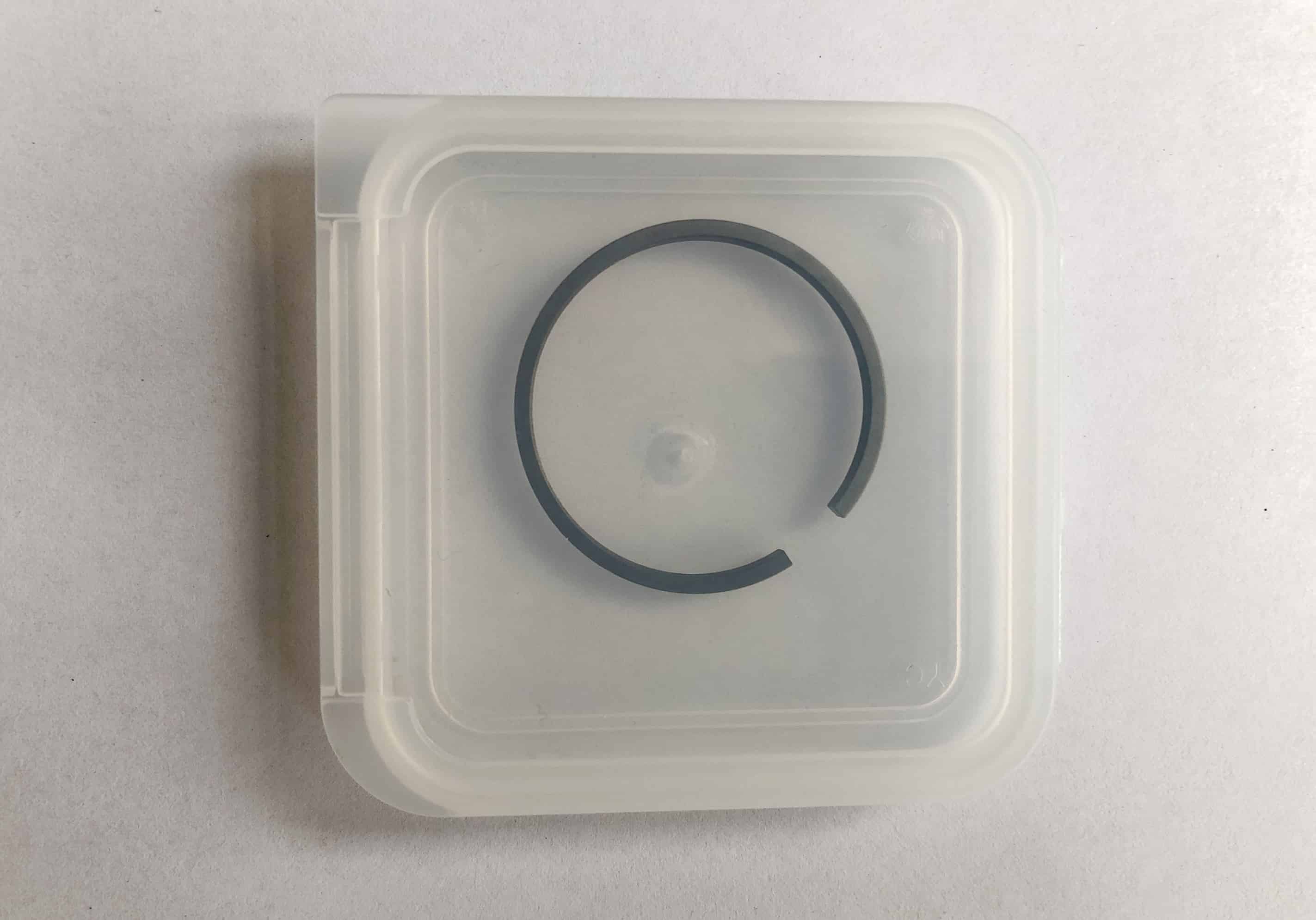

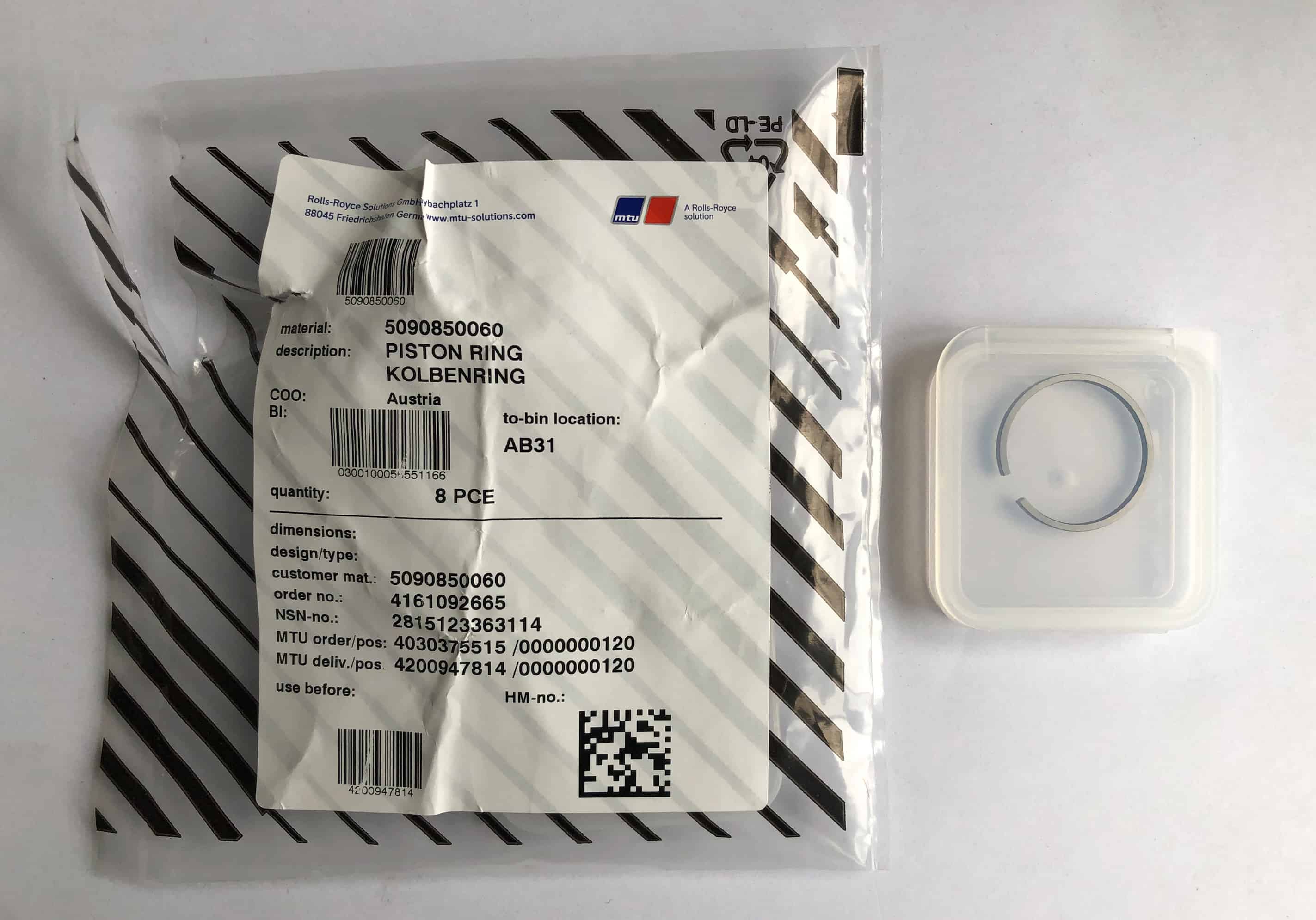

| PART NUMBER | 5090850060 |
| ENGINE TYPE | MTU 2000 ENGINE |
| DESCRIPTION | PISTON RING |
| DIMENSIONS | ZR 125 |
| UNIT WEIGHT | 0.002 KG |
| HS CODE | 84099900 |
| NATO-VERS.-NR. | 2815123363114 |

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 05 | O-RING | 700429126000 | 002 |
| 10 | O-RING | 700429108000 | 001 |
| 15 | O-RING | 700429200002 | 001 |
| 20 | BEARING HOUSING | X00008050 | 001 |
| 25 | HEAT SHIELD | 5090810803 | 001 |
| 30 | SNAP RING | 5099940041 | 003 |
| 35 | WASHER | 5090250176 | 001 |
| 40 | BEARING BUSHING | X00003277 | 001 |
| 41 | BEARING BUSHING | 5090250350 | 001 |
| 45 | TURBINE WHEEL | X00005432 | 001 |
| 50 | WASHER | X00010421 | 001 |
| 55 | THRUST BEARING | 5090200512 | 001 |
| 60 | WASHER | X00010425 | 001 |
| 65 | PLATE | 700425000049 | 001 |
| 70 | GROOVED PIN | 001476003017 | 002 |
| 80 | SCREW | 000000000895 | 003 |
| 85 | RETAINING RING | 5090250141 | 001 |
| 90 | WASHER | 200125008400 | 003 |
| 95 | RING CARRIER | X00010415 | 001 |
| 100 | PISTON RING | 5090850060 | 002 |
| 105 | PISTON RING | 5090850160 | 001 |
| 110 | COMPRESSOR WHEEL | 5090251301 | 001 |
| 115 | NUT | 5090200071 | 001 |
| 120 | COMPRESSOR HOUSING | X00003306 | 001 |
| 121 | THREADED BUSHING | 394387/1 | 002 |
| 122 | PLUG | 000908022001 | 003 |
| 123 | SEALING RING | 007603022105 | 005 |
| 130 | CLAMP | 0009953502 | 001 |
| 135 | TURBINE HOUSING | 5090817001 | 001 |
| 145 | CLAMP | 0009951502 | 001 |
| 155 | GAITER | 5320980082 | 001 |
| 160 | CLAMP | 000000000676 | 001 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
