PART NUMBER 5321800001
ENGINE TYPE MTU 2000 ENGINE
DESCRIPTION OIL PUMP
DIMENSIONS N/A
UNIT WEIGHT 15.500 KG
HS CODE 84133080
NATO-VERS.-NR. 2815124086139
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

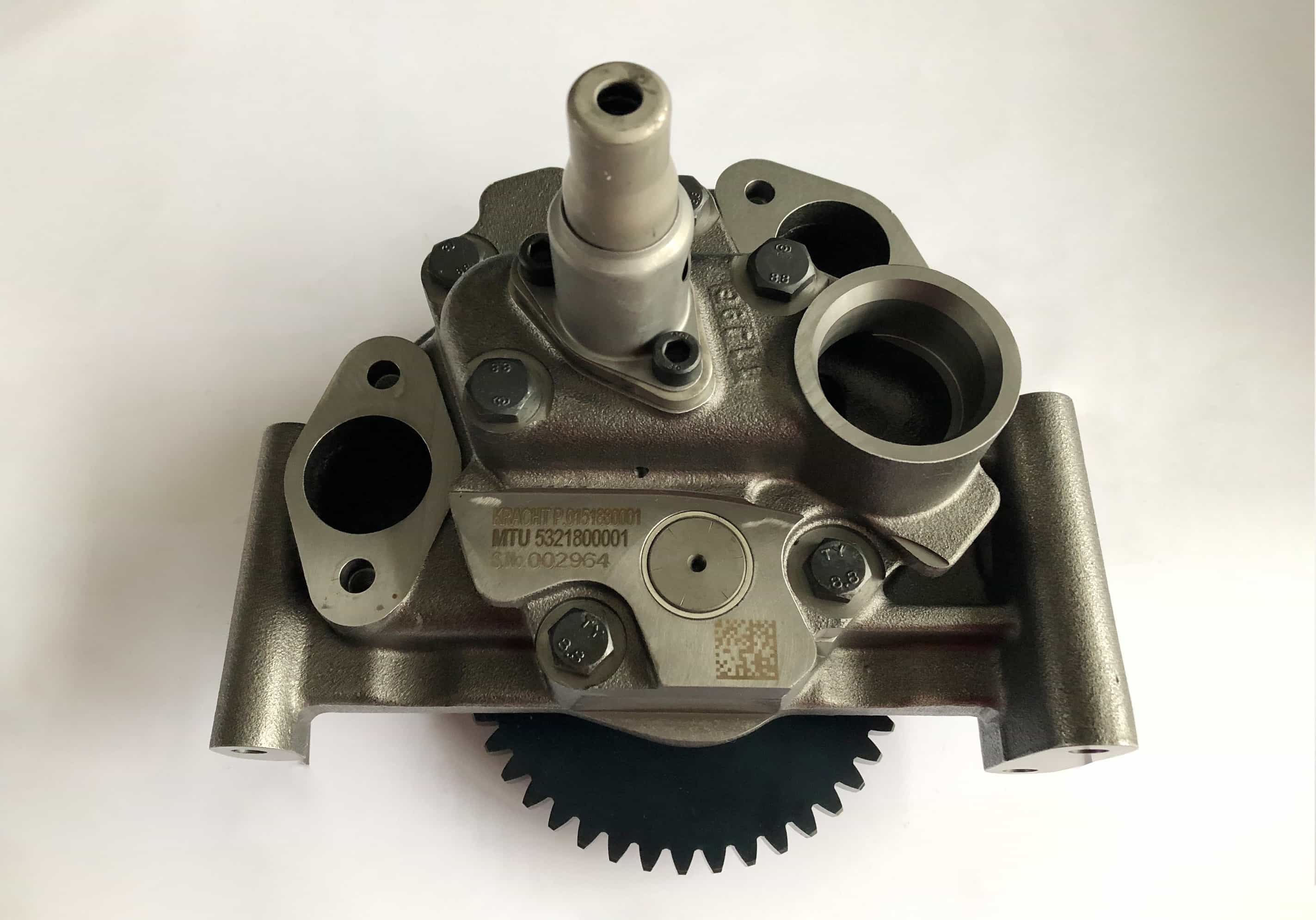

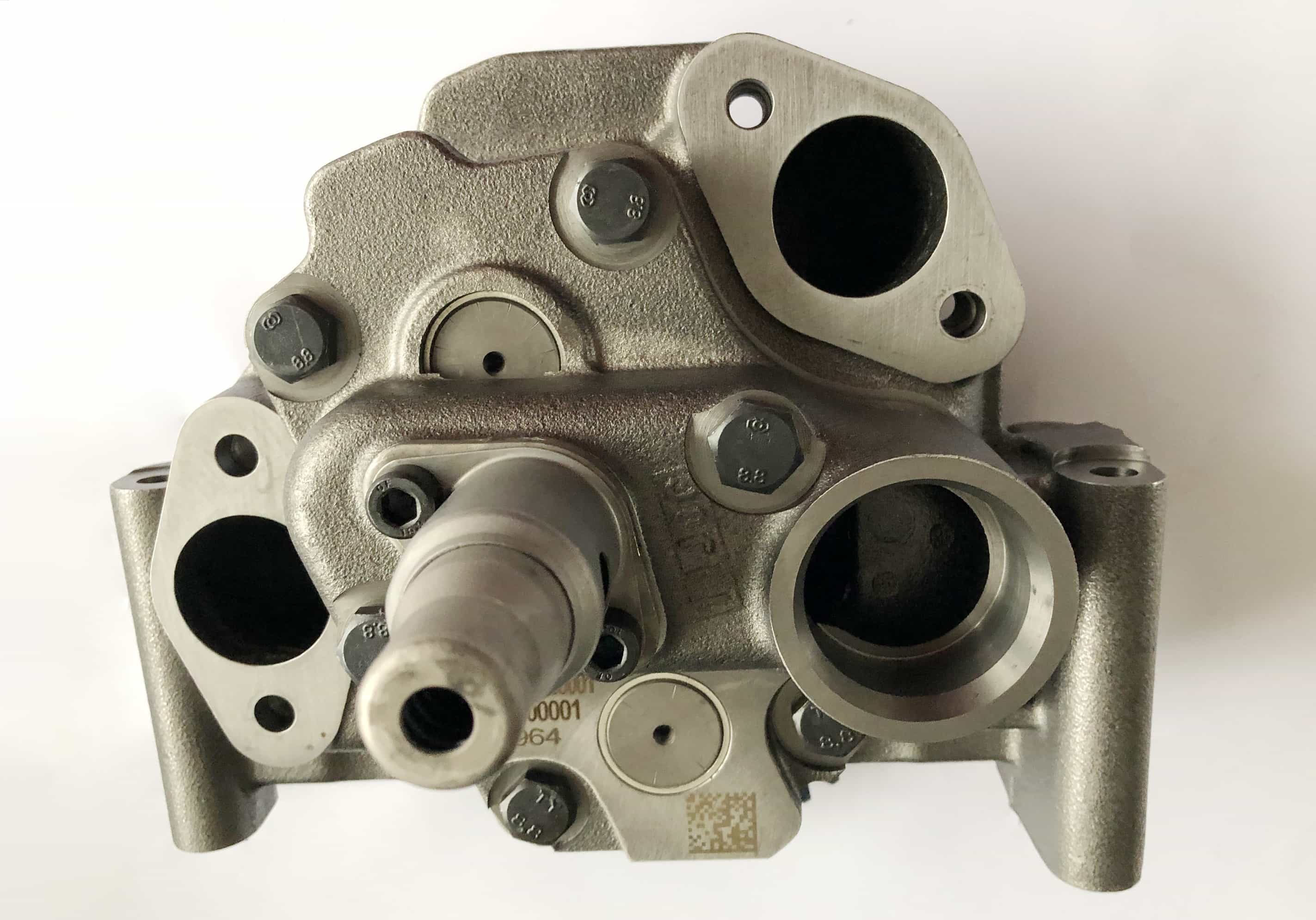

MTU 5321800001 OIL PUMP ASSY

MTU 5321800001 OIL PUMP ASSY MTU 5321800001 OIL PUMP ASSY MTU 5321800001 OIL PUMP ASSY

MTU 5321800001 OIL PUMP ASSY

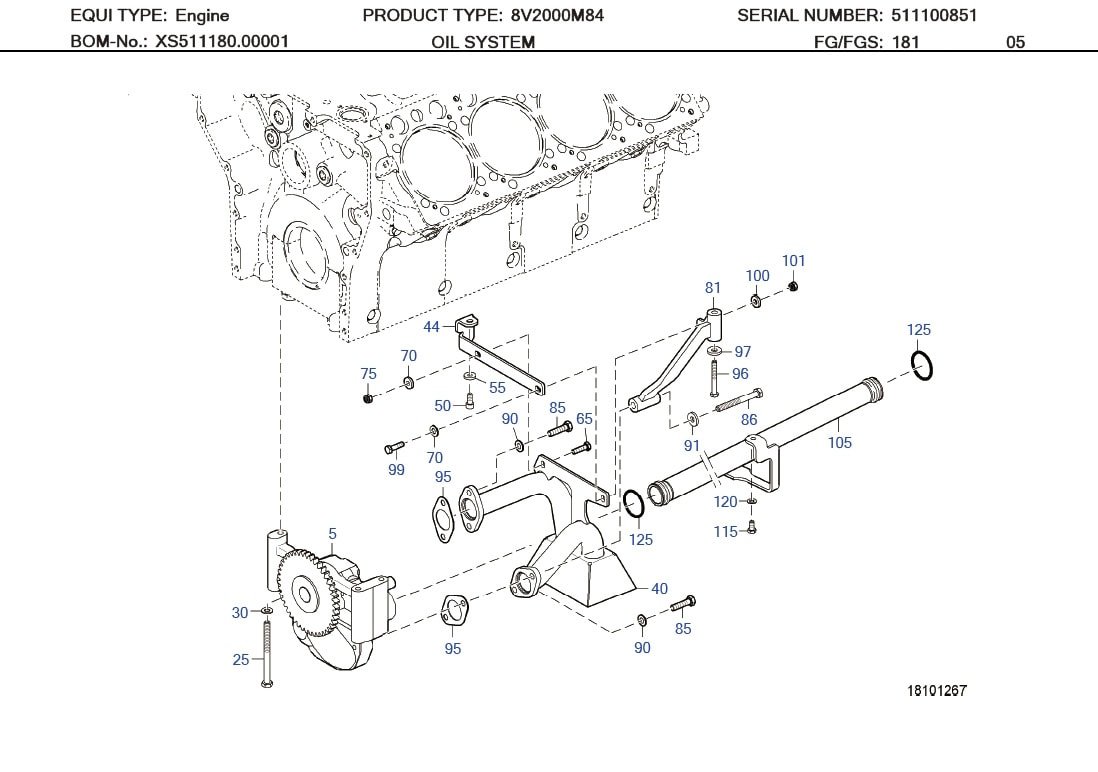

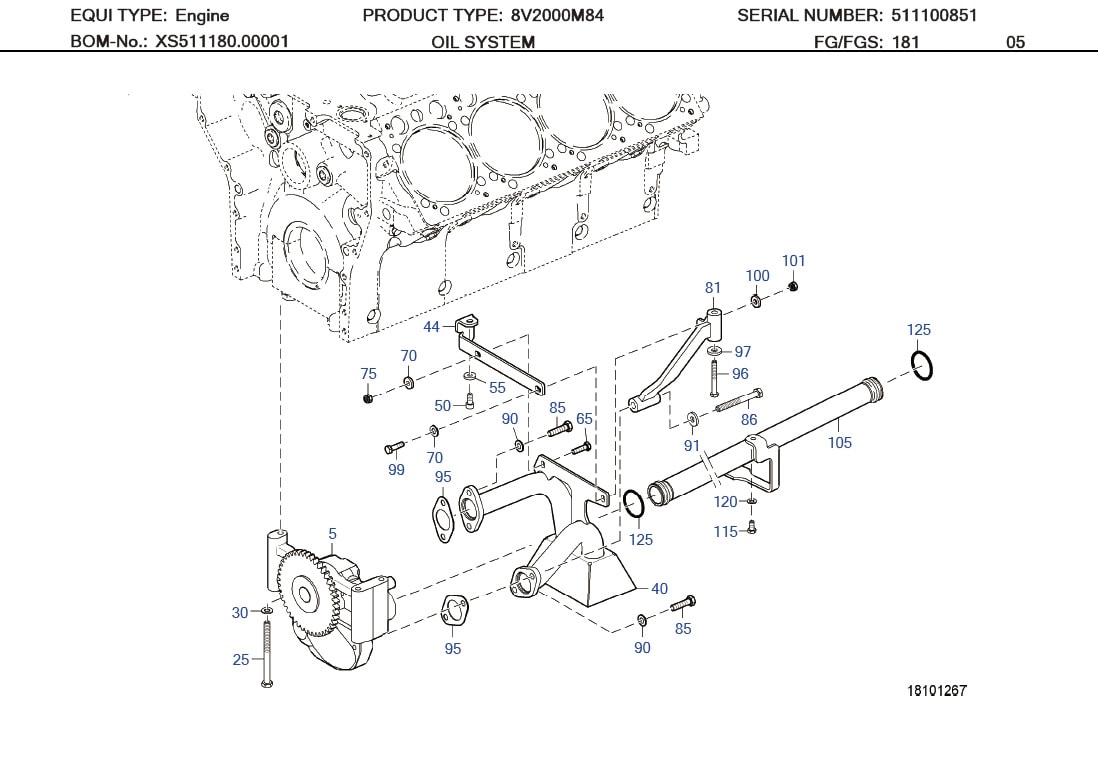

C/N Description Part-Number Qty
5 OIL PUMP 5321800001 001
25 HEX SCREW 000000001465 003
30 WASHER 000125010524 003
40 SUCTION LINE X00010662 001
44 RETAINER X00010387 001
50 HEX SCREW 304017008079 001
55 WASHER 007349008002 001
65 HEX SCREW 304017008083 001
70 WASHER 007349008002 002
75 NUT 999900008000 001
81 RETAINER X51118400009 001
85 HEX SCREW 000000001039 003
86 HEX SCREW 000000003322 001
90 WASHER 000125010524 003
91 WASHER 007349010002 001
95 GASKET 271511038001 002
96 HEX SCREW 000933008242 001
97 WASHER 007349008002 001
99 HEX SCREW 304017008084 001
100 WASHER 007349008002 002
101 NUT 999900008000 001
105 PLUG-IN PIPE 5311800620 001
115 HEX SCREW 304017008077 001
120 WASHER 000125008427 001
125 O-RING 700429036001 002

5321800001 SUPERSEDED PART AND EFFECTIVE DATE

5321800001 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5321800001 XP53218100010 N/A
02 5321800001 XP53218100007 2010/01/01
03 5321800001 XP53218100009 2010/02/01
04 5321800001 XP53218100006 2010/03/01
05 5321800001 XP53218100005 2010/04/01
06 5321800001 XP53218100004 2010/05/01
07 5321800001 XP53218100003 2010/06/01
08 5321800001 XP53218100002 2010/07/01
09 5321800001 XP53218100001 2010/08/01
10 5321800001 5321800001 2010/09/01

MTU 2000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 2000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 2000 M72 720 2250 135/156 (5.3/6.1)
10V 2000 M72 900 2250 135/156 (5.3/6.1)
12V 2000 M93 1340 2450 135/156 (5.3/6.1)
16V 2000 M93 1790 2450 135/156 (5.3/6.1)
12V 2000 M92 1220 2450 135/156 (5.3/6.1)
16V 2000 M92 1630 2450 135/156 (5.3/6.1)
12V 2000 M72 1080 2250 135/156 (5.3/6.1)
16V 2000 M72 1440 2250 135/156 (5.3/6.1)
8V 2000 M94 932 2450 135/156 (5.3/6.1)
8V 2000 M84 810 2450 135/156 (5.3/6.1)
8V 2000 M84L 895 2450 135/156 (5.3/6.1)
12V 2000 M61 600 1800 130/150 (5.1/5.9)
16V 2000 M61 800 1800 130/150 (5.1/5.9)
8V 2000 M61 400 1800 130/150 (5.1/5.9)
10V 2000 M86 1015 2450 135/156 (5.3/6.1)
12V 2000 M86 1268 2450 135/156 (5.3/6.1)
16V 2000 M86 1630 2450 135/156 (5.3/6.1)
10V 2000 M96 1120 2450 135/156 (5.3/6.1)
