MTU 2000 Parts | X59320200040 | FILTER CARTRIDGE FOR COOLANT

X59320200040 FILTER CARTRIDGE FOR COOLANT

Other
Other 0005357433 SPEED SENSOR EX53620700005/87 SEAWATER PUMP E0070960399 EXHAUST TURBOCHARGER E0070960299 EXHAUST TURBOCHARGER X51699100034 RADIAL-LIP SHFT SEAL AUX PTO 0249975047 SHAFT SEAL RING X00E50203659 LEVEL MONITOR X00E50214075 PRESSURE SENSOR 5320160221 GASKET X51204200003 GASKET X53507500012 INJECTOR 5410180233 DIAPHRAGM F OIL SEPARATOR X51604200016 GASKET X54404200018 CYLINDER HEAD GASKET 5320980080 GASKET 5350980065 SEALING RING X53620200052/87 COOLANT PUMP 4571410080 GASKET X53608200005 FUEL PUMP LOW PRESSURE X00028031 GASKET 0009953502 CLAMP 0031845301 OIL FILTER SPIN-ON 0031845201 OIL FILTER SPIN-ON 8699970498 SEALING RING 5500511710 CAMSHAFT BEARING 5320530020 VALVE SPRING 3669900240 WASHER VALVE SPRING 5410530226 VALVE COLLET 4570530001 INLET VALVE X00005852 PROTECTIVE SLEEVE 8699810033 ANGLR-CONT BALL BRG 8699810032 CYL ROLLER BEARING X51199100026 STRAINER 5320700246 RELIEF VALVE XP51107300001 SUCTION RESTR. VALVE X00E50201022 GOVERNOR 5321800001 OIL PUMP X00014782 GASKET 5310900337 CHARGE-AIR LINE 5800150460 SEALING RING X51214200004 GASKET 5090250350 BEARING BUSHING 234110196000 PISTON RING, COMP 0001427157 LAMELLAR RING 5090850060 PISTON RING 5090850160 PISTON RING F/TURBOCHARGER X51299100019 V-RIBBED BELT X51621300033 GENERATOR 5362030180 GASKET 05144768 CLAMP 05122439 SEAL 5314770056 PLUG 5360780441 RETAINER 5369970040 SEALING RING 5360780180 GASKET FOR FUEL 05132155 RING SEALING 5360780131 ELBOW 5360702032 FUEL LINE X00E50209325 LEVEL MONITOR XP51108300002 FILTER CARTRIDGE 5320140022 GASKET X00005363 OIL SEPARATOR 916016012201 CLAMP X51510100022 FLANGE X51610100001 NOZZLE 916016006202 CLAMP 5361800515 VALVE ASM OIL PRESS RELIEF 5321800143 OIL SPRAY NOZZLE XP51529700006 ROTARY SEAL 5320900136 PLUG-IN PIPE 5241840501 LUBE OIL FULL FLOW FILTER 0180945802 CLEANER AIR W/ADAP FTG X53604200004 GASKET PLATE OUTER X53604200005 SEALING PLATE INNER X00028017 GASKET 0020922801 FUEL FILTER SPIN-ON X53220200002 SEALING SLEEVE 5255380580 MEMORY MODULE X00E50208847 PLUG-IN BOARD X00E50200664/76 PLUG-IN BOARD 8699890005 ADHESIVE X00041465 GAITER 5320900001 AIR FILTER 8800110159 SEALING RING 5410337101 CRANKSHAFT BEARING SIZE 0-0 5410330605 CRANKSHAFT BEARING SIZE 0-0 5360330262 THRUST WASHER 5410380250 CONROD BUSHING 5419900501 12-POINT HEAD SCREW X00004882 CYLINDER HEAD GASKET 5410501336 ROCKER SHAFT SUPPORT 5410500227 EXHAUST VALVE 5410530225 VALVE SPRNG RETAINER 5410532131 VALVE SEAT INSERT INLET 5410532730 VALVE GUIDE 5410530532 VALVE SEAT INSERT EXHAUST 5320100130 CYLINDER HEAD COVER X00005152 INJECTOR X00009196 DAMPER RING FOR INJECTOR X00023888 SEALING WASHER 0020921901 FUEL FILTER SPIN-ON 700429126000 O-RING 700429108000 O-RING X00003277 BEARING BUSHING X00010421 WASHER 5090200512 THRUST BEARING X00010425 WASHER 5090250141 RETAINING RING 5090200071 MAGNETIC NUT XT1310100012 MAGNETIC NUT 5090251301 COMPRESSOR WHEEL 700429540000 O-RING 0000180680 GASKET X00012160 WIRING HARNESS TO INJECTOR X00011800 WIRING HARNESS FOR SENSO 0005358233 SPEED SENSOR 0005357933 SPEED SENSOR 0035352531 PRESSURE SENSOR 0035352731 PRESSURE SENSOR 0035351731 PRESSURE SENSOR 5205304531 PRESSURE SENSOR 0035352931 PRESSURE SENSOR 0005356430 TEMPERATURE SENSOR 0005355103 LEVEL MONITOR 0005355303 LEVEL MONITOR 5410100163 OIL SEPARATOR 5360900001 AIR FILTER 0000943268 INDICATOR AIR FILTER RESTRISTER 40041 PASTE MOLYKOTE G-N-PLUS 700429460001 O-RING 50773 SILCONE RUBBER LOCTI X00017269 IMPELLER XP51529700004 ROTARY SEAL XP51529700005 O-RING XP52229700007 TRACK RING 8699970499 RADIAL-LIP SHFT SEAL X00028154 SEALING RING 8699970497 SEALING RING 8692040115 WASHER 8692040113 WASHER 5360900250 FUEL DELIVERY PUMP 5320110027 RING 5320110110 CYLINDER LINER
PART NUMBER X59320200040
ENGINE TYPE MTU 2000 ENGINE
DESCRIPTION FILTER CARTRIDGE FOR COOLANT
DIMENSIONS N/A
UNIT WEIGHT 0.540 KG
HS CODE 84219990
NATO-VERS.-NR. 2940123844691
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

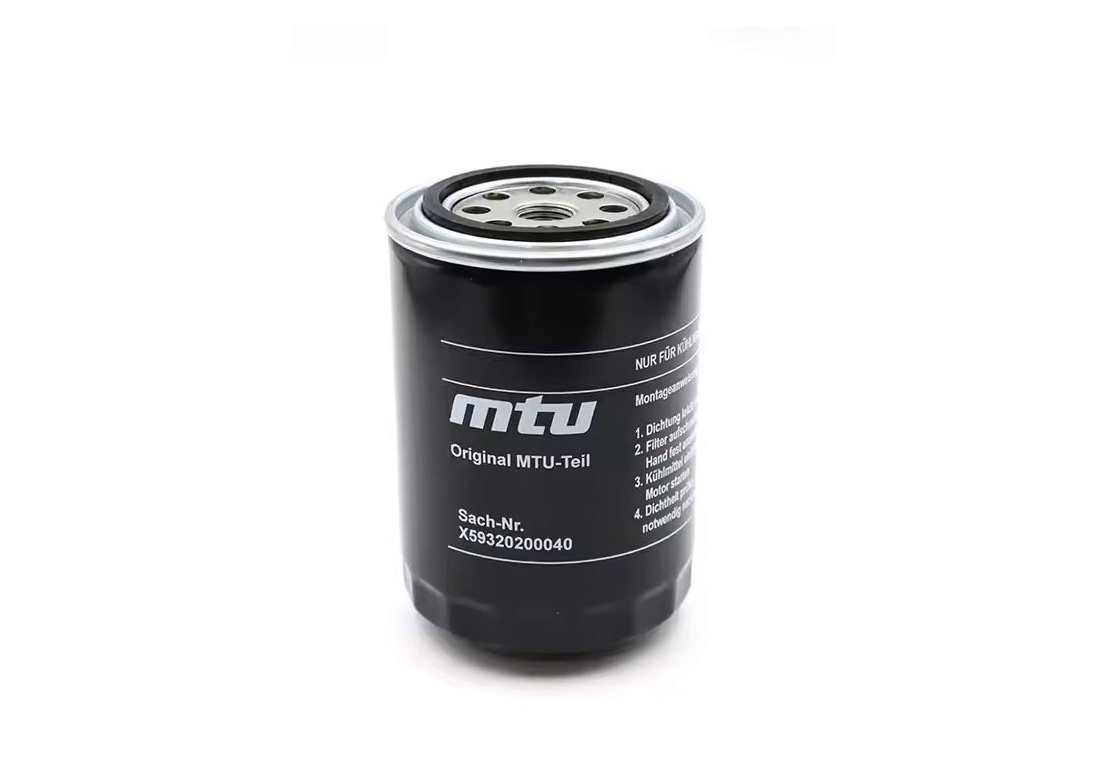

MTU X59320200040 FILTER CARTRIDGE FOR COOLANT

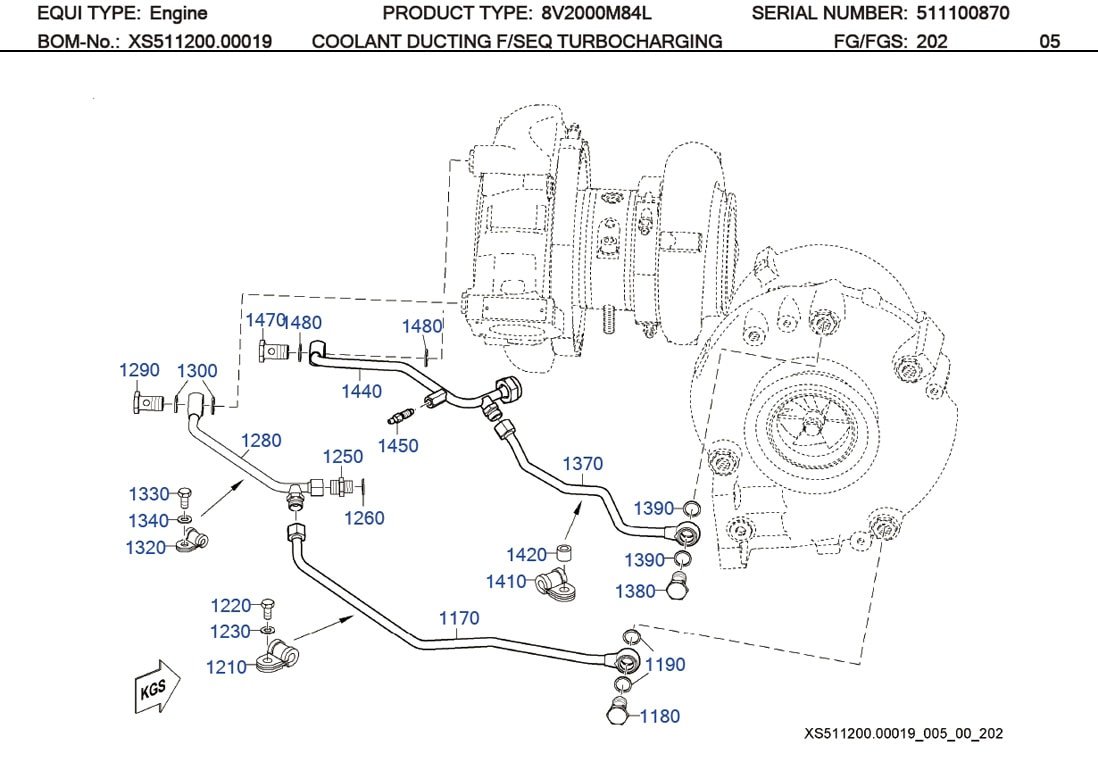

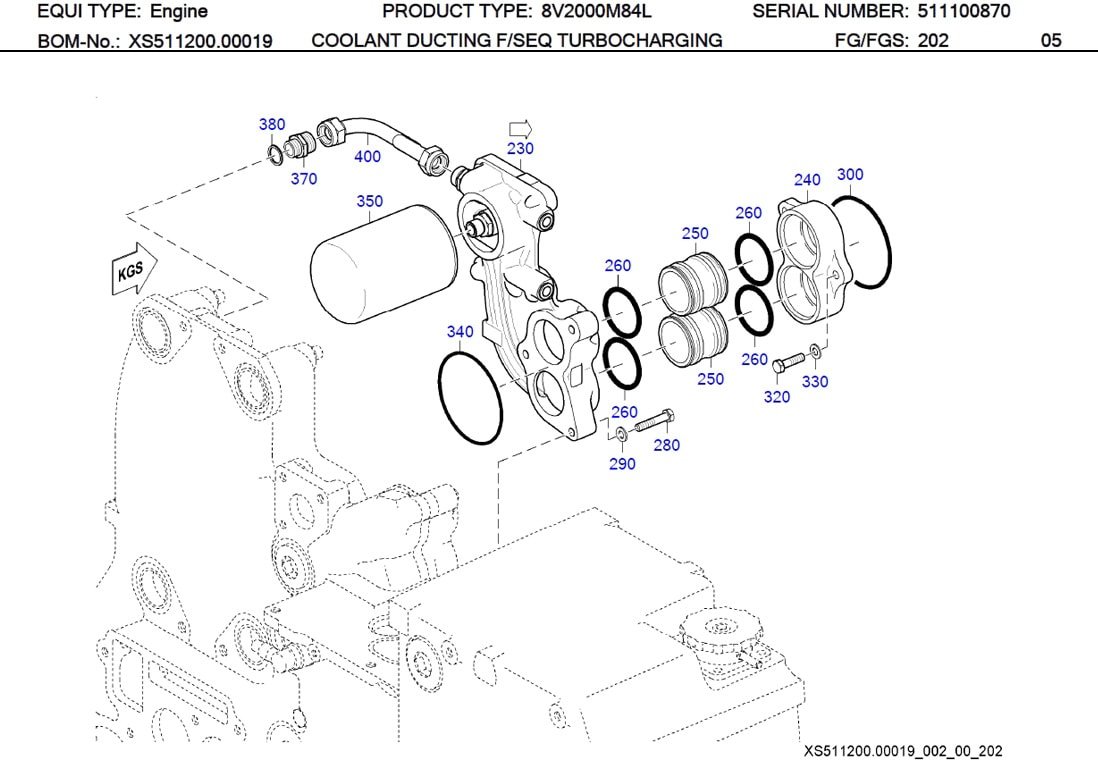

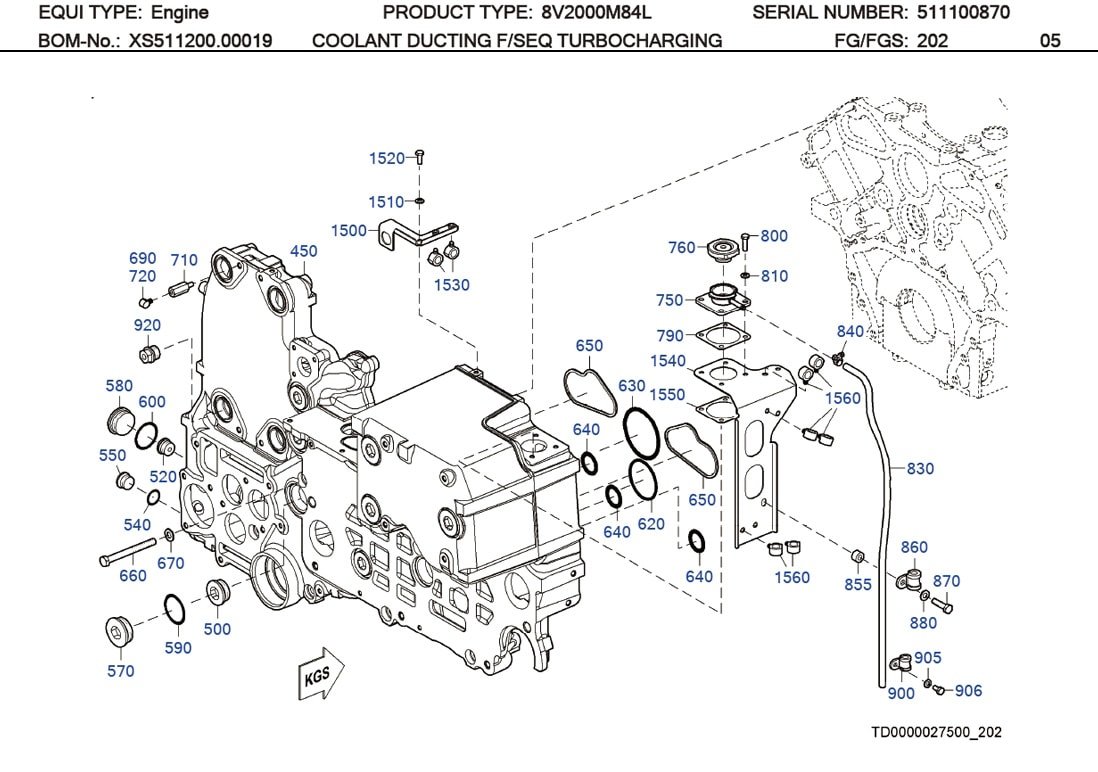

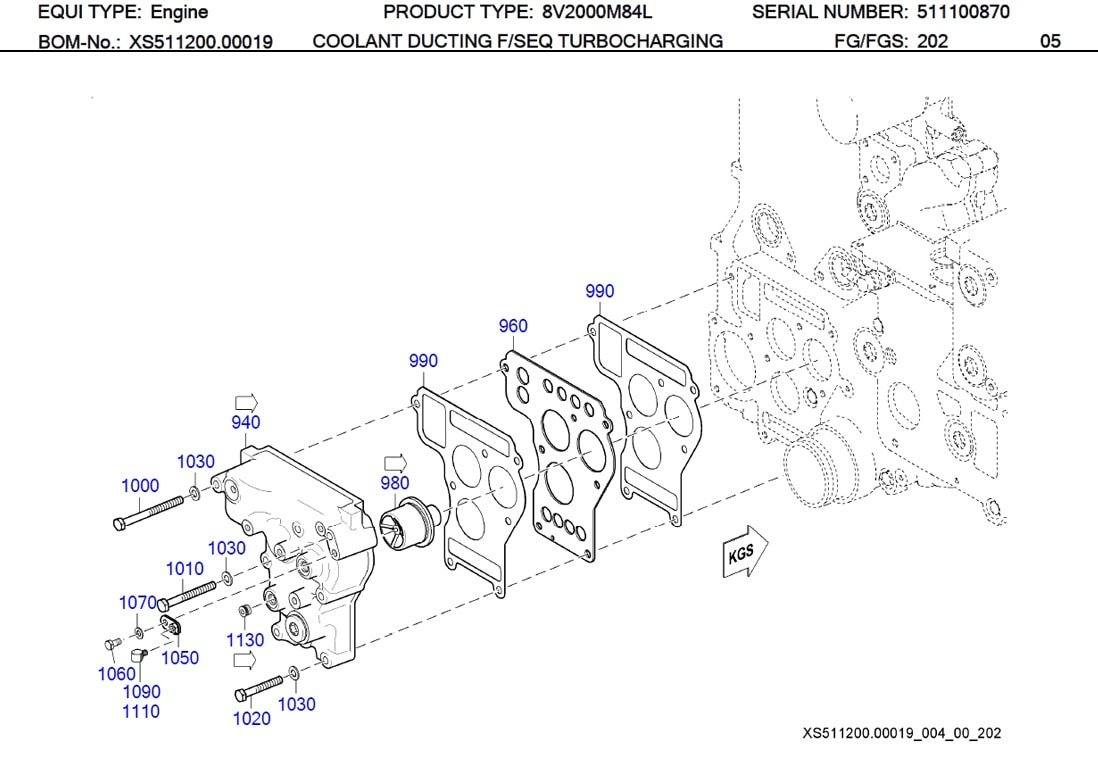

MTU X59320200040 Technical Engineering Exploded ViewMTU X59320200040 FILTER CARTRIDGE FOR COOLANTMTU X59320200040 FILTER CARTRIDGE FOR COOLANTMTU X59320200040 FILTER CARTRIDGE FOR COOLANTMTU X59320200040 WATER FILTER CARTRIDGE MTU X59320200040 WATER FILTER CARTRIDGE MTU X59320200040 WATER FILTER CARTRIDGE

MTU X59320200040 FILTER CARTRIDGE FOR COOLANT

C/N Description Part-Number Qty
20 PLUG-IN PIPE 735078080014 001
30 O-RING 700429085002 002
50 ELBOW F/ENGINE COOLANT PM X51120300002 001
70 HEX SCREW 000000001465 003
80 WASHER 000125010524 003
90 O-RING 700429100001 001
100 RUBBER SLEEVE 700368100004 001
110 CLAMP 900288116000 002
130 INJECTOR 5322000029 001
140 COPPER SEALING RING 007603026104 001
160 COOLANT LINE 5322000151 001
180 CLAMP 916016018205 001
190 WASHER 000125010524 001
200 SLEEVE 5800980453 001
210 HEX SCREW 000931010283 001
230 FLANGE X51520300006 001
240 FLANGE 5322030639 001
250 PLUG-IN PIPE 735078045004 001
260 O-RING 700429048001 004
280 HEX SCREW 304017008086 003
290 WASHER 000125008427 003
300 PROFILE GASKET X51620200006 001
320 HEX SCREW 304017008083 003
330 WASHER 000125008427 003
340 PROFILE GASKET X51620200006 001
350 FILTER CARTRIDGE FOR COOLANT X59320200040 001
370 UNION 13 915013013002 001
380 COPPER SEALING RING 007603018101 001
400 COOLANT LINE 5322000051 001
450 COOLANT DISTRIB HSG X51620300043 001
500 PLUG 5329970132 002
520 PLUG X00011494 001
540 COPPER SEALING RING 007603026104 002
550 THREAD PLUG 000908026005 002
570 THREAD PLUG 000908052003 002
580 THREAD PLUG 000908048004 001
590 COPPER SEALING RING 007603052101 002
600 COPPER SEALING RING 007603048101 001
620 O-RING 700429075002 001
630 O-RING 700429100001 001
640 O-RING 700429038001 003
650 PROFILE GASKET X54420600051 002
660 HEX SCREW 000931012175 006
670 WASHER 000125013012 006
690 CLAMP CABLE DN10 0001596440 002
710 SPACER 8711590271 002
720 CLAMP CABLE DN10 0001596440 002
750 FILLER NECK FOR COOLANT X53620300042 001
760 CAP RADIATOR PRESS 1 5 LB AC RC33 W/NECK 06410640 001
790 GASKET 5052030580 001
800 HEX SCREW 304017008081 004
810 WASHER 000125008427 004
830 HOSE 073379008200 001
840 CLAMP 900288012000 001
855 SPACER SLEEVE X54499100430 001
860 CLAMP 916016012203 001
870 HEX SCREW 000000001039 001
880 WASHER 000125010524 001
900 CLAMP 916016012201 001
905 WASHER 000125008427 001
906 HEX SCREW 304017008077 001
920 RESTRICTOR SCREW-IN M91CE 5369970234 001
940 THERMOSTAT HOUSING X51620300029 001
960 RESTRICTOR X00011492 001
980 THERMAL ACTUATOR X59420300059 003
990 GASKET 5322030180 002
1000 HEX SCREW 000000001465 001
1010 HEX SCREW 000000003322 004
1020 HEX SCREW 000000004745 002
1030 WASHER 000125010524 007
1050 BRACKET FLAT W/MB NU T H:60 8331501573 001
1060 HEX SCREW 304017008077 001
1070 WASHER 000125008427 001
1090 CLAMP CABLE DN17 0001596540 001
1110 CLAMP CABLE DN10 0001596440 001
1130 THREAD PLUG 735210014000 002
1170 COOLANT LINE F/TURBOCHARGER,LEF X51220200033 001
1180 BOLT BANJO A 10 915011010101 001
1190 COPPER SEALING RING 007603016105 002
1210 CLAMP 916016010203 001
1220 HEX SCREW 000933008013 001
1230 WASHER 000125008427 001
1250 SCREW NECK 915013008002 001
1260 COPPER SEALING RING 007603014102 001
1280 COOLANT LINE F/TURBOCHARGER,RIGH X51220200032 001
1290 BOLT BANJO A 10 915011010101 001
1300 COPPER SEALING RING 007603016105 002
1320 CLAMP 916016010203 001
1330 HEX SCREW 304017008077 001
1340 WASHER 000125008427 001
1370 COOLANT LINE 5322000451 001
1380 BOLT BANJO A 10 915011010101 001
1390 COPPER SEALING RING 007603016105 002
1410 CLAMP 916016010203 001
1420 SPACER SLEEVE 5500780453 001
1440 COOLANT LINE 531SK5323 001
1450 VENT VALVE 0004204655 001
1470 BOLT BANJO A 10 915011010101 001
1480 COPPER SEALING RING 007603016105 002
1500 RETAINER F. WIRING HARNESS X51199100139 001
1510 WASHER 200125008400 001
1520 HEX SCREW 000000003001 001
1530 CLAMP CABLE DN17 0001596540 002
1540 CABLE ROUTING FOR EIM X51150700011 001
1550 GASKET 5052030580 001
1560 CLAMP CABLE DN17 0001596540 006

X59320200040 SUPERSEDED PART AND EFFECTIVE DATE

X59320200040 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X59320200040 0002043697 N/A
02 X59320200040 X59320200040 2017/11/13

MTU 2000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 2000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 2000 M72 720 2250 135/156 (5.3/6.1)
10V 2000 M72 900 2250 135/156 (5.3/6.1)
12V 2000 M93 1340 2450 135/156 (5.3/6.1)
16V 2000 M93 1790 2450 135/156 (5.3/6.1)
12V 2000 M92 1220 2450 135/156 (5.3/6.1)
16V 2000 M92 1630 2450 135/156 (5.3/6.1)
12V 2000 M72 1080 2250 135/156 (5.3/6.1)
16V 2000 M72 1440 2250 135/156 (5.3/6.1)
8V 2000 M94 932 2450 135/156 (5.3/6.1)
8V 2000 M84 810 2450 135/156 (5.3/6.1)
8V 2000 M84L 895 2450 135/156 (5.3/6.1)
12V 2000 M61 600 1800 130/150 (5.1/5.9)
16V 2000 M61 800 1800 130/150 (5.1/5.9)
8V 2000 M61 400 1800 130/150 (5.1/5.9)
10V 2000 M86 1015 2450 135/156 (5.3/6.1)
12V 2000 M86 1268 2450 135/156 (5.3/6.1)
16V 2000 M86 1630 2450 135/156 (5.3/6.1)
10V 2000 M96 1120 2450 135/156 (5.3/6.1)
