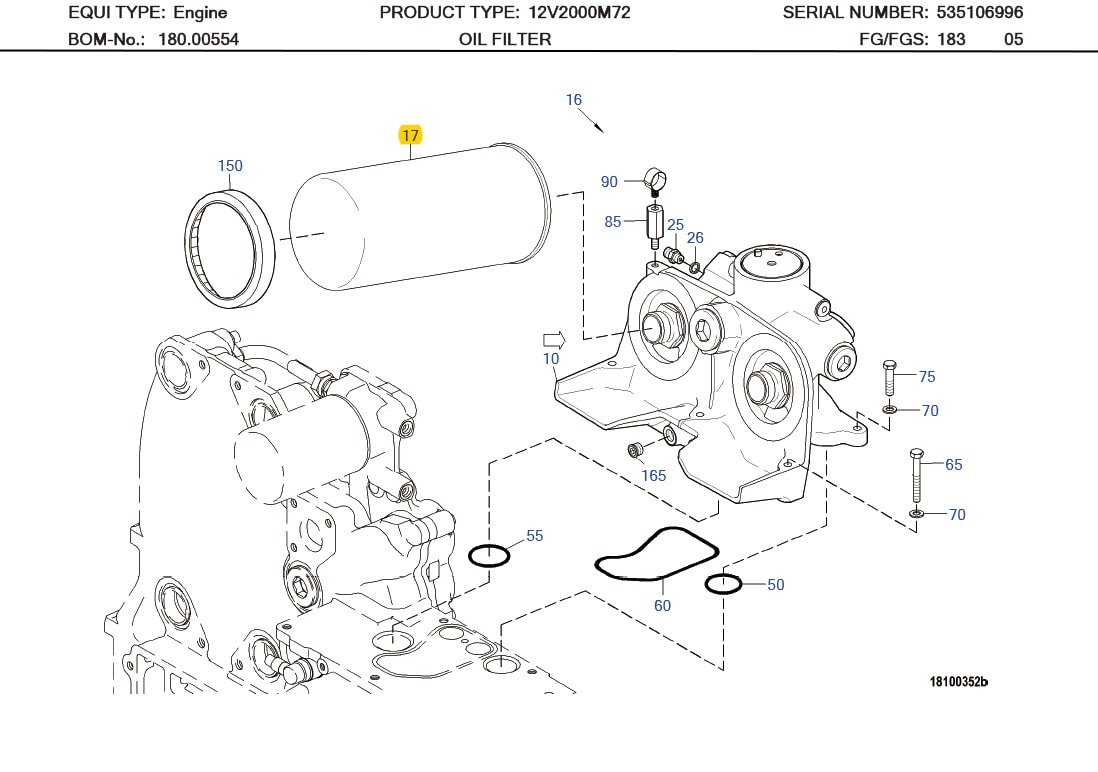

C/N | Description | Part-Number | Qty |
---|---|---|---|
10 | CHARGE-AIR LINE | X00011993 | 001 |
16 | PASTE MOLYKOTE G-N PLUS | 40041 | 001 |

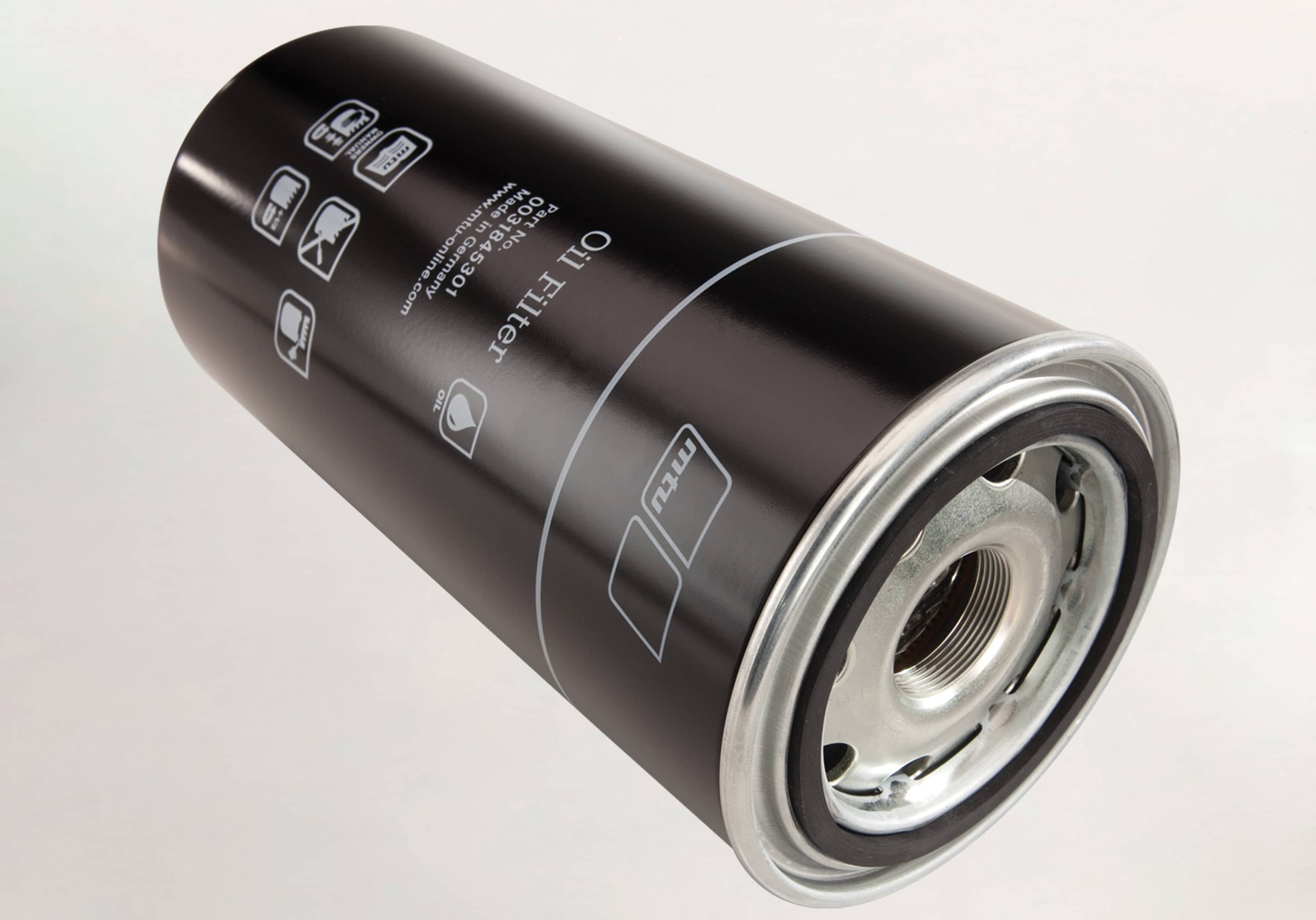

17 | OIL FILTER SPIN-ON | 0031845301 | 002 |
25 | UNION | 915013004002 | 001 |
26 | WASHER A COP | 007603010110 | 001 |
50 | O-RING | 700429037002 | 001 |
55 | O-RING | 700429042001 | 001 |
60 | PROFILE GASKET | X00034859 | 001 |
65 | HEX SCREW | 304017008089 | 003 |
70 | WASHER | 000125008427 | 005 |
75 | HEX SCREW | 304017008084 | 002 |
85 | SPACER | 8711590271 | 001 |
90 | CLAMP CABLE DN10 | 0001596440 | 001 |
150 | COVER FOR SOLAS | X00009628 | 002 |
165 | PLUG | 5366190515 | 001 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 0031845301 | SUA93192 | N/A |
02 | 0031845301 | S-25033469 | 2010/09/01 |
03 | 0031845301 | 0031844201 | 2010/10/01 |
04 | 0031845301 | 0031845301 | 2010/11/01 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
