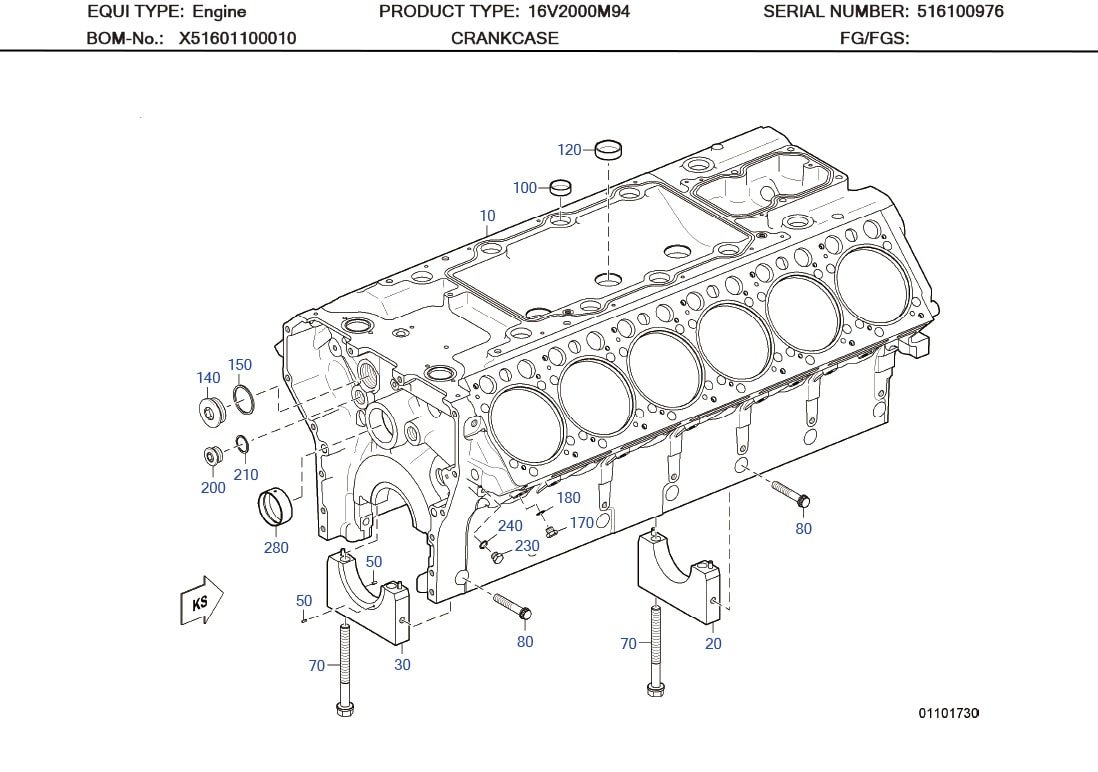

C/N | Description | Part-Number | Qty |
---|---|---|---|
10 | CRANKCASE | 5360111901 | 001 |
20 | CRANKSHAFT BRG CAP | 5320100123 | 008 |
30 | CRSHFT ALIGN BRG CAP | 5320100023 | 001 |
50 | PIN GROOVED | 001474004018 | 002 |
70 | HEX SCREW | 5410110171 | 018 |
80 | BOLT MAIN BRG CAP CROSS 10.9 | 5419900101 | 018 |
100 | SEALING CAP | 5370160233 | 014 |
120 | SEALING CAP | 5249970020 | 006 |
140 | THREAD PLUG | 000908052003 | 001 |
150 | COPPER SEALING RING | 007603052101 | 001 |
170 | PLUG | 007604014102 | 004 |
180 | COPPER SEALING RING | 007603014102 | 004 |
200 | THREAD PLUG | 000908030002 | 002 |
210 | COPPER SEALING RING | 007603030101 | 002 |
230 | PLUG | 007604014102 | 001 |
240 | COPPER SEALING RING | 007603014102 | 001 |

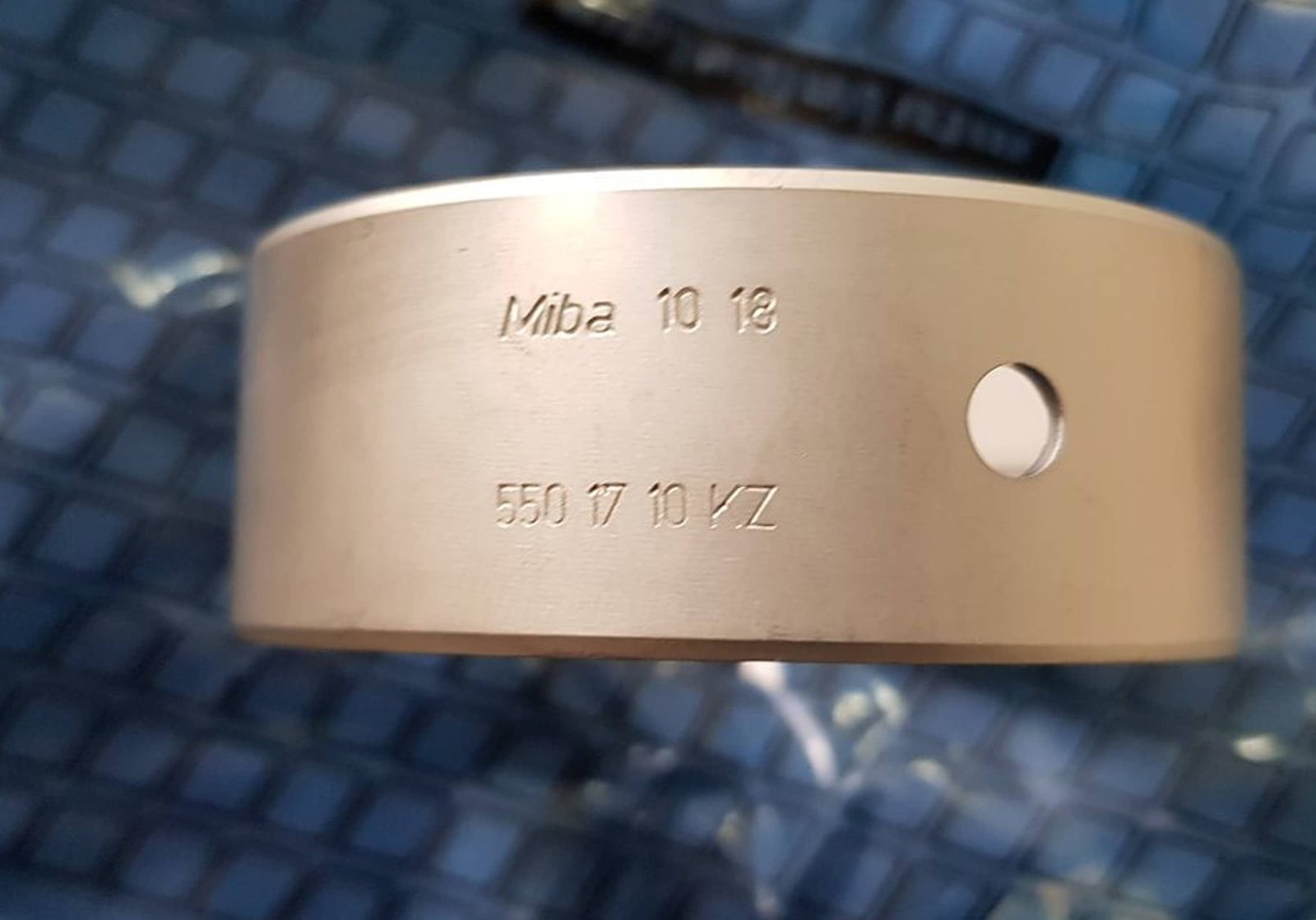

280 | CAMSHAFT BEARING | 5500511710 | 009 |
C/N | New Part Number | Superseded Part Number | Valid From Date |
---|---|---|---|
01 | 5500511710 | 5370510010 | N/A |
02 | 5500511710 | 5500510110 | 1984/09/01 |
03 | 5500511710 | 5500511710 | 1984/10/01 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M96 | 1342 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M96 | 1790 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96L | 1193 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M96L/X | 1432/1472 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M96L | 1939 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M87 | 1268 | 2450 | 135/156 (5.3/6.1) |
>12V 2000 M97 | 1342 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M97L | 1432 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M87 | 1630 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M97 | 1790 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M97L | 1939 | 2450 | 130/150 (5.1/5.9) |
12V 2000 M93 | 1340 | 2450 | 130/150 (5.1/5.9) |
16V 2000 M93 | 1790 | 2450 | 130/150 (5.1/5.9) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
