| PART NUMBER | X51604200016 |
| ENGINE TYPE | MTU 2000 ENGINE |

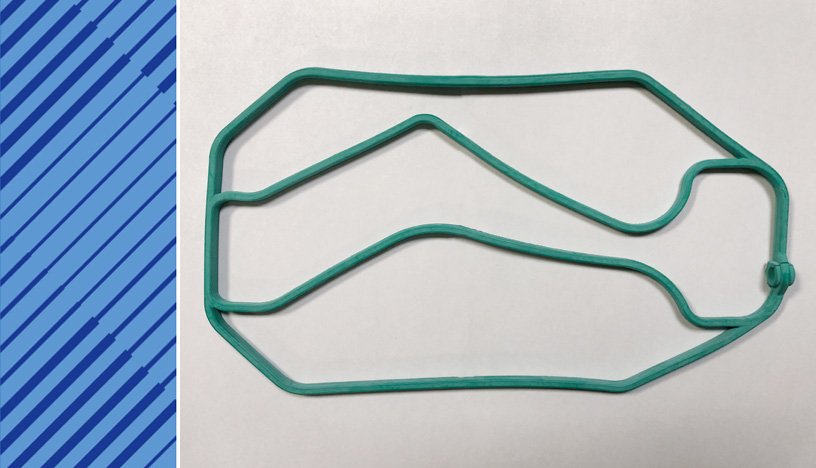

| DESCRIPTION | GASKET |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.048 KG |
| HS CODE | 40169300 |
| NATO-VERS.-NR. | 5330124180643 |

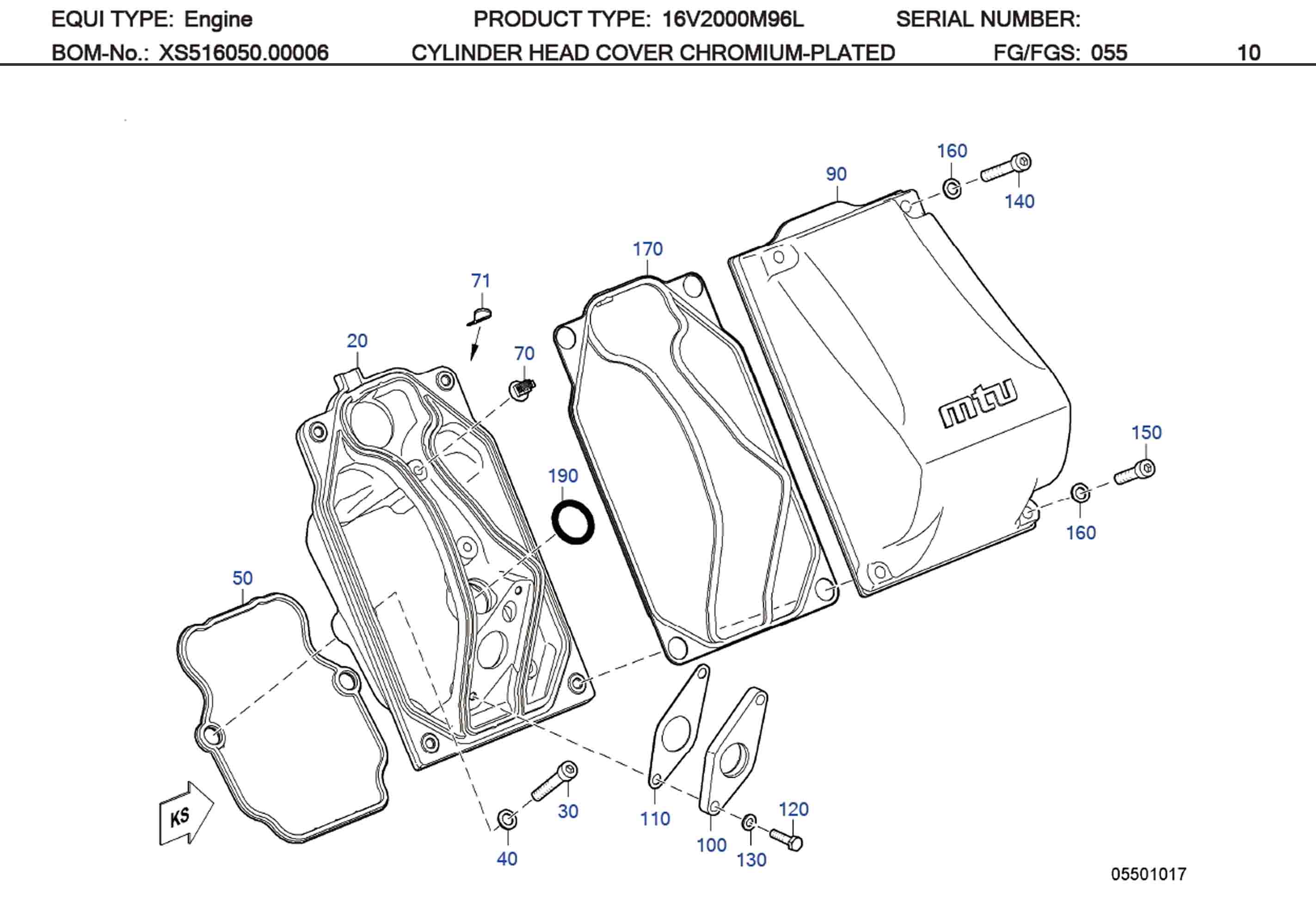

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 20 | CYLINDER HEAD COVER LOWER PART | X51605500015 | 016 |
| 30 | BOLT HEX SOC HD | 000912008062 | 064 |
| 40 | WASHER | 200433008400 | 064 |
| 50 | GASKET F CYLIND. HEAD COVE | X51604200003 | 016 |
| 70 | CABLE CLAMP | X00026945 | 016 |
| 71 | QUICK-CATCH CLAMP | 0005312081 | 016 |
| 90 | CYLINDER HEAD COVER CHROMIUM-PLATED | X51605500007 | 016 |
| 100 | FLANGE | X51699100151 | 016 |
| 110 | GASKET F CYLIND. HEAD COVE | X51604200009 | 016 |
| 120 | HEX SCREW | 304017006063 | 032 |
| 130 | WASHER | 000125006431 | 032 |
| 140 | SCREW | 000000001327 | 032 |
| 150 | SCREW | 000000001942 | 032 |
| 160 | WASHER | 200433008401 | 064 |
| 170 | GASKET | X51604200010 | 016 |
| 190 | O-RING | 700429027003 | 016 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | X51604200016 | X51604200006 | N/A |
| 02 | X51604200016 | X51604200010 | 2015/02/04 |
| 03 | X51604200016 | X51604200016 | 2023/07/12 |

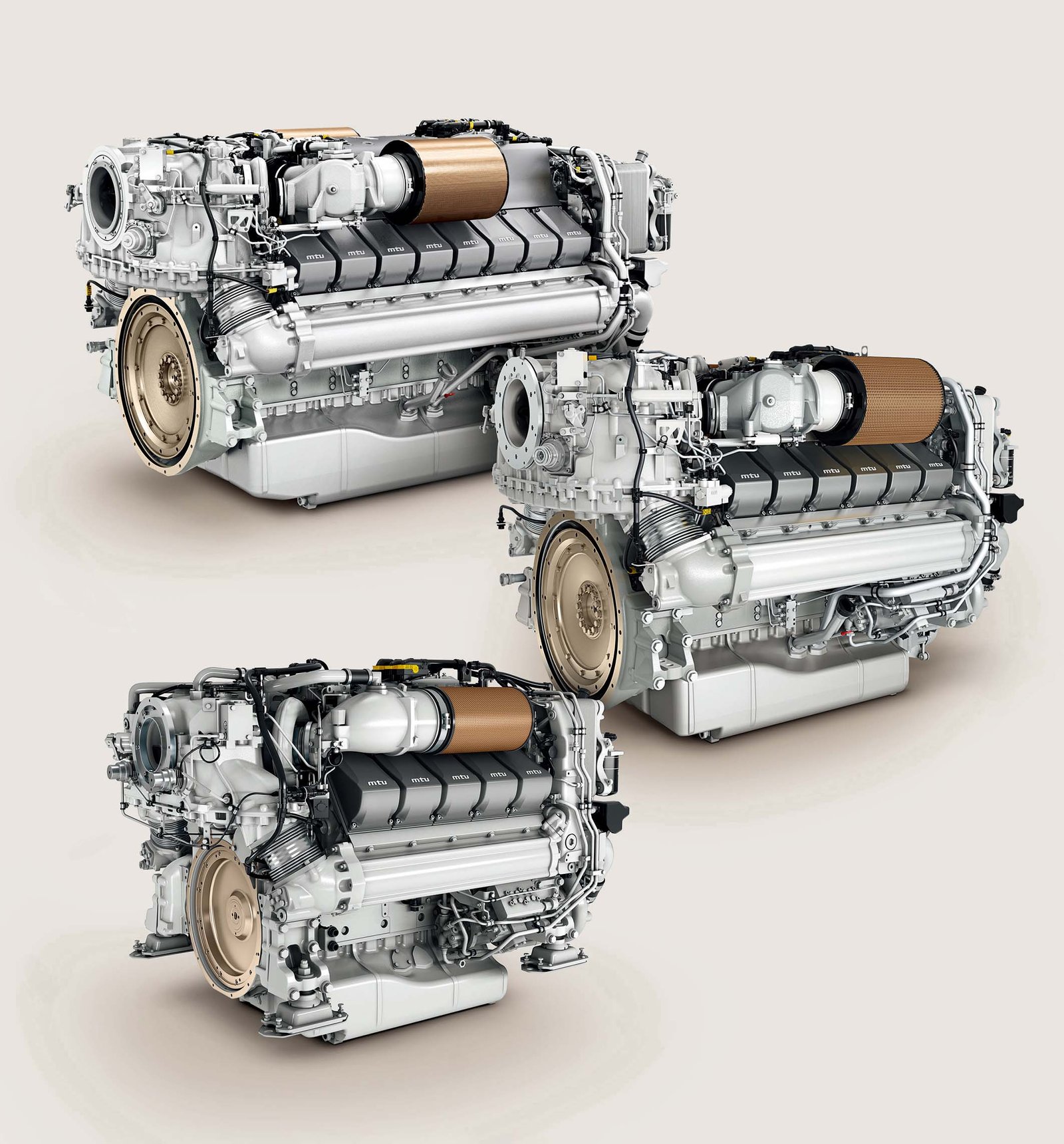

| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
