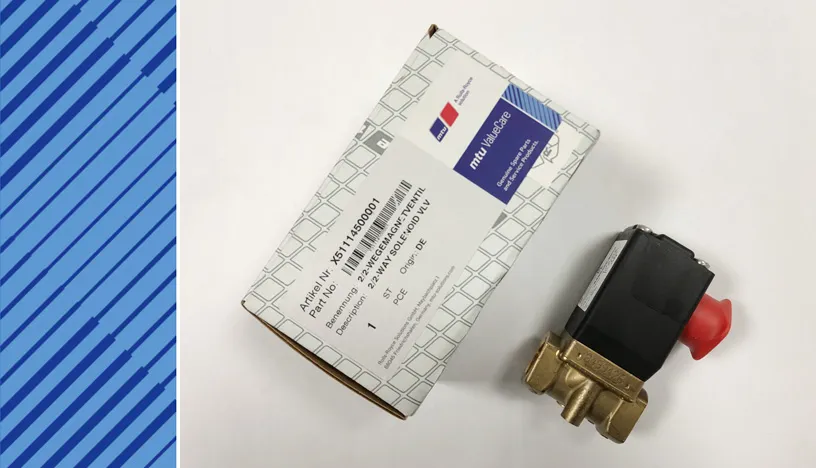

| PART NUMBER | X51114500001 |
| ENGINE TYPE | MTU 2000 ENGINE |
| DESCRIPTION | 2/2-WAY SOLENOID VLV |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.358 KG |
| HS CODE | 84818059 |
| NATO-VERS.-NR. | 4810123948175 |

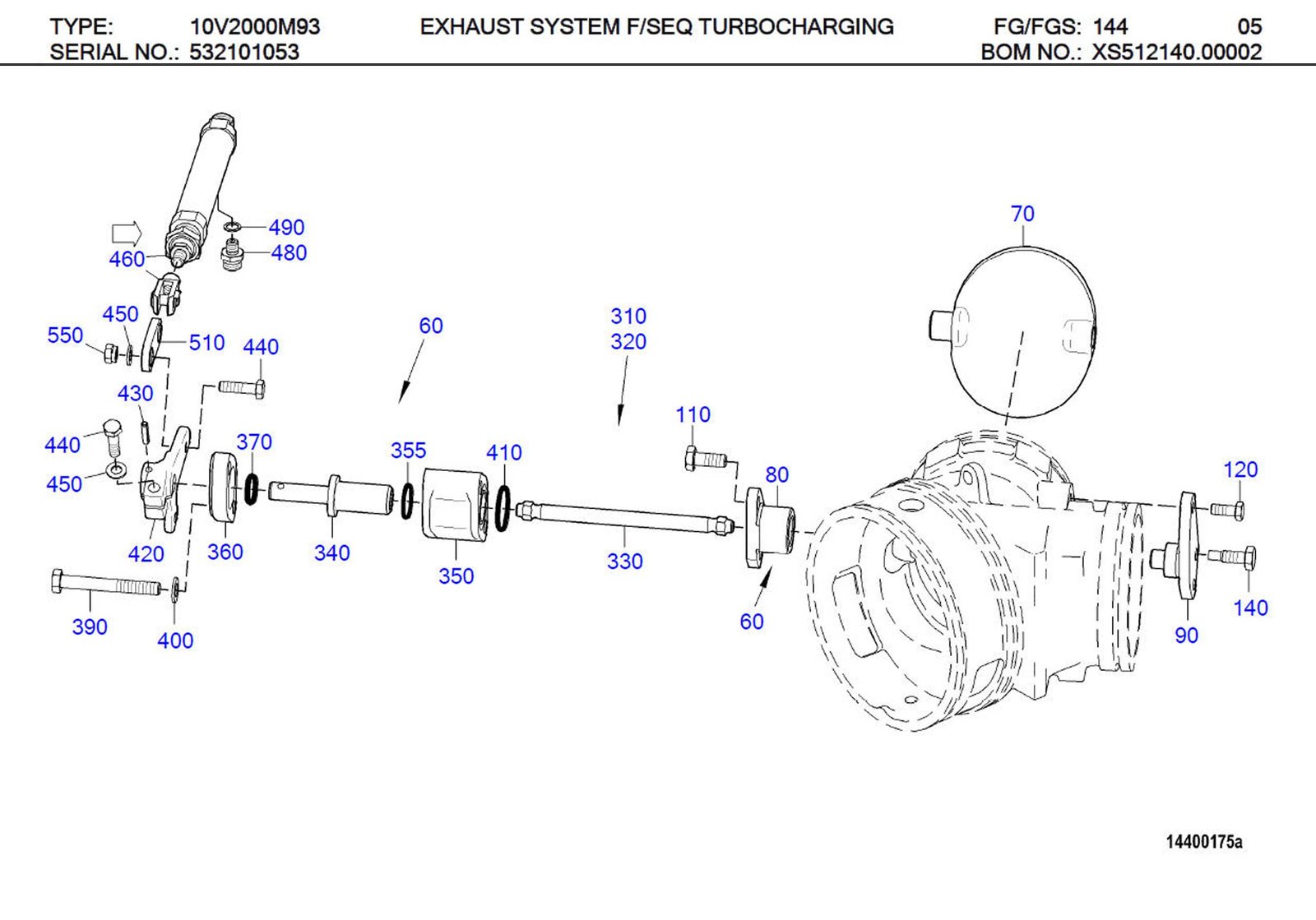

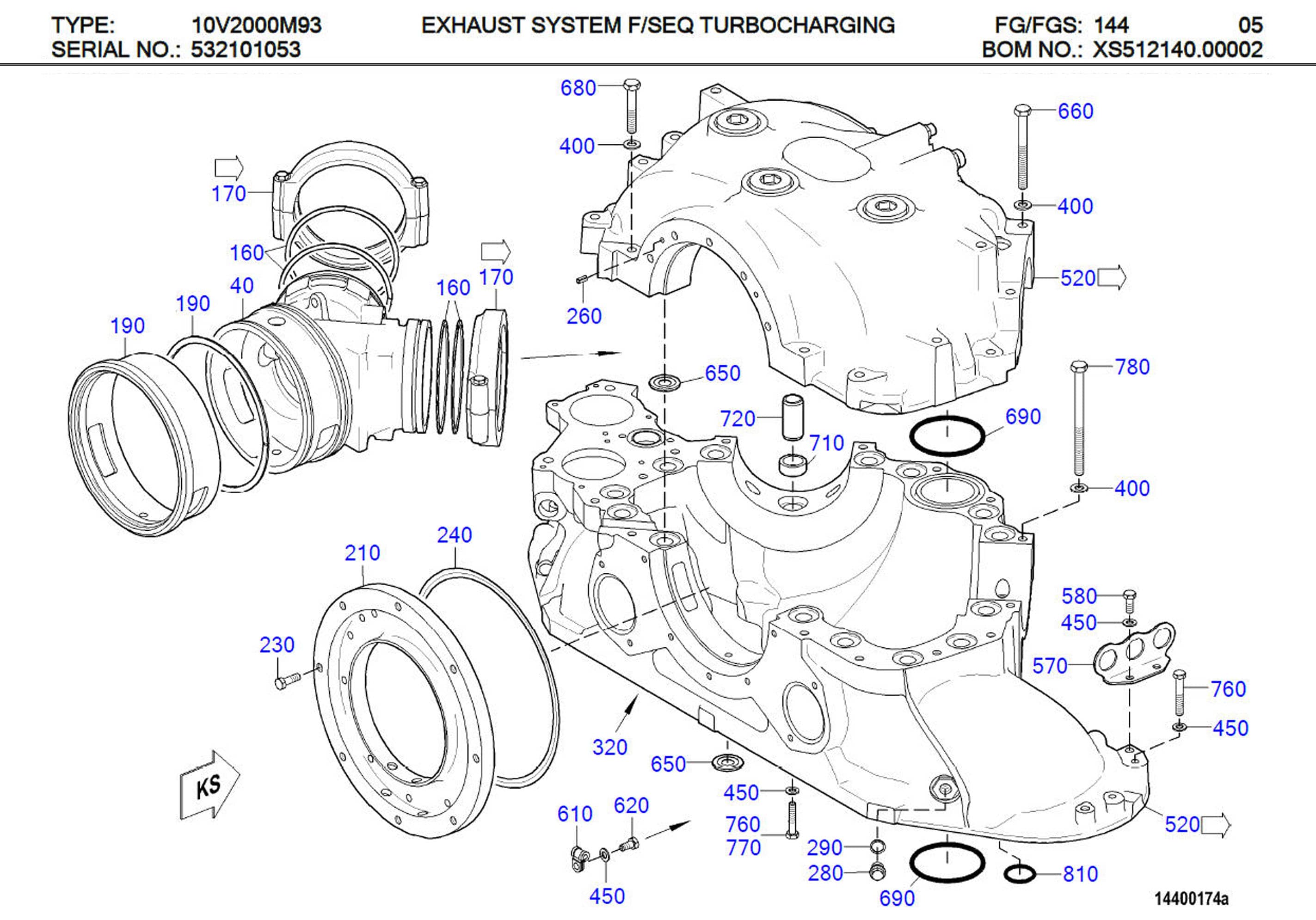

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 40 | FLAP HOUSING | 5321421467 | 001 |
| 60 | PASTE ULTRA THERM MTU | 50547 | 002 |
| 70 | EXHAUST FLAP | 5321420031 | 001 |
| 80 | BEARING BUSHING | 5321420050 | 001 |
| 90 | BEARING BUSHING | 5321420150 | 001 |
| 110 | SCREW | 200933010002 | 002 |
| 120 | SCREW | 000000003169 | 002 |
| 140 | SCREW | 5329900101 | 001 |
| 160 | LAMELLAR RING | 0001427157 | 004 |
| 170 | RING | 5351400077 | 002 |
| 190 | BUSHING | 5321420250 | 001 |
| 200 | PISTON RING, COMP | 234110196000 | 002 |
| 210 | FLANGE | 5321420215 | 001 |
| 230 | SCREW | 204762008005 | 010 |
| 240 | GASKET | X51214200004 | 001 |
| 260 | SPRING PIN | 007346006003 | 002 |
| 280 | PLUG | 000910014004 | 002 |
| 290 | WASHER A COP | 007603014102 | 002 |
| 310 | MOLYKOTE P37 500G TIN | 50564 | 001 |
| 320 | SILCONE RUBBER LOCTITE 5970 | 50773 | 002 |
| 330 | SHAFT | 5321420329 | 001 |
| 340 | SHAFT | X51514400002 | 001 |
| 350 | BUSHING | X53214200001 | 001 |
| 355 | O-RING | 700429023000 | 001 |
| 360 | FLANGE | 5321420615 | 001 |
| 370 | O-RING | 700429017000 | 001 |
| 390 | BOLT HEX A3C | 000000000906 | 002 |
| 400 | WASHER | 000125010524 | 018 |
| 410 | O-RING | 700429030000 | 001 |
| 420 | LEVER | 5360980026 | 001 |
| 430 | PIN SPRING | 001481005030 | 001 |
| 440 | BOLT HEX A3C | 304017008083 | 002 |
| 450 | WASHER | 000125008427 | 041 |
| 460 | CYLINDER ACTUATING | 5360980218 | 001 |
| 480 | UNION | 5360980035 | 001 |
| 490 | WASHER A COP | 007603010110 | 002 |
| 510 | ARTICULATED BEARING | X51514400001 | 001 |
| 520 | CARRIER HOUSING | 5321401018 | 001 |
| 550 | NUT | 999900008000 | 001 |
| 570 | BRACKET HOLE H:43 CAC | 5315461343 | 001 |
| 580 | BOLT HEX | 304017008079 | 006 |
| 610 | CLAMP | 916016006202 | 005 |
| 620 | O-RING | BOLT HEX A3C S2000/4000 | 003 |
| 650 | GASKET F. CARRIER HOUSING | X51614300001 | 029 |
| 660 | BOLT HEX | 000931010315 | 007 |
| 680 | BOLT HEX | 000933010144 | 007 |
| 690 | O-RING | 700429080001 | 002 |
| 710 | SEALING RING | 8390780080 | 002 |
| 720 | SLEEVE | 5321870053 | 002 |
| 760 | BOLT HEX | 304017008087 | 024 |
| 770 | BOLT HEX | 304017008085 | 001 |
| 780 | BOLT HEX A3C | 000000001041 | 002 |
| 810 | O-RING | 700429030002 | 002 |
| 840 | BRACKET | 5502030043 | 001 |
| 930 | UNION | 531SK4656 | 002 |
| 940 | SUPPORT | 5321420240 | 002 |
| 950 | WASHER A COP | 007603008109 | 002 |
| 960 | PRESS REGULATE VALVE | X00043889 | 002 |
| 970 | SCREW | 204762006001 | 006 |
| 990 | BOLT HEX A3C | 304017008081 | 007 |
| 1010 | O-RING | 700429072000 | 002 |
| 1030 | RETAINER | X00012876 | 001 |
| 1080 | BOLT HEX SOC HD | 000912006097 | 002 |
| 1090 | WASHER | 200433006400 | 002 |
| 1110 | CONTROL LINE | X51212800004 | 001 |
| 1130 | RETAINER | X00012875 | 001 |
| 1150 | WASHER | 007349008002 | 003 |
| 1170 | DISTRIBUTOR | X51214400002 | 001 |
| 1180 | TAPE SEALING PTFE | 50155 | 001 |
| 1190 | NUT | 000439018203 | 001 |

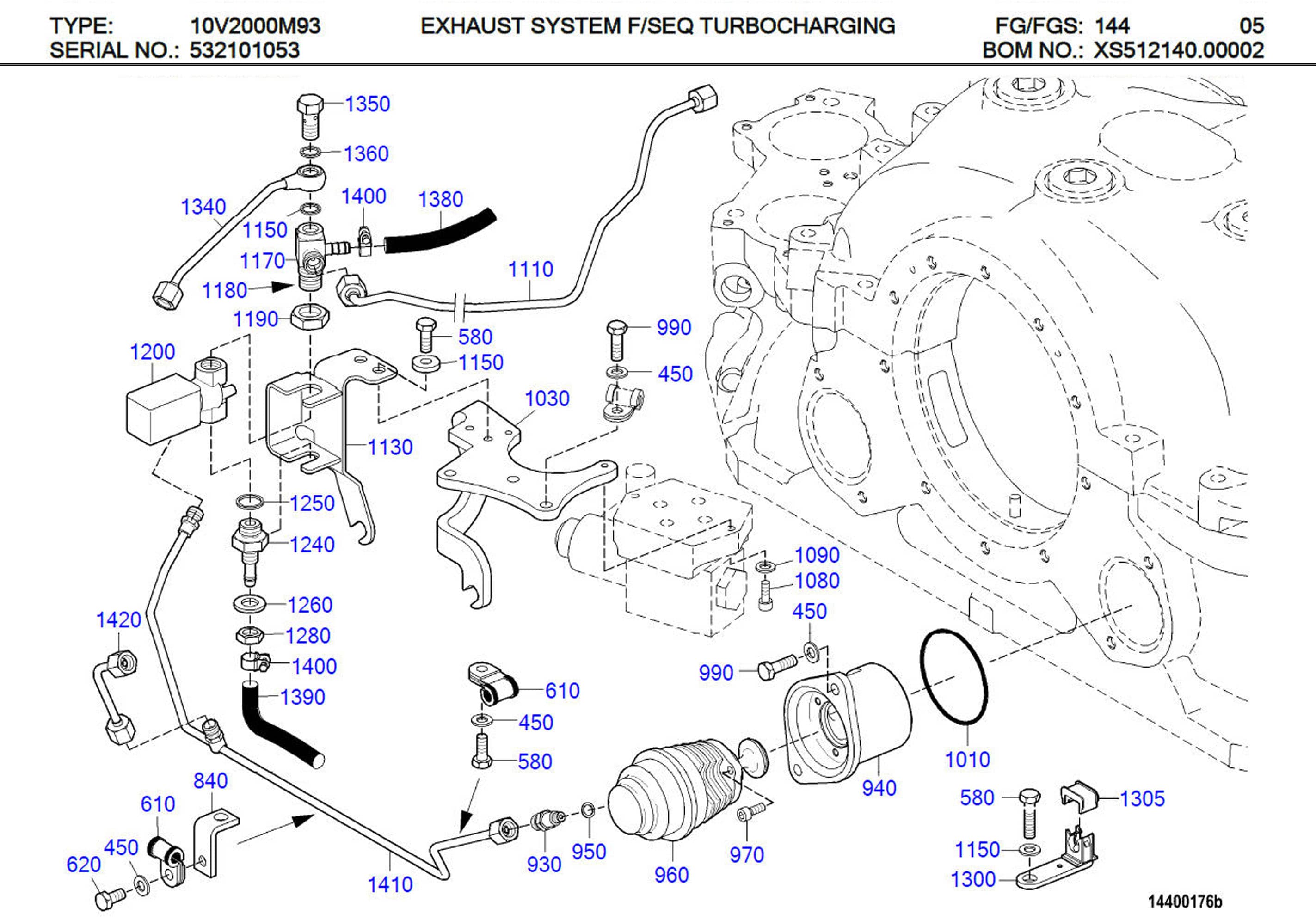

| 1200 | 2/2-WAY SOLENOID VLV | X51114500001 | 001 |
| 1240 | SCREW-FITTING UNION | X51199100006 | 001 |
| 1260 | WASHER | 000125013012 | 001 |
| 1280 | HEX NUT | 000439012200 | 001 |
| 1300 | RETAINER F. WIRING HARNESS | 5241507973 | 001 |
| 1305 | BRACKET | 0005335043 | 001 |
| 1340 | CONTROL LINE | 5320900035 | 001 |
| 1350 | BOLT BANJO A 6 | 915011006102 | 001 |
| 1360 | WASHER A COP | 007603012111 | 002 |
| 1410 | CONTROL LINE | 5320900235 | 001 |
| 1420 | CONTROL LINE | 5320900335 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | X51114500001 | X00012301 | N/A |
| 02 | X51114500001 | X00031971 | 2007/02/01 |
| 03 | X51114500001 | X51114500001 | 2007/03/01 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
