C/N | Description | Part-Number | Qty |
---|---|---|---|
45 | HOUSING F/MONTRG SYST + GOV | 5275334402 | 001 |
55 | COVER F/MONTRG SYST + GOV | 5275351291 | 001 |
65 | PLUG-IN BOARD | X00E50206612 | 001 |

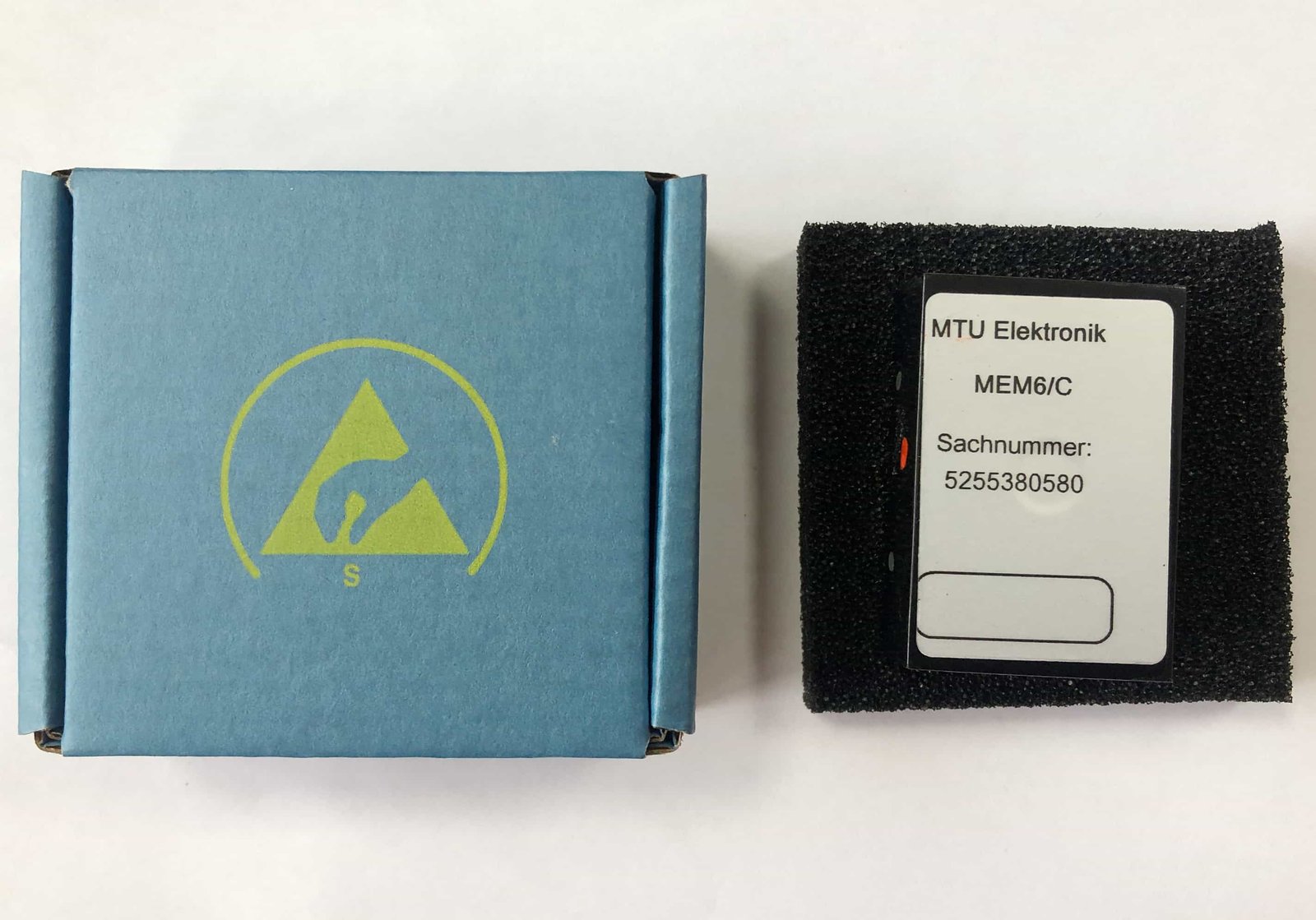

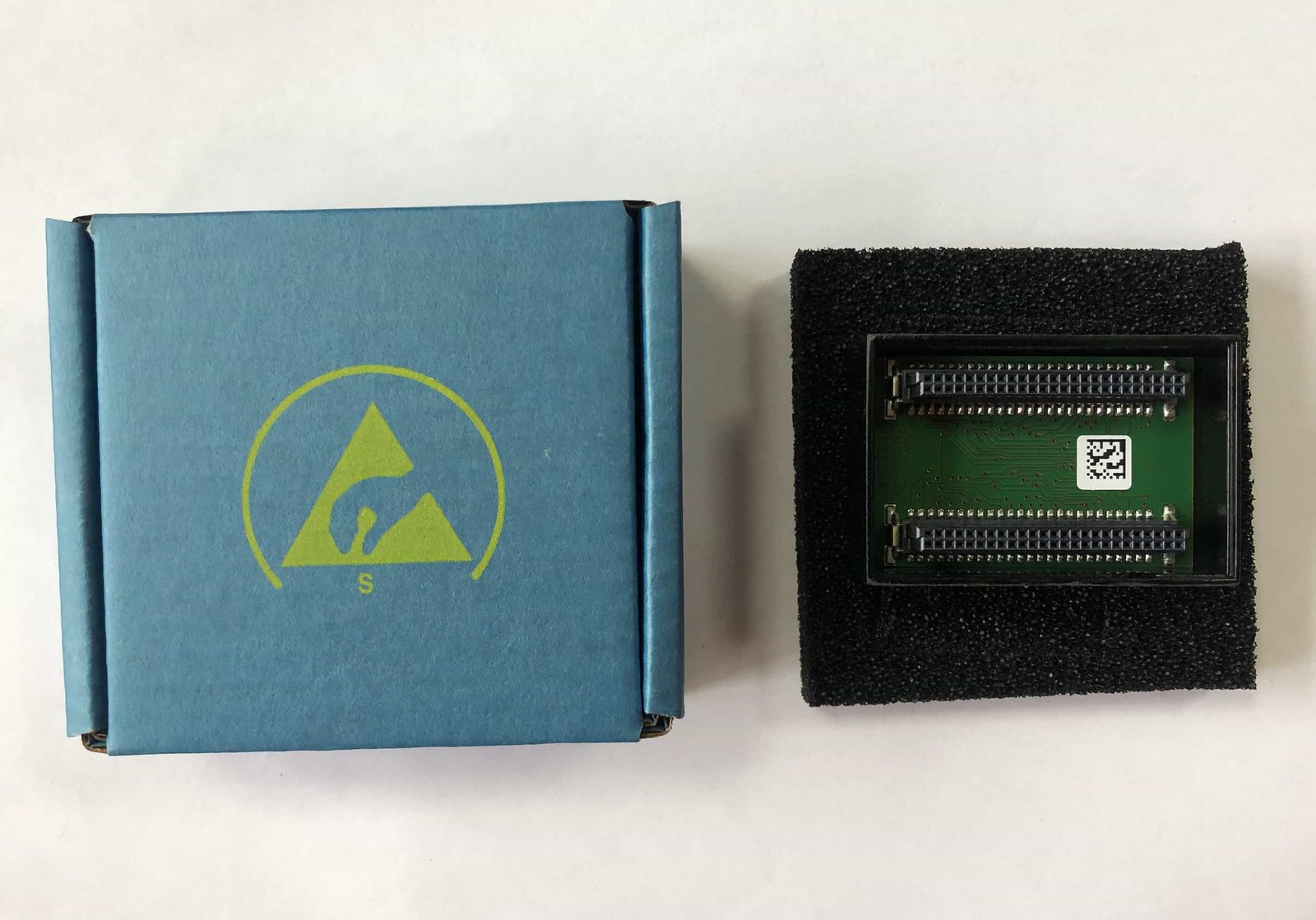

75 | MEMORY MODULE | 5255380580 | 001 |
85 | PLUG-IN BOARD | X00E50208847 | 001 |
95 | LEAF SPRING | 5005350276 | 001 |
105 | PLATE FOR ECU | 5275332789 | 001 |
115 | CAPACITOR | 0065313225 | 001 |
125 | BASE | 0035314481 | 002 |
135 | QUICK-CATCH CLAMP | 0025317481 | 002 |
145 | CABLE FOR ECU | 0005302034 | 001 |
155 | O-RING | 700429380002 | 001 |
165 | SCREW | 0109909901 | 021 |
175 | SCREW | 0119900001 | 001 |
185 | RIVET | 910001003100 | 001 |
195 | DUST CAP | 0015333031 | 001 |
205 | CAP | 0015335431 | 001 |
215 | DUST CAP | 0005332731 | 001 |
225 | DUST CAP | 0005332731 | 001 |
235 | DUST CAP | 0005338131 | 002 |
255 | OVAL-HEAD SCREW | 207985006102 | 010 |
265 | LEAD SEAL | X00E50203074 | 002 |
275 | LEAD SEAL | 41458 | 001 |
290 | GOVERNOR NOT ADJUSTED | X00E50206616/76 | 001 |
300 | GOVERNOR ADJUSTED | X00E50206616/77 | 001 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
