0001427157 LAMELLAR RING

Other
Other 5320900001 AIR FILTER X59320200040 FILTER CARTRIDGE FOR COOLANT X00041465 GAITER 8699890005 ADHESIVE X00E50200664/76 PLUG-IN BOARD X00E50208847 PLUG-IN BOARD 5255380580 MEMORY MODULE X53220200002 SEALING SLEEVE 0020922801 FUEL FILTER SPIN-ON X00028017 GASKET X53604200005 SEALING PLATE INNER X53604200004 GASKET PLATE OUTER 5321800001 OIL PUMP 0180945802 CLEANER AIR W/ADAP FTG 5241840501 LUBE OIL FULL FLOW FILTER 5320900136 PLUG-IN PIPE XP51529700006 ROTARY SEAL 5321800143 OIL SPRAY NOZZLE 5361800515 VALVE ASM OIL PRESS RELIEF 916016006202 CLAMP X51610100001 NOZZLE X51510100022 FLANGE 916016012201 CLAMP X00005363 OIL SEPARATOR 5320140022 GASKET XP51108300002 FILTER CARTRIDGE X00E50209325 LEVEL MONITOR 5360702032 FUEL LINE 5360780131 ELBOW 05132155 RING SEALING 5360780180 GASKET FOR FUEL 5369970040 SEALING RING 5360780441 RETAINER 5314770056 PLUG 05122439 SEAL 05144768 CLAMP 5362030180 GASKET X51621300033 GENERATOR X51299100019 V-RIBBED BELT 5090850160 PISTON RING F/TURBOCHARGER 5090850060 PISTON RING 0001427157 LAMELLAR RING 234110196000 PISTON RING, COMP 5090250350 BEARING BUSHING X51214200004 GASKET 5800150460 SEALING RING 5310900337 CHARGE-AIR LINE X00014782 GASKET XP51107300001 SUCTION RESTR. VALVE X51199100026 STRAINER 8699810032 CYL ROLLER BEARING 8699810033 ANGLR-CONT BALL BRG X00005852 PROTECTIVE SLEEVE 4570530001 INLET VALVE 5410530226 VALVE COLLET 3669900240 WASHER VALVE SPRING 5320530020 VALVE SPRING 5500511710 CAMSHAFT BEARING 8699970498 SEALING RING 0031845201 OIL FILTER SPIN-ON 0031845301 OIL FILTER SPIN-ON 5320700246 RELIEF VALVE 0009953502 CLAMP X00028031 GASKET 5360900250 FUEL DELIVERY PUMP X00E50201022 GOVERNOR 8692040113 WASHER 8692040115 WASHER 8699970497 SEALING RING X00028154 SEALING RING 8699970499 RADIAL-LIP SHFT SEAL XP52229700007 TRACK RING XP51529700005 O-RING XP51529700004 ROTARY SEAL X00017269 IMPELLER 50773 SILCONE RUBBER LOCTI 5350980065 SEALING RING 5320980080 GASKET 700429460001 O-RING 40041 PASTE MOLYKOTE G-N-PLUS 0000943268 INDICATOR AIR FILTER RESTRISTER 5360900001 AIR FILTER 5410180233 DIAPHRAGM F OIL SEPARATOR 5410100163 OIL SEPARATOR 0005355303 LEVEL MONITOR 0005355103 LEVEL MONITOR 0005356430 TEMPERATURE SENSOR 0035352931 PRESSURE SENSOR 5205304531 PRESSURE SENSOR 0035351731 PRESSURE SENSOR 0035352731 PRESSURE SENSOR 0035352531 PRESSURE SENSOR 0005357933 SPEED SENSOR 0005358233 SPEED SENSOR X00011800 WIRING HARNESS FOR SENSO X00012160 WIRING HARNESS TO INJECTOR 0000180680 GASKET 700429540000 O-RING 5090251301 COMPRESSOR WHEEL XT1310100012 MAGNETIC NUT 5090200071 MAGNETIC NUT 5090250141 RETAINING RING X00010425 WASHER 5090200512 THRUST BEARING X00010421 WASHER X00003277 BEARING BUSHING 700429108000 O-RING 700429126000 O-RING 0020921901 FUEL FILTER SPIN-ON X00023888 SEALING WASHER X00009196 DAMPER RING FOR INJECTOR X00005152 INJECTOR 5320100130 CYLINDER HEAD COVER 5410530532 VALVE SEAT INSERT EXHAUST 5410532730 VALVE GUIDE 5410532131 VALVE SEAT INSERT INLET 5410530225 VALVE SPRNG RETAINER 5410500227 EXHAUST VALVE 5410501336 ROCKER SHAFT SUPPORT X00004882 CYLINDER HEAD GASKET 5419900501 12-POINT HEAD SCREW 5410380250 CONROD BUSHING 5360330262 THRUST WASHER 5410330605 CRANKSHAFT BEARING SIZE 0-0 5410337101 CRANKSHAFT BEARING SIZE 0-0 5320110027 RING 5320110110 CYLINDER LINER 8800110159 SEALING RING
PART NUMBER 0001427157
ENGINE TYPE MTU 2000 ENGINE
DESCRIPTION LAMELLAR RING
DIMENSIONS N/A
UNIT WEIGHT 0.031 KG
HS CODE 84099900
NATO-VERS.-NR. 5330123845991
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

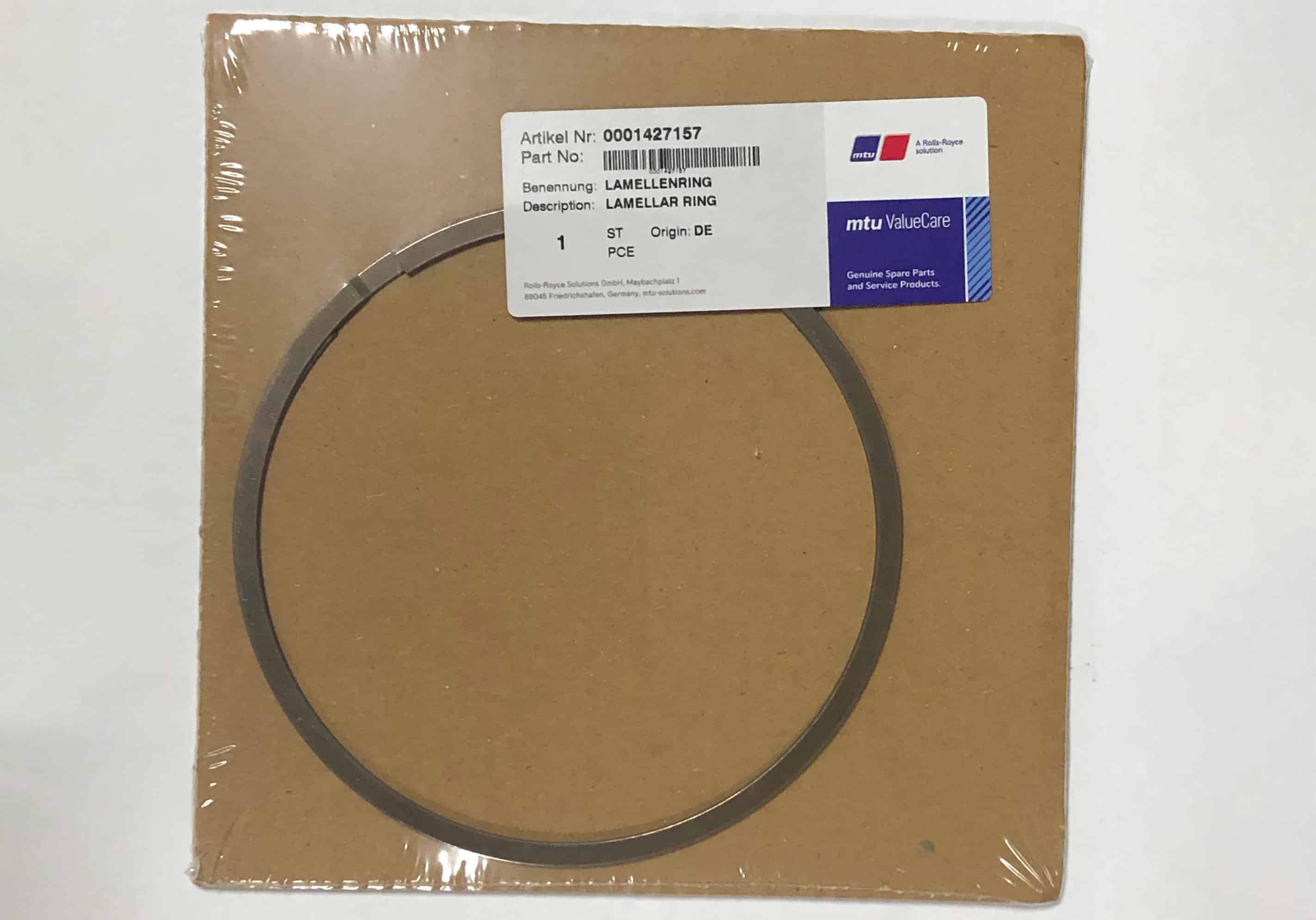

MTU 0001427157 EXHAUST SYSTEM LAMELLAR RING

MTU 0001427157 EXHAUST SYSTEM F/SEQ TURBOCHARGING LAMELLAR RING

MTU 0001427157 EXHAUST SYSTEM LAMELLAR RING

C/N Description Part-Number Qty
60 FLAP HOUSING 5321421467 001
100 ASSEMBLY PRODUCTS 50547 001
120 EXHAUST FLAP 5321420031 001
140 BEARING BUSHING 5321420050 001
160 BEARING BUSHING 5321420150 001
200 SCREW 200933010002 002
220 SCREW 000000003169 002
260 SCREW 5329900101 001
300 LAMELLAR RING 0001427157 004
320 RING 5351400077 002
360 BUSHING 5321420250 001
380 PISTON RING, COMP. 234110196000 002
400 FLANGE 5321420215 001
440 SCREW 000912008055 010
460 GASKET 5321420080 001
500 SPRING PIN 007346006003 002
540 PLUG 000910014004 002
560 SEALING RING 007603014102 002
600 SHAFT 5321420329 001
620 SHAFT 5321420429 001
640 BUSHING 5321420350 001
660 FLANGE 5321420615 001
680 O-RING 700429017000 001
720 SCREW 000000000906 002
740 WASHER 000125010524 018
780 LEVER 5360980026 001
800 SPRING PIN 001481005030 001
820 SCREW 304017008083 002
840 WASHER 000125008427 041
860 ACTUATING CYLINDER 5360980218 001
900 UNION 5360980035 002
920 SEALING RING 007603010110 002
960 ROD 5361400146 001
980 CARRIER HOUSING 5321401018 001
1040 NUT 999900008000 001
1080 RETAINER 5620984139 002
1100 SCREW 304017008077 004
1160 CLAMP 916016006202 006
1240 GASKET 5321420180 029
1260 SCREW 000931010315 007
1300 SCREW 000933010144 007
1320 O-RING 700429080001 002
1360 SEALING RING 8390780080 002
1380 SLEEVE 5321870053 002
1420 SILICONE RUBBER 50773 001
1460 SCREW 304017008087 024
1480 SCREW 304017008085 001
1500 SCREW 000000001041 002
1560 O-RING 700429030002 002

MTU 2000 Diesel Engine Models & Specifications

MTU 2000 M96 Family

MTU 2000 Diesel Engine Models & Specifications

Make Rated power kW Speed rpm Bore/stroke mm (in)
8V 2000 M72 720 2250 135/156 (5.3/6.1)
10V 2000 M72 900 2250 135/156 (5.3/6.1)
12V 2000 M93 1340 2450 135/156 (5.3/6.1)
16V 2000 M93 1790 2450 135/156 (5.3/6.1)
12V 2000 M92 1220 2450 135/156 (5.3/6.1)
16V 2000 M92 1630 2450 135/156 (5.3/6.1)
12V 2000 M72 1080 2250 135/156 (5.3/6.1)
16V 2000 M72 1440 2250 135/156 (5.3/6.1)
8V 2000 M94 932 2450 135/156 (5.3/6.1)
8V 2000 M84 810 2450 135/156 (5.3/6.1)
8V 2000 M84L 895 2450 135/156 (5.3/6.1)
12V 2000 M61 600 1800 130/150 (5.1/5.9)
16V 2000 M61 800 1800 130/150 (5.1/5.9)
8V 2000 M61 400 1800 130/150 (5.1/5.9)
10V 2000 M86 1015 2450 135/156 (5.3/6.1)
12V 2000 M86 1268 2450 135/156 (5.3/6.1)
16V 2000 M86 1630 2450 135/156 (5.3/6.1)
10V 2000 M96 1120 2450 135/156 (5.3/6.1)
