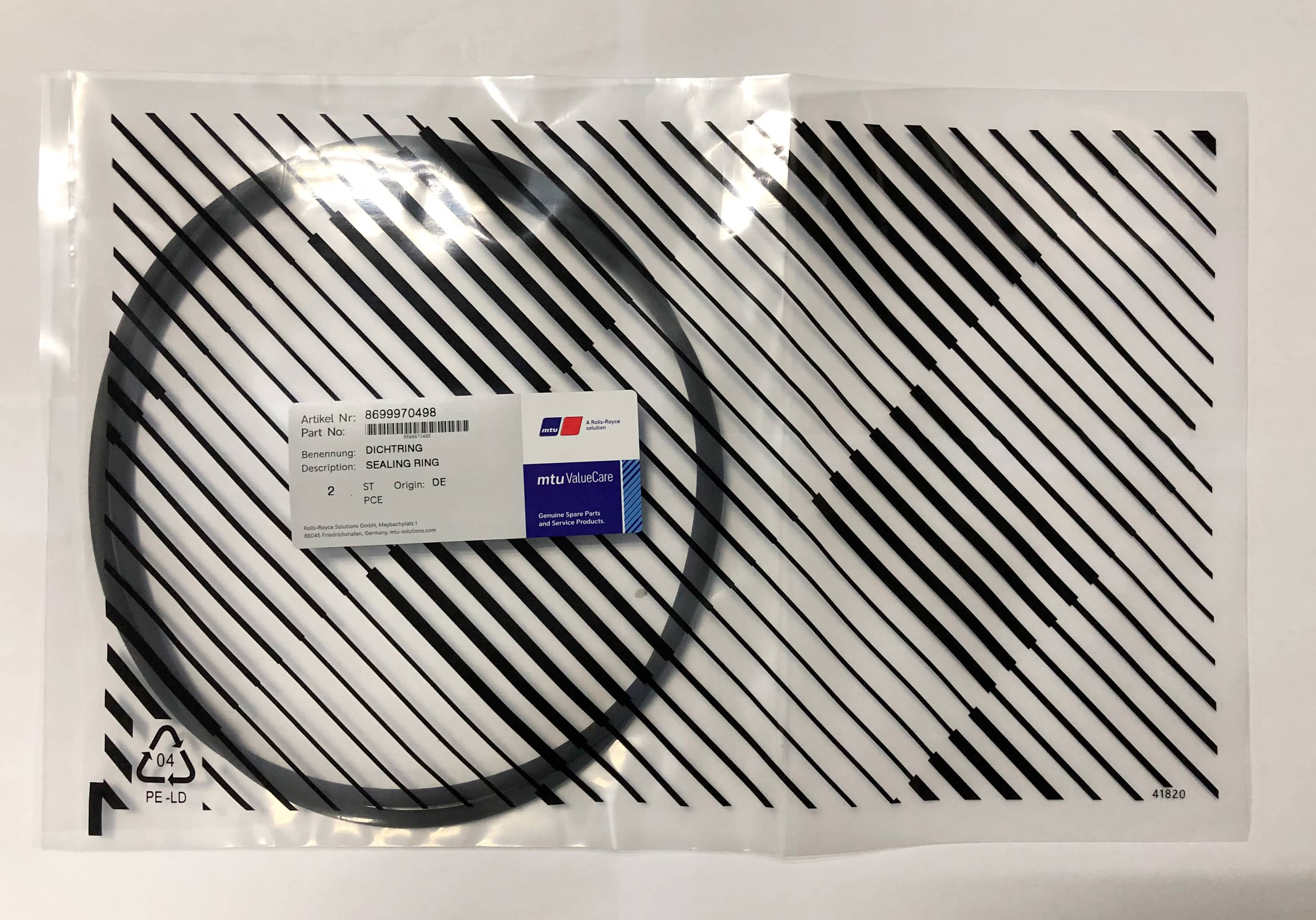

| PART NUMBER | 8699970498 |
| ENGINE TYPE | MTU 2000 ENGINE |
| DESCRIPTION | SEALING RING |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 0.100 KG |
| HS CODE | 84841000 |
| NATO-VERS.-NR. | 5331123846172 |

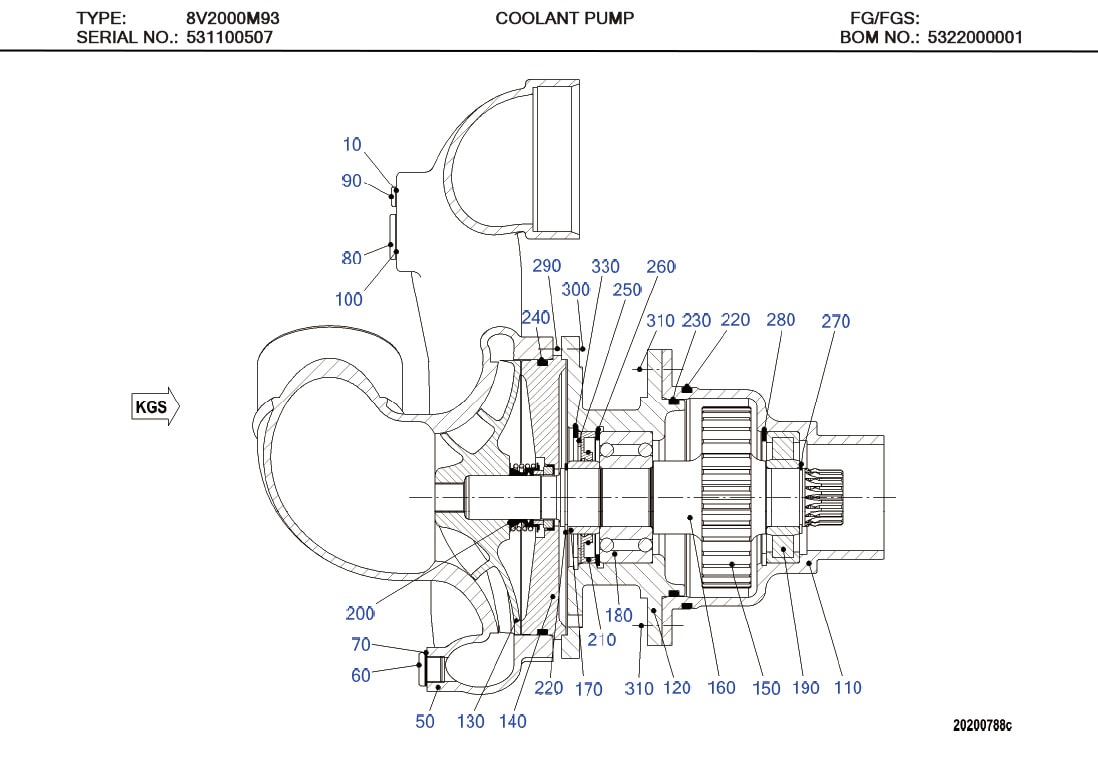

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 40 | O-RING | 700429145001 | 001 |
| 50 | HOUSING | Z=BGE190L-MTUGD01 | 001 |
| 60 | PLUG | 000908018002 | 001 |
| 70 | SEALING RING | 007603018101 | 001 |
| 80 | PLUG | 000908026005 | 001 |
| 90 | PLUG | 735210014000 | 001 |
| 100 | SEALING RING | 007603027100 | 001 |
| 110 | BEARING HOUSING | X00023121 | 001 |
| 120 | BEARING HOUSING | X00023184 | 001 |
| 130 | IMPELLER | 8692040112 | 001 |
| 140 | INTERMEDIATE MEMBER | Z=EZS190-MTUGD01 | 001 |
| 150 | GEAR | X00017270 | 001 |
| 160 | COOLANT PUMP SHAFT | X00023195 | 001 |
| 170 | TRACK RING | X00017272 | 001 |
| 180 | ANGLR-CONT BALL BRG | 8699810033 | 001 |
| 190 | CYL ROLLER BEARING | 8699810032 | 001 |
| 200 | ROTARY SEAL | 8692010024 | 001 |
| 210 | RADIAL-LIP SHFT SEAL | 8699970499 | 001 |
| 220 | SEALING RING | X00028154 | 001 |
| 230 | SEALING RING | 8699970497 | 001 |
| 240 | SEALING RING | 8699970498 | 001 |
| 250 | WASHER | 8692040115 | 001 |
| 260 | RING | Z=ITZ090 | 001 |
| 270 | SNAP RING | 000471040000 | 002 |
| 280 | SNAP RING | 000472090000 | 001 |
| 290 | STUD | 000939008074 | 006 |
| 300 | HEX NUT | 000934008008 | 006 |
| 310 | SCREW | 000933006175 | 002 |
| 320 | WASHER | 8692040113 | 001 |
| 330 | SNAP RING | 000472095000 | 001 |
| Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
|---|---|---|---|
| 8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
| 10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
| 12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
| 16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
| 8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
| 8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
| 16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
| 8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
| 10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
| 12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
| 16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
| 10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
