C/N | Description | Part-Number | Qty |
---|---|---|---|
10 | HOUSING | Z=ELG190-MTUGD01 | 001 |
20 | BEARING HOUSINGBR 2000 CR | X00023184 | 001 |
30 | GEAR | X00017270 | 001 |
40 | DRIVE SHAFT | XP51529700002 | 001 |
50 | TRACK RING | XP52229700007 | 001 |

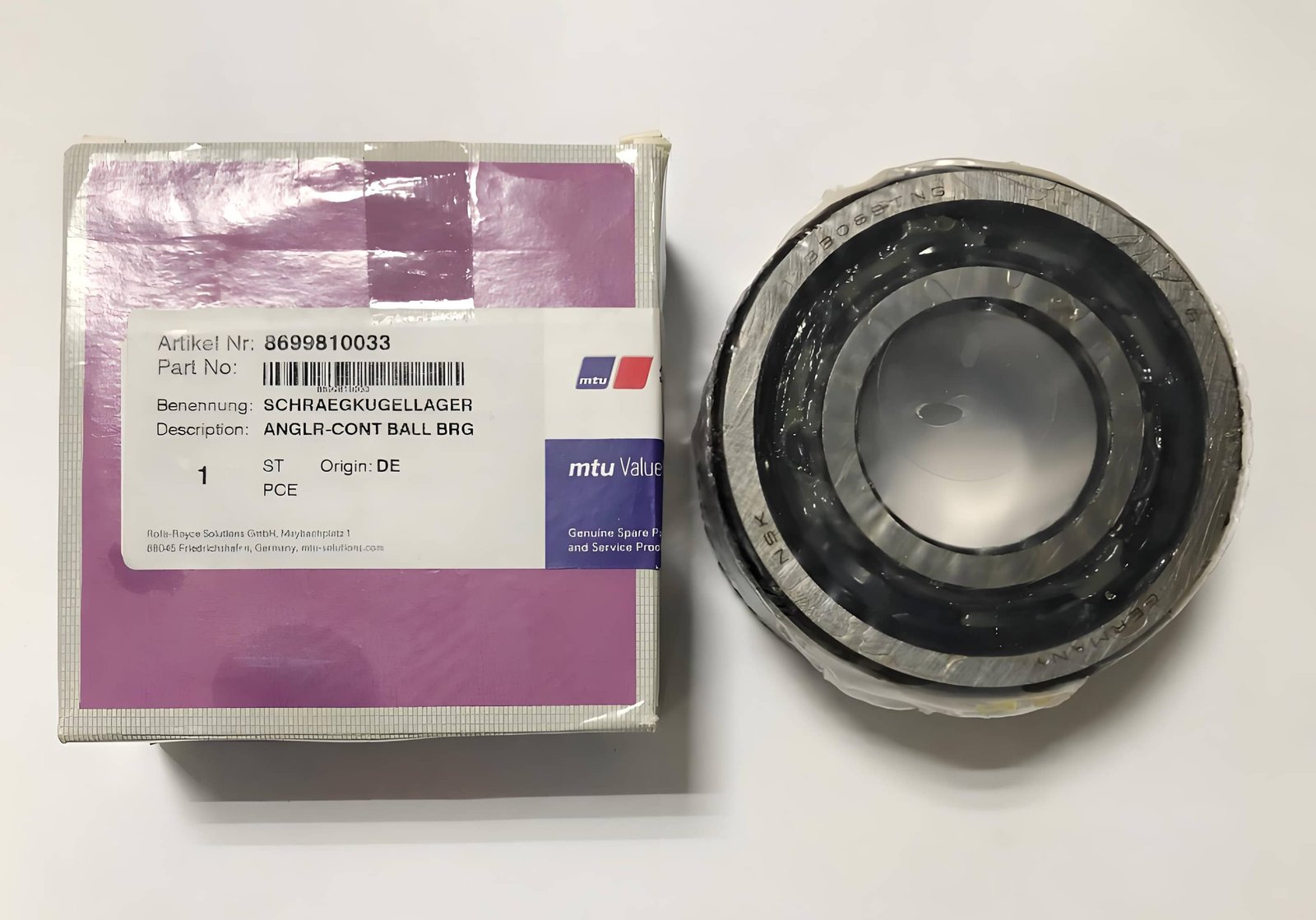

60 | ANGLR-CONT BALL BRG | 8699810033 | 001 |
70 | CYL ROLLER BEARING | 8699810032 | 001 |
80 | RADIAL-LIP SHFT SEAL | 8699970499 | 001 |
90 | SEALING RINGCR 2000 | X00028154 | 001 |
100 | SEALING RING | 8699970497 | 001 |
110 | WASHER | 8692040115 | 001 |
120 | RING | Z=ITZ090 | 001 |
130 | SNAP RING | 000471040000 | 002 |
140 | SNAP RING | 000472090000 | 001 |
150 | HEX SCREW | 000933006175 | 002 |
160 | WASHER | 8692040113 | 001 |
170 | SNAP RING | 000472095000 | 001 |
Make | Rated power kW | Speed rpm | Bore/stroke mm (in) |
---|---|---|---|
8V 2000 M72 | 720 | 2250 | 135/156 (5.3/6.1) |
10V 2000 M72 | 900 | 2250 | 135/156 (5.3/6.1) |
12V 2000 M93 | 1340 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M93 | 1790 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M92 | 1220 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M92 | 1630 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M72 | 1080 | 2250 | 135/156 (5.3/6.1) |
16V 2000 M72 | 1440 | 2250 | 135/156 (5.3/6.1) |
8V 2000 M94 | 932 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84 | 810 | 2450 | 135/156 (5.3/6.1) |
8V 2000 M84L | 895 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M61 | 600 | 1800 | 130/150 (5.1/5.9) |
16V 2000 M61 | 800 | 1800 | 130/150 (5.1/5.9) |
8V 2000 M61 | 400 | 1800 | 130/150 (5.1/5.9) |
10V 2000 M86 | 1015 | 2450 | 135/156 (5.3/6.1) |
12V 2000 M86 | 1268 | 2450 | 135/156 (5.3/6.1) |
16V 2000 M86 | 1630 | 2450 | 135/156 (5.3/6.1) |
10V 2000 M96 | 1120 | 2450 | 135/156 (5.3/6.1) |
