0002032088 ACTUATOR

Other
Other XT5610100140 PISTON RING F/TURBOCHARGER 5841420154 CABLE CONDUIT 5841400282/87 BELLOWS WITH TEST CERT. 3.1 5841420445 CLAMP 5840371625 PISTON CROWN 0180944502 PREFILTER 5840940180 GASKET X00E50214448 ACTUATOR 0019813727 ANGL CONT BALL BRG 8492000005 ROTARY SEAL 5842040714 COOLANT PUMP SHAFT 5205304131 TRAVEL SENSOR 5110850060 PISTON RING 5120850560 PISTON RING F/TURBOCHARGER 5120820226 HEAT SHIELD 5120251210 BEARING 5120200112 THRUST BEARING 5841800175 OIL THERMOSTAT 5849970040 SEALING RING 111D03014/1 SEALING RING 0002032088 ACTUATOR 5800110558 SEAL CARRIER 5110200412 THRUST BEARING 5110250376 WASHER 0199977747 RADIAL-LIP SHFT SEAL 5842032780 GASKET 5849935201 PRESSURE SPRING 5849932001 LEAF SPRING 5842040180 GASKET 114C62033/1 SEALING RING 5800110259 SEALING RING 5909970040 SEALING RING 161A15027/1 GASKET 5841420857 SEALING RING 5809970048 SEALING RING 5120252076 WASHER 5610110059 SEALING RING 8699970114 SEALING RING 5800300617 PISTON COMPOSITE 0005360001 LAMP 5840700632/87 HP FUEL LINE 5800162319 SEALING RING 0004905565 BOOT 0010175412 NOZZLE 0000533235 VALVE ROTATOR 5840111810 CYLINDER LINER SIZE 0 0080370018 OIL CONTROL RING 0080375619 RECTANGLR-SECT RING 5840300917 PISTON 5840300020/42 CONNECTING ROD 5800530205 EXHAUST VALVE 5800530101 INLET VALVE 007603033100 SEALING RING 206925008000 HEX NUT 5849970572 SCREW-FITTING UNION 0000981565 GASKET 0000981465 GASKET 5840982719 PUMP TIMING PISTON 5840980257 2/2-WAY SOLENOID VALVE 5849931601 PRESSURE SPRING 5840900054 VALVE HOUSING 0029971248 RUBBER RING 161M37002/1 RUBBER SLEEVE 135M37018/1 RUBBER SLEEVE 5840900595 2/2-WAY SOLENOID VALVE 5809900819 STRESS BOLT 135A45008/2 SLEEVE
PART NUMBER 0002032088
ENGINE TYPE MTU 1163 ENGINE
DESCRIPTION ACTUATOR
DIMENSIONS N/A
UNIT WEIGHT 0.411 KG
HS CODE 90329000
NATO-VERS.-NR. 6685123349580
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

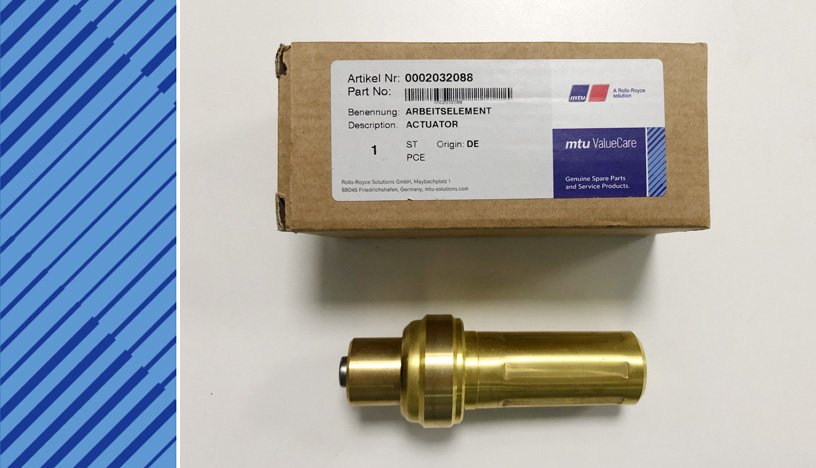

MTU 0002032088 COOLANT THERMOSTAT LEFT SIDE ACTUATOR

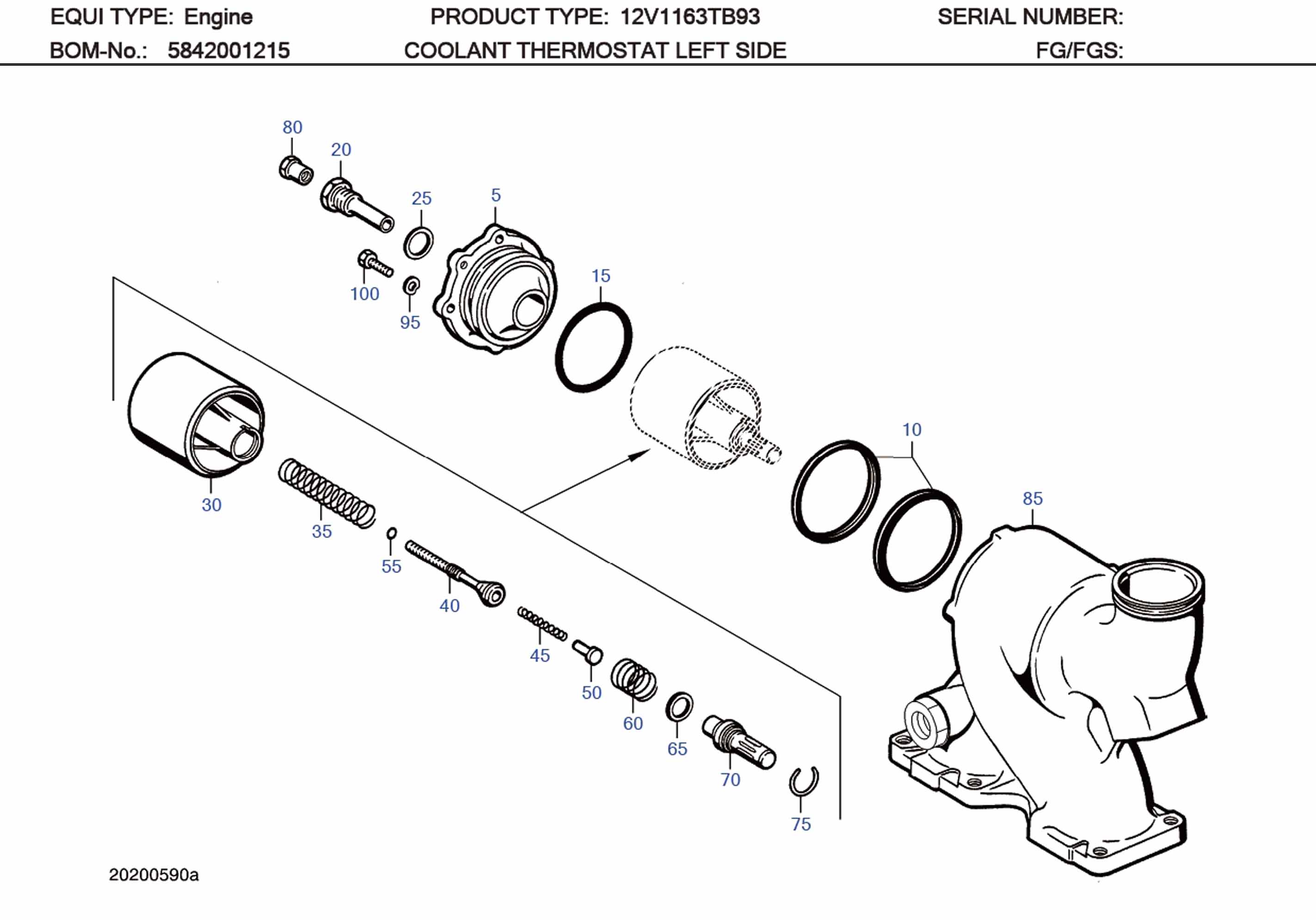

MTU 5849932001 Technical Engineering Exploded View

MTU 0002032088 COOLANT THERMOSTAT LEFT SIDE ACTUATOR

C/N Description Part-Number Qty
05 COVER 5842000117 001
10 SCRAPER 0002030381 002
15 O-RING 700429112000 001
20 THREADED BUSHING 5849970716 001
25 COPPER SEALING RING 007603030101 001
30 SLIDE VALVE 5842030147 001
35 PRESSURE SPRING 5849932101 001
40 PIN 5842030562 001
45 PRESSURE SPRING 5849935201 001
50 PIN 5842030362 001
55 O-RING 700429010000 001
60 SPRING 5849932001 001
65 WASHER 5842030252 001
70 ACTUATOR 0002032088 001
75 SNAP RING 007993040200 001
80 BUSHING 5849970316 001
85 HOUSING LEFT 5842002716 001
95 WASHER 000125010524 004
100 HEX BOLT 000933010093 004

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
