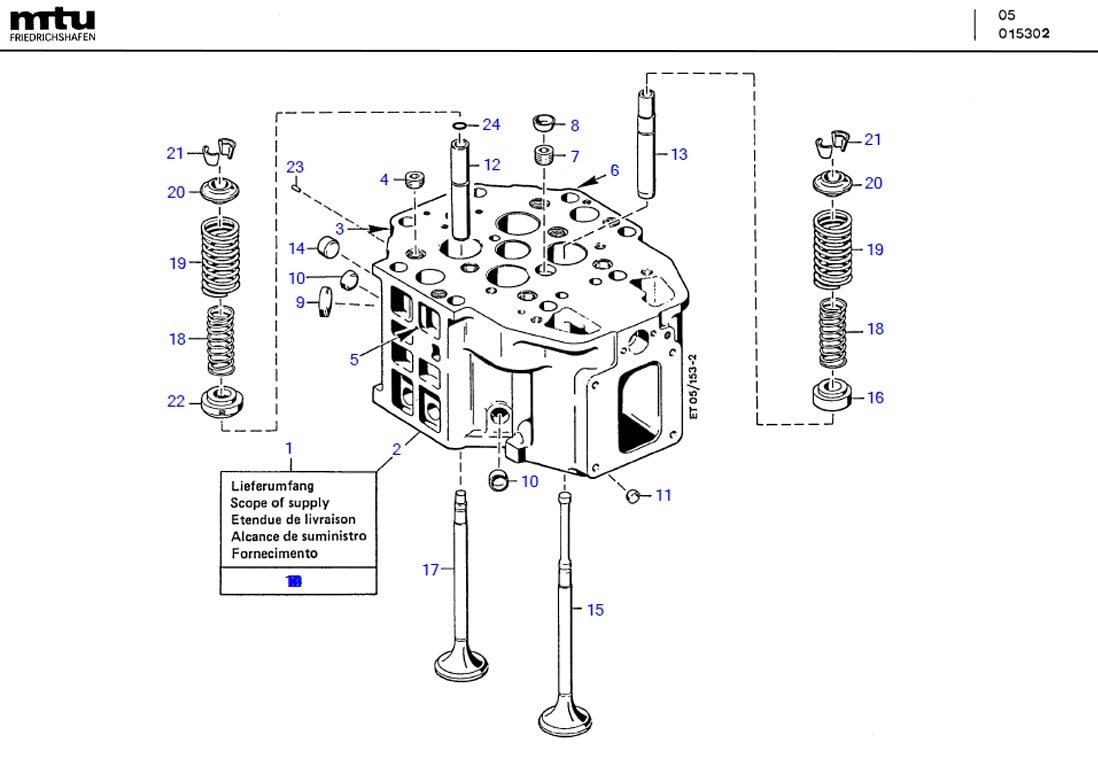

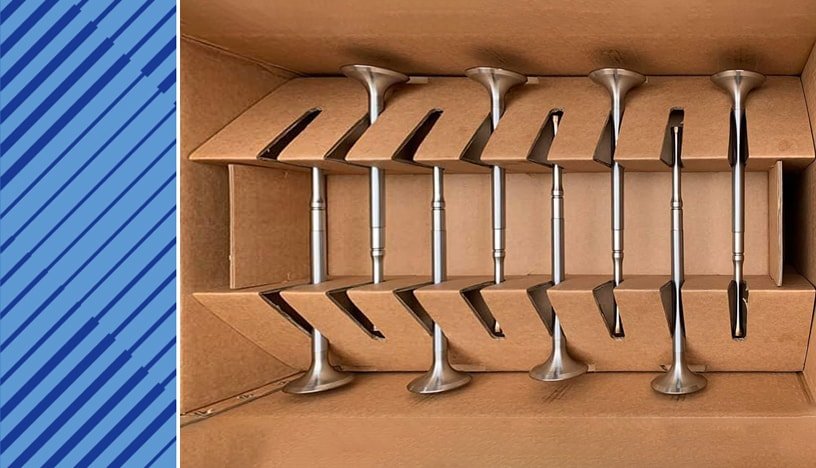

MTU 5800530101 Technical Engineering Exploded View

MTU 5800530101 Technical Engineering Exploded View

MTU 5800530101 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 SET OF CYLINDER HEADS 5840101420 001
01 SET OF CYLINDER HEADS 5840101320 001
02 SET OF CYLINDER HEADS 5840160001 001
03 THREAD INSERT 700096010100 000
04 PLUG ROD 700248024000 001
05 PLUG ROD 700248018000 001
06 PLUG ROD 700248016000 001
07 PLUG 5800160061 001
08 COVER 5370160133 001
09 COVER 5370160233 003
10 COVER 5800160033 011
11 COVER 5370160033 002
12 INLET VALVE GUIDE 5840530930 002
12A INLET VALVE GUIDE 5840531030 000
12B INLET VALVE GUIDE 5840531130 000
13 INLET VALVE GUIDE 5840530029 002
13A INLET VALVE GUIDE 5840530129 000
13B INLET VALVE GUIDE 5840530229 000
14 PLUG 5840160061 002
15 INLET VALVE 5800530101 002
16 SPRING RETAINER 5800530325 002
17 EXHAUST VALVE 5800530205 002
18 VALVE SPRING 5800530320 004
19 VALVE SPRING 5800530220 004
20 SPRING RETAINER 5800530125 004
21 VALVE COLLET 5900530426 008
22 VALVE ROTATOR 0000533235 002
23 SPRING PIN 001481006000 002
24 O-RING 700429017001 002

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
