MTU 956/1163 Parts | 5841800175 | OIL THERMOSTAT

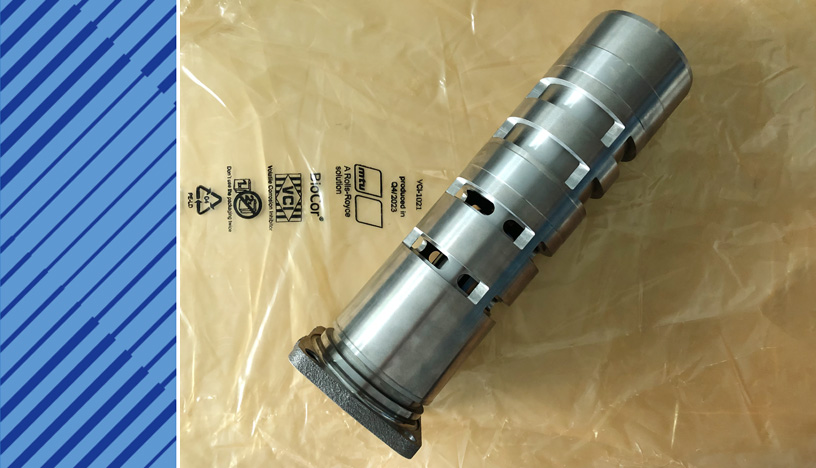

5841800175 OIL THERMOSTAT

Other
Other XT5610100140 PISTON RING F/TURBOCHARGER 5841420154 CABLE CONDUIT 5841400282/87 BELLOWS WITH TEST CERT. 3.1 5841420445 CLAMP 5840371625 PISTON CROWN 0180944502 PREFILTER 5840940180 GASKET X00E50214448 ACTUATOR 0019813727 ANGL CONT BALL BRG 8492000005 ROTARY SEAL 5842040714 COOLANT PUMP SHAFT 5205304131 TRAVEL SENSOR 5110850060 PISTON RING 5120850560 PISTON RING F/TURBOCHARGER 5120820226 HEAT SHIELD 5120251210 BEARING 5120200112 THRUST BEARING 5841800175 OIL THERMOSTAT 5849970040 SEALING RING 111D03014/1 SEALING RING 0002032088 ACTUATOR 5800110558 SEAL CARRIER 5110200412 THRUST BEARING 5110250376 WASHER 0199977747 RADIAL-LIP SHFT SEAL 5842032780 GASKET 5849935201 PRESSURE SPRING 5849932001 LEAF SPRING 5842040180 GASKET 114C62033/1 SEALING RING 5800110259 SEALING RING 5909970040 SEALING RING 161A15027/1 GASKET 5841420857 SEALING RING 5809970048 SEALING RING 5120252076 WASHER 5610110059 SEALING RING 8699970114 SEALING RING 5800300617 PISTON COMPOSITE 0005360001 LAMP 5840700632/87 HP FUEL LINE 5800162319 SEALING RING 0004905565 BOOT 0010175412 NOZZLE 0000533235 VALVE ROTATOR 5840111810 CYLINDER LINER SIZE 0 0080370018 OIL CONTROL RING 0080375619 RECTANGLR-SECT RING 5840300917 PISTON 5840300020/42 CONNECTING ROD 5800530205 EXHAUST VALVE 5800530101 INLET VALVE 007603033100 SEALING RING 206925008000 HEX NUT 5849970572 SCREW-FITTING UNION 0000981565 GASKET 0000981465 GASKET 5840982719 PUMP TIMING PISTON 5840980257 2/2-WAY SOLENOID VALVE 5849931601 PRESSURE SPRING 5840900054 VALVE HOUSING 0029971248 RUBBER RING 161M37002/1 RUBBER SLEEVE 135M37018/1 RUBBER SLEEVE 5840900595 2/2-WAY SOLENOID VALVE 5809900819 STRESS BOLT 135A45008/2 SLEEVE
PART NUMBER 5841800175
ENGINE TYPE MTU 1163 ENGINE
DESCRIPTION OIL THERMOSTAT
DIMENSIONS N/A
UNIT WEIGHT 5.783 KG
HS CODE 90321080
NATO-VERS.-NR. 6685123479909
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 5841800175 OIL SYSTEM OIL THERMOSTAT

MTU 5841810880 Technical Engineering Exploded View MTU 5841800532 Technical Engineering Exploded View MTU 700325015100 Technical Engineering Exploded View MTU 5841800175 Technical Engineering Exploded View MTU 5840150480 Technical Engineering Exploded View MTU 700325010100 Technical Engineering Exploded View MTU 5841871553 Technical Engineering Exploded View MTU 700327010000 Technical Engineering Exploded View MTU 5842032180 Technical Engineering Exploded View MTU 112C62053/2 Technical Engineering Exploded View MTU 5841800158 Technical Engineering Exploded View MTU 5841870026 Technical Engineering Exploded View

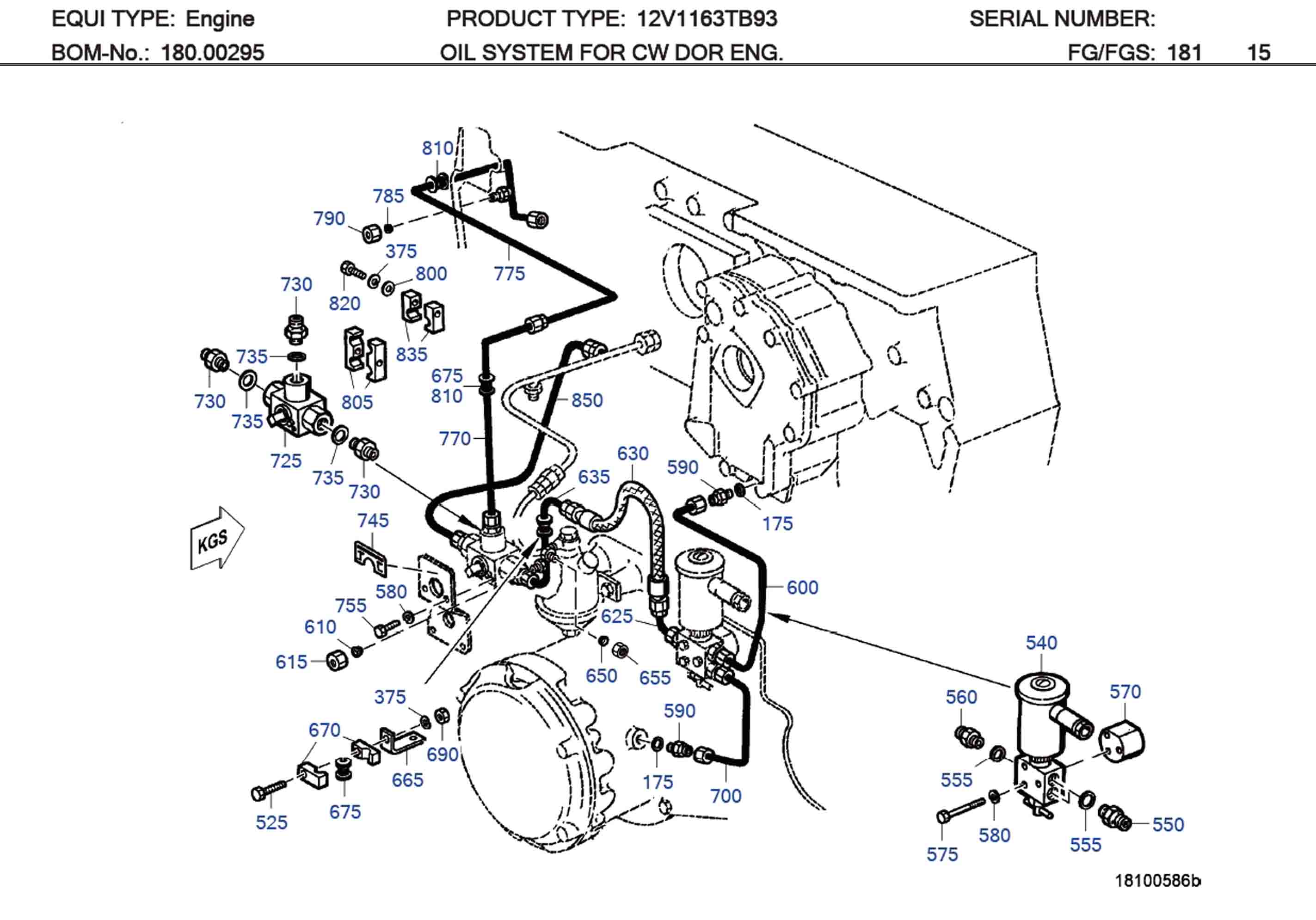

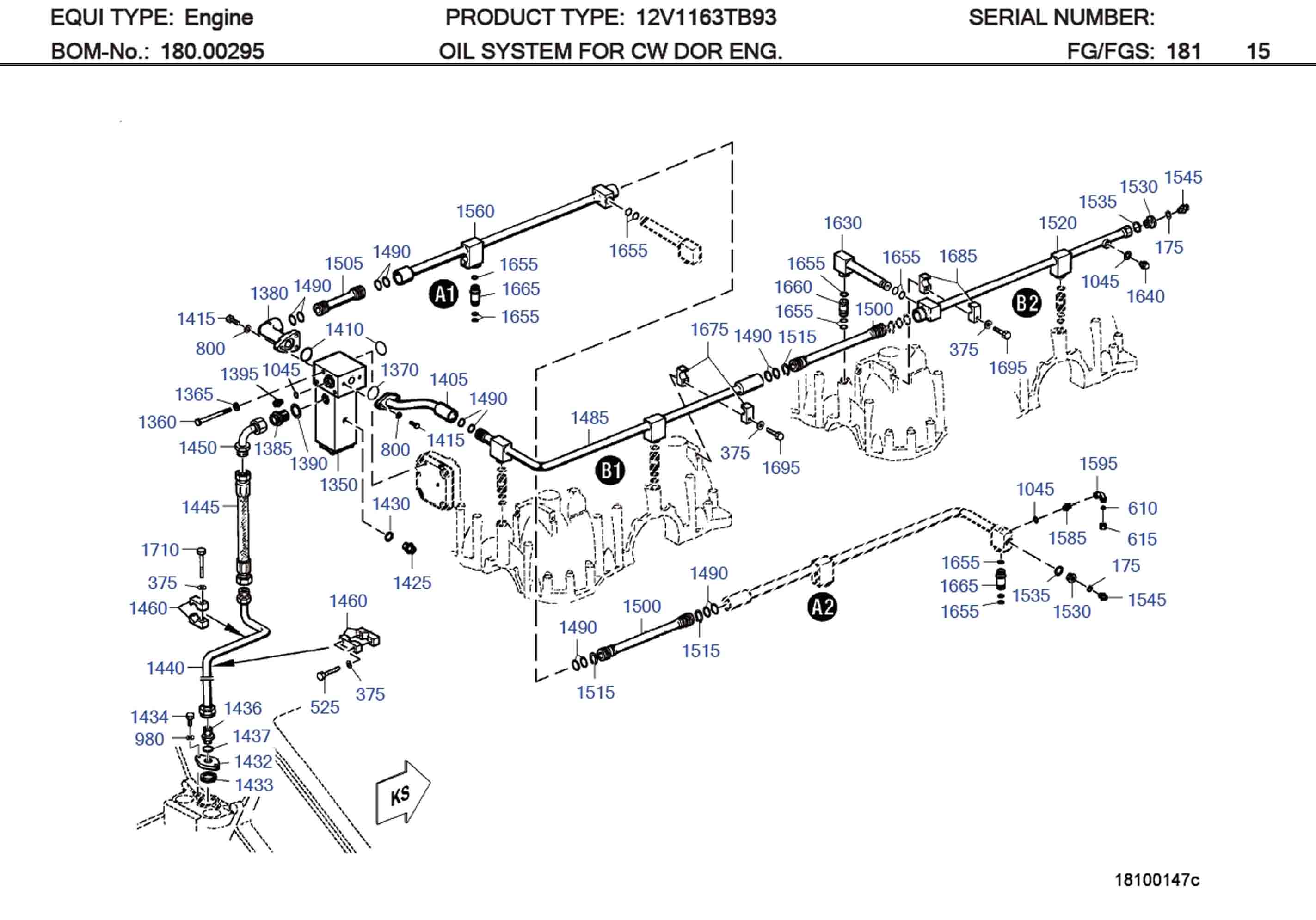

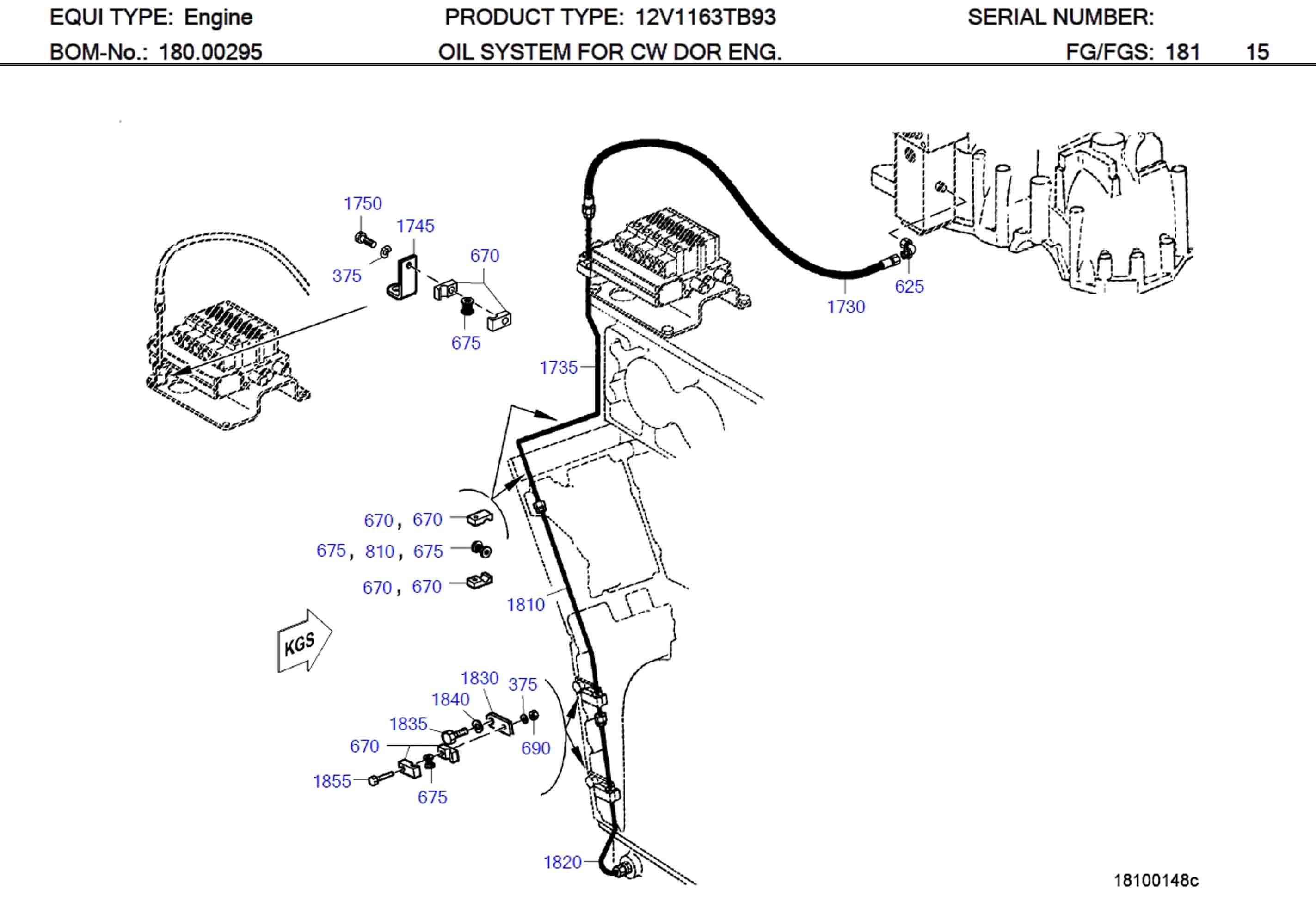

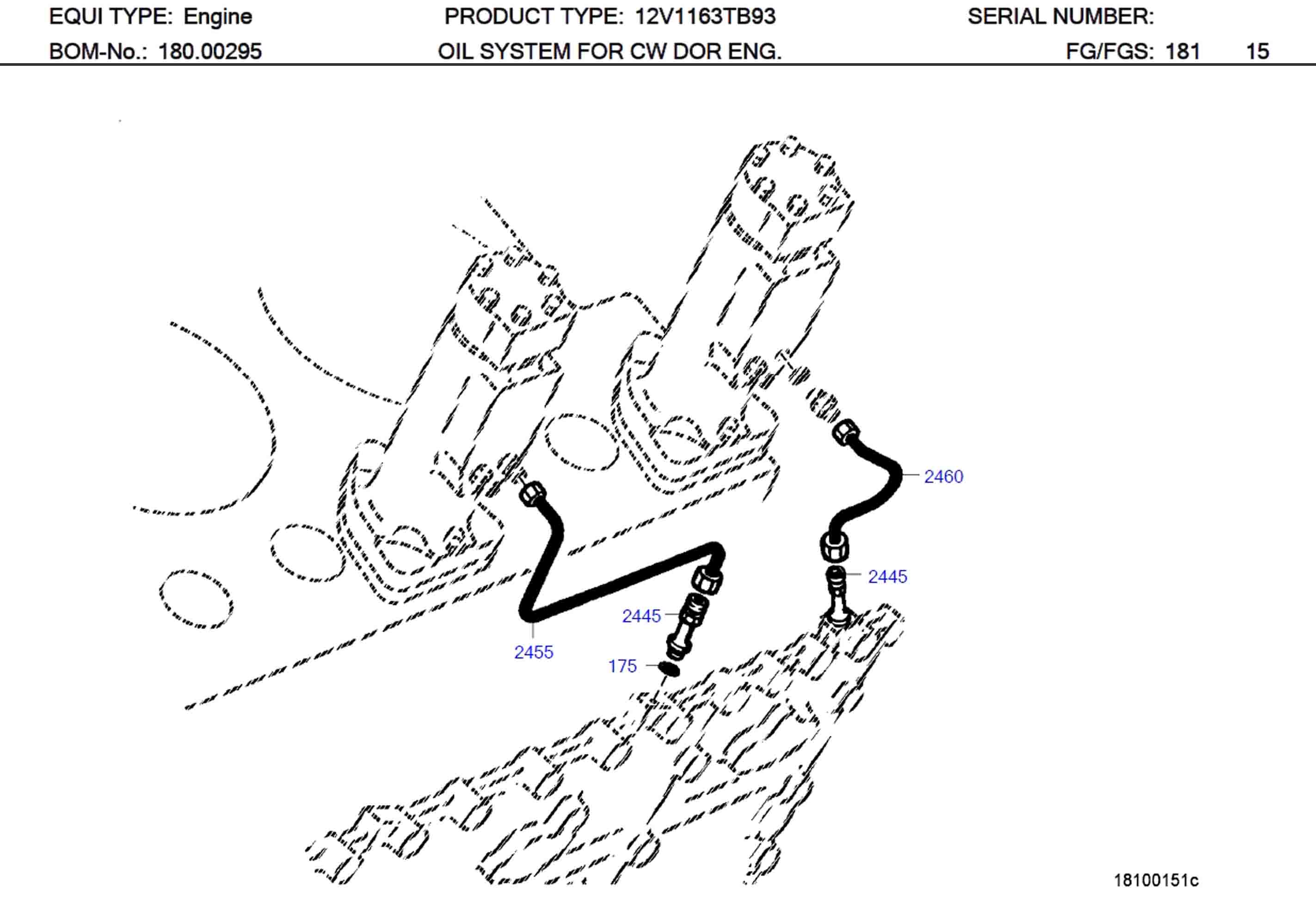

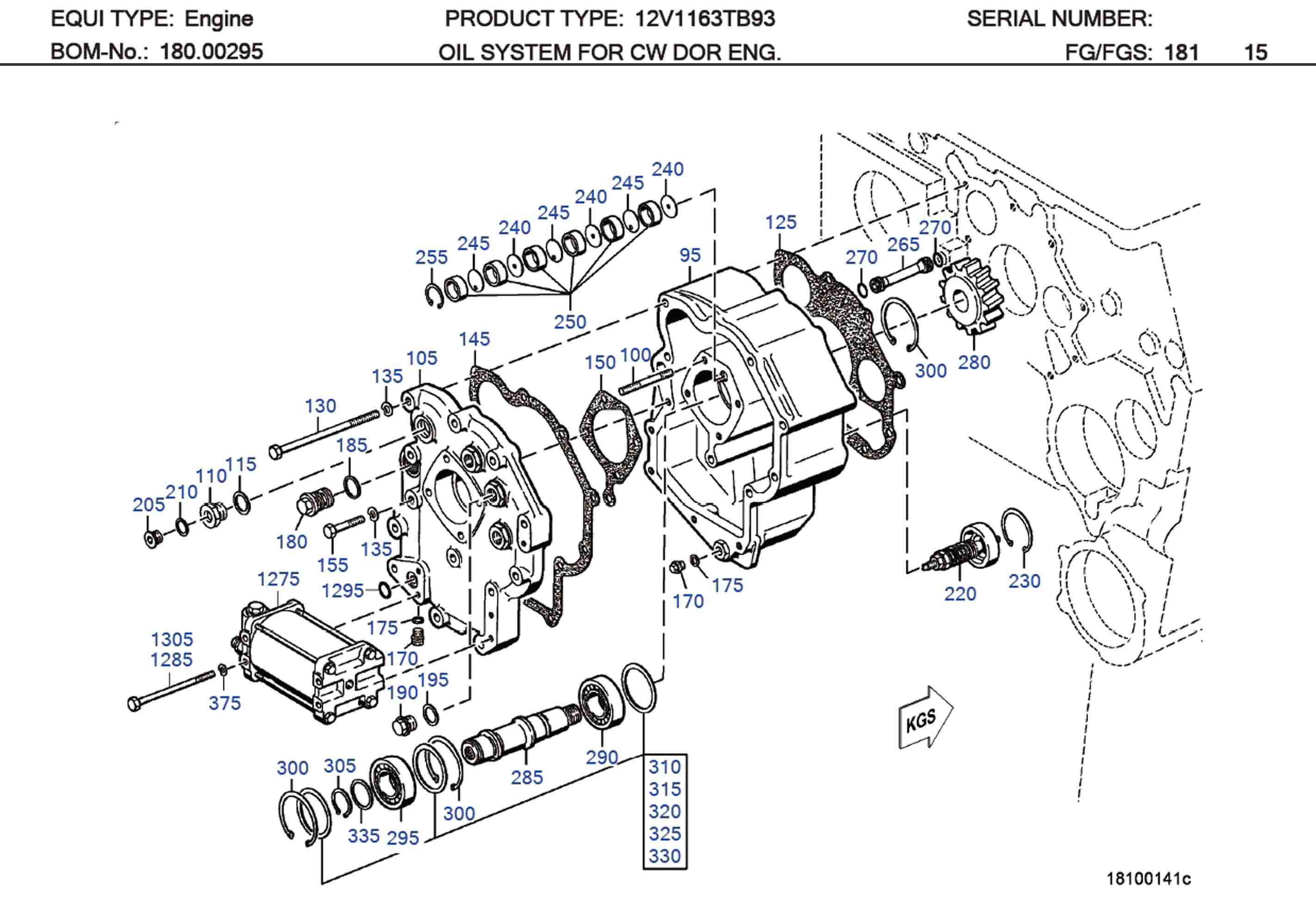

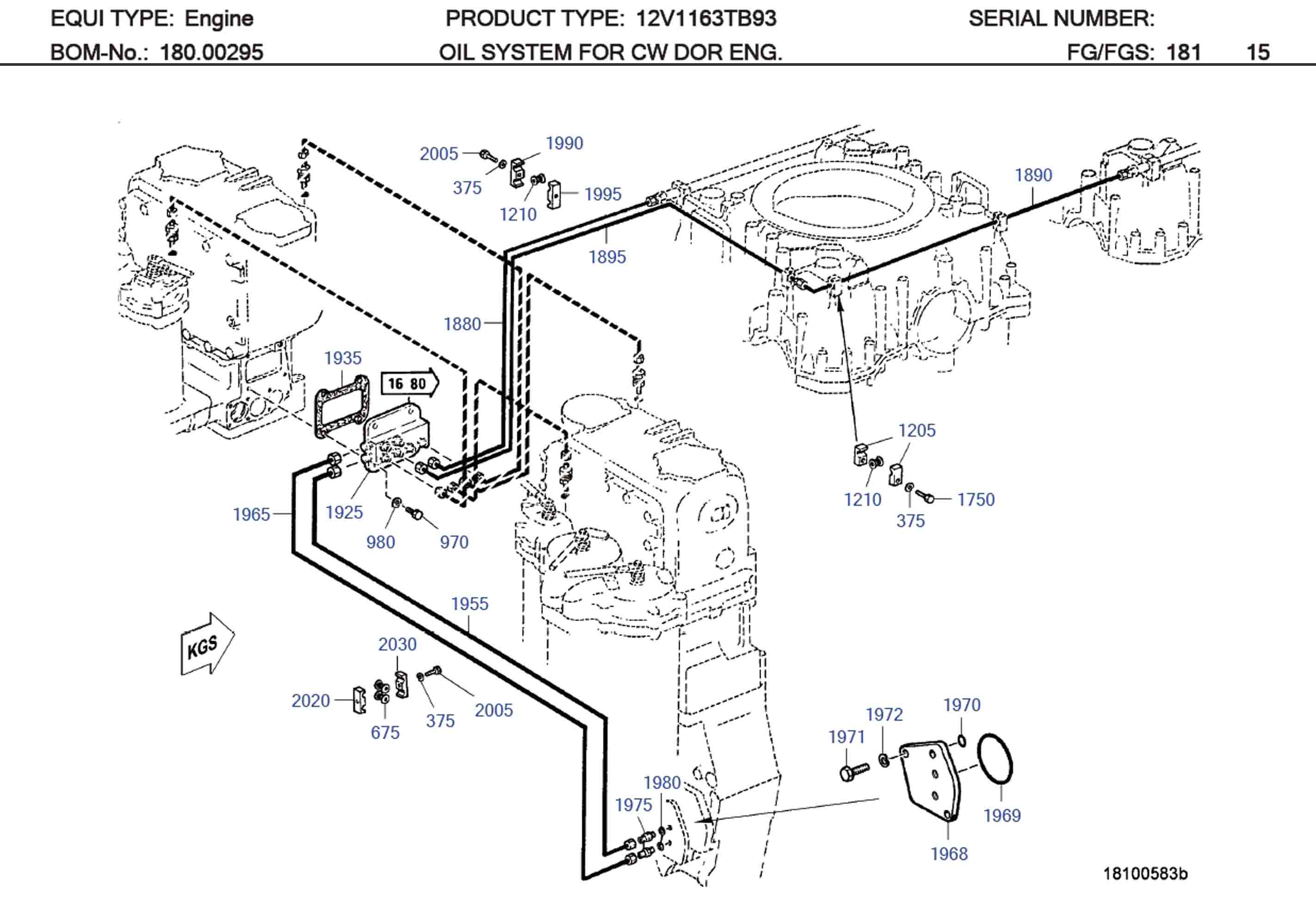

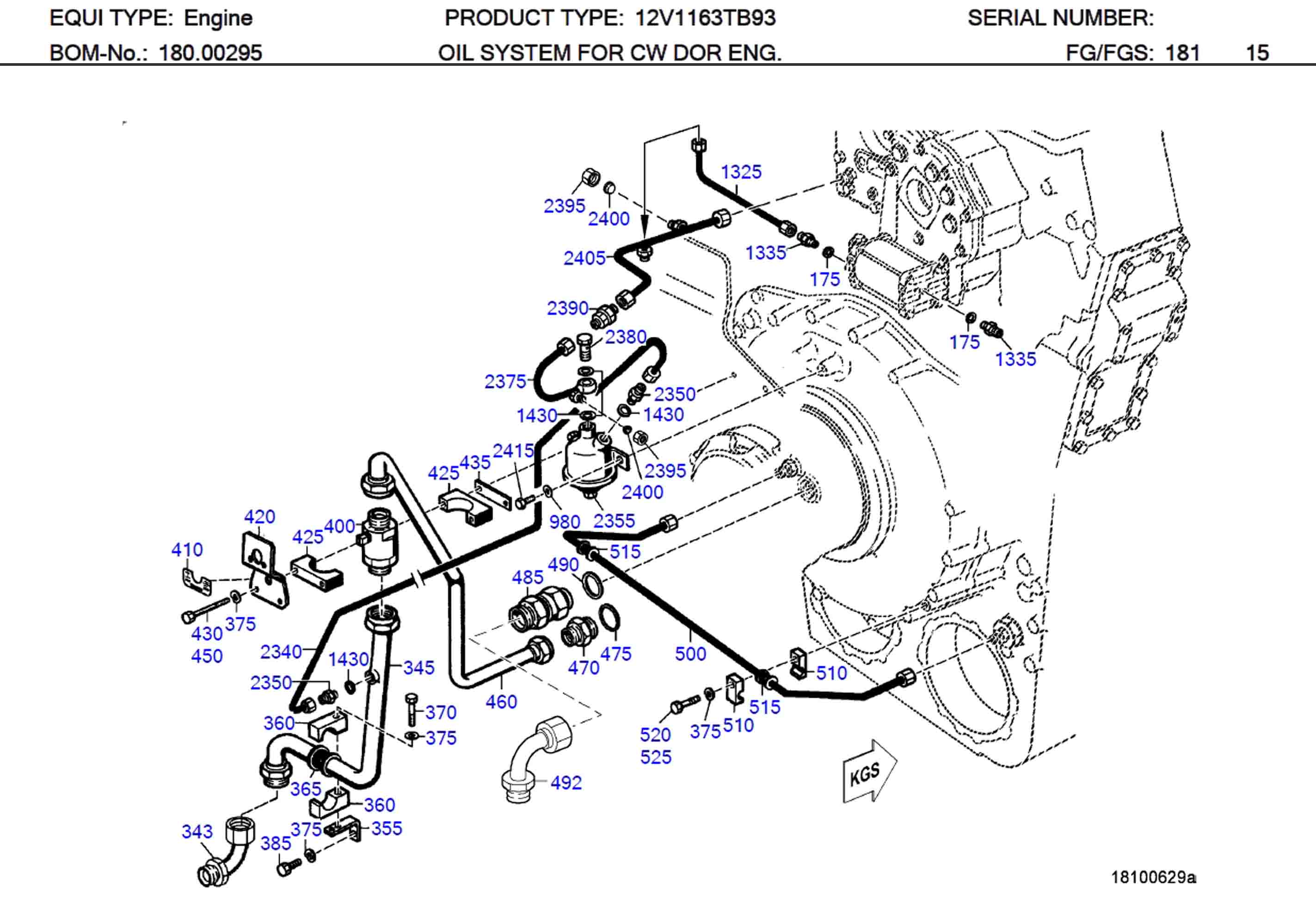

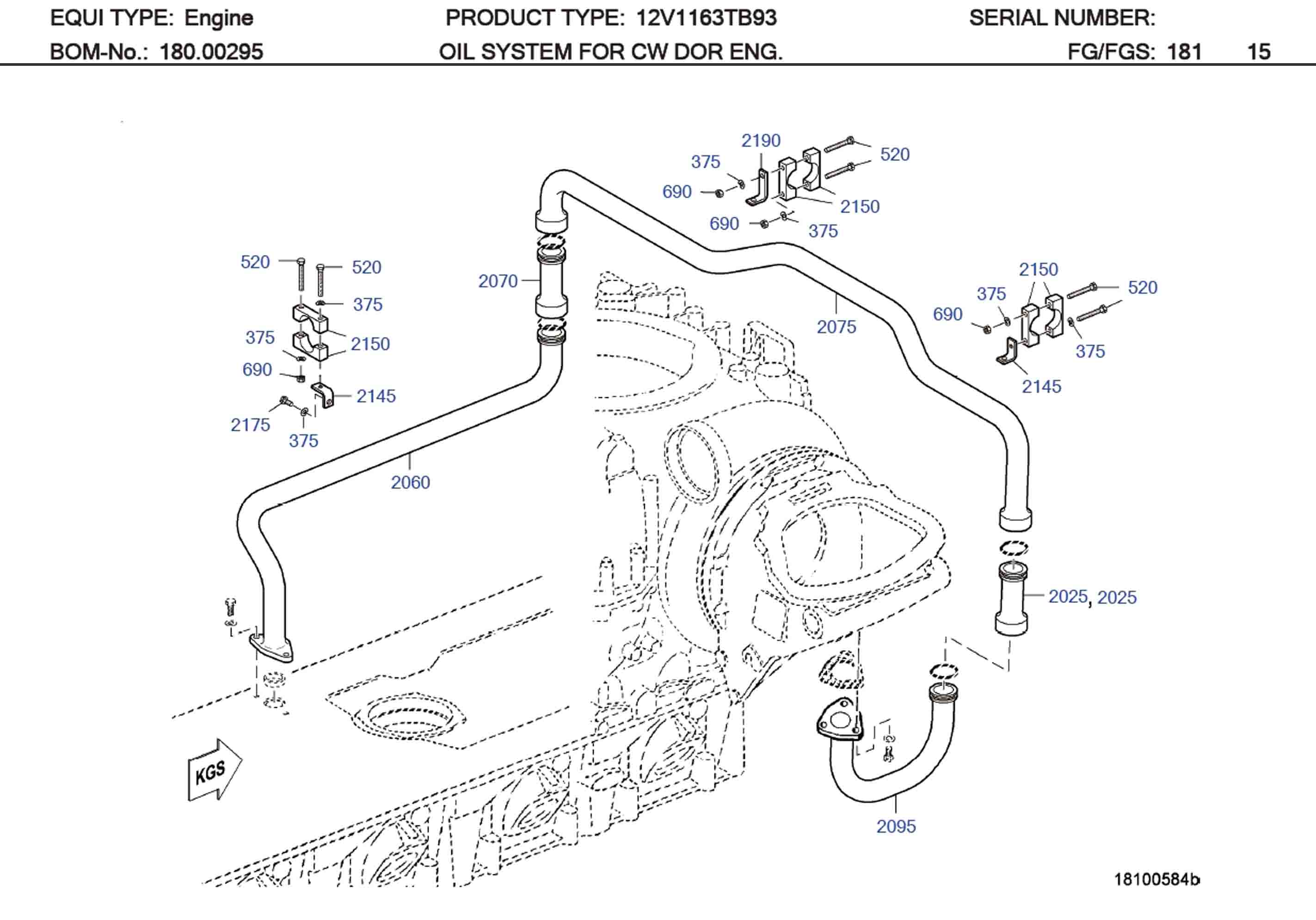

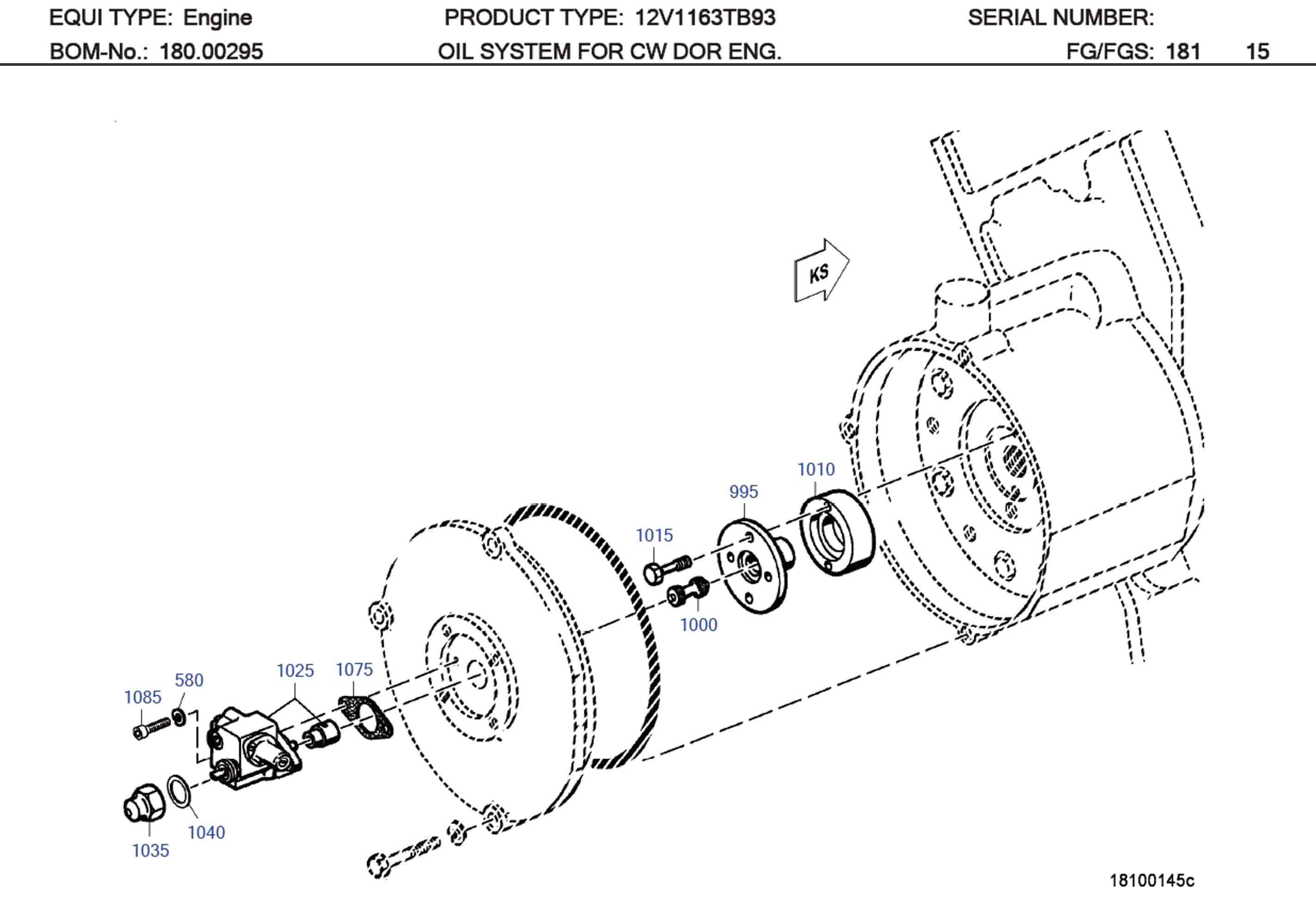

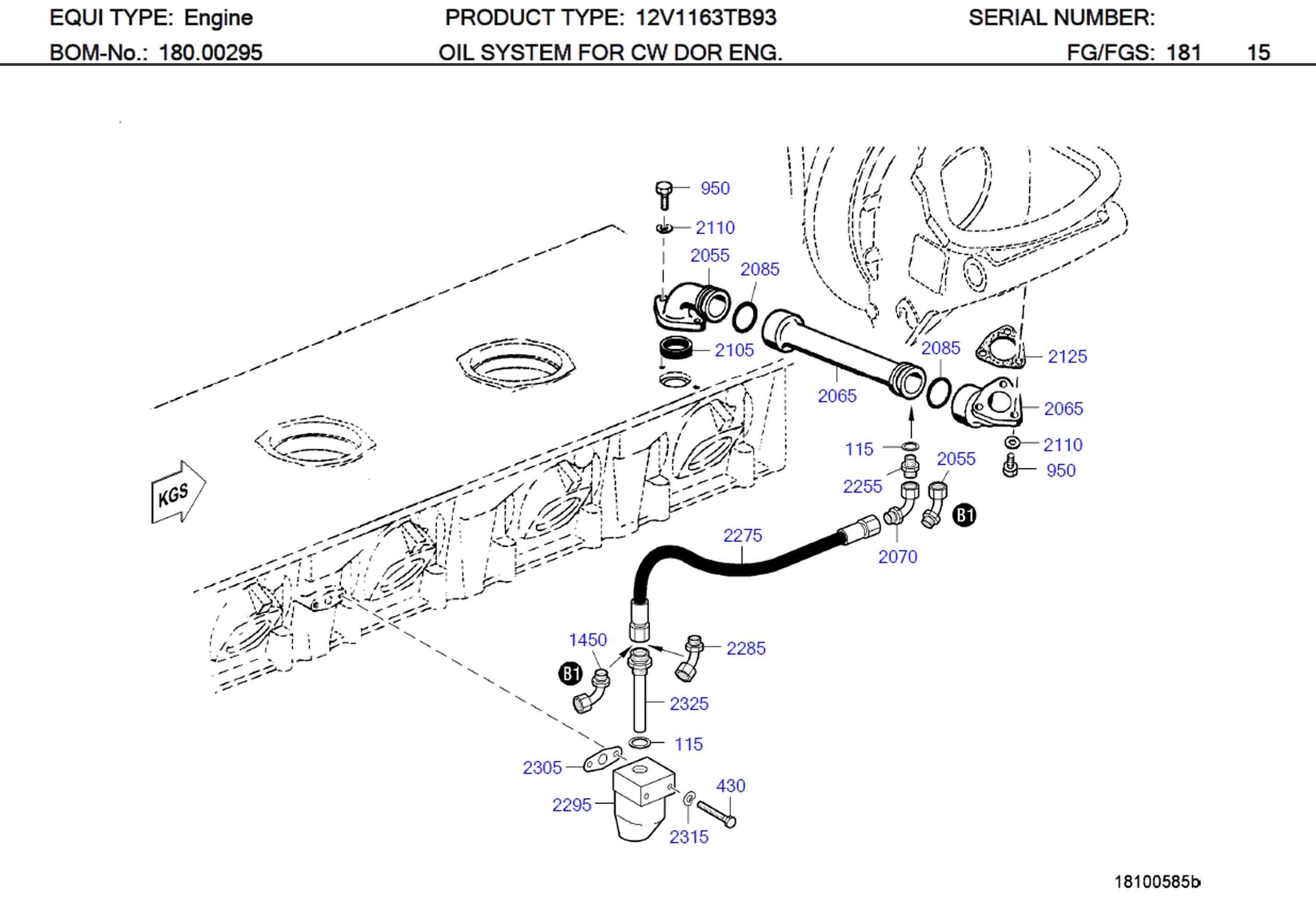

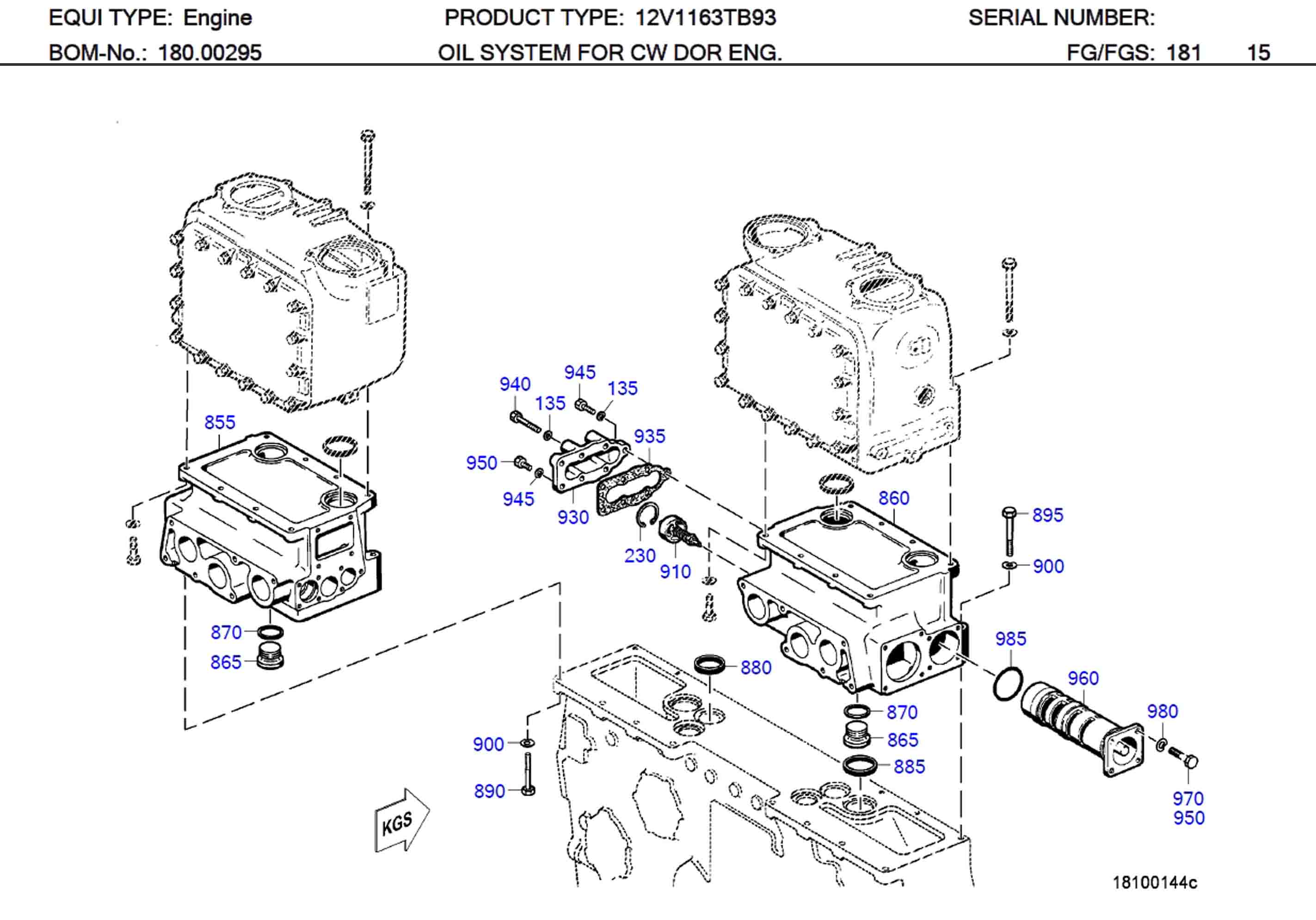

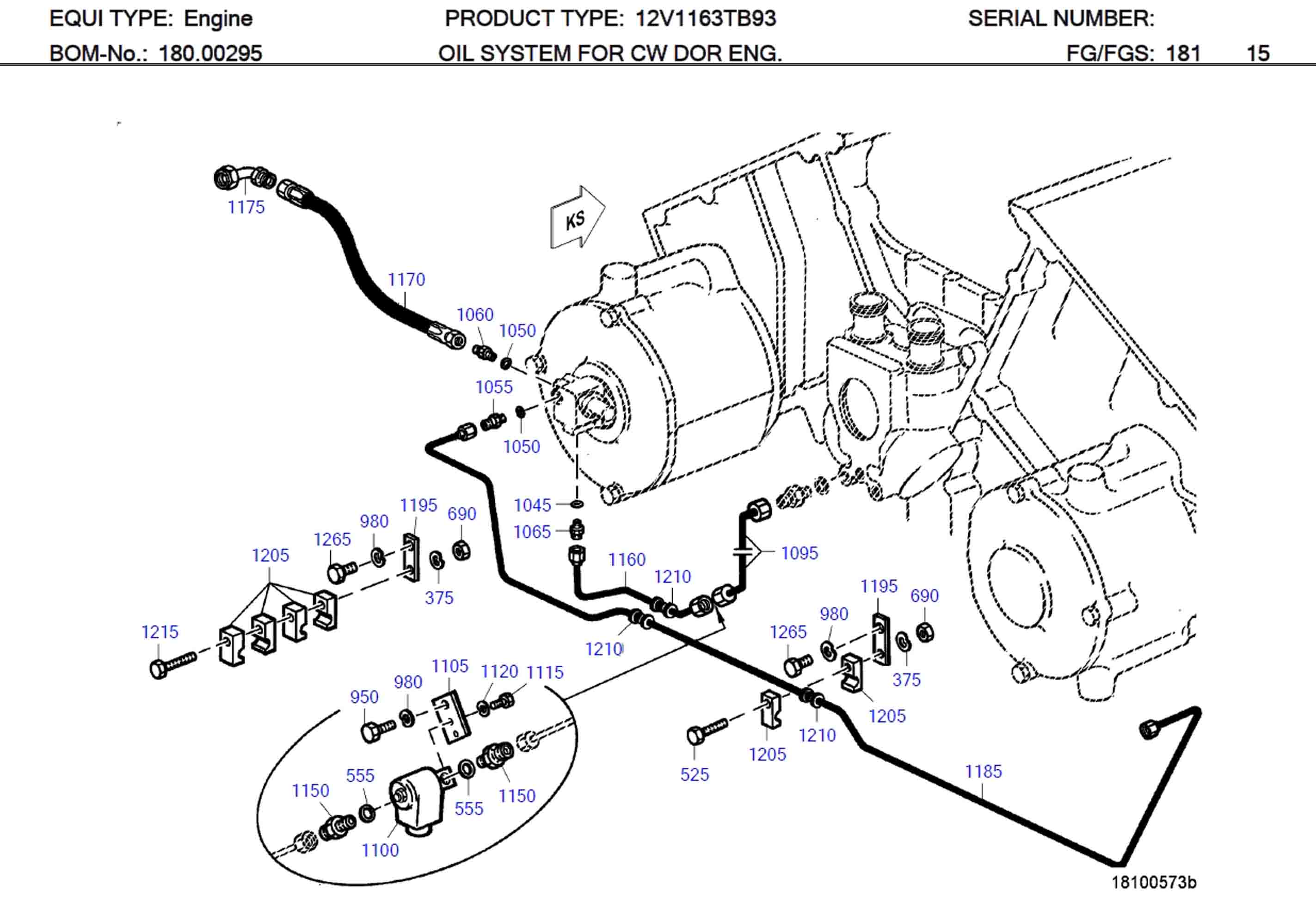

MTU 5841800175 OIL SYSTEM OIL THERMOSTAT

C/N Description Part-Number Qty
95 HOUSING 5841800634 001
100 STUD 000835010036 004
105 COVER 5841800162 001
110 THREADED BUSHING 5039970016 001
115 SEALING RING 007603024106 001
125 GASKET 5841811080 001
130 BOLT 000931010278 008
135 WASHER 000125010524 008
145 GASKET 5841810880 001
150 GASKET 5841810980 001
155 BOLT HEX 000933010144 005
170 PLUG 000910012000 001
175 COPPER SEALING RING 007603012111 001
180 BANJO SCREW 5841810071 001
185 WASHER A COP 007603027100 001
190 PLUG 000910999017 001
195 COPPER SEALING RING 007603022102 001
205 PLUG 000908018002 002
210 COPPER SEALING RING 007603018101 002
220 VALVE 5801800332 001
230 SNAP RING 735058058000 001
240 WASHER 135M42003/1 003
245 WASHER 135M42015/1 003
250 RING 135M42002/1 006
255 SNAP RING 000472013000 001
265 PLUG-IN PIPE 5841870553 001
270 O-RING 700429014000 002
280 GEAR 5841810706 001
285 SHAFT 5841810305 001
290 CYL. ROLLER BEARING 205412202004 001
295 GROOVED BALL BEARING 200625906213 001
300 SNAP RING 000472072000 003
305 RING SNAP HV ZNPH R5F 000471035000 001
310 WASHER 717115060100 001
315 WASHER 717115060101 001
320 WASHER 717115060102 001
325 WASHER 717115060103 001
330 WASHER 717115060104 001
335 WASHER 717115035101 001
343 ELBOW 0049904871 001
345 OIL LINE 5801809521 001
355 BRACKET L H:100 136M52010/1 001
360 CLAMP HALF TUBE 1/1 D9-35 700325035100 002
365 GROMMET 700327028000 001
370 BOLT HEX 000931008227 001
375 WASHER SPRING B8 000137008203 001
385 BOLT HEX 000933008028 001
400 NON-RETURN VALVE 5841801732 001
410 PLATE 5805848248 001
420 RETAINER 5801871640 001
425 CLAMP HALF TUBE 1/2 D9-55 700325055100 002
430 BOLT HEX 000931008189 001
435 SHIM 5841870084 001
450 BOLT HEX 000931008207 001
460 OIL LINE 5821800020 001
470 SCREW-FITTING UNION 5809973872 001
475 COPPER SEALING RING 007603048101 001
485 NON-RETURN VALVE 5841800532 001
490 COPPER SEALING RING 007603045101 001
492 PIPE ELBOW 700160000040 001
500 OIL LINE 5841808327 001
510 CLAMP HALF TUBE 1/1 D9-18 700325018100 004
515 GROMMET 700327012000 002
520 BOLT HEX A3C 304017008089 001
525 BOLT HEX 304017008085 001
540 3/2-WAY SOLENOID VLV X00015615 001
550 SCREW-FITTING UNION 700419999037 002
555 RING SEALING A13 X18 CU 705057013000 003
560 UNION 8G 1/4 A 700419999008 001
570 SPACER WASHER 5842030352 001
575 HEX SCREW 000931006141 002
580 WASHER SPRING B6 000137006205 002
590 UNION 915013006002 001
600 OIL LINE 5841805020 001
610 CONE SEALING 6 915005004000 001
615 NUT 4 M12X1.5 BL.GEOELT 915001004005 001
625 ELBOW 700160000008 002
630 HOSE 735038008116 001
635 OIL LINE 5841804520 001
650 CONE SEALING 10 915005008001 001
655 NUT 915001008003 001
665 RETAINER 5841871440 001
670 CLAMP HALF TUBE 1/1 D9-15 700325015100 002
675 GROMMET 700327010000 001
690 NUT HEX 000934008008 001
700 OIL LINE 5841807927 001
725 THREE-WAY COCK 0039972736 001
730 UNION 8G 3/8 A 700419999004 003
735 WASHER A COP 007603017102 003
745 PLATE 5805840948 001
755 BOLT HEX A3C 304017006058 002
770 OIL LINE CYLINDER BANK CUTOU X58218400001 001
775 OIL LINE CYLINDER BANK CUTOU X58218400002 001
785 CONE SEALING 8 915005006000 001
790 NUT 915001006003 001
800 WASHER 007349008002 001
805 PIPE HALF-CLAMP 374066/1 002
810 GROMMET 700327008000 001
820 BOLT HEX A3C 304017008084 001
835 CLAMP HALF TUBE 1/1 D11-12 700325012111 002
850 OIL LINE 5841808227 001
855 DISTRIBUTOR HOUSING 5841881204 001
860 DISTRIBUTOR HOUSING 5841881104 001
865 THREAD PLUG 000908052003 002
870 COPPER SEALING RING 007603052101 002
880 SEALING RING 5800150560 004
885 SEALING RING 5800150360 002
890 BOLT HEX 000933012093 008
895 BOLT HEX 000931012156 008
900 WASHER SPRING B12 000137012202 016
910 VALVE 5801800532 002
930 COVER 5841880302 002
935 GASKET 5841880580 002
940 BOLT HEX 000931010230 008
945 HEX BOLT 000933010093 004
950 HEX BOLT 000933010035 002
960 OIL THERMOSTAT 5841800175 002
970 BOLT HEX 000933010026 006
980 WASHER SPRING B10 000137010202 008
985 O-RING 700429078000 002
995 DRIVER 5841810027 001
1000 DRIVE SHAFT 5800620203 001
1010 INTERMEDIATE FLANGE 5841870545 001
1015 STRESS BOLT 700209008201 002
1025 PUMP 5801802101 001
1035 NUT 135L01012/1 001
1040 WASHER A COP 007603022105 002
1045 WASHER A COP 007603010110 001
1050 WASHER A COP 007603008109 002
1055 SCREW-FITTING UNION 5809970372 001
1060 UNION 5849973872 001
1065 ADAPTOR 915007004001 001
1075 GASKET 5840150480 001
1085 SCREW 000912006018 002
1095 OIL LINE 5841803420 001
1100 SOLENOID VALVE 0000666215 001
1105 RETAINER 5841871240 001
1115 HEX SCREW 304017005023 002
1120 SPRING WASHER 000137005202 002
1150 SCREW-FITTING UNION 700419999016 002
1160 OIL LINE 5841803520 001
1170 HOSE 735038006101 001
1175 OIL LINE 5841805720 001
1185 OIL LINE 5841803627 001
1195 RETAINER 5902035940 002
1205 CLAMP HALF TUBE 700325010100 004
1210 GROMMET 700327006000 002
1215 BOLT HEX A3C 304017008088 001
1265 HEX SCREW 000933010106 002
1275 BOOSTER 5841800190 001
1285 BOLT HEX 000931008144 003
1295 O-RING 700429017002 001
1305 HEX SCREW 000931008147 001
1325 OIL LINE 5841804527 001
1335 ADAPTOR 915013006004 002
1350 PRESS REDUCING VALVE 5841800515 001
1360 BOLT HEX 000931010247 003
1365 SPACER 735151010100 003
1370 O-RING 700429037002 001
1380 ELBOW 5841870024 001
1385 SCREW-FITTING UNION 5512030167 001
1390 COPPER SEALING RING 007603030101 001
1395 CONNECTOR 915007006007 001
1405 OIL LINE 5841805220 001
1410 O-RING 700429030000 002
1415 HEX SCREW 000933008116 005
1425 UNION 5849971172 001
1430 COPPER SEALING RING 007603016105 001
1432 FLANGE 5841870645 001
1433 SEALING RING 5809970148 001
1434 BOLT HEX 000933010092 002
1436 SCREW NECK 915013020002 001
1437 COPPER SEALING RING 007603026109 001
1440 OIL LINE 5841805420 001
1445 HOSE 735038020104 001
1450 ELBOW 90 DEG KR 20 700160000020 001
1460 PIPE CLAMP HALF 700325022102 002
1485 OIL LINE RIGHT SIDE 5841801120 001
1490 O-RING 700429022000 002
1500 PLUG-IN PIPE 5841871353 001
1505 PLUG-IN PIPE 5841871253 001
1515 SNAP RING 000471026000 004
1520 OIL LINE RIGHT SIDE 5841805627 001
1530 THREADED BUSHING 8379971616 001
1535 WASHER A COP 007603020101 001
1545 REDUCTION UNION 5849971472 001
1560 OIL LINE 5851801927 001
1585 UNION 915013004000 001
1595 PIPE ELBOW 700160000004 001
1630 OIL LINE 5841806027 001
1640 SCREWED PLUG 000908010002 002
1655 O-RING 700429015004 022
1660 PLUG-IN PIPE 5841871453 004
1665 PLUG-IN PIPE 5841871553 002
1675 PIPE HALF-CLAMP 5519950368 002
1685 CLAMP HALF TUBE 1/1 D9-22 700325022100 018
1695 BOLT HEX A3C 304017008086 009
1710 BOLT HEX A3C S2000/4000 304014008032 002
1730 HOSE 735038008101 001
1735 OIL LINE 5841800522 001
1745 BRACKET 5550781241 001
1750 BOLT HEX A3C 304017008083 001
1810 OIL LINE 5841800922 001
1820 OIL LINE 5841801022 001
1830 RETAINER 8352370740 001
1835 BOLT HEX 000933016001 002
1840 WASHER SPRING B16 000137016201 002
1855 BOLT 304014008029 001
1880 PIPE 5821800427 001
1890 PIPE 5821806727 001
1895 PIPE 5821801127 001
1925 DISTRIBUTOR 5821800277 001
1935 GASKET 5842032180 001
1955 PIPE 5821800227 001
1965 PIPE 5821800327 001
1968 COVER 5820520020 001
1969 O-RING 700429090000 001
1970 O-RING 700429010002 001
1971 BOLT HEX 000933012038 003
1972 WASHER 000125013012 003
1975 SCREW NECK 915013008002 002
1980 COPPER SEALING RING 007603014102 002
1990 CLAMP HALF TUBE 2/1 D9-10 700325010103 001
1995 CLAMP HALF TUBE 2/1 G8-10 700325010202 001
2005 BOLT HEX 000933008114 001
2020 CLAMP HALF TUBE 2/1 G8-15 700325015202 002
2025 PLUG-IN PIPE 5842002654 001
2030 CLAMP HALF TUBE 2/1 D9-15 700325015104 002
2055 ELBOW 5841800058 002
2060 PIPE 5821805927 001
2065 PLUG-IN PIPE 5842001854 002
2070 ELBOW 5841800158 002
2075 PIPE 5821806027 001
2085 O-RING 700429045000 008
2095 PIPE 5821806127 001
2105 SEALING RING 112C62053/2 003
2110 SPRING WASHER 000137010103 006
2125 GASKET 5800180680 003
2145 BRACKET L H:51 S2000/4000 5551870640 001
2150 CLAMP HALF TUBE 1/2 D9-42 700325042100 002
2175 BOLT HEX 304017008079 001
2190 BRACKET 5502030843 001
2255 SCREW-FITTING UNION 5849974172 003
2275 PRESSURE HOSE 0259972482 003
2285 ELBOW 0029901571 003
2295 HOUSING 5841801434 003
2305 GASKET 5841870980 003
2315 WASHER 000125008427 006
2325 OIL PIPE 5841807620 003
2340 OIL LINE 5801809321 001
2350 UNION 915013010001 001
2355 DISC-PACK FILTER 111M45702/1 001
2375 OIL LINE 5841804220 001
2380 BOLT BANJO A8 700223008000 001
2390 REGULATOR FUEL RETURN 0.5 BAR 735080010200 001
2395 NUT 735028014001 001
2400 SEALING CONE 915005006002 001
2405 OIL LINE 5841804320 001
2415 BOLT HEX 000933010198 002
2445 SCREW-FITTING UNION 5841870026 012
2455 OIL LINE 5841804227 010
2460 OIL LINE 5841804427 002

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
