MTU 956/1163 Parts | X00E50214448 | ACTUATOR

X00E50214448 ACTUATOR

Other
Other XT5610100140 PISTON RING F/TURBOCHARGER 5841420154 CABLE CONDUIT 5841400282/87 BELLOWS WITH TEST CERT. 3.1 5841420445 CLAMP 5840371625 PISTON CROWN 0180944502 PREFILTER 5840940180 GASKET X00E50214448 ACTUATOR 0019813727 ANGL CONT BALL BRG 8492000005 ROTARY SEAL 5842040714 COOLANT PUMP SHAFT 5205304131 TRAVEL SENSOR 5110850060 PISTON RING 5120850560 PISTON RING F/TURBOCHARGER 5120820226 HEAT SHIELD 5120251210 BEARING 5120200112 THRUST BEARING 5841800175 OIL THERMOSTAT 5849970040 SEALING RING 111D03014/1 SEALING RING 0002032088 ACTUATOR 5800110558 SEAL CARRIER 5110200412 THRUST BEARING 5110250376 WASHER 0199977747 RADIAL-LIP SHFT SEAL 5842032780 GASKET 5849935201 PRESSURE SPRING 5849932001 LEAF SPRING 5842040180 GASKET 114C62033/1 SEALING RING 5800110259 SEALING RING 5909970040 SEALING RING 161A15027/1 GASKET 5841420857 SEALING RING 5809970048 SEALING RING 5120252076 WASHER 5610110059 SEALING RING 8699970114 SEALING RING 5800300617 PISTON COMPOSITE 0005360001 LAMP 5840700632/87 HP FUEL LINE 5800162319 SEALING RING 0004905565 BOOT 0010175412 NOZZLE 0000533235 VALVE ROTATOR 5840111810 CYLINDER LINER SIZE 0 0080370018 OIL CONTROL RING 0080375619 RECTANGLR-SECT RING 5840300917 PISTON 5840300020/42 CONNECTING ROD 5800530205 EXHAUST VALVE 5800530101 INLET VALVE 007603033100 SEALING RING 206925008000 HEX NUT 5849970572 SCREW-FITTING UNION 0000981565 GASKET 0000981465 GASKET 5840982719 PUMP TIMING PISTON 5840980257 2/2-WAY SOLENOID VALVE 5849931601 PRESSURE SPRING 5840900054 VALVE HOUSING 0029971248 RUBBER RING 161M37002/1 RUBBER SLEEVE 135M37018/1 RUBBER SLEEVE 5840900595 2/2-WAY SOLENOID VALVE 5809900819 STRESS BOLT 135A45008/2 SLEEVE
PART NUMBER X00E50214448
ENGINE TYPE MTU 1163 ENGINE
DESCRIPTION ACTUATOR
DIMENSIONS HARTVERGUSS,MIT OELRUECKLAUF
UNIT WEIGHT 7.987 KG
HS CODE 90329000
NATO-VERS.-NR. 3010123845496
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 956/1163 ENGINE PARTS X00E50214448 ACTUATOR

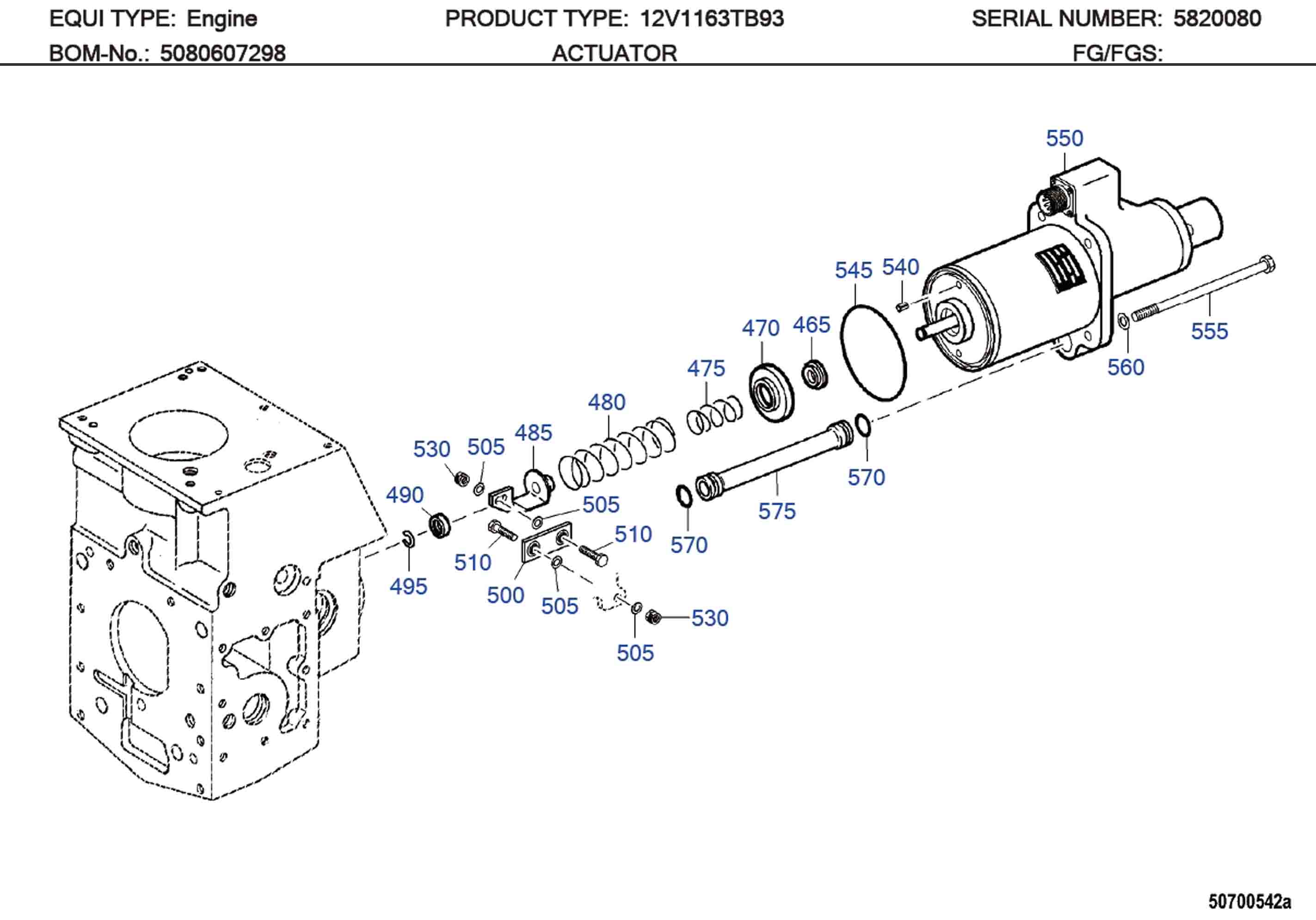

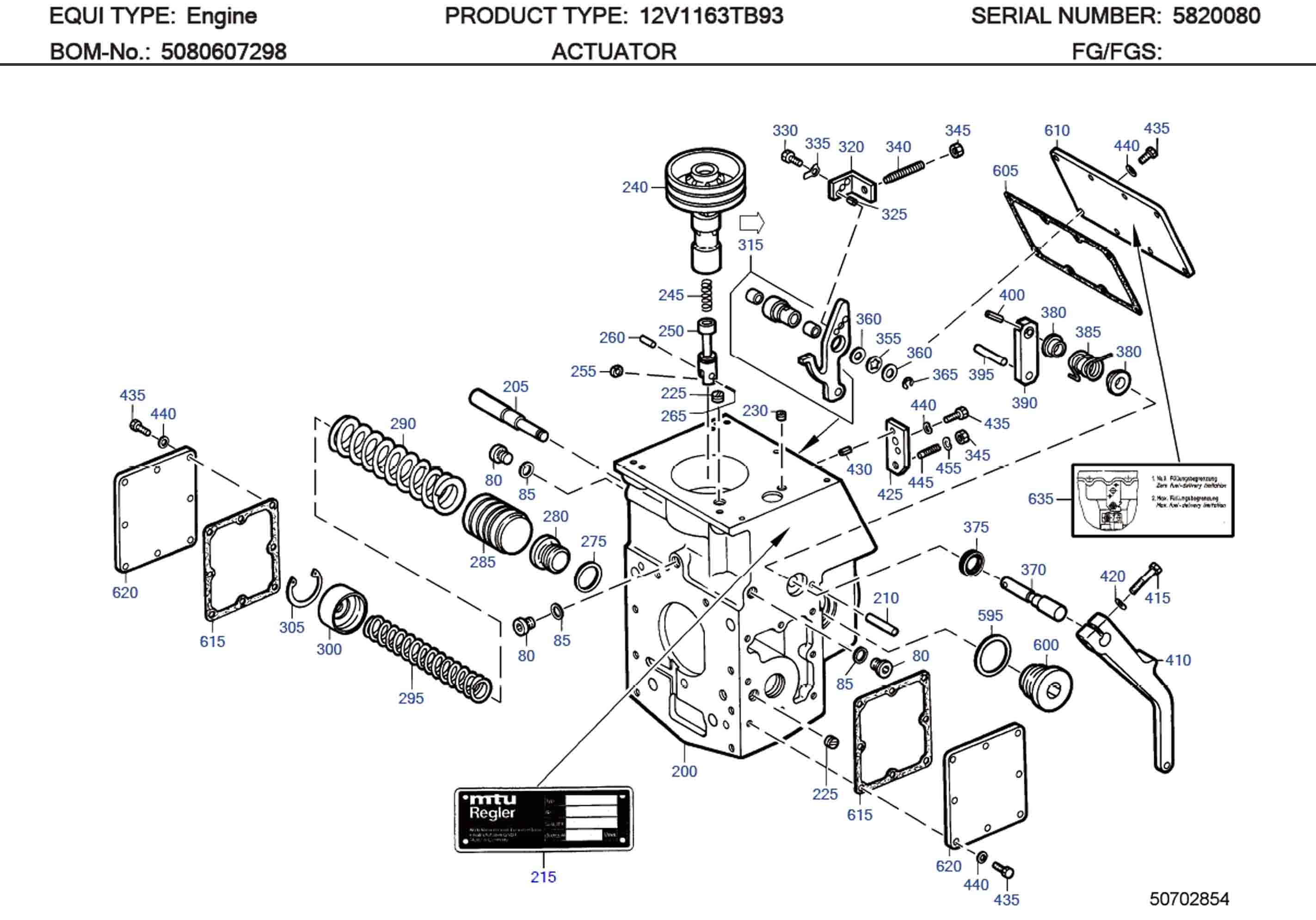

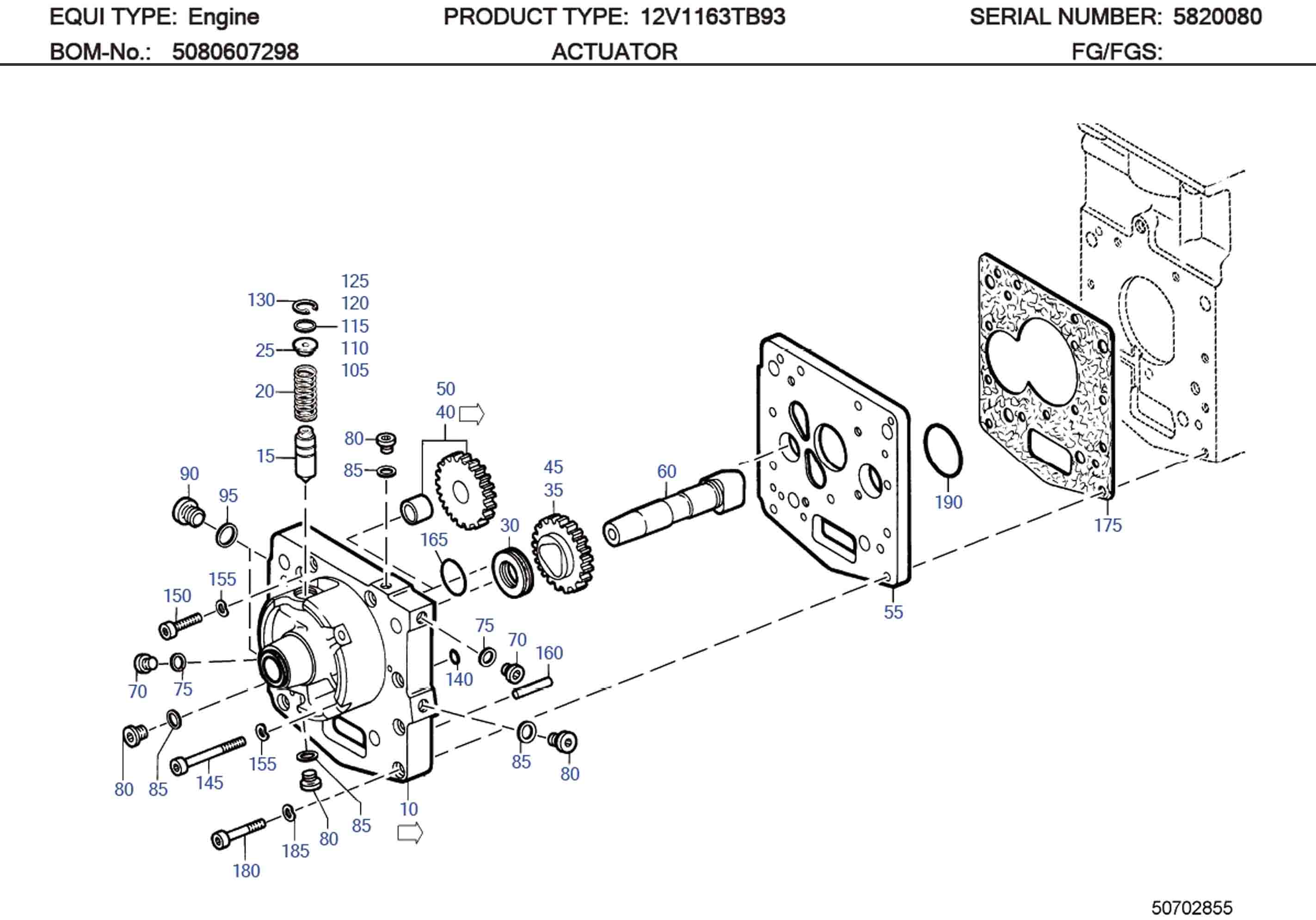

MTU 5080611280 Technical Engineering Exploded View MTU 5080611180 Technical Engineering Exploded View MTU X00E50201615 Technical Engineering Exploded View

MTU 956/1163 ENGINE PARTS X00E50214448 ACTUATOR

C/N Description Part-Number Qty
10 HOUSING 5030603014 001
15 PISTON 5030612132 001
20 PRESSURE SPRING 5039930001 001
25 SPRING RETAINER 5030610718 001
30 GROOVED THR BALL BRG 200711511004 001
35 GEAR 5030621091 001
40 GEAR 5030600417 001
45 GEAR 5030621191 001
50 GEAR 5030600517 001
55 HOUSING PART 5030620490 001
60 SHAFT 5080610105 001
70 SCREWED PLUG 000908010002 003
75 WASHER A COP 007603010110 003
80 THREAD PLUG 000908012003 003
85 COPPER SEALING RING 007603012111 003
90 THREADED PLUG 000908016001 002
95 COPPER SEALING RING 007603016105 002
105 ADJUSTING WASHER 700422014000 001
110 ADJUSTING WASHER 700422014003 001
115 ADJUSTING WASHER 700422014001 001
120 ADJUSTING WASHER 000988014000 001
125 ADJUSTING WASHER 000988014002 001
130 RING SNAP 000472020000 001
140 O-RING 700429010000 004
145 SCREW 700384008009 002
150 SCREW 700384008003 002
155 WASHER SPRING B8 000137008203 004
160 DOWEL PIN 006325008103 002
165 O-RING 700429032000 001
175 GASKET 5080611280 001
180 SCREW 5039900212 008
185 SPRING WASHER 000127008203 008
190 O-RING 700429048000 001
200 HOUSING 5080610201 001
205 AXLE 5080610006 001
210 DOWEL PIN 000007005112 001
215 PLATE 700425000014 001
225 GRUB SCREW 700417012000 003
230 PLUG 700417010000 001
240 PISTON 5080610032 001
245 PRESSURE SPRING 5089930701 001
250 CONTROL SLIDE VALVE 5080610434 001
255 SLIDING BLOCK 5020610076 001
260 NEEDLE ROLLER 205402105104 001
265 DOWEL PIN 000007003114 001
275 COPPER SEALING RING 007603030101 001
280 THREAD PLUG 000908030002 001
285 PISTON 5030610932 001
290 PRESSURE SPRING 712H05032/1 001
295 PRESSURE SPRING 712H05033/1 001
300 SPRING RETAINER 5080610518 001
305 RING SNAP 000472047000 001
315 LEVER 5080600626 001
320 BRACKET 5080610136 001
325 SPRING PIN 001481003000 002
330 BOLT HEX A3C 304017006058 001
335 TAB WASHER 700292006400 001
340 GRUB SCREW 5039900580 001
345 NUT 5039900051 001
355 DISHED WASHER 0009938426 001
360 LOCKING WASHER 5080610276 002
365 LOCKING RING 006799008000 001
370 SHAFT 5080610005 001
375 SHAFT SEAL 700217016000 001
380 COLLARED BUSH 5080610450 002
385 TORSION SPRING 5089930120 001
390 LEVER 5080611419 001
395 DOWEL PIN 000007008121 001
400 SPRING PIN 001481003005 001
410 SHUTDOWN LEVER 5080600026 001
415 BOLT HEX A3C 304017006066 001
420 SPRING WASHER 000137007104 001
425 PLATE 5080610439 001
430 PIN SPRING 001481004000 002
435 BOLT HEX 000933006207 001
440 SPRING WASHER 000137006102 001
445 GRUB SCREW 5039900180 001
455 SPRING WASHER 000137007202 002
465 SPRING RETAINER 5080610718 001
470 SPRING RETAINER 5080610818 001
475 PRESSURE SPRING 202098002003 001
480 PRESSURE SPRING 5089930601 001
485 SPRING RETAINER 5080611518 001
490 RING 5080610251 001
495 SNAP RING 007993010100 001
500 STRAP 5080600036 001
505 WASHER 000125006431 002
510 BOLT HEX A3C 304017006063 001
530 NUT 999900006000 002
540 SPRING PIN 001481006000 002
545 O-RING 700429084000 001

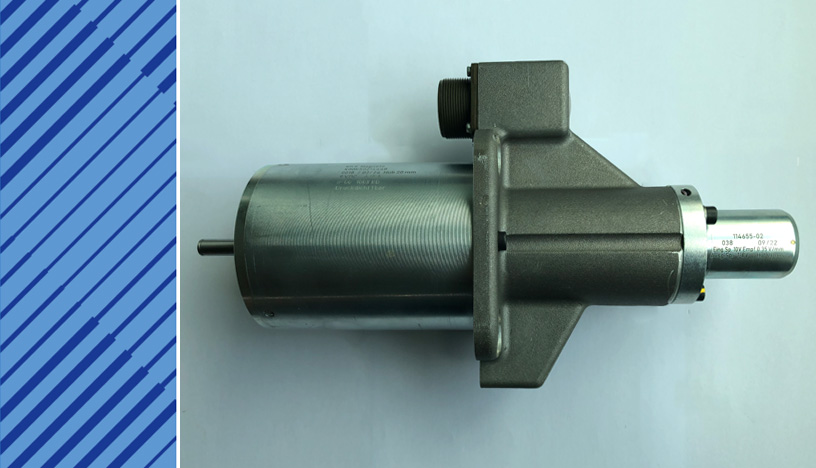

550 ACTUATOR X00E50201615 001
555 HEX SCREW 000931008155 004
560 WASHER 000125008427 004
570 O-RING 700429013001 002
575 PLUG-IN PIPE 5080610153 001
595 COPPER SEALING RING 007603038101 001
600 THREAD PLUG 000908038000 001
605 GASKET 5080611080 001
610 COVER 5080610203 001
615 GASKET 5080611180 002
620 COVER 5080610303 002
635 PLATE 5085840221 001

X00E50214448 SUPERSEDED PART AND EFFECTIVE DATE

X00E50214448 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 X00E50214448 0005340134 N/A
02 X00E50214448 0005344832 2007/05/01
03 X00E50214448 X00E50201615 2007/06/01
02 X00E50214448 X00E50214448 2021/03/04

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
