MTU 5849935201 COOLANT SYSTEM PRESSURE SPRING

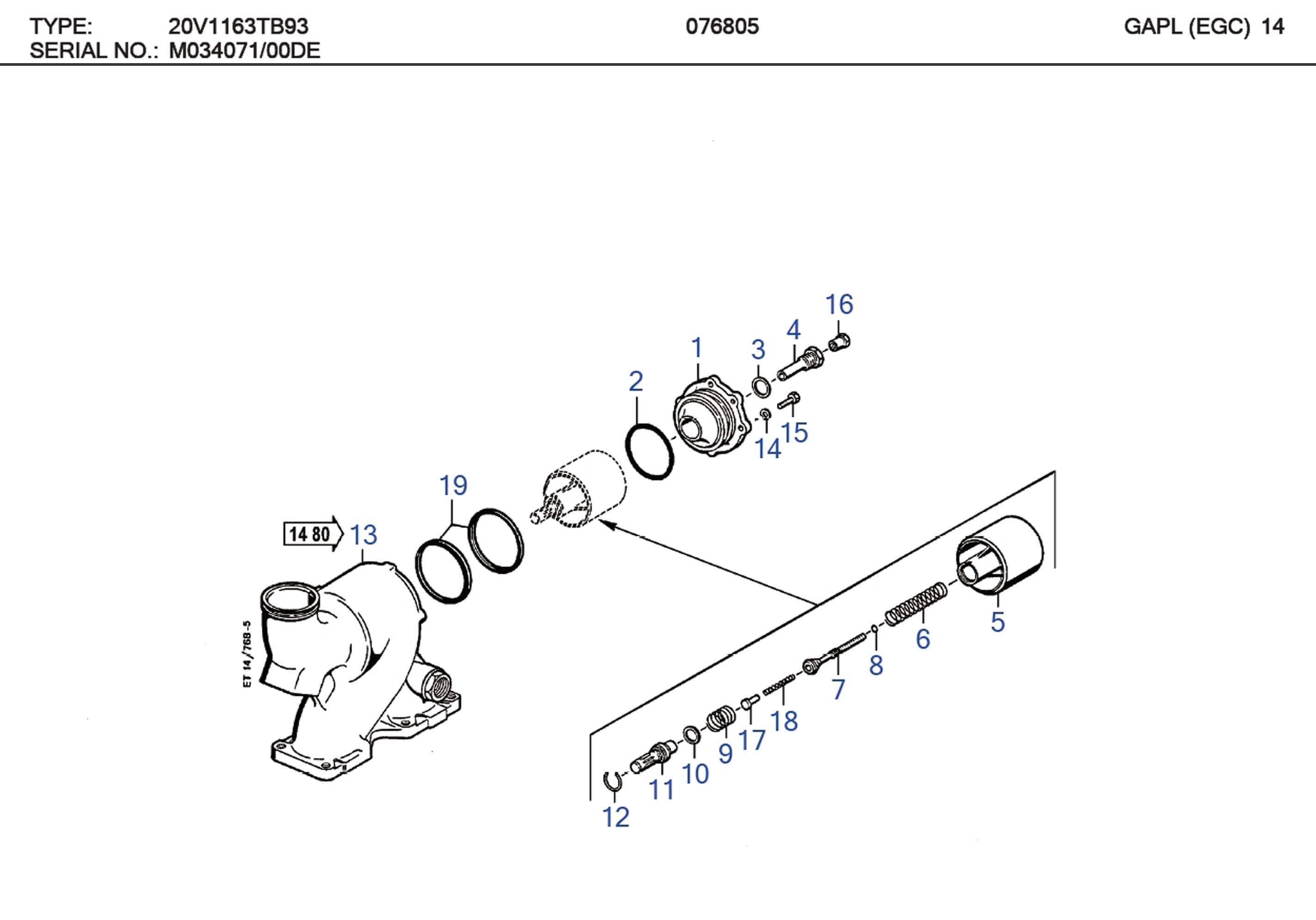

MTU 5849935201 Technical Engineering Exploded View

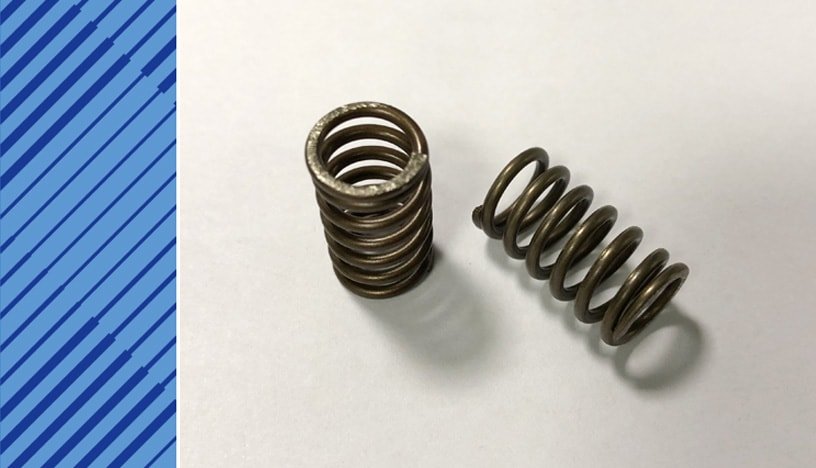

MTU 5849935201 COOLANT SYSTEM PRESSURE SPRING

C/N Description Part-Number Qty
000 COOLANT THERMOSTAT 5842001315 001
01 END COVER 5842000117 001
02 O-RING 700429112000 001
03 SEALING RING 007603030101 001
04 THREADED BUSHING 5849970716 001
05 SHUT-OFF SLIDE VALVE 5842030047 001
06 PRESSURE SPRING 5849932101 001
07 SPACER PIN 5842030562 001
08 O-RING 700429010000 001
09 LEAF SPRING 5849932001 001
10 COVER DISC 5842030252 001
11 ACTUATOR 0002032088 001
12 SNAP RING 007993040200 001
13 EXHAUST HOUSING 5842003016 001
14 COVER DISC 000125010524 004
15 SCREW 000933010093 004
16 SPACER BUSHING 5849970316 001
15 SPACER PIN 5842030362 001
15 PRESSURE SPRING 5849935201 001
15 SCRAPER 0002030381 002

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
