| PART NUMBER | 8495340000 |
| ENGINE TYPE | MTU 956/1163 ENGINE |
| DESCRIPTION | SOLENOID VALVE |
| DIMENSIONS | FUER VENTILBLOCK 0005342732 |
| UNIT WEIGHT | 0.650 KG |
| HS CODE | 84812090 |
| NATO-VERS.-NR. | 4810123693952 |

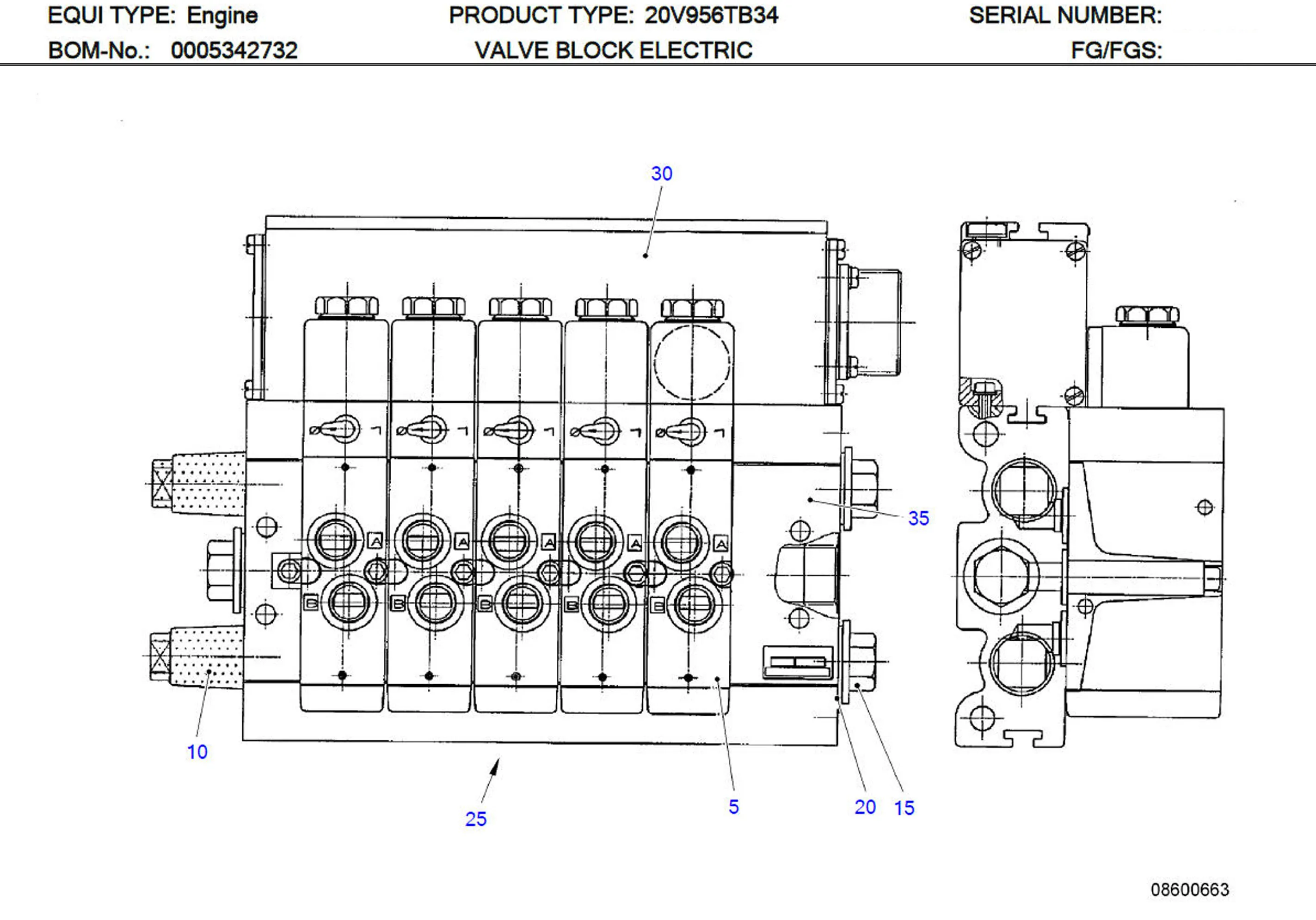

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 5 | SOLENOID VALVE | 8495340000 | 005 |
| 10 | SINTERED FILTER | 8495340001 | 002 |
| 15 | PLUG | 000910999020 | 003 |
| 20 | WASHER A COP | 007603021100 | 003 |
| 25 | GASKET KIT VALVE | 8495340002 | 001 |
| 30 | CONNECTION BLOCK | Z=335 799 010 2 | 001 |
| 35 | CONNECTING PIECE | Z=898 507 399 2 | 001 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 16V 1163 TB73L | N/A | 5200 | 1230 |
| 20V 1163 TB73 | N/A | 6000 | 1200 |
| 20V 1163 TB73L | N/A | 6500 | 1230 |
| 12V 1163 TB93 | N/A | 4440 | 1900 |
| 16V 1163 TB93 | N/A | 5920 | 1900 |
| 20V 1163 TB93 | N/A | 7400 | 1900 |
| 16V 1163 TB76 | N/A | 4320 | 1200 |
| 16V 1163 TB76L | N/A | 4800 | 1200 |
| 16V 1163 TB82 | N/A | 3580 | 1200 |
| 20V 1163 TB82 | N/A | 4480 | 1200 |
