MTU 5120252076 TURBOCHARGER ZR210 WASHER

MTU 5120252076 TURBOCHARGER ZR210 WASHER

MTU 5120252076 TURBOCHARGER ZR210 WASHER

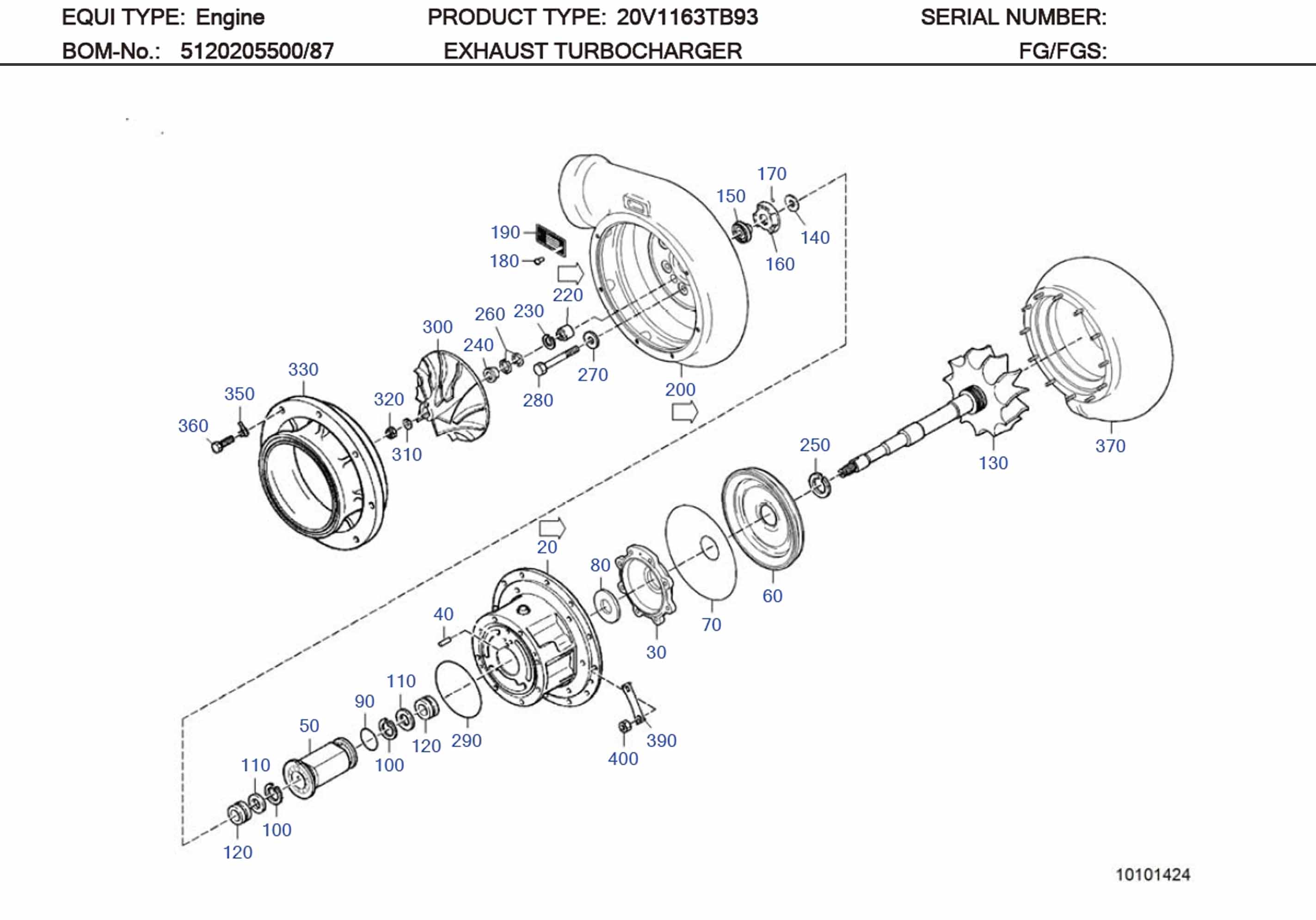

C/N Description Part-Number Qty
000 EXHAUST TURBOCHARGER 5120205500/87 001
20 BEARING HOUSING 5120801601 001
30 HOUSING COVER 5120820602 001
40 DOWEL PIN 000007006103 002
50 BEARING 5120251210 001
60 HEAT SHIELD 5120810803 001
70 HEAT SHIELD 5120820226 001
80 WASHER 5120252076 001
90 O-RING 700429050003 001
100 SNAP RING 000472045000 002
110 WASHER 5120250252 002
120 BEARING BUSHING 5120250850 002
130 TURBINE WHEEL 5120802521 001
140 WASHER X00010430 001
150 WASHER X00025178 001
160 THRUST BEARING 5120200112 001
170 O-RING 700429006001 001
180 PLATE F/TURBOCHARGER 700425000235 001
190 BLIND RIVET 215977003000 002
200 COMPRESSOR HOUSING 5120200101 001
220 VALVE 5110200278 002
230 RING SNAP 000472020000 002
240 RING CARRIER X57810100001 001
250 PISTON RING 5120850560 001
260 PISTON RING 5110850060 002
270 WASHER 8700780076 008
280 HEX SCREW 200933012007 008
290 O-RING 700429142000 002
300 COMPRESSOR WHEEL 5120250901 001
310 GROOVED RING 5120250142 001
320 HEX NUT 5110250072 001
330 INTAKE HOUSING 5120210102 001
350 TAB WASHER 700292010500 008
360 HEX SCREW 000933010194 008
370 TURBINE HOUSING 5120800030 001
390 TAB WASHER 5129940030 006
400 HEX NUT 5119900051 012

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
