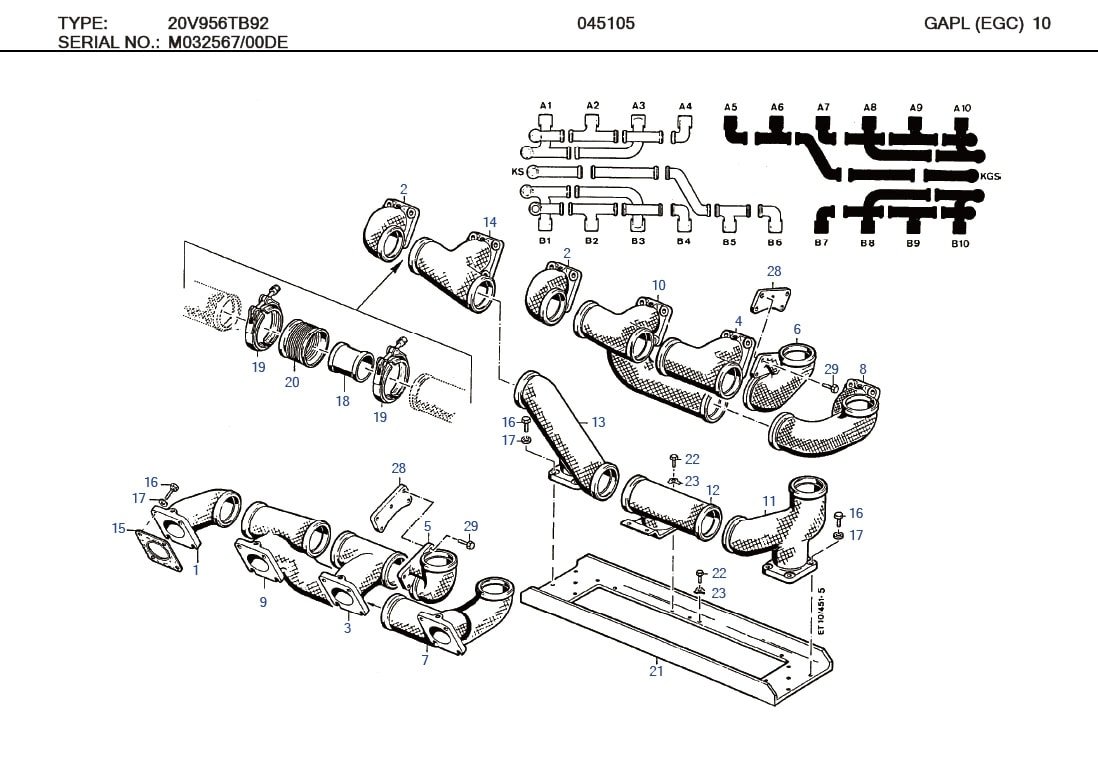

MTU 0004905565 Technical Engineering Exploded View

MTU 0004905565 Technical Engineering Exploded View

MTU 0004905565 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 EXHAUST PIPE 5801408008 002
02 EXHAUST PIPE 5801408208 004
03 EXHAUST PIPE 5801408408 002
04 EXHAUST PIPE 5801408608 002
05 EXHAUST PIPE 5801408808 002
06 EXHAUST PIPE 5801408908 002
07 EXHAUST PIPE 5801409008 002
08 EXHAUST PIPE 5801409208 002
09 EXHAUST PIPE 5801409408 002
10 EXHAUST PIPE 5801409608 002
11 EXHAUST PIPE 5801409808 002
12 EXHAUST PIPE 5801409908 002
13 EXHAUST PIPE 5801406810 002
14 EXHAUST PIPE 5840531130 002
15 GASKET 5801421180 020
16 SCREW 000933012059 095
17 COVER DISC 5501420653 095
18 FLOATING PIPE JOINT 5801420537 034
19 CLAMP 0005590907 068
20 BOOT 0004905565 034
21 ADAPTER FRAME 5801401240 002
22 SCREW 000933010035 020
23 TAB WASHER 700292010500 020
28 ALARM SWITCH 5801424540 004
29 SCREW 200933010001 016

MTU 956 Diesel Engine Models & Specifications

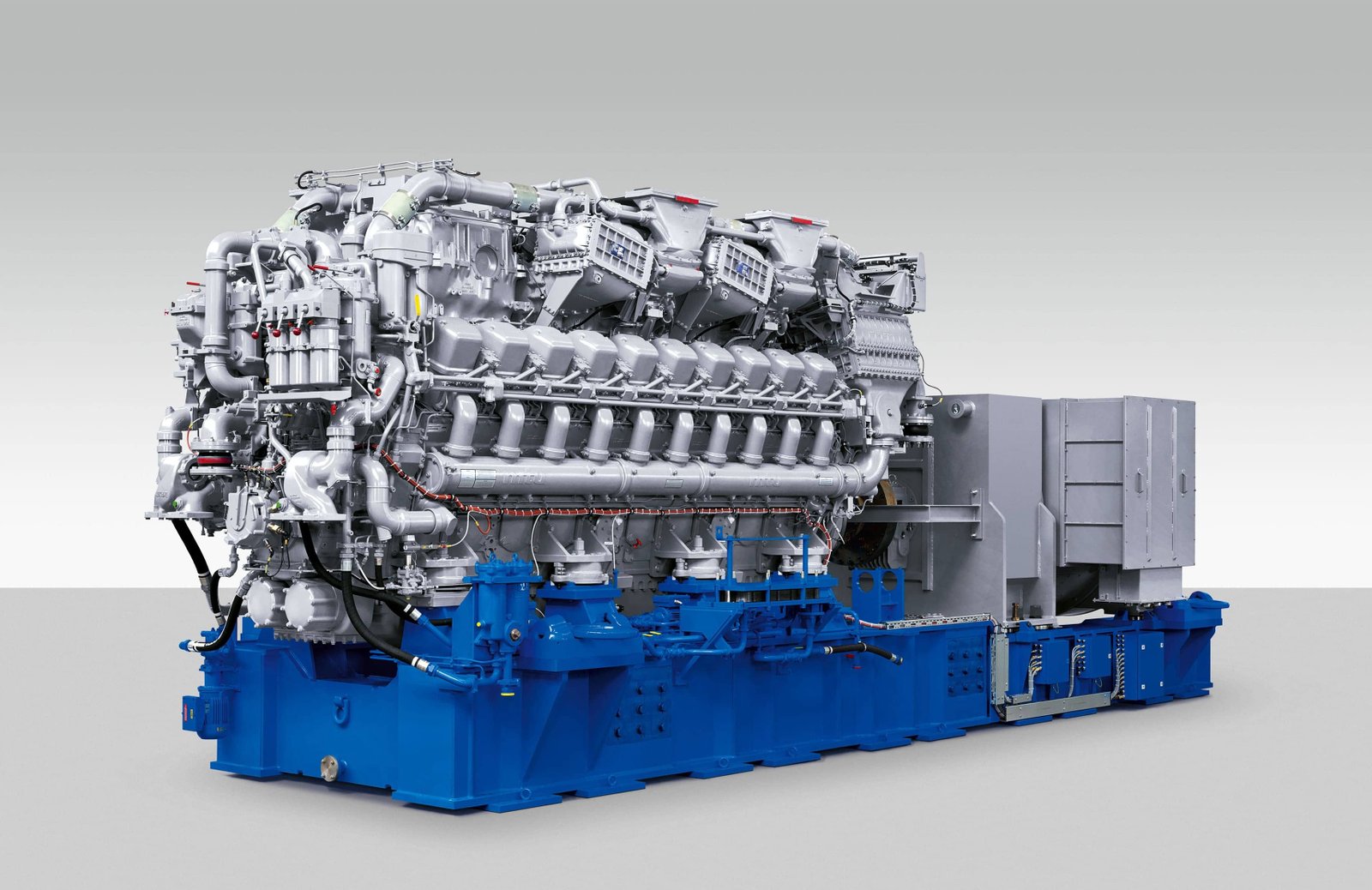

MTU 20V 956 TB34 Diesel Engine

MTU 956 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
12V 956 TB33 N/A 3750 1500
16V 956 TB33 N/A 5000 1500
20V 956 TB33 N/A 6250 1500
12V 956 TB33 N/A 3750 1500
16V 956 TB33 N/A 5000 1500
20V 956 TB33 N/A 6250 1500
12V 956 TB82 N/A 2520 1500
16V 956 TB82 N/A 3360 1500
20V 956 TB82 N/A 4200 1500
20V 956 TB34 N/A 6300 1500
