MTU 956/1163 PARTS | 0005342732 | VALVE BLOCK ELECTRIC

0005342732 VALVE BLOCK ELECTRIC

Other
Other 8492500001 COUPLING X58720700002 COOLANT PUMP SHAFT 5841800143 OIL SPRAY NOZZLE XP58799100596 SEAL 0000911128 DIAPHRAGM X59699100286 PRESSURE SPRING X59699100285 PRESSURE SPRING X54514100028 DIAPHRAGM X58712500010 BLEED VALVE 5840780024 THRUST MEMBER 5840782802 SUPPLY PIPE 007603016105 COPPER SEALING RING 000910016002 PLUG 000931012156 HEX SCREW 5802040290 RETAINER 000934012008 NUT HEX 000137012202 WASHER SPRING B12 5802040801 SPIRAL HOUSING 000137010202 WASHER SPRING B10 000933010093 HEX SCREW 700429045000 O-RING 5802040072 NUT 0002041116 ROTARY SEAL 5802040806 IMPELLER 700429178000 O-RING 700429100000 O-RING 5842040257 SEAL CARRIER 5842040219 BEARING HOUSING 5849900851 NUT 205412223002 CYL. ROLLER BEARING 5769970119 GRUB SCREW X58720700011 GEAR NO. 11 5900530426 VALVE COLLET 5841400344 FLANGE 5841421257 SEALING RING 5840530229 VALVE GUIDE INLET, SIZE 1 5840530129 VALVE GUIDE INLET, SIZE 0 8495340000 SOLENOID VALVE 5840300615 PISTON SKIRT 8490740063 FLANGE 0020940204 FILTER CARTRIDGE XT5610100140 PISTON RING F/TURBOCHARGER 5841400282/87 BELLOWS WITH TEST CERT. 3.1 5841420154 CABLE CONDUIT 5841420445 CLAMP X00E50214448 ACTUATOR 5840940180 GASKET 0180944502 PREFILTER 5840371625 PISTON CROWN 0019813727 ANGL CONT BALL BRG 8492000005 ROTARY SEAL 5842040714 COOLANT PUMP SHAFT 5205304131 TRAVEL SENSOR 5110850060 PISTON RING 5120850560 PISTON RING F/TURBOCHARGER 5120820226 HEAT SHIELD 5120251210 BEARING 5120200112 THRUST BEARING 5841800175 OIL THERMOSTAT 5849970040 SEALING RING 111D03014/1 SEALING RING 0002032088 ACTUATOR 5800110558 SEAL CARRIER 5110200412 THRUST BEARING 5110250376 WASHER 5849932001 LEAF SPRING 0199977747 RADIAL-LIP SHFT SEAL 5842032780 GASKET 5849935201 PRESSURE SPRING 5842040180 GASKET 114C62033/1 SEALING RING 5841420857 SEALING RING 5800110259 SEALING RING 5909970040 SEALING RING 161A15027/1 GASKET 5809970048 SEALING RING 5120252076 WASHER 5610110059 SEALING RING 8699970114 SEALING RING 5800300617 PISTON COMPOSITE 0005360001 LAMP 5840700632/87 HP FUEL LINE 5800162319 SEALING RING 0004905565 BOOT 0010175412 NOZZLE 0000533235 VALVE ROTATOR 5840111810 CYLINDER LINER SIZE 0 0080370018 OIL CONTROL RING 0080375619 RECTANGLR-SECT RING 5840300917 PISTON 5840300020/42 CONNECTING ROD 5800530205 EXHAUST VALVE 5800530101 INLET VALVE 007603033100 SEALING RING 206925008000 HEX NUT 5849970572 SCREW-FITTING UNION 0000981565 GASKET 0000981465 GASKET 5840982719 PUMP TIMING PISTON 5840980257 2/2-WAY SOLENOID VALVE 5849931601 PRESSURE SPRING 5840900054 VALVE HOUSING 0029971248 RUBBER RING 161M37002/1 RUBBER SLEEVE 135M37018/1 RUBBER SLEEVE 5840900595 2/2-WAY SOLENOID VALVE 5809900819 STRESS BOLT 135A45008/2 SLEEVE
PART NUMBER 0005342732
ENGINE TYPE MTU 956/1163 ENGINE
DESCRIPTION VALVE BLOCK ELECTRIC
DIMENSIONS N/A
UNIT WEIGHT 6.234 KG
HS CODE 84811005
NATO-VERS.-NR. 4810123604998
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

MTU 956/1163 PARTS 0005342732 VALVE BLOCK ELECTRIC

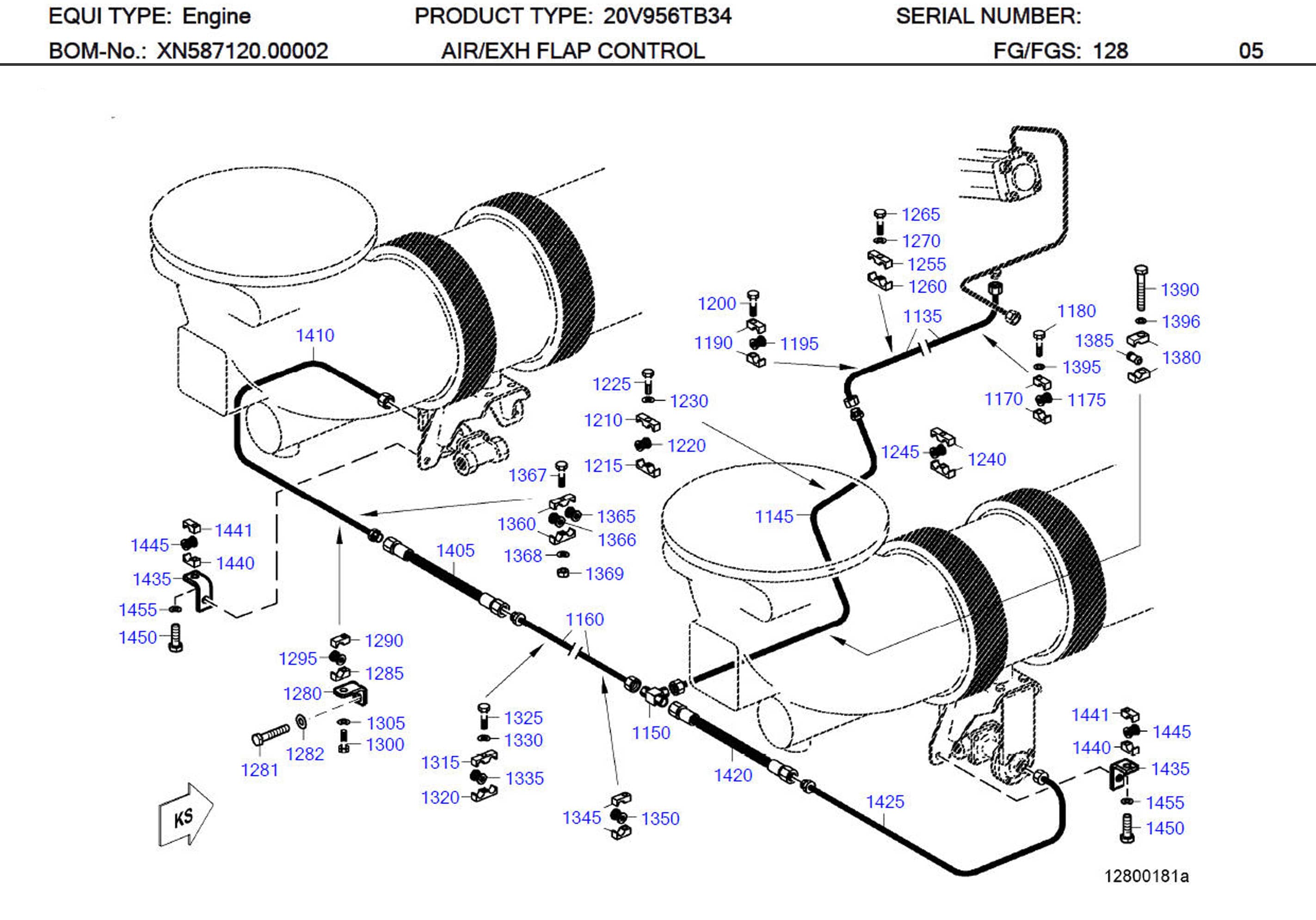

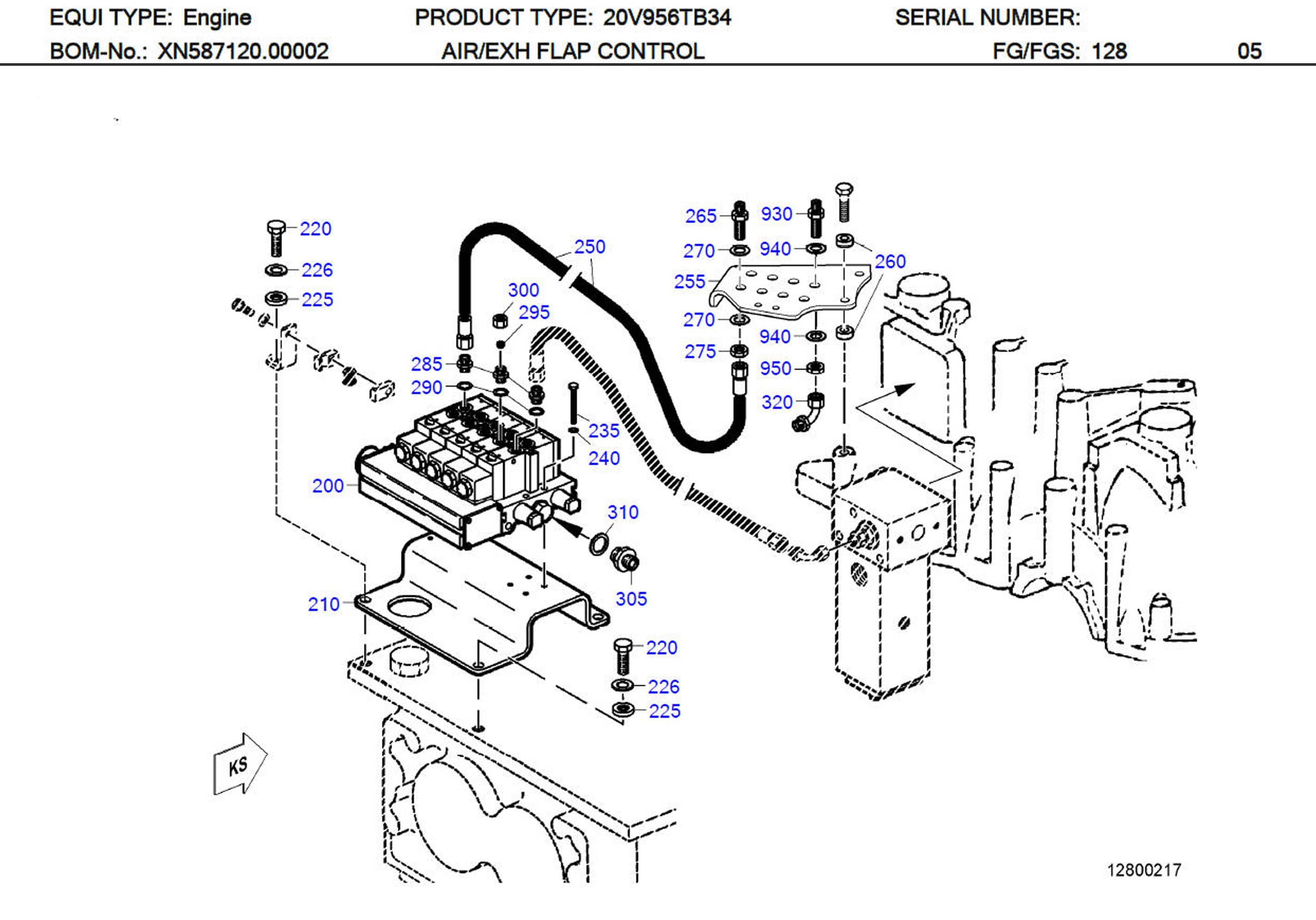

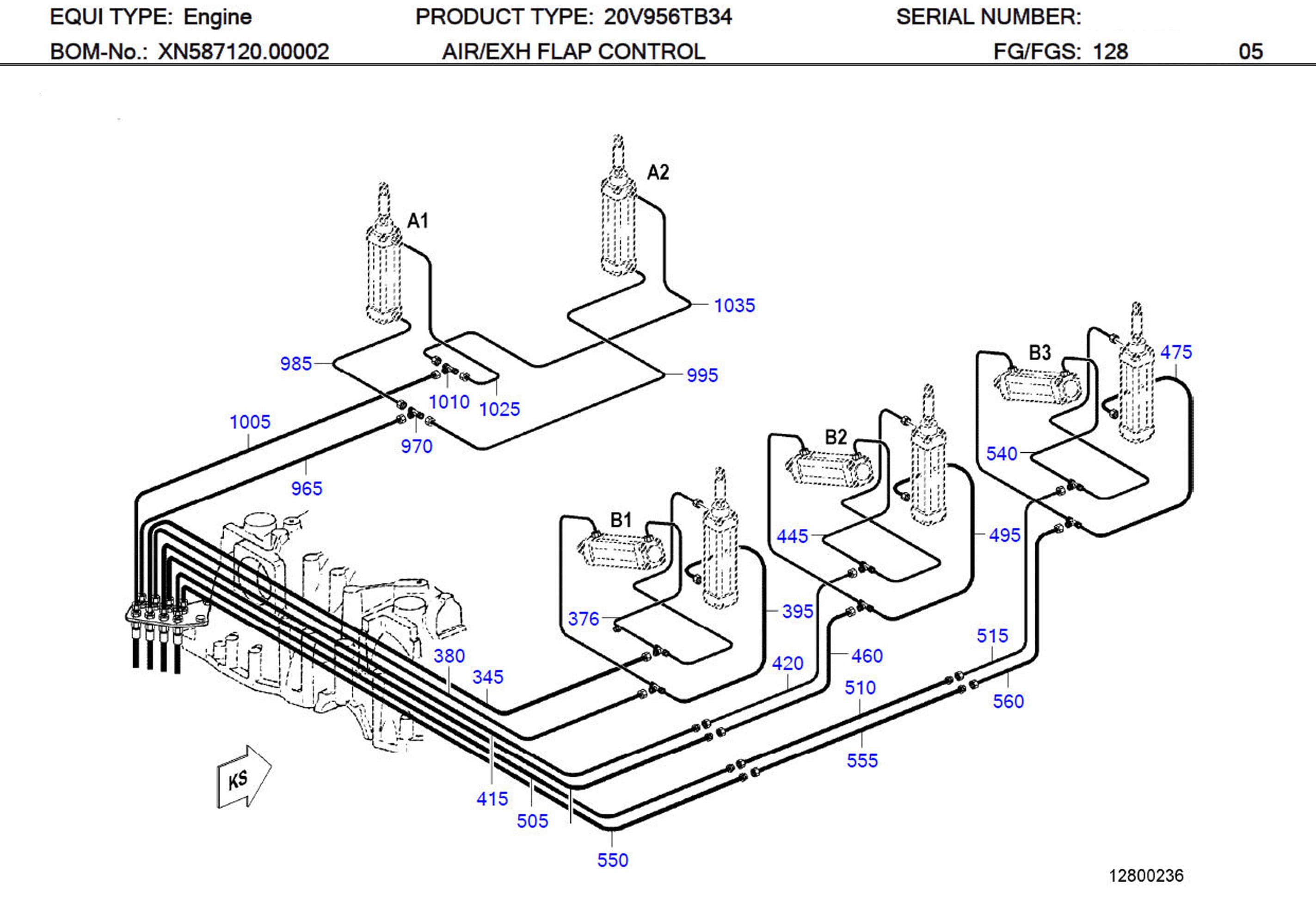

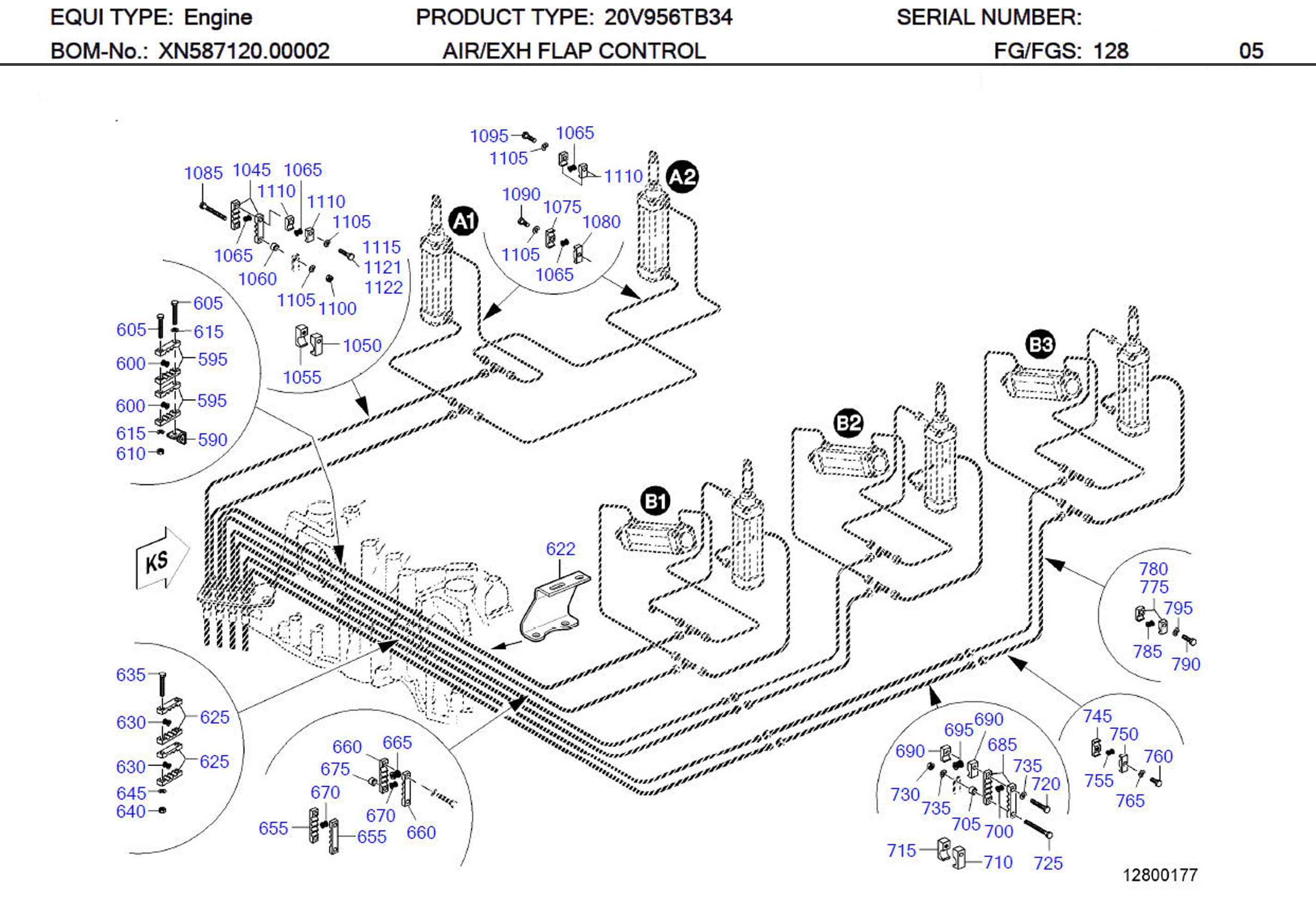

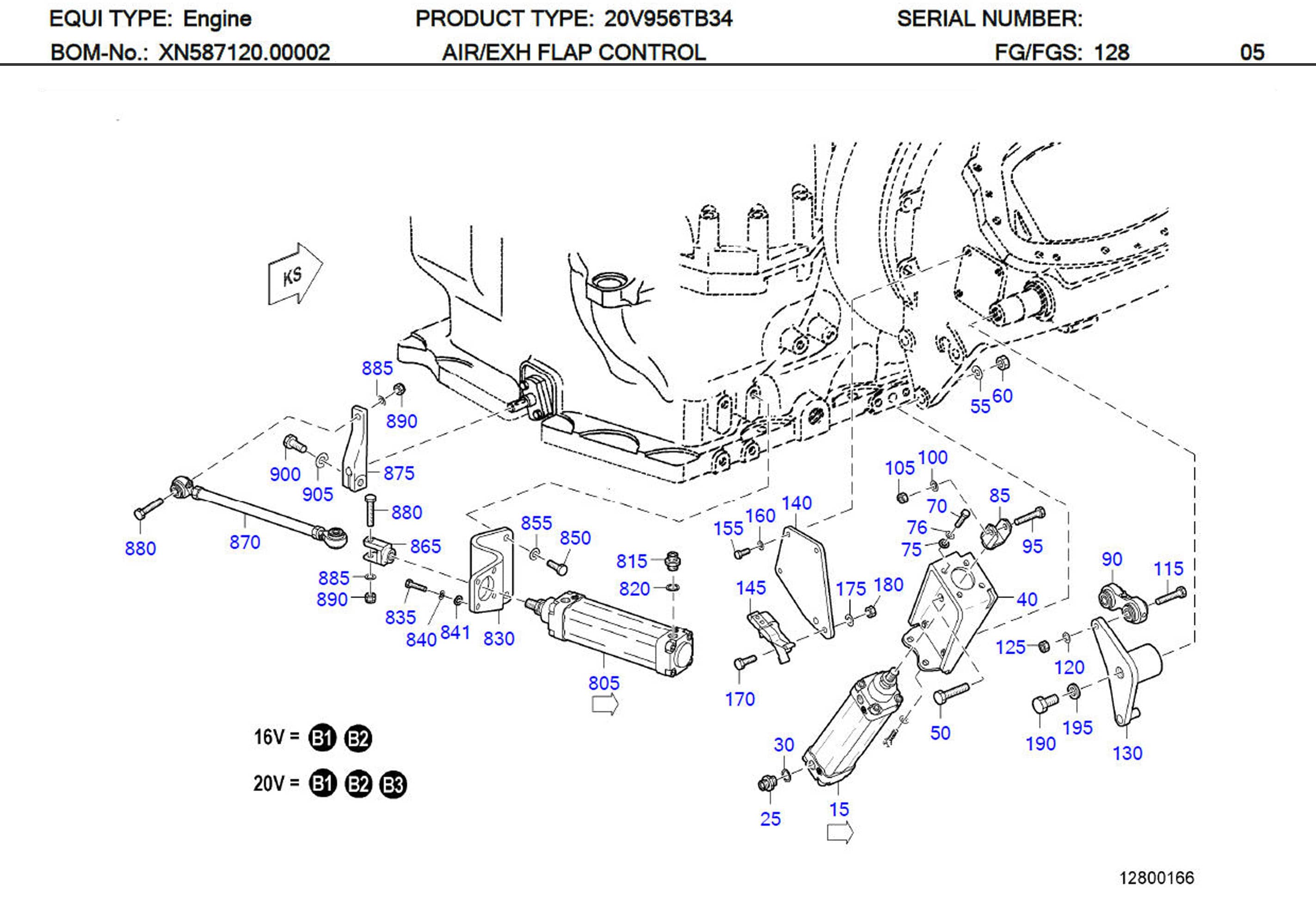

MTU 0005342732 Technical Engineering Exploded View MTU X57799100039 Technical Engineering Exploded View MTU X58712800005 Technical Engineering Exploded View MTU 700325022100 Technical Engineering Exploded View MTU 700325010105 Technical Engineering Exploded View

MTU 956/1163 PARTS 0005342732 VALVE BLOCK ELECTRIC

C/N Description Part-Number Qty
15 ACTUATING CYLINDER X57799100039 005
25 SCREW-FITTING UNION 700419999037 010
30 RING SEALING A13 X18 CU 705057013000 010
40 RETAINER X58612800014 005
50 HEX SCREW 000933010116 015
55 WASHER 000125010524 015
60 NUT HEX 000934010005 015
70 HEX SCREW 304017006063 030
75 WASHER SPRING B6 000137006205 030
76 WASHER 000125006431 030
85 CLEVIS 5769960101 005
90 STRAP 5620902840 005
95 HEX SCREW 304017008085 005
100 WASHER 000125008427 005
105 NUT 999900008000 005
115 HEX SCREW 304017008086 005
120 WASHER 000125008427 005
125 NUT 999900008000 005
130 LEVER 5840901321 005
140 PLATE 5840980055 005
145 RETAINER 5760902441 005
155 HEX SCREW 000933006175 015
160 WASHER SPRING B6 000137006205 015
170 HEX SCREW 304017008081 010
175 WASHER SPRING B8 000137008203 010
180 NUT HEX 000934008008 010
190 HEX SCREW 000933012071 005
195 WASHER 5809970140 005
200 VALVE BLOCK ELECTRIC 0005342732 001
210 RETAINER 5840986139 001
220 HEX SCREW 000933012077 004
225 SPACER S2000/4000 735151012100 004
226 WASHER SPRING B12 000137012202 004
235 HEX SCREW 000933006069 004
240 WASHER 000125006431 004
250 HOSE 735038006107 008
255 RETAINER FOR CONTROL LINE X58710100009 001
260 SPACER S2000/S4000 5599900040 002
265 UNION 5849973772 008
270 WASHER 000125013012 016
275 HEX NUT 000439012204 008
285 SCREW-FITTING UNION 700419999037 010
290 RING SEALING A13 X18 CU 705057013000 010
295 CONE SEALING 8 915005006000 002
300 NUT 915001006003 002
305 SCREW-FITTING UNION 700419999036 001
310 WASHER A COP 007603021100 001
320 ELBOW 700160001006 002
345 CONTROL AIR LINE X58712800010 001
376 CONTROL AIR LINE X58712800004 001
380 CONTROL AIR LINE X58712800009 001
395 CONTROL AIR LINE X58712800003 001
415 CONTROL AIR LINE 5840903035 001
420 CONTROL AIR LINE 5840906535 001
445 CONTROL AIR LINE X58712800005 001
455 CONTROL AIR LINE 5840903335 001
460 CONTROL AIR LINE 5840904035 001
475 CONTROL AIR LINE X58712800003 001
495 CONTROL AIR LINE X58712800003 001
505 CONTROL AIR LINE 5840903635 001
510 CONTROL AIR LINE 5840903835 001
515 CONTROL AIR LINE 5840906635 001
540 CONTROL AIR LINE X58712800005 001
550 CONTROL AIR LINE 5840903935 001
555 CONTROL AIR LINE 5840903835 001
560 CONTROL AIR LINE 5840904835 001
590 BRACKET L H:51 S2000 /4000 5551870640 001
595 PIPE CLAMP HALF 700325010105 004
600 GROMMET 700327006000 006
605 HEX SCREW 304017008087 002
610 NUT HEX 000934008008 001
615 WASHER SPRING B8 000137008203 002
622 RETAINER FOR BRACKET X58709600001 001
625 PIPE CLAMP HALF 700325010105 004
630 GROMMET 700327006000 006
635 HEX SCREW 304017008089 002
640 NUT HEX 000934008008 002
645 CONICAL SPR. WASHER 206796008000 002
655 PIPE CLAMP HALF 700325010106 002
660 PIPE HALF-CLAMP 5849955268 002
665 GROMMET 700327008000 001
670 GROMMET 700327006000 006
675 SPACER 5901750251 002
685 PIPE CLAMP HALF 700325010106 006
690 CLAMP HALF TUBE 1/1 D9-12 700325012100 006
695 GROMMET 700327008000 003
700 GROMMET 700327006000 012
705 SPACER 5901750251 003
710 CLAMP HALF TUBE 1/1 D9-22 700325022100 028
715 CLAMP HALF TUBE 1/1 G8-22 700325022200 002
720 HEX SCREW 304017008087 003
725 HEX SCREW 000933008103 003
730 NUT HEX 000934008008 003
735 WASHER SPRING B8 000137008203 006
745 CLAMP HALF TUBE 2/1 G8-10 700325010202 003
750 CLAMP HALF TUBE 2/1 D9-10 700325010103 003
755 GROMMET 700327006000 006
760 HEX SCREW 304017008079 003
765 WASHER SPRING B8 000137008203 003
775 CLAMP HALF TUBE 2/1 D9-10 700325010103 002
780 CLAMP HALF TUBE 700325010100 008
785 GROMMET 700327006000 006
790 HEX SCREW 304017008083 005
795 WASHER SPRING B8 000137008203 005
805 ACTUATING CYLINDER X57799100039 003
815 SCREW-FITTING UNION 700419999037 006
820 RING SEALING A13 X18 CU 705057013000 006
830 RETAINER X58511400004 003
835 HEX SCREW 304017006063 012
840 WASHER SPRING B6 000137006205 012
841 WASHER 000125006431 012
850 HEX SCREW 304017008081 009
855 WASHER SPRING B8 000137008203 009
865 CLEVIS 5769960101 003
870 ROD 5841400046 003
885 LEVER 5841420839 003
880 HEX SCREW 304017008085 006
885 WASHER 000125008427 006
890 NUT 999900008000 006
900 HEX SCREW 000933010035 003
905 WASHER SPRING B10 000137010202 003
930 UNION 5849973772 002
940 WASHER 000125013012 004
950 HEX NUT 000439012204 002
965 CONTROL AIR LINE 5870900035 001
970 FITTING TEE 5569970174 001
985 CONTROL AIR LINE 5870900135 001
995 CONTROL AIR LINE 5870900235 001
1005 CONTROL AIR LINE 5870900335 001
1010 FITTING TEE 5569970174 001
1025 CONTROL AIR LINE 5870900435 001
1035 CONTROL AIR LINE 5870900535 001
1045 PIPE CLAMP HALF 700325010105 010
1050 CLAMP HALF TUBE 1/1 D9-22 700325022100 010
1055 CLAMP HALF TUBE 1/1 G8-22 700325022200 002
1060 SPACER 5901750251 005
1065 GROMMET 700327006000 016
1075 CLAMP HALF TUBE 2/1 D9-10 700325010103 002
1080 CLAMP HALF TUBE 2/1 G8-10 700325010202 003
1085 HEX SCREW 000933008171 005
1090 HEX SCREW 304017008079 002
1095 HEX SCREW 304017008083 005
1100 NUT HEX 000934008008 005
1105 WASHER SPRING B8 000137008203 016
1110 CLAMP HALF TUBE 700325010100 004
1115 HEX SCREW 304017008084 002
1121 HEX SCREW 304017008087 002
1122 HEX SCREW 304017008089 002
1135 CONTROL AIR LINE 5840906735 001
1145 CONTROL AIR LINE 5840906835 001
1150 FITTING TEE 5569970174 001
1160 CONTROL AIR LINE 5840906935 001
1170 CLAMP HALF TUBE 700325010100 002
1175 GROMMET 700327006000 001
1180 HEX SCREW 304017008088 001
1190 CLAMP HALF TUBE 700325010100 002
1195 GROMMET 700327006000 001
1200 HEX SCREW 304017008089 001
1210 CLAMP HALF TUBE 2/1 D9-10 700325010103 001
1215 CLAMP HALF TUBE 2/1 G8-10 700325010202 001
1220 GROMMET 700327006000 002
1225 HEX SCREW 304017008079 001
1230 WASHER SPRING B8 000137008203 001
1240 CLAMP HALF TUBE 2/1 D9-10 700325010103 002
1245 GROMMET 700327006000 001
1255 CLAMP HALF TUBE 2/1 D9-10 700325010103 001
1260 CLAMP HALF TUBE 2/1 G8-10 700325010202 001
1265 HEX SCREW 304017008079 001
1270 WASHER SPRING B8 000137008203 001
1280 BRACKET L H:22 5901751641 001
1281 HEX SCREW 000933010150 001
1282 WASHER SPRING B10 000137010202 001
1285 CLAMP HALF TUBE 700325010100 001
1290 CLAMP HALF TUBE 1/1 G8-10 700325010200 001
1295 GROMMET 700327006000 001
1300 HEX SCREW 304017008081 001
1305 WASHER SPRING B8 000137008203 001
1315 CLAMP HALF TUBE 2/1 D9-10 700325010103 001
1320 CLAMP HALF TUBE 2/1 G8-10 700325010202 001
1325 HEX SCREW 304017008079 001
1330 WASHER SPRING B8 000137008203 001
1335 GROMMET 700327006000 002
1345 CLAMP HALF TUBE 700325010100 002
1350 GROMMET 700327006000 001
1360 PIPE HALF-CLAMP 5909950468 002
1365 GROMMET 700327006000 001
1366 GROMMET 700327008000 001
1367 HEX SCREW 000933008171 001
1368 WASHER SPRING B8 000137008203 001
1369 NUT HEX 000934008008 001
1380 PIPE CLAMP HALF 700325010110 002
1385 GROMMET 700327006000 001
1390 HEX SCREW 000933010149 001
1395 WASHER SPRING B8 000137008203 001
1396 WASHER SPRING B10 000137010202 001
1405 HOSE 735038005103 001
1410 CONTROL AIR LINE 5840907135 001
1420 HOSE 735038005107 001
1425 CONTROL AIR LINE 5840907235 001
1435 BRACKET L H:21 5550780241 002
1440 CLAMP HALF TUBE 700325010100 002
1441 CLAMP HALF TUBE 1/1 G8-10 700325010200 002
1445 GROMMET 700327006000 002
1450 HEX SCREW 304017008081 002
1455 WASHER SPRING B8 000137008203 002
