MTU 5841420857 TURBOCHARGER SEALING RING

MTU 5841420857 TURBOCHARGER SEALING RING

MTU 5841420857 TURBOCHARGER SEALING RING

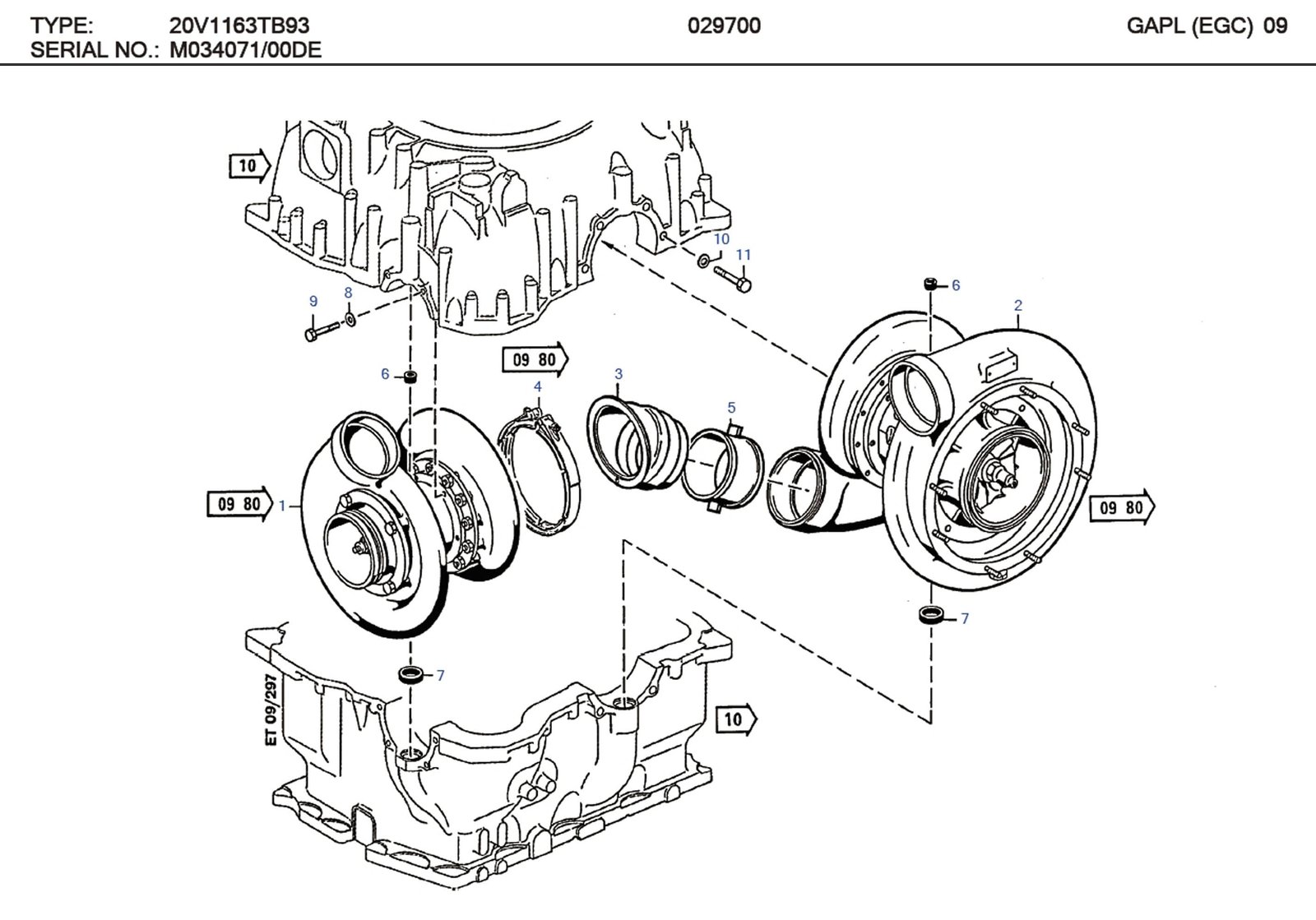

C/N Description Part-Number Qty
01 EXHAUST TURBOCHARGER 5110205307 005
02 EXHAUST TURBOCHARGER 5120202400 005
03 OUTLET ELBOW 5110800468 005
04 CLAMP 5111400241 005
05 FLOATING PIPE JOINT 5841400265 005
06 SEALING RING 114C62033/1 010
07 SEALING RING 5841420857 010
08 COVER DISC 000125010524 030
09 DRAIN PLUG 5119900001 030
10 COVER DISC 000125013012 030
11 DRAIN PLUG 5129900001 030

5841420857 SUPERSEDED PART AND EFFECTIVE DATE

5841420857 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5841420857 161L61003/1 N/A
02 5841420857 5841420857 1988/07/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
