MTU 956/1163 Parts |  0019813727 | ANGL CONT BALL BRG

0019813727 ANGL CONT BALL BRG

Other
Other 8492500001 COUPLING X58720700002 COOLANT PUMP SHAFT 5841800143 OIL SPRAY NOZZLE XP58799100596 SEAL 0000911128 DIAPHRAGM X59699100286 PRESSURE SPRING X59699100285 PRESSURE SPRING X54514100028 DIAPHRAGM X58712500010 BLEED VALVE 0005342732 VALVE BLOCK ELECTRIC 5840780024 THRUST MEMBER 5840782802 SUPPLY PIPE 007603016105 COPPER SEALING RING 000910016002 PLUG 000931012156 HEX SCREW 5802040290 RETAINER 000934012008 NUT HEX 000137012202 WASHER SPRING B12 5802040801 SPIRAL HOUSING 000137010202 WASHER SPRING B10 000933010093 HEX SCREW 700429045000 O-RING 5802040072 NUT 0002041116 ROTARY SEAL 5802040806 IMPELLER 700429178000 O-RING 700429100000 O-RING 5842040257 SEAL CARRIER 5842040219 BEARING HOUSING 5849900851 NUT 205412223002 CYL. ROLLER BEARING 5769970119 GRUB SCREW X58720700011 GEAR NO. 11 5900530426 VALVE COLLET 5841400344 FLANGE 5841421257 SEALING RING 5840530229 VALVE GUIDE INLET, SIZE 1 5840530129 VALVE GUIDE INLET, SIZE 0 8495340000 SOLENOID VALVE 5840300615 PISTON SKIRT 8490740063 FLANGE 0020940204 FILTER CARTRIDGE XT5610100140 PISTON RING F/TURBOCHARGER 5841400282/87 BELLOWS WITH TEST CERT. 3.1 5841420154 CABLE CONDUIT 5841420445 CLAMP X00E50214448 ACTUATOR 5840940180 GASKET 0180944502 PREFILTER 5840371625 PISTON CROWN 8492000005 ROTARY SEAL 5842040714 COOLANT PUMP SHAFT 5205304131 TRAVEL SENSOR 5110850060 PISTON RING 5120850560 PISTON RING F/TURBOCHARGER 5120820226 HEAT SHIELD 5120251210 BEARING 5120200112 THRUST BEARING 5841800175 OIL THERMOSTAT 5849970040 SEALING RING 111D03014/1 SEALING RING 0002032088 ACTUATOR 5800110558 SEAL CARRIER 5110200412 THRUST BEARING 5110250376 WASHER 5849932001 LEAF SPRING 0199977747 RADIAL-LIP SHFT SEAL 5842032780 GASKET 5849935201 PRESSURE SPRING 5842040180 GASKET 114C62033/1 SEALING RING 5841420857 SEALING RING 5800110259 SEALING RING 5909970040 SEALING RING 161A15027/1 GASKET 5809970048 SEALING RING 5120252076 WASHER 5610110059 SEALING RING 8699970114 SEALING RING 5800300617 PISTON COMPOSITE 0005360001 LAMP 5840700632/87 HP FUEL LINE 5800162319 SEALING RING 0004905565 BOOT 0010175412 NOZZLE 0000533235 VALVE ROTATOR 5840111810 CYLINDER LINER SIZE 0 0080370018 OIL CONTROL RING 0080375619 RECTANGLR-SECT RING 5840300917 PISTON 5840300020/42 CONNECTING ROD 5800530205 EXHAUST VALVE 5800530101 INLET VALVE 007603033100 SEALING RING 206925008000 HEX NUT 5849970572 SCREW-FITTING UNION 0000981565 GASKET 0000981465 GASKET 5840982719 PUMP TIMING PISTON 5840980257 2/2-WAY SOLENOID VALVE 5849931601 PRESSURE SPRING 5840900054 VALVE HOUSING 0029971248 RUBBER RING 161M37002/1 RUBBER SLEEVE 135M37018/1 RUBBER SLEEVE 5840900595 2/2-WAY SOLENOID VALVE 5809900819 STRESS BOLT 135A45008/2 SLEEVE
PART NUMBER 0019813727
ENGINE TYPE MTU 1163 ENGINE
DESCRIPTION ANGL CONT BALL BRG
DIMENSIONS Z-575915.SKL
UNIT WEIGHT 1.596 KG
HS CODE 84821090
NATO-VERS.-NR. 3110123349092
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 1163 PARTS 0019813727 ANGL CONT BALL BRG

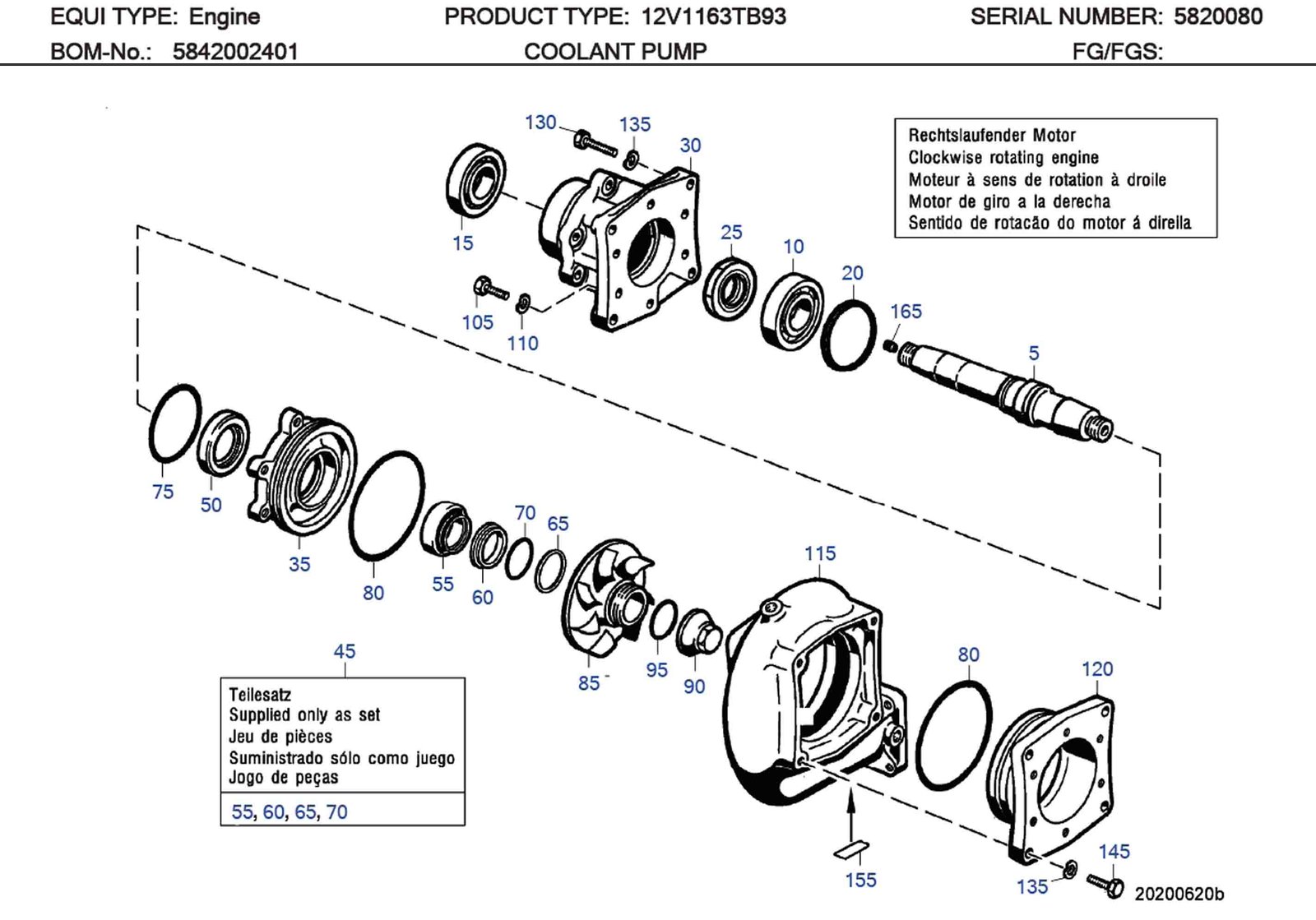

MTU 0019813727 Technical Engineering Exploded View

MTU 1163 PARTS 0019813727 ANGL CONT BALL BRG

C/N Description Part-Number Qty
5 SHAFT 5842040714 001
10 ANGL CONT BALL BRG 0019813727 001
15 CYL. ROLLER BEARING 205412223002 001
20 SPACER RING 5842040151 001
25 NUT 5849900851 001
30 BEARING HOUSING 5842040219 001
35 SEAL CARRIER 5762010158 001
45 ROTARY SEAL 8492000005 001
50 RADIAL-LIP SHFT SEAL 0199977747 001
55 ROTARY SEAL 0002018319 001
60 COUNTERRING 0002010718 001
65 SPACER RING 5842040551 001
70 O-RING 700429056001 001
75 O-RING 700429100000 001
80 O-RING 700429150001 002
85 IMPELLER 5842040306 001
90 NUT 5802040172 001
95 O-RING 700429045000 001
105 HEX BOLT 000933010093 006
110 WASHER SPRING B10 000137010202 006
115 VOLUTE 5802010801 001
120 INLET NECK 5802010330 001
130 BOLT HEX 000933012093 004
135 WASHER SPRING B12 000137012202 004
145 BOLT HEX 000933012077 004
155 PLATE 700425000111 001
165 GRUB SCREW 5769970119 001

0019813727 SUPERSEDED PART AND EFFECTIVE DATE

0019813727 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0019813727 Z-575915.SKL N/A
02 0019813727 0019813727 1900/01/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
