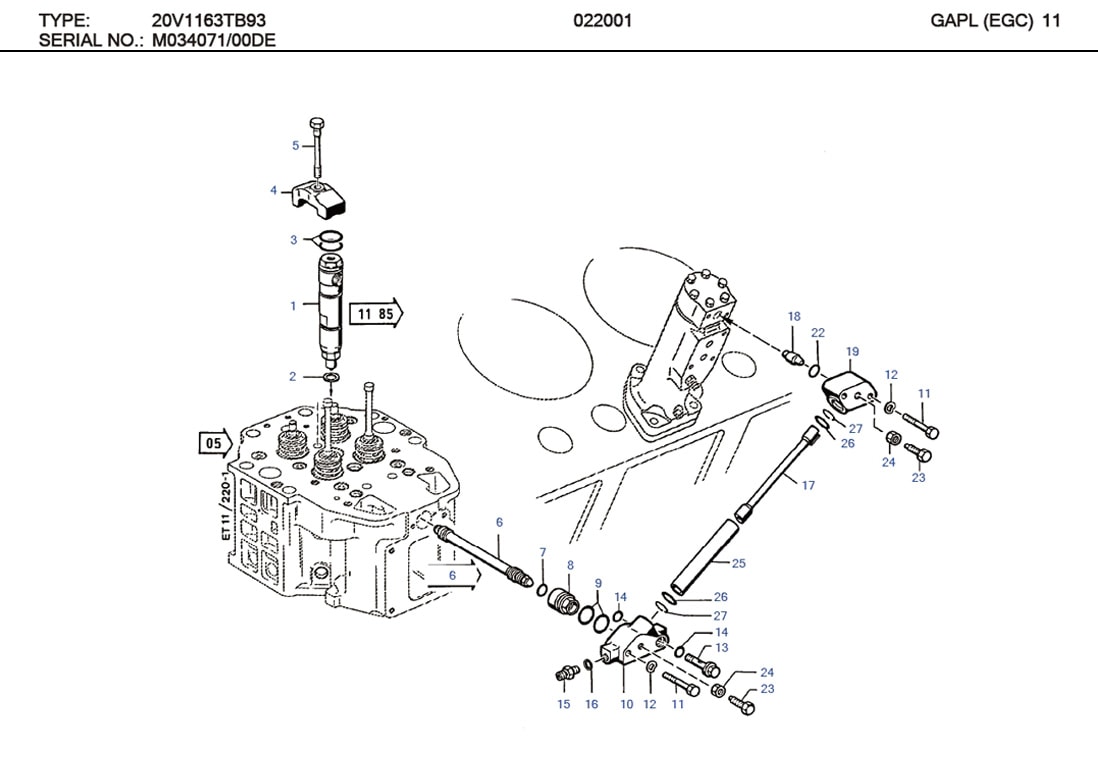

MTU 5840700632/87 Technical Engineering Exploded View

MTU 5840700632/87 Technical Engineering Exploded View

MTU 5840700632/87 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 INJECTOR 5830100151 000
02 SEALING RING 5840170160 020
03 O-RING 700429041000 040
04 HOLD-DOWN CLAMP 5840170040 020
05 STRESS BOLT 700209016203 020
06 SUPPLY PIPE 5840782802 020
07 O-RING 700429019000 020
08 SPACER SLEEVE 5840780053 020
09 O-RING 700429030000 040
10 CONNECTING FLANGE 5840741944 020
11 SCREW 000931010105 060
12 SPRING WASHER 000137010202 060
13 DRAIN PLUG 5840780171 020
14 O-RING 700429017002 040
15 EXHAUST PIPE NECK 915013006002 040
16 SEALING RING 007603012111 040
17 HP FUEL LINE 5840700632 020
18 THRUST MEMBER 5840780024 020
19 CONNECTING FLANGE 5840741744 020
22 O-RING 700429020003 020
23 DRAIN PLUG 5849901115 040
24 HEX NUT 000439016201 040
25 FUEL LINE 5840781102 020
26 O-RING 700429028002 040
27 SNAP RING 207993028200 040

5840700632/87 SUPERSEDED PART AND EFFECTIVE DATE

5840700632/87 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5840700632/87 5840700632 N/A
02 5840700632/87 5840700632/87 2009/02/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
