PART NUMBER 5800110259
ENGINE TYPE MTU 1163 ENGINE
DESCRIPTION SEALING RING
DIMENSIONS N/A
UNIT WEIGHT 0.011 KG
HS CODE 40169300
NATO-VERS.-NR. 5330121876145
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

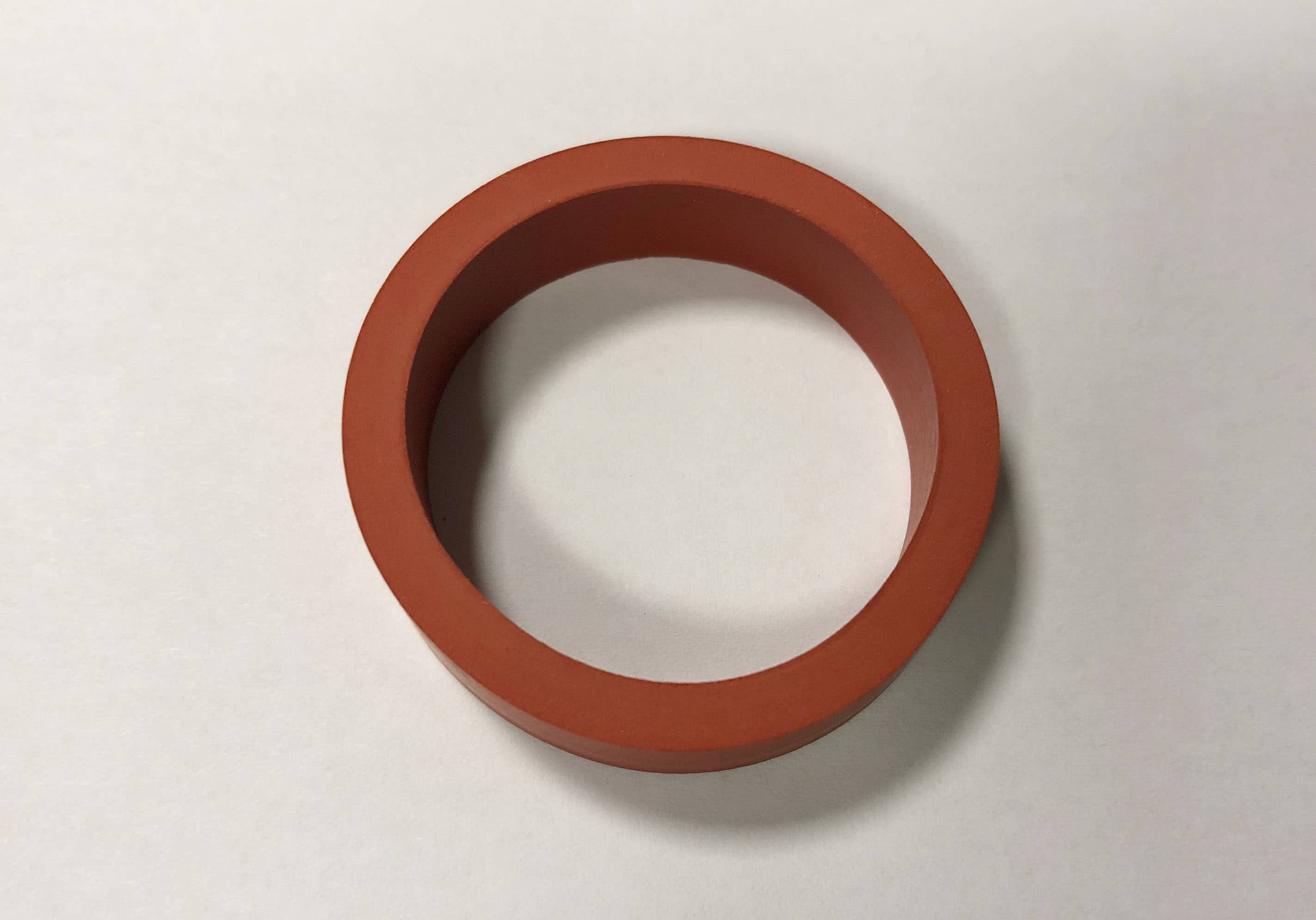

MTU 5800110259 CYLINDER HAED SEALING RING

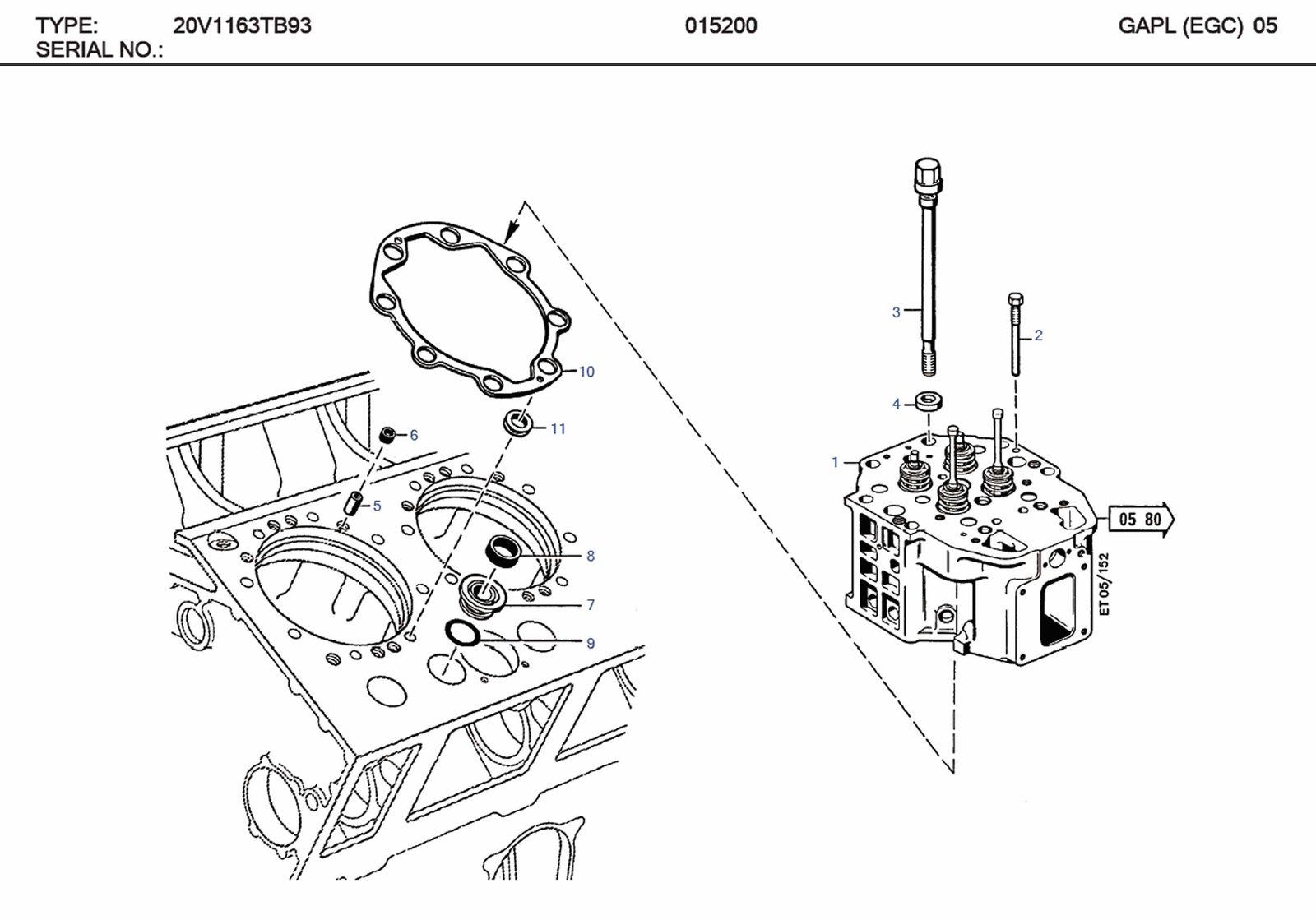

MTU 5800110259 Technical Engineering Exploded View MTU 5800110259 CYLINDER HAED SEALING RING

MTU 5800110259 CYLINDER HAED SEALING RING

C/N Description Part-Number Qty
01 SET OF CYLINDER HEADS 5840101420 020
02 DRAIN PLUG 5840160271 020
03 STRESS BOLT 5809900819 160
04 THRUST WASHER 5800160062 160
05 SPACER SLEEVE 135A45008/2 140
06 SEALING RING 5610110059 140
07 SEAL CARRIER 5800110258 040
08 SEALING RING 5800110259 040
09 O-RING 700429050000 040
10 SEAL CARRIER 5800110558 020
11 SEALING RING 5809970048 160

5800110259 SUPERSEDED PART AND EFFECTIVE DATE

5800110259 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5800110259 5800110159 N/A
02 5800110259 5800110259 1995/01/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
