MTU 956/1163 Parts | 5110850060 | PISTON RING

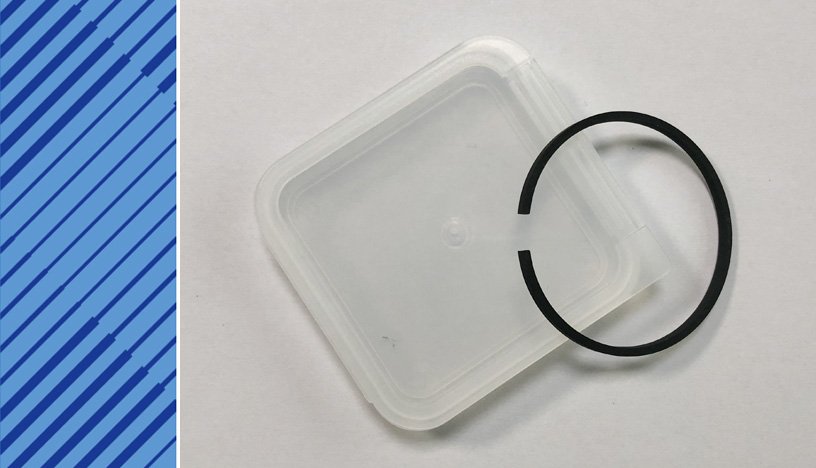

5110850060 PISTON RING

Other
Other XT5610100140 PISTON RING F/TURBOCHARGER 5841420154 CABLE CONDUIT 5841400282/87 BELLOWS WITH TEST CERT. 3.1 5841420445 CLAMP 5840371625 PISTON CROWN 0180944502 PREFILTER 5840940180 GASKET X00E50214448 ACTUATOR 0019813727 ANGL CONT BALL BRG 8492000005 ROTARY SEAL 5842040714 COOLANT PUMP SHAFT 5205304131 TRAVEL SENSOR 5110850060 PISTON RING 5120850560 PISTON RING F/TURBOCHARGER 5120820226 HEAT SHIELD 5120251210 BEARING 5120200112 THRUST BEARING 5841800175 OIL THERMOSTAT 5849970040 SEALING RING 111D03014/1 SEALING RING 0002032088 ACTUATOR 5800110558 SEAL CARRIER 5110200412 THRUST BEARING 5110250376 WASHER 0199977747 RADIAL-LIP SHFT SEAL 5842032780 GASKET 5849935201 PRESSURE SPRING 5849932001 LEAF SPRING 5842040180 GASKET 114C62033/1 SEALING RING 5800110259 SEALING RING 5909970040 SEALING RING 161A15027/1 GASKET 5841420857 SEALING RING 5809970048 SEALING RING 5120252076 WASHER 5610110059 SEALING RING 8699970114 SEALING RING 5800300617 PISTON COMPOSITE 0005360001 LAMP 5840700632/87 HP FUEL LINE 5800162319 SEALING RING 0004905565 BOOT 0010175412 NOZZLE 0000533235 VALVE ROTATOR 5840111810 CYLINDER LINER SIZE 0 0080370018 OIL CONTROL RING 0080375619 RECTANGLR-SECT RING 5840300917 PISTON 5840300020/42 CONNECTING ROD 5800530205 EXHAUST VALVE 5800530101 INLET VALVE 007603033100 SEALING RING 206925008000 HEX NUT 5849970572 SCREW-FITTING UNION 0000981565 GASKET 0000981465 GASKET 5840982719 PUMP TIMING PISTON 5840980257 2/2-WAY SOLENOID VALVE 5849931601 PRESSURE SPRING 5840900054 VALVE HOUSING 0029971248 RUBBER RING 161M37002/1 RUBBER SLEEVE 135M37018/1 RUBBER SLEEVE 5840900595 2/2-WAY SOLENOID VALVE 5809900819 STRESS BOLT 135A45008/2 SLEEVE
PART NUMBER 5110850060
TURBO MODEL ZR210 / 007
DESCRIPTION PISTON RING
DIMENSIONS Ø 40,05 X 2 X 1,425
UNIT WEIGHT 0.002 KG
HS CODE 84099900
NATO-VERS.-NR. 2815123349464
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 956/1163 TURBOCHARGER 5110850060 PISTON RING

MTU 5110850060 Technical Engineering Exploded View

MTU 956/1163 TURBOCHARGER 5110850060 PISTON RING

C/N Description Part-Number Qty
05 BEARING HOUSING 5120801601 001
10 HOUSING COVER 5120820602 001
15 DOWEL PIN 000007006103 002
20 BEARING 5120251210 001
25 HEAT SHIELD 5120810803 001
30 HEAT SHIELD 5120820226 001
35 WASHER 5120252076 001
40 O-RING 700429050003 001
45 SNAP RING 000472045000 002
50 WASHER 5120250252 002
55 BEARING BUSHING X00027817 002
60 TURBINE WHEEL 5120802521 001
65 WASHER X00010430 001
70 WASHER X00025178 001
75 THRUST BEARING 5120200112 001
80 O-RING 700429006001 001
82 LABEL MTU ABGASTURBOLADER ID 39 700425000049 001
83 PIN GROOVED 001476003017 002
85 COMPRESSOR HOUSING 5120200101 001
95 VALVE 5110200278 002
100 RING SNAP 000472020000 002
105 RING CARRIER X57810100001 001
115 PISTON RING 5120850560 001
120 PISTON RING 5110850060 002
125 WASHER 8700780076 008
131 HEX SCREW 200933012007 008
135 O-RING 700429142000 001
140 COMPRESSOR WHEEL 5120250901 001
145 GROOVED RING 5120250142 001
150 HEX NUT 5110250072 001
155 INTAKE HOUSING 5120210102 001
165 TAB WASHER 700292010500 008
170 BOLT HEX 000933010194 008
175 TURBINE HOUSING 5120800030 001
185 TAB WASHER 5129940030 006
190 HEX NUT 5119900051 012

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
