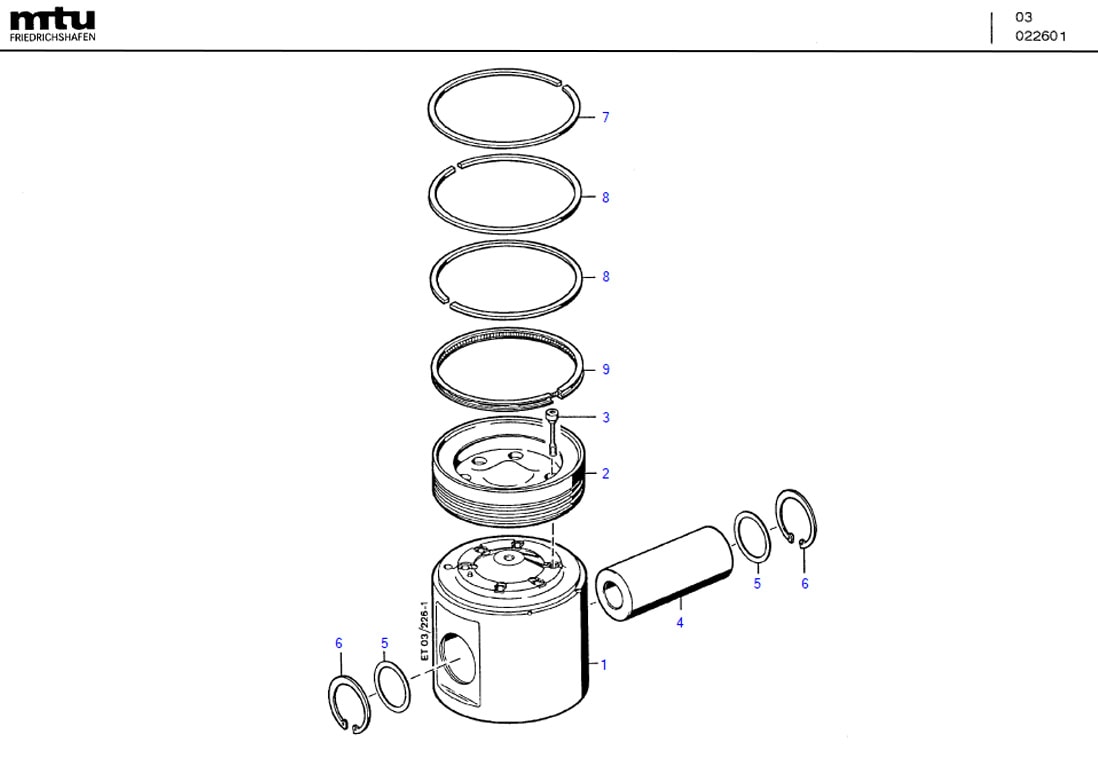

MTU 5840300917 Technical Engineering Exploded View

MTU 5840300917 Technical Engineering Exploded View

MTU 5840300917 Technical Engineering Exploded View

C/N Description Part-Number Qty

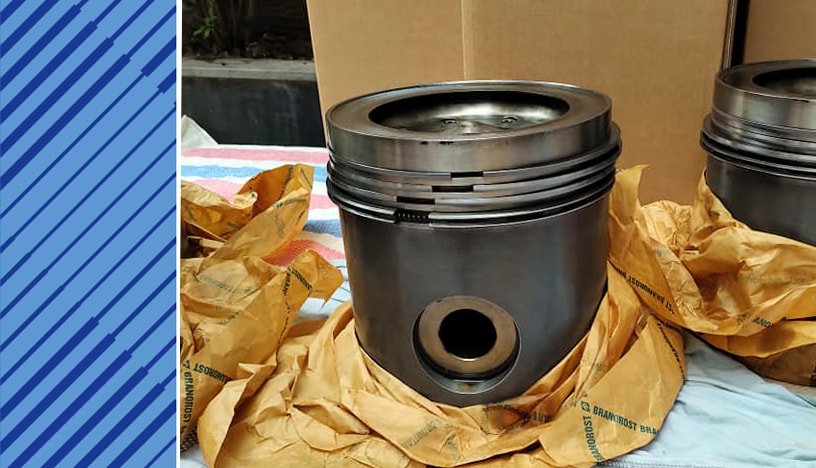

000 PISTON 5840300917 000
01 PISTON SKIRT 5840300615 001
02 PISTON CROWN 5840371225 001
03 SCREW 5809902319 006
04 PISTON PIN 5840370120 001
05 BACKUP WASHER 5840370076 002
06 SNAP RING 000472095000 002
07 RECTANGLR-SECT RING 0080375519 001
08 RECTANGLR-SECT RING 0080375619 002
09 OIL CONTROL RING 0080370018 001

5840300917 SUPERSEDED PART AND EFFECTIVE DATE

5840300917 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5840300917 5840300717 N/A
02 5840300917 5840300917 1999/01/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
