| PART NUMBER | 5802040806 |
| ENGINE TYPE | MTU 956/1163 ENGINE |

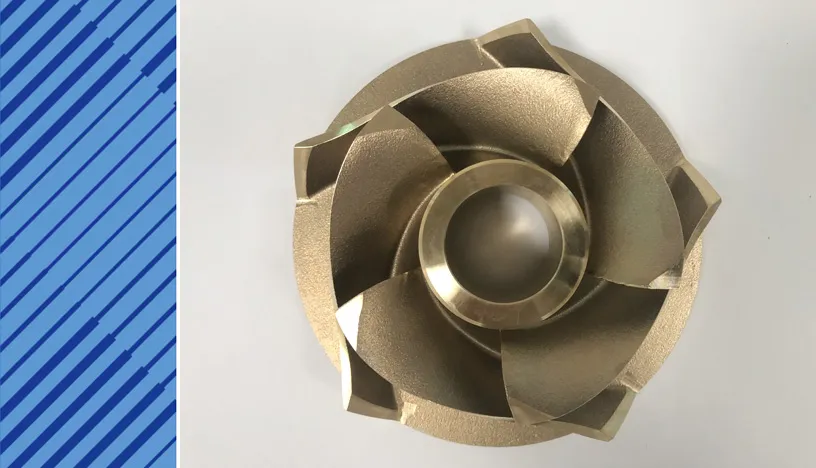

| DESCRIPTION | IMPELLER |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 2.377 KG |
| HS CODE | 84139100 |
| NATO-VERS.-NR. | 2930123479029 |
| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 10 | GEAR NO. 11 | X58720700011 | 001 |
| 20 | GRUB SCREW | 5769970119 | 001 |
| 25 | COOLANT PUMP SHAFT | X58720700002 | 001 |
| 30 | ANGL CONT BALL BRG | 0019813727 | 001 |
| 35 | CYL. ROLLER BEARING | 205412223002 | 001 |
| 40 | SPACER RING | 5842040151 | 001 |
| 45 | NUT | 5849900851 | 001 |
| 50 | BEARING HOUSING | 5842040219 | 001 |
| 55 | SEAL CARRIER | 5842040257 | 001 |
| 60 | RADIAL-LIP SHFT SEAL | 0199977747 | 001 |
| 65 | O-RING | 700429100000 | 001 |
| 70 | O-RING | 700429178000 | 001 |
| 75 | IMPELLER | 5802040806 | 001 |
| 80 | ROTARY SEAL | 0002041116 | 001 |
| 90 | NUT | 5802040072 | 001 |
| 95 | O-RING | 700429045000 | 001 |
| 105 | HEX SCREW | 000933010093 | 006 |
| 110 | WASHER SPRING B10 | 000137010202 | 006 |
| 115 | SPIRAL HOUSING | 5802040801 | 001 |
| 125 | HEX SCREW | 000933012050 | 004 |
| 130 | WASHER SPRING B12 | 000137012202 | 004 |
| 135 | NUT HEX | 000934012008 | 004 |
| 140 | RETAINER | 5802040290 | 001 |
| 145 | HEX SCREW | 000931012156 | 004 |
| 150 | WASHER SPRING B12 | 000137012202 | 004 |
| 160 | PLUG | 000910016002 | 001 |
| 165 | COPPER SEALING RING | 007603016105 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5802040806 | 5802040506 | N/A |
| 02 | 5802040806 | 5802040806 | 1997/05/01 |
| Make | Power KW | Speed rpm | Bore/Stroke mm |
|---|---|---|---|
| 12V 956 TB82 | 2300 | 1455 | 230/230 |
| 16V 956 TB82 | 3360 | 1500 | 230/230 |
| 20V 956 TB82 | 4200 | 1500 | 230/230 |
| 12V 956 TB92 | 2940 | 1500 | 230/230 |
| 16V 956 TB92 | 3920 | 1500 | 230/230 |
| 20V 956 TB92 | 4900 | 1500 | 230/230 |
| 12V 956 TB33 | 3750 | 1500 | 230/230 |
| 16V 956 TB33 | 5000 | 1500 | 230/230 |
| 20V 956 TB33 | 6250 | 1500 | 230/230 |
| 20V 956 TB34 | 6300 | 1500 | 230/230 |
