| PART NUMBER | 5205304131 |
| ENGINE TYPE | MTU 1163 ENGINE |
| DESCRIPTION | TRAVEL SENSOR |
| DIMENSIONS | FA-26/B |
| UNIT WEIGHT | 1.400 KG |
| HS CODE | 90329000 |
| NATO-VERS.-NR. | 5945123604708 |

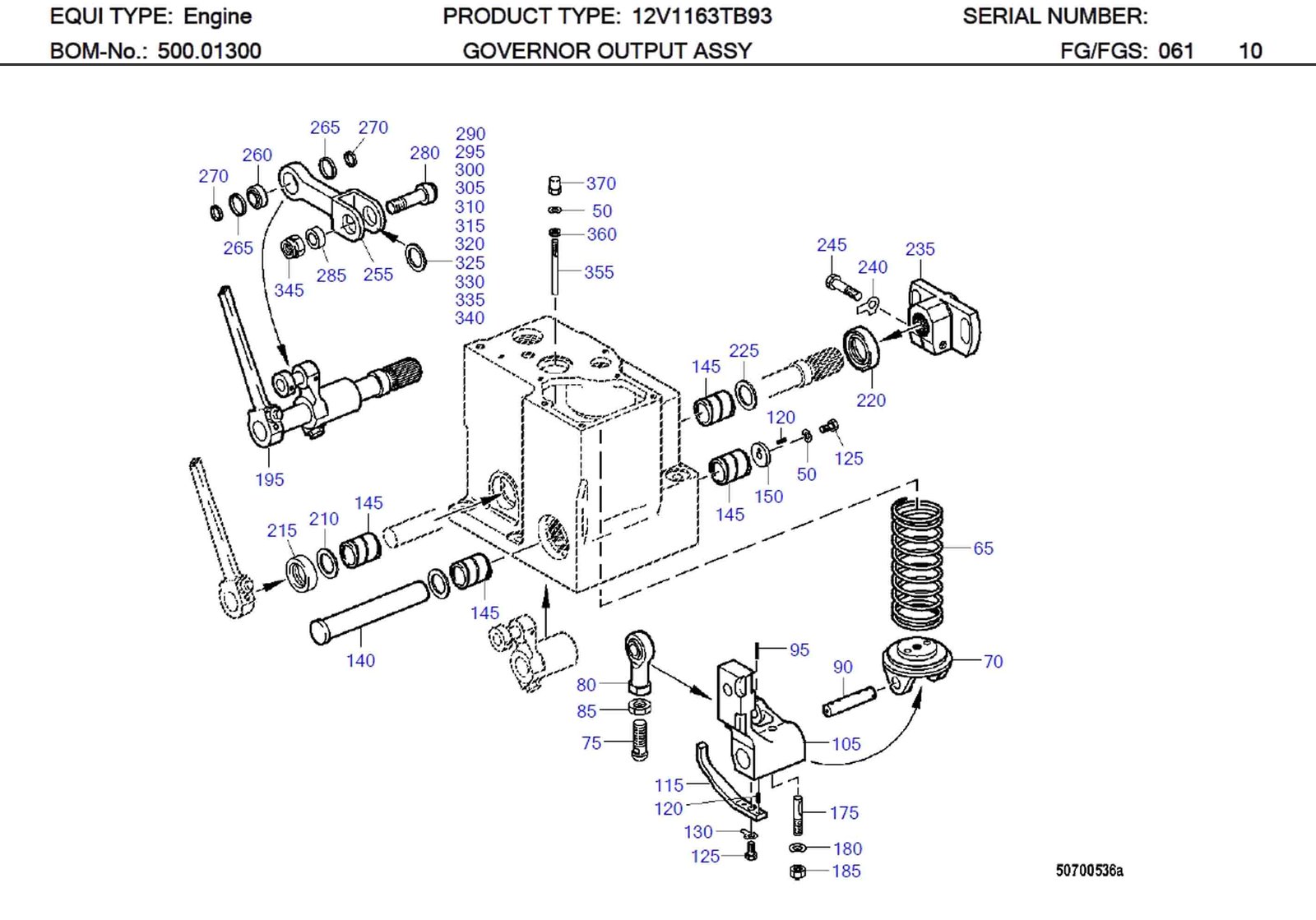

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 25 | HOUSING | 5080603414 | 001 |
| 35 | SUPPORT | 5030630040 | 001 |
| 40 | SCALE | 5080630366 | 001 |
| 45 | SPRING PIN | 001481005016 | 002 |
| 50 | WASHER SPRING B6 | 000137006205 | 002 |
| 55 | BOLT HEX | 000933006088 | 002 |
| 65 | SPRING | 718H06024/1 | 001 |
| 70 | SPRING RETAINER | 5030630018 | 001 |
| 75 | TAPPET | 5030630031 | 001 |
| 80 | SWIVEL HEAD | 0009964340 | 001 |
| 85 | HEX NUT | 000439012200 | 001 |
| 90 | PIN | 5030630974 | 001 |
| 95 | SPRING PIN | 001481003013 | 001 |
| 105 | LEVER | 5080630412 | 001 |
| 115 | LEVER | 5080630312 | 001 |
| 120 | SPRING PIN | 001481003000 | 002 |
| 125 | BOLT HEX A3C | 304017006058 | 001 |
| 130 | TAB WASHER | 700292006400 | 001 |
| 140 | SHAFT | 5030630110 | 001 |
| 145 | BUSHING | 5080612350 | 002 |
| 150 | WASHER | 5030630059 | 001 |
| 175 | LOCATING PIN | 5030630274 | 001 |
| 180 | WASHER SPRING B8 | 000137008203 | 001 |
| 185 | NUT HEX | 000934008008 | 001 |
| 195 | SHAFT | 5080600306 | 001 |
| 210 | FRICTION WASHER | 5080630062 | 001 |
| 215 | SHAFT SEAL | 700217020005 | 001 |
| 220 | OIL SEAL | 700217025002 | 001 |
| 225 | FRICTION WASHER | 5080630162 | 002 |
| 235 | HUB | 5030630024 | 001 |
| 240 | WASHER TAB LOCKING 8.4 ST52-3 03 | 700292008400 | 001 |
| 245 | HEX SCREW | 000931008049 | 001 |
| 255 | ROD | 5030630229 | 001 |
| 260 | ARTICULATED BEARING | 0009962645 | 001 |
| 265 | RING | 5030630151 | 002 |
| 270 | RING | 5030630251 | 002 |
| 280 | PIN | 5080630074 | 001 |
| 285 | BUSHING | 5030630750 | 001 |
| 290 | ADJUSTING WASHER | 000988020001 | 001 |
| 295 | ADJUSTING WASHER | 000988020002 | 001 |
| 300 | ADJUSTING WASHER | 000988020003 | 001 |
| 305 | ADJUSTING WASHER | 000988020004 | 001 |
| 310 | ADJUSTING WASHER | 000988020005 | 001 |
| 315 | ADJUSTING WASHER | 000988020006 | 001 |
| 320 | ADJUSTING WASHER | 000988020007 | 001 |
| 325 | ADJUSTING WASHER | 000988020008 | 001 |
| 330 | ADJUSTING WASHER | 000988020009 | 001 |
| 335 | ADJUSTING WASHER | 000988020010 | 001 |
| 340 | ADJUSTING WASHER | 000988020000 | 001 |
| 345 | NUT | 999900012001 | 001 |
| 355 | TAPPET | 5080630131 | 001 |
| 360 | HEX NUT | 000439006200 | 001 |
| 370 | CAP NUT | 5089900053 | 001 |
| 380 | SEALING RING | 007603032101 | 002 |
| 385 | PLUG | 115A08018/1 | 002 |
| 395 | SNAP RING | 007993020100 | 001 |
| 400 | O-RING | 700429016001 | 001 |
| 405 | PIPE | 5080630235 | 001 |
| 415 | GASKET | 5030630580 | 001 |
| 420 | PIN SPRING | 001481005017 | 002 |
| 430 | BOLT HEX A3C | 304017008083 | 002 |
| 435 | BOLT HEX | 000931008207 | 003 |
| 445 | EYE BOLT | 000580008001 | 001 |
| 455 | GASKET | 5080630280 | 001 |
| 460 | COVER | 5080630003 | 001 |
| 470 | WASHER | 007349008002 | 001 |
| 480 | COPPER SEALING RING | 007603022102 | 002 |
| 485 | PLUG | 000908022001 | 002 |
| 490 | COPPER SEALING RING | 007603012111 | 001 |
| 495 | THREAD PLUG | 000908012003 | 001 |

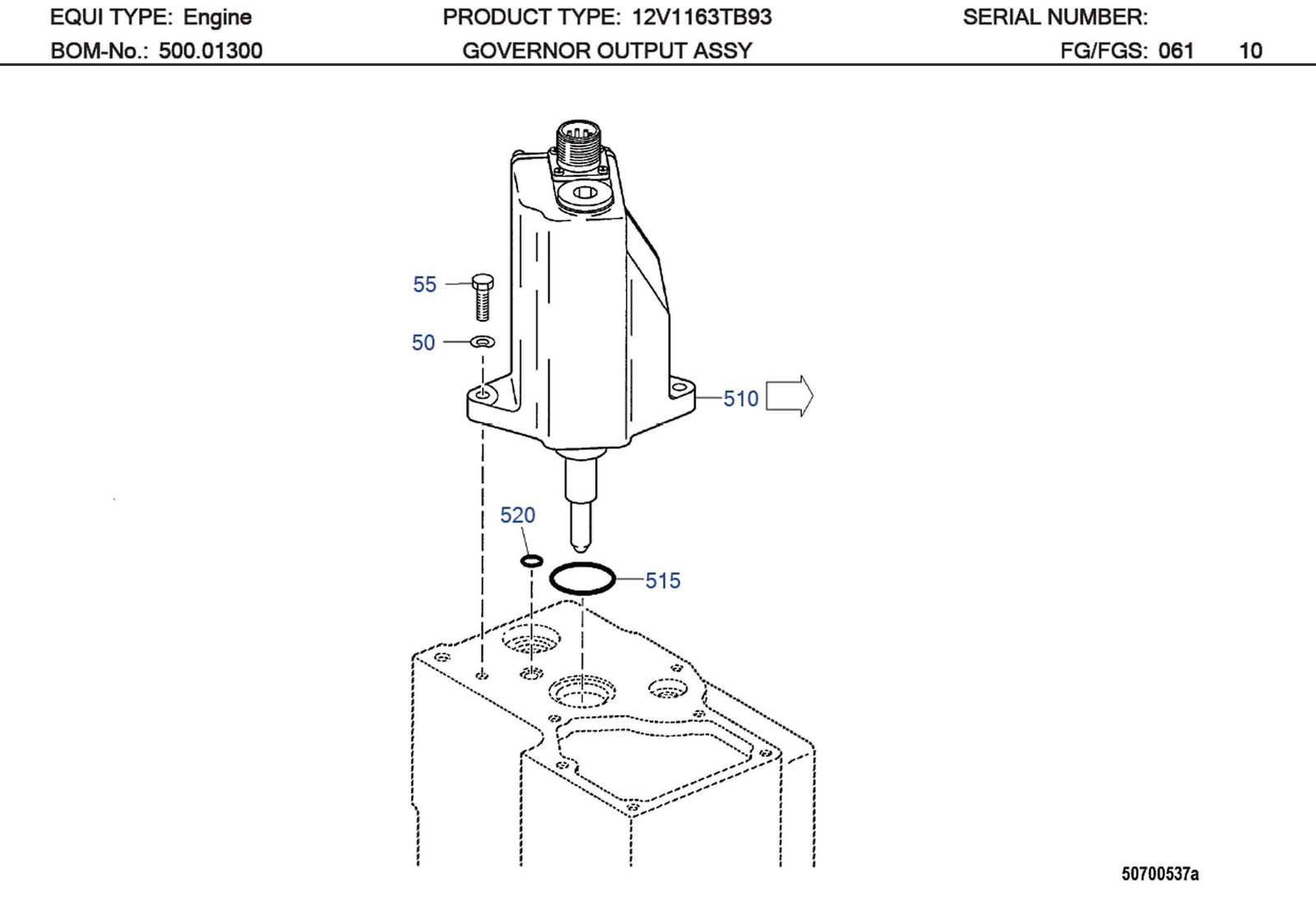

| 510 | TRAVEL SENSOR | 5205304131 | 001 |
| 515 | O-RING | 700429030004 | 001 |
| 520 | O-RING | 700429008001 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5205304131 | 5205304131/71 | N/A |
| 02 | 5205304131 | 5205304031 | 2005/12/01 |
| 03 | 5205304131 | 5205303731 | 2006/01/01 |
| 04 | 5205304131 | 5205304131 | 2006/02/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 16V 1163 TB73L | N/A | 5200 | 1230 |
| 20V 1163 TB73 | N/A | 6000 | 1200 |
| 20V 1163 TB73L | N/A | 6500 | 1230 |
| 12V 1163 TB93 | N/A | 4440 | 1900 |
| 16V 1163 TB93 | N/A | 5920 | 1900 |
| 20V 1163 TB93 | N/A | 7400 | 1900 |
| 16V 1163 TB76 | N/A | 4320 | 1200 |
| 16V 1163 TB76L | N/A | 4800 | 1200 |
| 16V 1163 TB82 | N/A | 3580 | 1200 |
| 20V 1163 TB82 | N/A | 4480 | 1200 |
