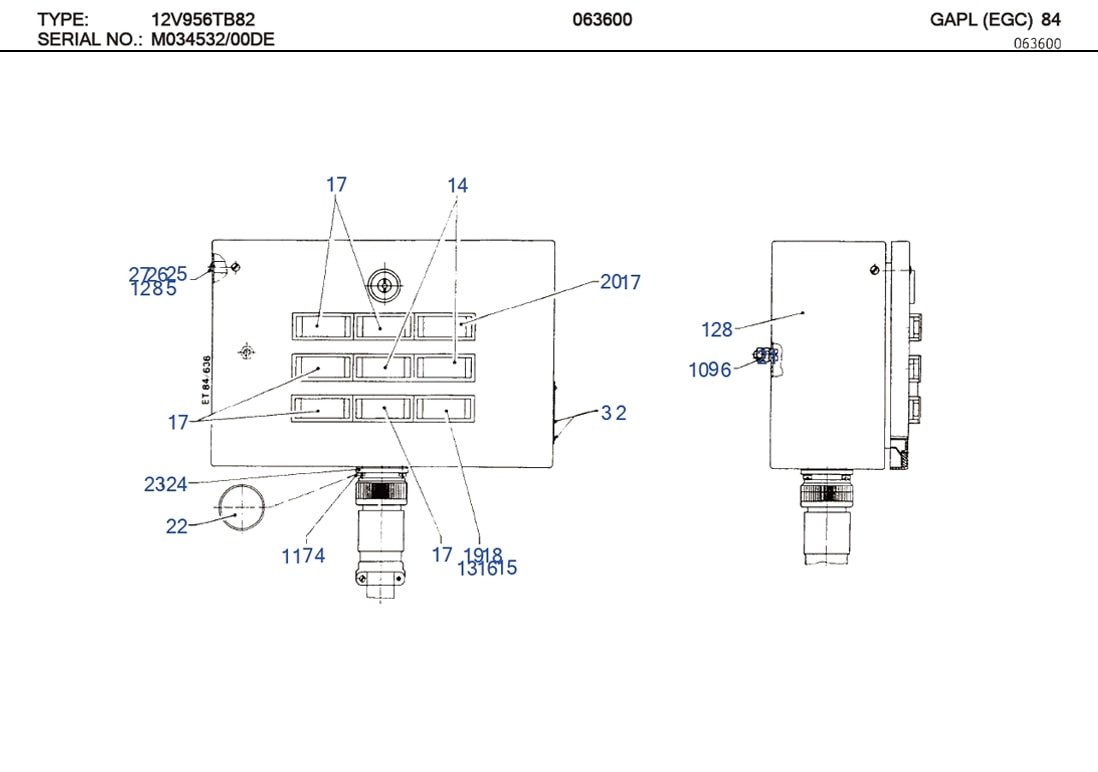

MTU 0005360001 Technical Engineering Exploded View

MTU 0005360001 Technical Engineering Exploded View

MTU 0005360001 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 EXHAUST HOUSING 5115305462 001
01 SWITCHGEAR CABINET 5115330201 001
02 BLIND RIVET 910001003100 002
03 INSTRUCTION PLATE 700425000032 001
04 TOOTHED WASHER 006797003222 004
05 TOOTHED WASHER 006797004232 001
06 TOOTHED WASHER 006797006243 002
07 HEX NUT 000934003002 004
08 HEX NUT 000934004004 001
09 HEX NUT 000934006006 002
10 SCREW 000084006401 001
11 SCREW 000084003159 004
12 COUNTERSUNK-HEAD SCREW 000964004010 003
13 INDICATOR LAMP 0005360001 001
14 ALARM SWITCH 0005360201 002
15 BUTTON CAP 0015361102 009
16 BUTTON CAP 0015361502 009
17 ILLUMINATED PUSHBUTTON 0005360101 006
18 INCANDESCENT LAMP 0005318988 018
19 PLUG-IN CIRCUIT BOARD 5005303512 009
20 PROTECTIVE CAP 0005330431 001
21 SPLASH WATER GUARD 0005592503 008
22 DUST CAP 0005333031 001
23 GASKET 0015310283 001
24 BAYONET COUPLING 0015312283 001
25 SPACER 5005332641 001
26 RING TERMINAL 43372 002
27 WIRE ROPE 0009881975 000
28 WIRING HARNESS 5115302820 001

0005360001 SUPERSEDED PART AND EFFECTIVE DATE

0005360001 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0005360001 0005362301 N/A
02 0005360001 0005390001 1997/12/01
03 0005360001 0005360001 1998/01/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
