| PART NUMBER | 5840111810 |
| ENGINE TYPE | MTU 1163 ENGINE |

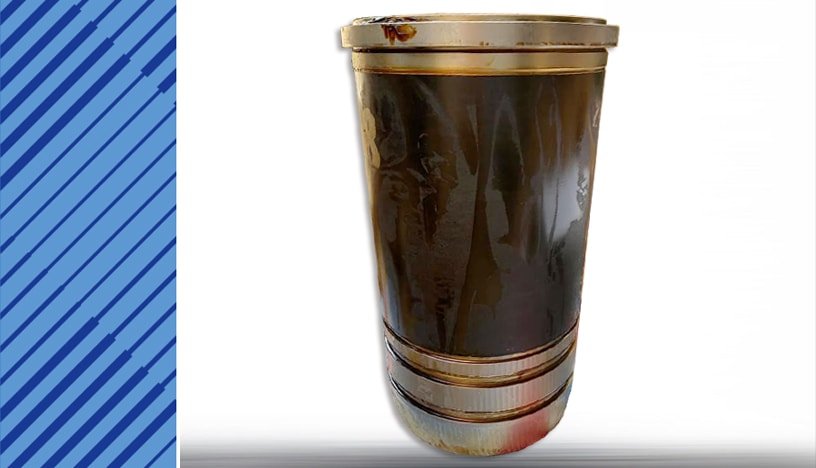

| DESCRIPTION | CYLINDER LINER SIZE 0 |
| DIMENSIONS | N/A |
| UNIT WEIGHT | 49.00 KG |
| HS CODE | 84099900 |
| NATO-VERS.-NR. | N/A |

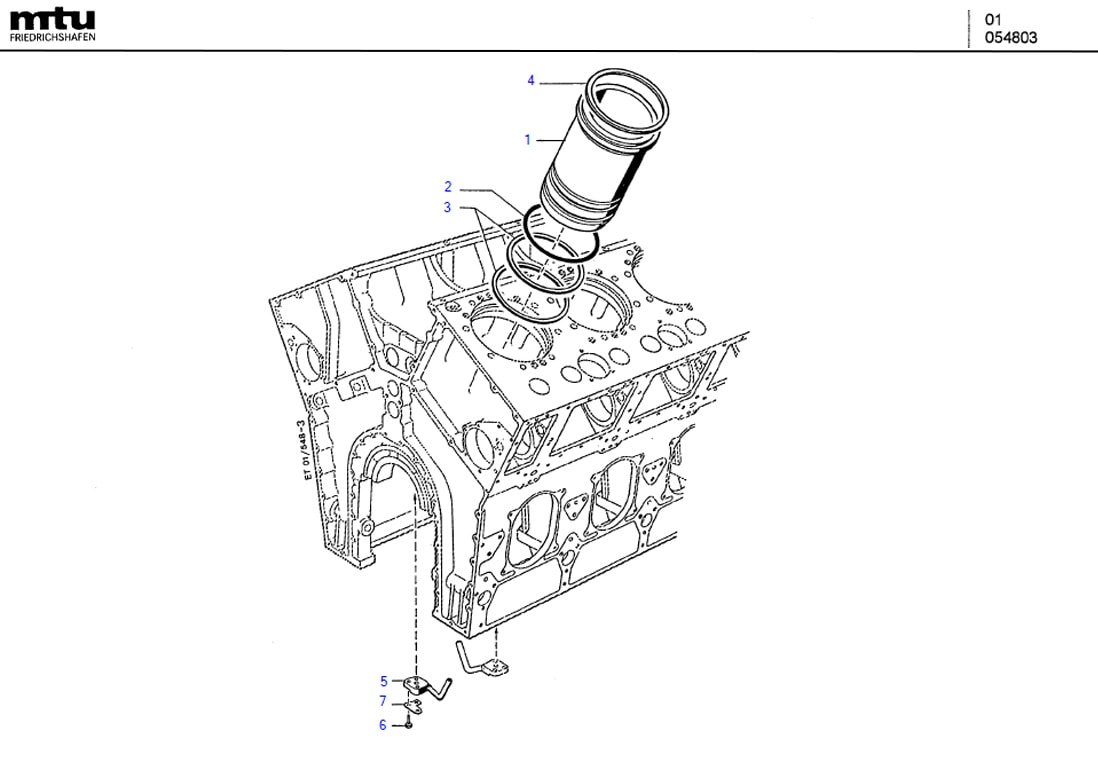

| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 01 | CYLINDER LINER SIZE 0 | 5840111810 | 020 |
| 01A | CYLINDER LINER SIZE 1 | 5840111110 | 000 |
| 01A | CYLINDER LINER SIZE 1 | 5840111910 | 000 |
| 01B | CYLINDER LINER SIZE 2 | 5840111210 | 000 |
| 01B | CYLINDER LINER SIZE 2 | 5840112010 | 000 |
| 02 | SEALING RING | 5909970040 | 020 |
| 03 | GASKET | 161A15027/1 | 040 |
| 04 | SEALING RING REPAIR SIZE 0 | 5800161919 | 020 |
| 04A | SEALING RING SIZE 1 | 5800162019 | 000 |
| 04B | SEALING RING REPAIR SIZE 2 | 5800162119 | 000 |
| 05 | SPRAY NOZZLE | 5841800043 | 020 |
| 06 | HEX SCREW | 000933008114 | 060 |
| 07 | TAB WASHER | 5800180273 | 020 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 5840111810 | 5840110110 | N/A |
| 02 | 5840111810 | 5840110410 | 1999/09/01 |
| 03 | 5840111810 | 5840110810 | 1999/10/01 |
| 04 | 5840111810 | 5840111810 | 1999/11/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 16V 1163 TB73L | N/A | 5200 | 1230 |
| 20V 1163 TB73 | N/A | 6000 | 1200 |
| 20V 1163 TB73L | N/A | 6500 | 1230 |
| 12V 1163 TB93 | N/A | 4440 | 1900 |
| 16V 1163 TB93 | N/A | 5920 | 1900 |
| 20V 1163 TB93 | N/A | 7400 | 1900 |
| 16V 1163 TB76 | N/A | 4320 | 1200 |
| 16V 1163 TB76L | N/A | 4800 | 1200 |
| 16V 1163 TB82 | N/A | 3580 | 1200 |
| 20V 1163 TB82 | N/A | 4480 | 1200 |
