MTU 5110250376 EXHAUST TURBOCHARGER WASHER

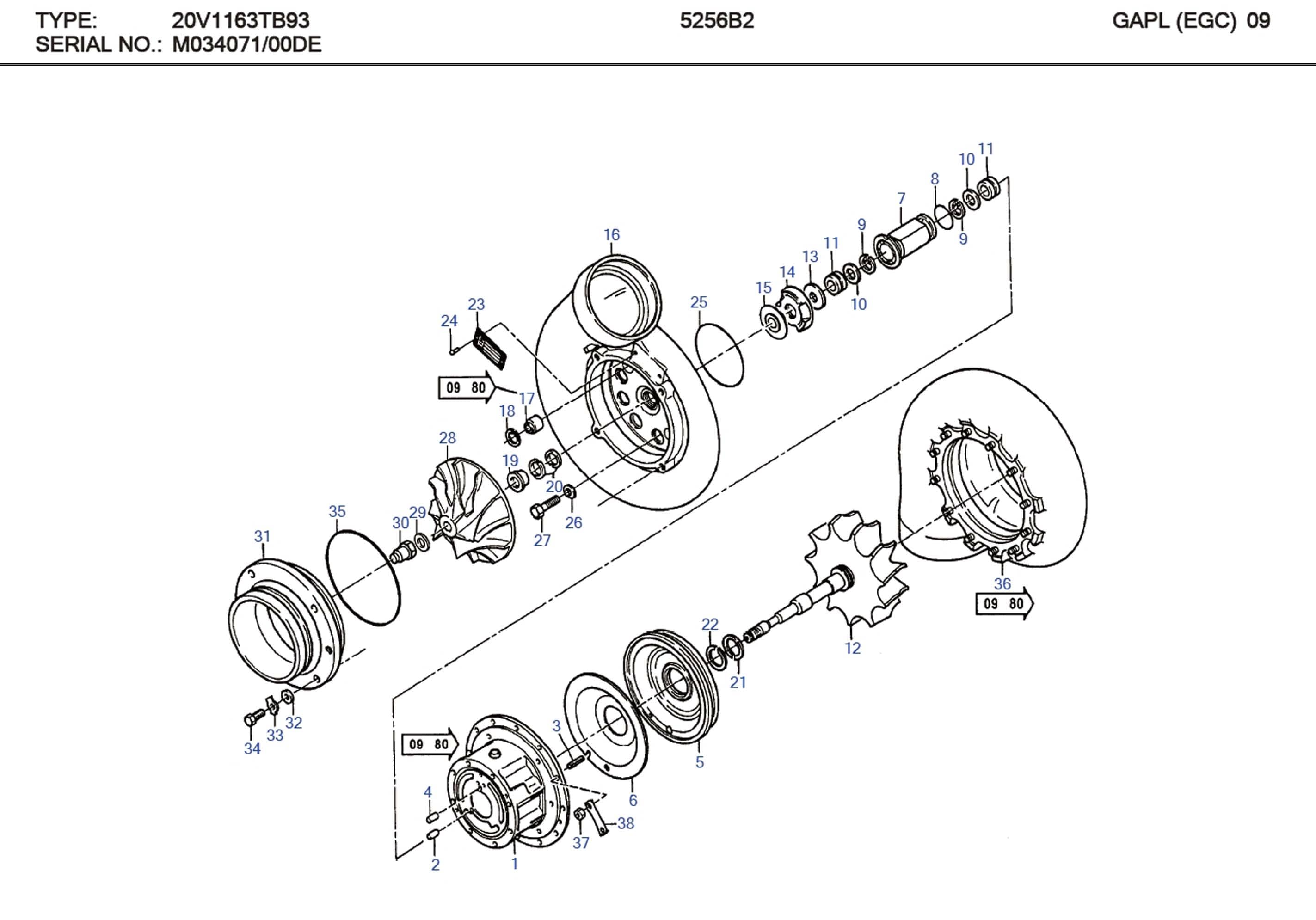

MTU 5110250376 Technical Engineering Exploded View

MTU 5110250376 EXHAUST TURBOCHARGER WASHER

C/N Description Part-Number Qty
000 EXHAUST TURBOCHARGER 5110205307 001
01 BEARING HOUSING 5110803201 001
02 DOWEL PIN 000007005115 001
03 SPRING PIN 001481004000 001
04 DOWEL PIN 5119910060 001
05 HEAT SHIELD 5110811903 001
06 HEAT SHIELD 5110820326 001
07 DRIVE-END BEARING 5110252210 001
08 O-RING 700429042001 001
09 SNAP RING 000472034000 002
10 COVER DISC 5110250052 002
11 BEARING BUSHING 5110250050 002
12 TURBINE WHEEL 5110800020 002
13 COVER DISC 5110250276 001
14 THRUST BEARING 5110200412 001
15 COVER DISC 5110251476 001
16 COMPRESSOR HOUSING 5110206701 001
17 2/2-WAY SOLENOID VALVE 5110200278 002
18 SNAP RING 000472020000 002
19 SEAL CARRIER 5110252110 001
20 PISTON RING 5100850060 002
21 PISTON RING 5110850560 001
22 PISTON RING 5110850460 001
23 INSTRUCTION PLATE 700425000049 001
24 GROOVED PIN 001476003017 002
25 O-RING 700429105001 001
26 COVER DISC 5509901540 008
27 SCREW 000931010105 008
28 COMPRESSOR WHEEL 5110255401 001
29 COVER DISC 5110250376 001
30 MAGNETIC NUT 5205300171 001
31 INTAKE HOUSING 5110216002 001
32 COVER DISC 000125008427 004
33 TAB WASHER 700292008400 004
34 SCREW 304017008083 004
35 O-RING 700429166000 001
36 TURBINE HOUSING 5110801330 001
37 HEX NUT 5119900051 012
38 TAB WASHER 5119940330 006

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
