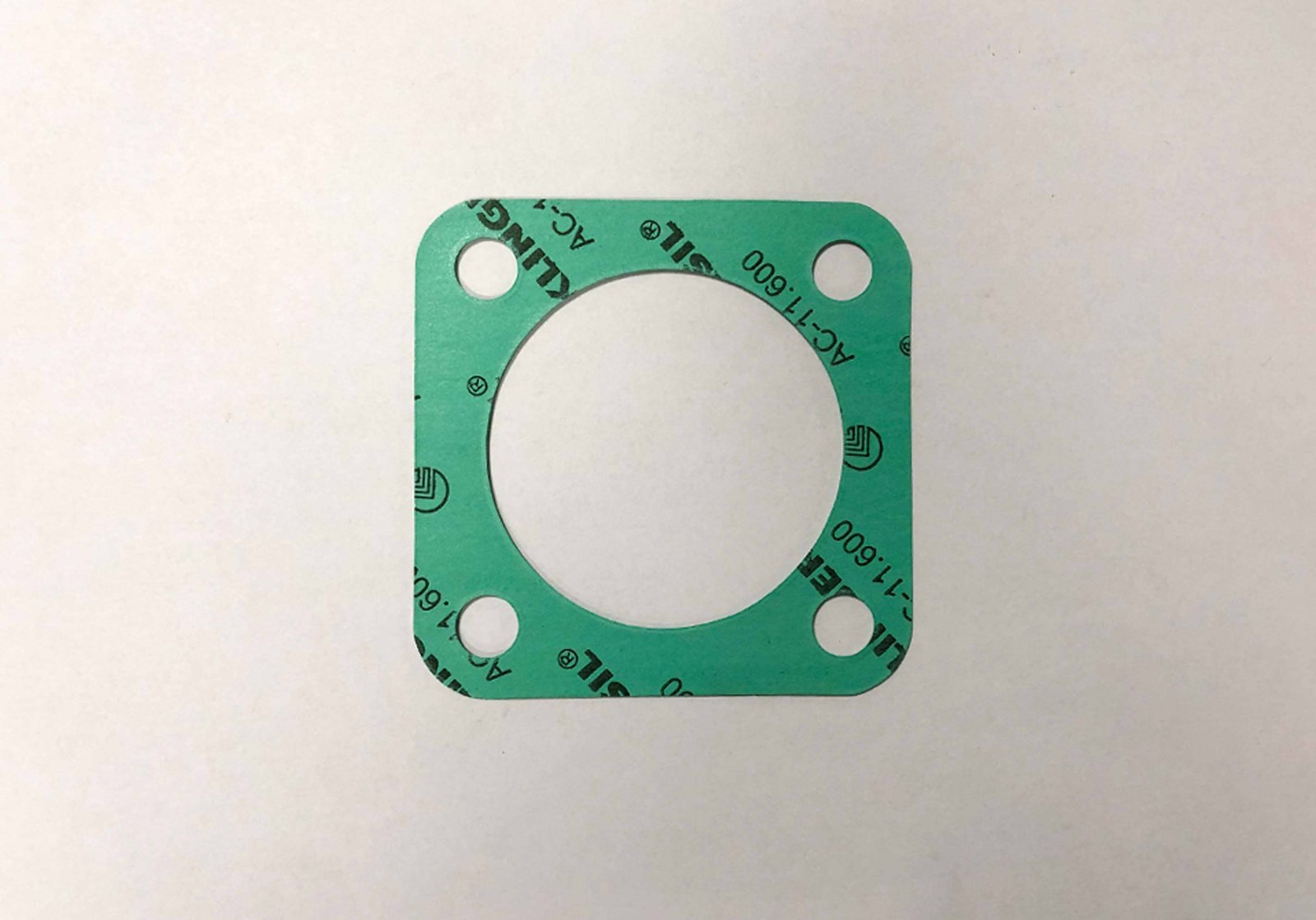

MTU 5842032780 COOLANT SYSTEM GASKET

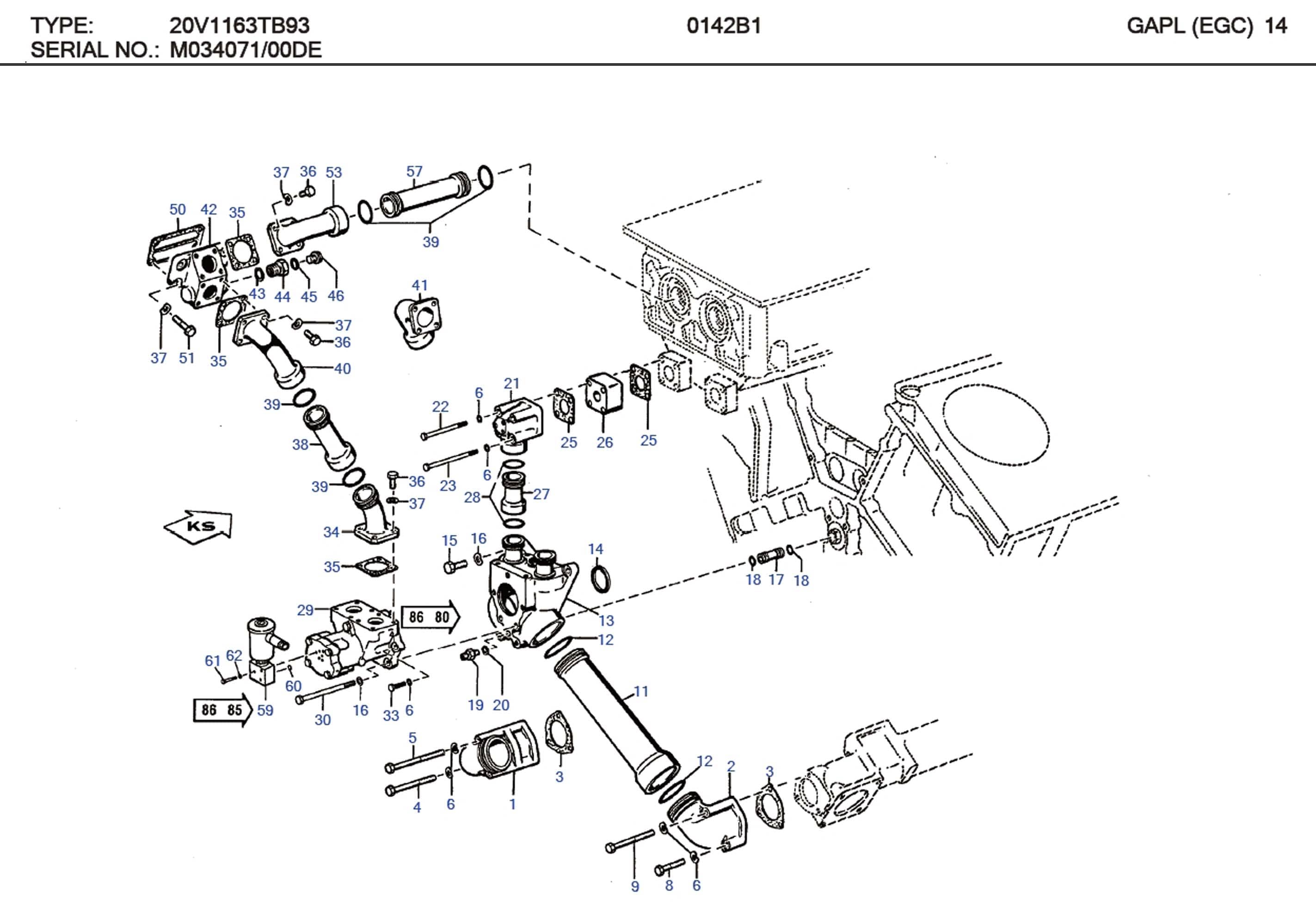

MTU 5842032780 Technical Engineering Exploded View MTU 1163 Parts 5842032780 COOLANT SYSTEM GASKET

MTU 5842032780 COOLANT SYSTEM GASKET

C/N Description Part-Number Qty
01 EXHAUST ELBOW 5842031322 001
02 EXHAUST ELBOW 5842031422 001
03 GASKET 5842032380 002
04 SCREW 000931010345 001
05 SCREW 000931010187 002
06 COVER DISC 000125010524 016
08 SCREW 000931010283 001
09 SCREW 000931010292 002
11 SOCKET PIPE 5842001054 002
12 O-RING 700429083000 004
13 EXHAUST HOUSING 5842002316 001
14 SEALING RING 5800150560 001
15 SCREW 000933012093 002
16 COVER DISC 000125013012 004
17 CONNECTING LINE 5530780002 001
18 O-RING 700429015000 002
19 EXHAUST PIPE NECK 5849971172 002
19Z PLUG 000910016003 001
20 SEALING RING 007603016105 003
21 EXHAUST ELBOW 5842000918 002
22 SCREW 000931010281 006
23 SCREW 000931010332 002
25 GASKET 5800110780 004
26 PRESSURE TEST FLANGE 5841423615 002
27 SOCKET PIPE 5842002254 002
28 O-RING 700429045000 004
29 CUTOFF VALVE 5842001431 001
30 SCREW 000931012213 002
33 SCREW 000933010094 002
34 EXHAUST ELBOW 5842000518 002
35 GASKET 5842032780 006
36 SCREW 000933010092 022
36Z SCREW 000933010093 001
37 SPRING WASHER 000137010202 032
38 SOCKET PIPE 5842002154 002
39 O-RING 700429050002 008
40 EXHAUST ELBOW 5842000618 001
41 EXHAUST ELBOW 5842000718 001
42 EXHAUST HOUSING 5842000216 002
43 SEALING RING 007603027100 002
44 THREADED BUSHING 700354018004 002
45 SEALING RING 007603018101 002
46 PLUG 000910018005 002
50 GASKET 5842032980 002
51 SCREW 000931010230 006
51Z SCREW 304014008029 002
53 EXHAUST ELBOW 5842000418 002
57 SOCKET PIPE 5842001954 002
59 3/2-WAY SOLENOID VALVE 0049973136 001
60 O-RING 700429010000 003
61 SCREW 000931006184 003
62 COVER DISC 000125006431 003

5842032780 SUPERSEDED PART AND EFFECTIVE DATE

5842032780 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5842032780 5842031480 N/A
02 5842032780 5842032780 1990/11/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
