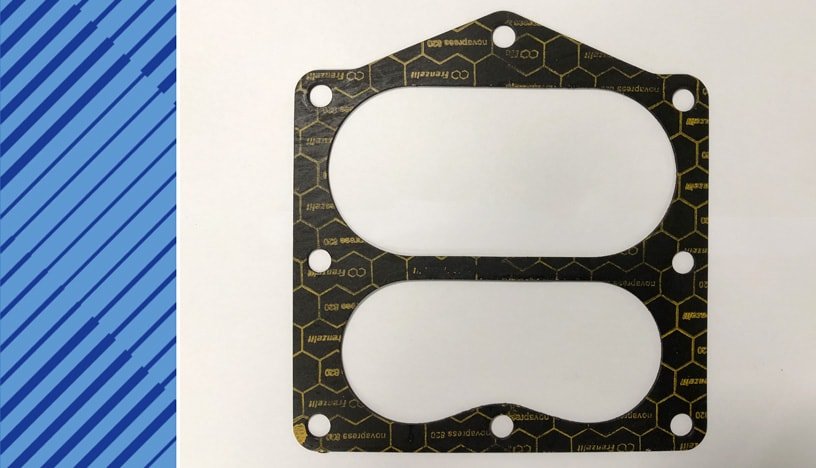

MTU 1163 Parts 5842040180 GASKET

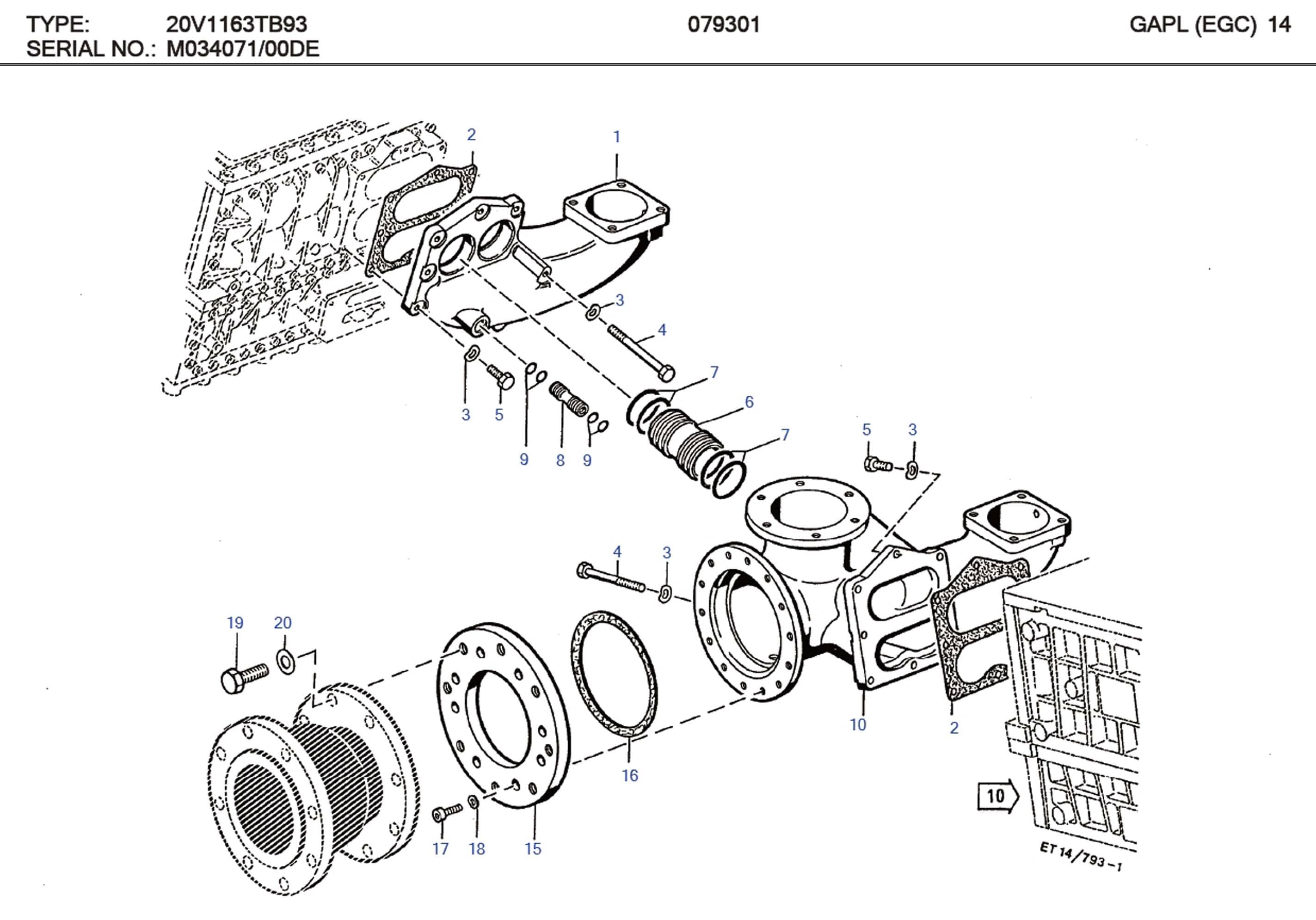

MTU 5842040180 Technical Engineering Exploded View

MTU 1163 Parts 5842040180 GASKET

C/N Description Part-Number Qty
01 DISTRIBUTOR 5842030529 001
02 GASKET 5842040180 002
03 COVER DISC 000125010524 016
04 SCREW 000931010332 006
05 SCREW 000933010093 010
06 SOCKET PIPE 5842031553 002
07 O-RING 700429065001 008
08 SOCKET PIPE 5842031653 001
09 O-RING 700429014002 004
10 DISTRIBUTOR 5842030429 001
15 INTERMEDIATE FLANGE 5842031339 000
16 GASKET 5842032080 001
17 SCREW 000912010038 008
18 SPRING WASHER 000137010202 008
19 SCREW 000933020008 000
20 COVER DISC 000125021009 008

5842040180 SUPERSEDED PART AND EFFECTIVE DATE

5842040180 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 5842040180 5842040080 N/A
02 5842040180 5842040180 1990/11/01

MTU 1163 Diesel Engine Models & Specifications

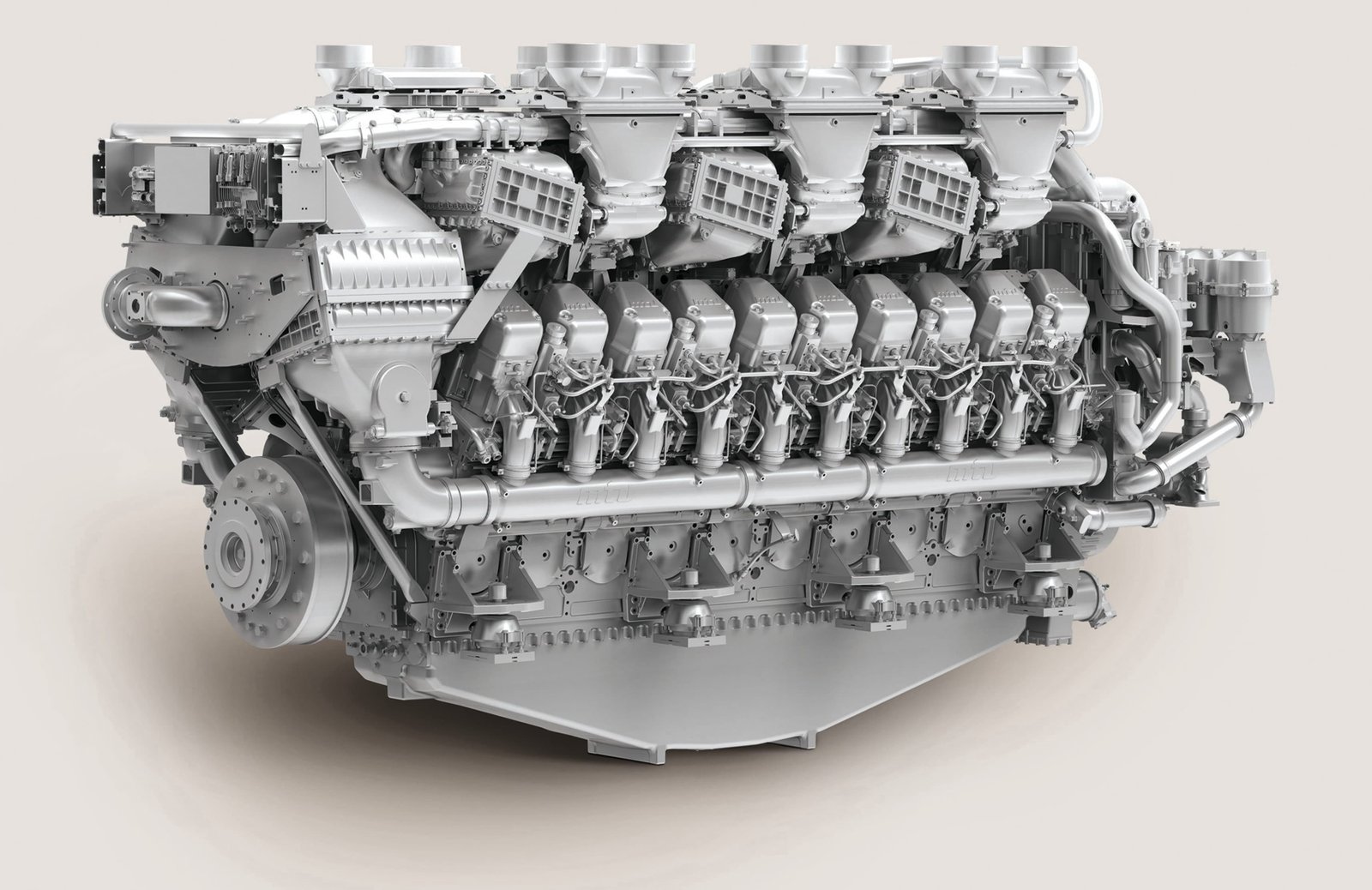

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
