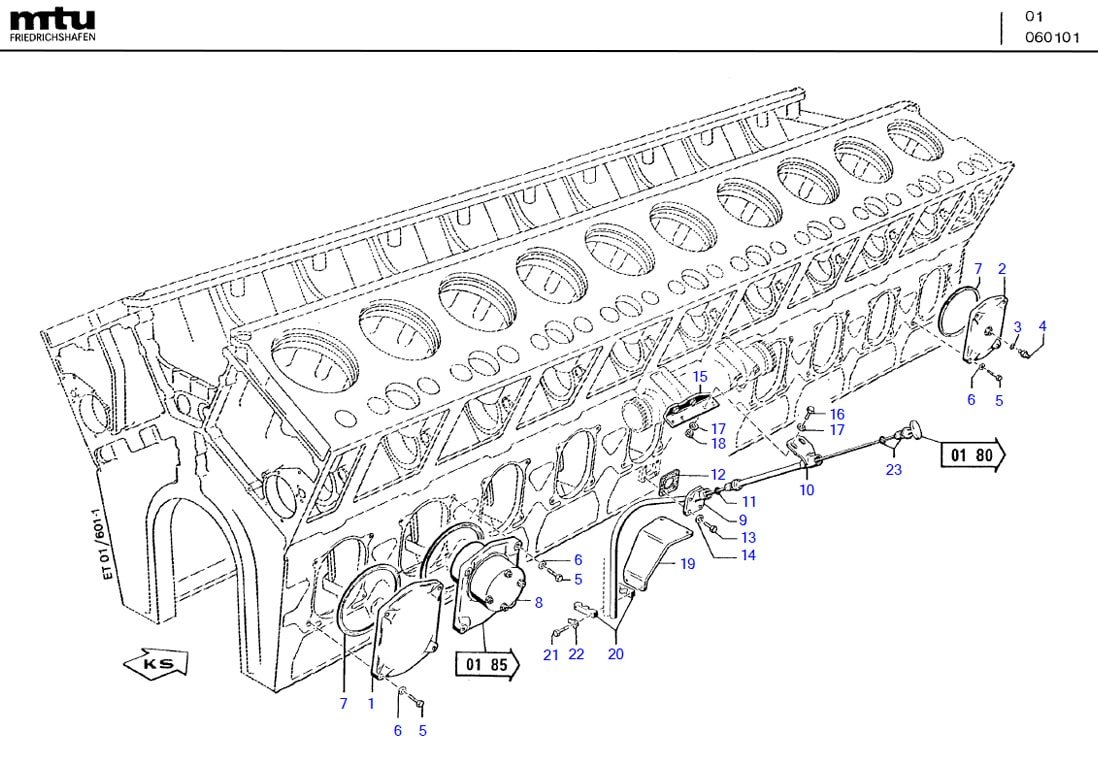

MTU 0029971248 Technical Engineering Exploded View

MTU 0029971248 Technical Engineering Exploded View

MTU 0029971248 Technical Engineering Exploded View

C/N Description Part-Number Qty
01 INSPECTION PORT COVER 5800110432 015
02 INSPECTION PORT COVER 5800100215 001
03 SEALING RING 007603022102 001
04 EXHAUST PIPE NECK 915013016002 001
05 SCREW 000933010093 080
06 COVER DISC 000125010524 080
07 RUBBER RING 0029971248 020
08 SAFETY VALVE 0000180529 004
09 GUIDE TUBE 5800100566 002
10 GUIDE TUBE 5800100366 001
11 O-RING 700429015000 002
12 GASKET 5800180580 002
13 SCREW 000933010035 008
14 SPRING WASHER 000137010202 008
15 ALARM SWITCH 5800181240 002
16 SCREW 000933010035 004
17 COVER DISC 000125010524 008
18 HEX NUT 000934010005 004
19 ALARM SWITCH 5800181440 001
20 PIPE HALF-CLAMP 700325018105 002
21 SCREW 304017008085 002
22 TAB WASHER 700292008400 002
23 OIL DIPSTICK 5810100072 002

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
