MTU 956/1163 Parts | 8490740063 | FLANGE

8490740063 FLANGE

Other
Other 8492500001 COUPLING X58720700002 COOLANT PUMP SHAFT 5841800143 OIL SPRAY NOZZLE XP58799100596 SEAL 0000911128 DIAPHRAGM X59699100286 PRESSURE SPRING X59699100285 PRESSURE SPRING X54514100028 DIAPHRAGM X58712500010 BLEED VALVE 0005342732 VALVE BLOCK ELECTRIC 5840780024 THRUST MEMBER 5840782802 SUPPLY PIPE 007603016105 COPPER SEALING RING 000910016002 PLUG 000931012156 HEX SCREW 5802040290 RETAINER 000934012008 NUT HEX 000137012202 WASHER SPRING B12 5802040801 SPIRAL HOUSING 000137010202 WASHER SPRING B10 000933010093 HEX SCREW 700429045000 O-RING 5802040072 NUT 0002041116 ROTARY SEAL 5802040806 IMPELLER 700429178000 O-RING 700429100000 O-RING 5842040257 SEAL CARRIER 5842040219 BEARING HOUSING 5849900851 NUT 205412223002 CYL. ROLLER BEARING 5769970119 GRUB SCREW X58720700011 GEAR NO. 11 5900530426 VALVE COLLET 5841400344 FLANGE 5841421257 SEALING RING 5840530229 VALVE GUIDE INLET, SIZE 1 5840530129 VALVE GUIDE INLET, SIZE 0 8495340000 SOLENOID VALVE 5840300615 PISTON SKIRT 0020940204 FILTER CARTRIDGE XT5610100140 PISTON RING F/TURBOCHARGER 5841400282/87 BELLOWS WITH TEST CERT. 3.1 5841420154 CABLE CONDUIT 5841420445 CLAMP X00E50214448 ACTUATOR 5840940180 GASKET 0180944502 PREFILTER 5840371625 PISTON CROWN 0019813727 ANGL CONT BALL BRG 8492000005 ROTARY SEAL 5842040714 COOLANT PUMP SHAFT 5205304131 TRAVEL SENSOR 5110850060 PISTON RING 5120850560 PISTON RING F/TURBOCHARGER 5120820226 HEAT SHIELD 5120251210 BEARING 5120200112 THRUST BEARING 5841800175 OIL THERMOSTAT 5849970040 SEALING RING 111D03014/1 SEALING RING 0002032088 ACTUATOR 5800110558 SEAL CARRIER 5110200412 THRUST BEARING 5110250376 WASHER 5849932001 LEAF SPRING 0199977747 RADIAL-LIP SHFT SEAL 5842032780 GASKET 5849935201 PRESSURE SPRING 5842040180 GASKET 114C62033/1 SEALING RING 5841420857 SEALING RING 5800110259 SEALING RING 5909970040 SEALING RING 161A15027/1 GASKET 5809970048 SEALING RING 5120252076 WASHER 5610110059 SEALING RING 8699970114 SEALING RING 5800300617 PISTON COMPOSITE 0005360001 LAMP 5840700632/87 HP FUEL LINE 5800162319 SEALING RING 0004905565 BOOT 0010175412 NOZZLE 0000533235 VALVE ROTATOR 5840111810 CYLINDER LINER SIZE 0 0080370018 OIL CONTROL RING 0080375619 RECTANGLR-SECT RING 5840300917 PISTON 5840300020/42 CONNECTING ROD 5800530205 EXHAUST VALVE 5800530101 INLET VALVE 007603033100 SEALING RING 206925008000 HEX NUT 5849970572 SCREW-FITTING UNION 0000981565 GASKET 0000981465 GASKET 5840982719 PUMP TIMING PISTON 5840980257 2/2-WAY SOLENOID VALVE 5849931601 PRESSURE SPRING 5840900054 VALVE HOUSING 0029971248 RUBBER RING 161M37002/1 RUBBER SLEEVE 135M37018/1 RUBBER SLEEVE 5840900595 2/2-WAY SOLENOID VALVE 5809900819 STRESS BOLT 135A45008/2 SLEEVE
PART NUMBER 8490740063
ENGINE TYPE MTU 956/1163 ENGINE
DESCRIPTION FLANGE
DIMENSIONS N / A
UNIT WEIGHT 3.086 KG
HS CODE 84139100
NATO-VERS.-NR. 2910123890394
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Part details
  • original parts

MTU 956/1163 INJECTION PUMP PARTS 8490740063 FLANGE

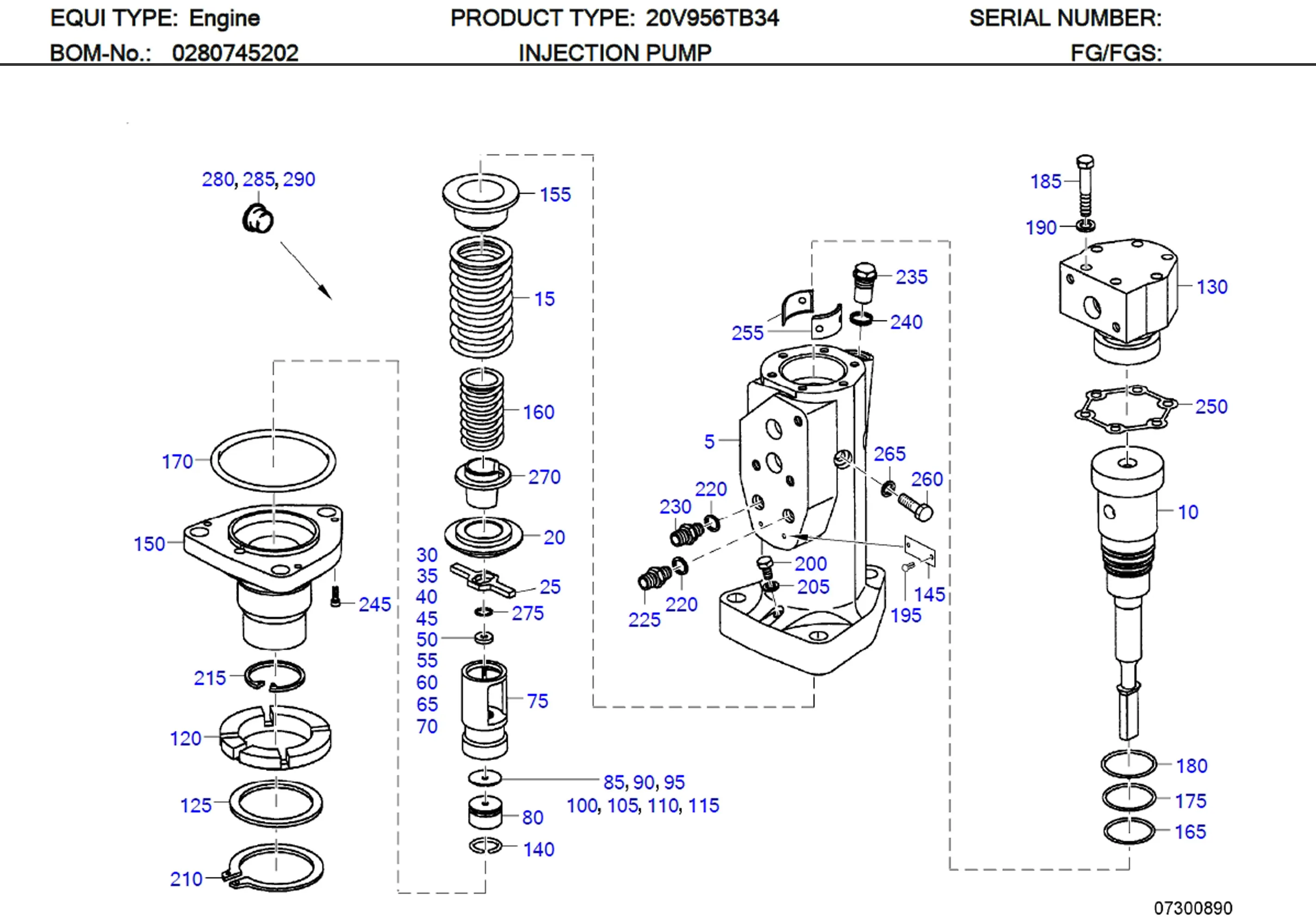

MTU 8490740063 Technical Engineering Exploded View

MTU 956/1163 INJECTION PUMP PARTS 8490740063 FLANGE

C/N Description Part-Number Qty
000 INJECTION PUMP 0280745202 020
05 HOUSING Z=3 415 291 673 001
10 PUMP ELEMENT 8490740053 001
15 PRESSURE SPRING 8490740022 001
20 SPRING RETAINER 8490740610 001
25 CONTROL LUG 8690740106 001
30 PRESSURE PLATE 8490740620 001
35 PLATE 8490740026 001
40 PLATE 8490740027 001
45 PLATE 8490740028 001
50 PLATE 8490740029 001
55 PLATE 8490740031 001
60 PLATE 8490740032 001
65 PLATE 8490740033 001
70 PLATE 8490740034 001
75 TAPPET BODY 8490740630 001
80 BALL SOCKET 3402140101 001
85 COMPENSATING WASHER 8490740500 001
90 COMPENSATING WASHER Z=3 400 100 112 001
95 COMPENSATING WASHER Z=3 400 100 113 001
100 COMPENSATING WASHER Z=3 400 100 114 001
105 COMPENSATING WASHER Z=3 400 100 115 001
110 COMPENSATING WASHER Z=3 400 100 116 001
115 COMPENSATING WASHER Z=3 400 100 117 001
120 SLEEVE 8490740038 001
125 INTERMEDIATE RING 8690741690 001
130 FLANGE 8490740063 001
140 LOCKING RING 009045030000 001
145 NAMEPLATE Z=3 411 100 672 001
150 INTERMEDIATE FLANGE Z=3 405 700 102 001
155 SPRING RETAINER 8490740530 001
160 PRESSURE SPRING 8490740039 001
165 O-RING 8499970940 001
170 O-RING 8499970950 001
175 O-RING 8499970990 001
180 O-RING 8499970960 001
185 HEX SCREW 000931010111 006
190 WASHER 200433010500 006
195 GROOVED PIN 001476002013 002
200 PLUG 000910010002 001
205 WASHER A COP 007603010110 001
210 SNAP RING 000471068000 001
215 RING SNAP 000472047000 001
220 COPPER SEALING RING 007603012111 002
225 UNION 0029973072 001
230 SCREW-FITTING UNION 8490740580 001
235 PLUG 8499970082 001
240 COPPER SEALING RING 007603018101 001
245 BOLT 006912006020 003
250 SEALING RING 8499971000 001
255 PLATE 8490740052 002
260 HEX SCREW Z=3 403 414 100 004
265 WASHER 0000750076 004
270 SPRING RETAINER 8490740640 001
275 SNAP RING 8490740650 001
280 PROTECTIVE CAP Z=1 900 508 015 001
285 PROTECTIVE CAP Z=1 900 508 011 002
290 PROTECTIVE CAP Z=1 900 508 012 002

8490740063 SUPERSEDED PART AND EFFECTIVE DATE

8490740063 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 8490740063 Z=3 413 373 635 N/A
02 8490740063 3413373635 2003/10/01
03 8490740063 8490740063 2003/11/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
