PART NUMBER 0010175412
ENGINE TYPE MTU 1163 ENGINE
DESCRIPTION NOZZLE
DIMENSIONS N/A
UNIT WEIGHT 0.269 KG
HS CODE 84099900
NATO-VERS.-NR. 2910123538271
MTU Friedrichshafen GmbH
MTU Friedrichshafen GmbH
  • Install drawings
  • original parts

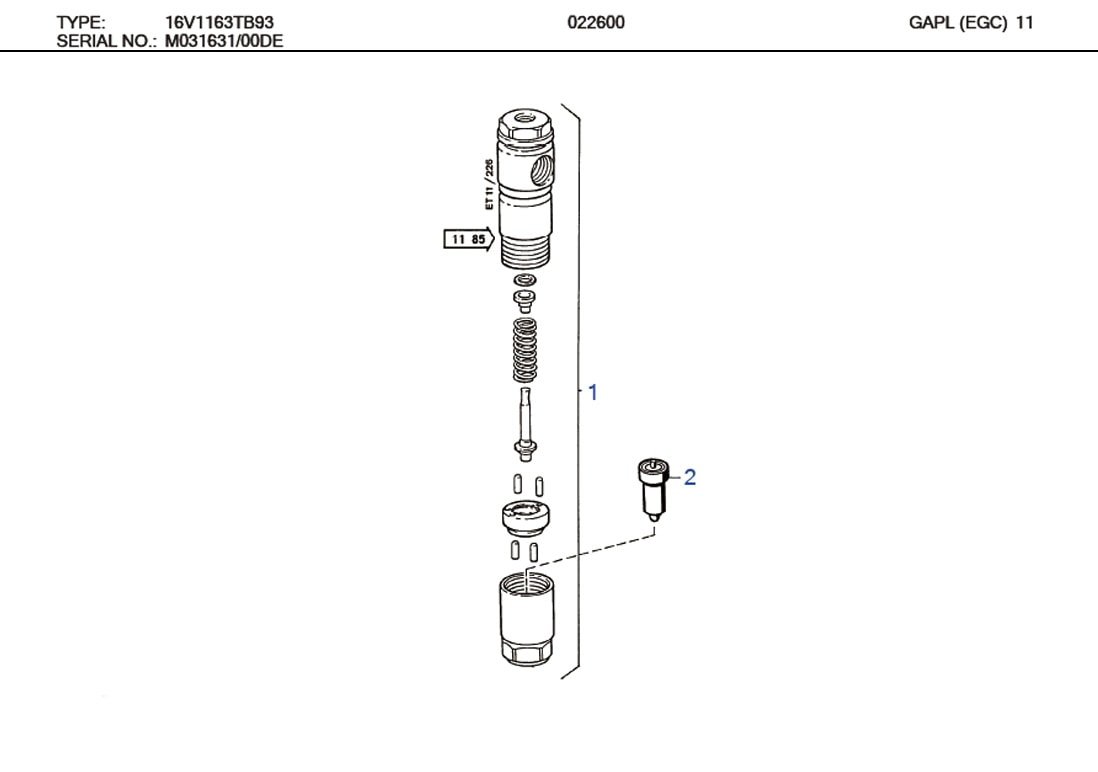

MTU 0010175412 Technical Engineering Exploded View

MTU 0010175412 Technical Engineering Exploded View

MTU 0010175412 Technical Engineering Exploded View

C/N Description Part-Number Qty
000 INJECTOR 5840100451 001
01 NOZZLE HOLDER 5840100151 001
02 NOZZLE 0010175412 001

0010175412 SUPERSEDED PART AND EFFECTIVE DATE

0010175412 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0010175412 433450004 N/A
02 0010175412 0010175412 2009/07/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
