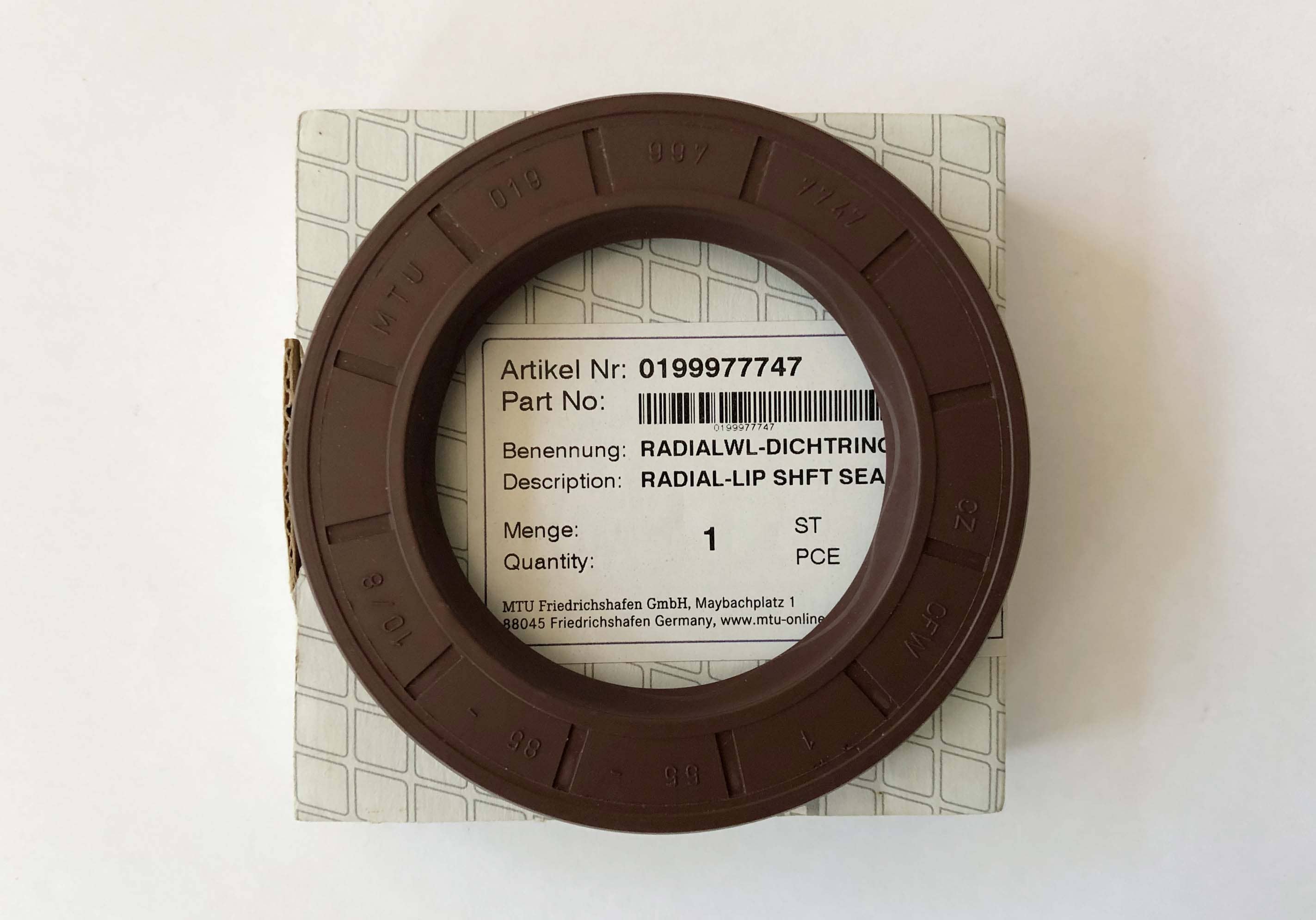

MTU 0199977747 RADIAL-LIP SHFT SEAL

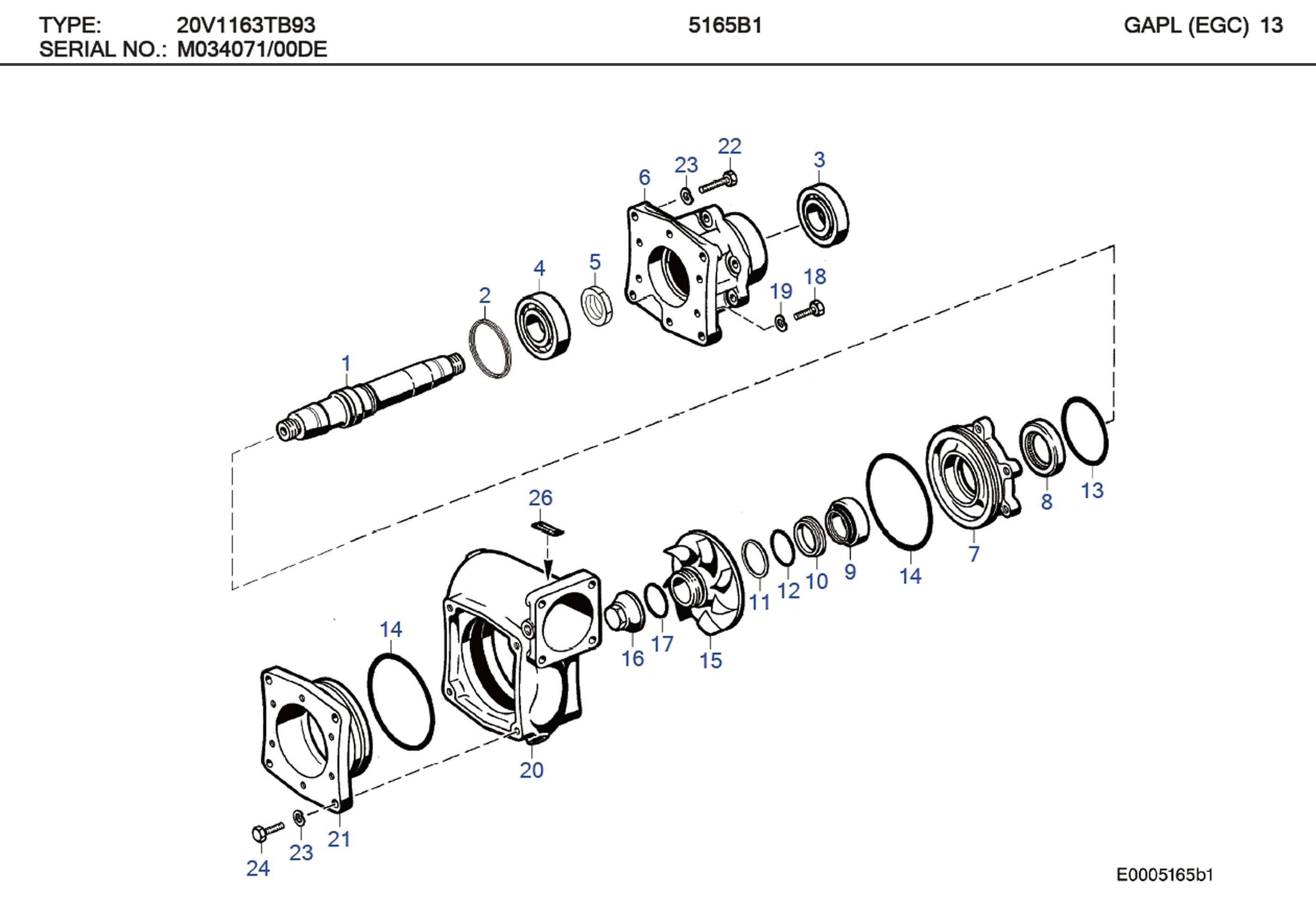

MTU 0199977747 Technical Engineering Exploded View MTU 0199977747 RADIAL-LIP SHFT SEAL

MTU 5842032780 RADIAL-LIP SHFT SEAL

C/N Description Part-Number Qty
000 RAW WATER PUMP 5842002701 001
01 OUTPUT SHAFT 5842040714 001
02 SPACER RING 5842040151 001
03 CYLINDRICAL ROLLER BEARING 205412223002 001
04 ANGULAR-CONTACT BALL BEARING 0019813727 001
05 RIVET NUT 5849900851 001
06 BEARING HOUSING 5842040219 001
07 SEAL CARRIER 5762010158 001
08 RADIAL-LIP SHAFT SEAL 0199977747 001
09 ROTARY SEAL 0002018319 001
10 COUNTERRING 0002010718 001
11 COVER RING 5842040251 001
12 O-RING 700429056001 001
13 O-RING 700429100000 001
14 O-RING 700429150001 002
15 IMPELLER 5802040906 001
16 RIVET NUT 5802040172 001
17 O-RING 700429045000 001
18 SCREW 000933010093 006
19 SPRING WASHER 000137010202 006
20 VOLUTE 5802010801 001
21 INLET NECK 5802010330 001
22 SCREW 000933012093 004
23 SPRING WASHER 000137012202 008
24 SCREW 000933012077 004
26 INSTRUCTION PLATE 700425000110 001

0199977747 SUPERSEDED PART AND EFFECTIVE DATE

0199977747 SUPERSEDED PART AND EFFECTIVE DATE

C/N New Part Number Superseded Part Number Valid From Date
01 0199977747 700386055000 N/A
02 0199977747 0089979247 2001/01/01
03 0199977747 0199977747 2001/02/01

MTU 1163 Diesel Engine Models & Specifications

MTU 20V 1163 Diesel Engine

MTU 1163 Diesel Engine Models & Specifications

Make Year of construction Power KW U/MIN
16V 1163 TB73L N/A 5200 1230
20V 1163 TB73 N/A 6000 1200
20V 1163 TB73L N/A 6500 1230
12V 1163 TB93 N/A 4440 1900
16V 1163 TB93 N/A 5920 1900
20V 1163 TB93 N/A 7400 1900
16V 1163 TB76 N/A 4320 1200
16V 1163 TB76L N/A 4800 1200
16V 1163 TB82 N/A 3580 1200
20V 1163 TB82 N/A 4480 1200
