| PART NUMBER | 007603033100 |

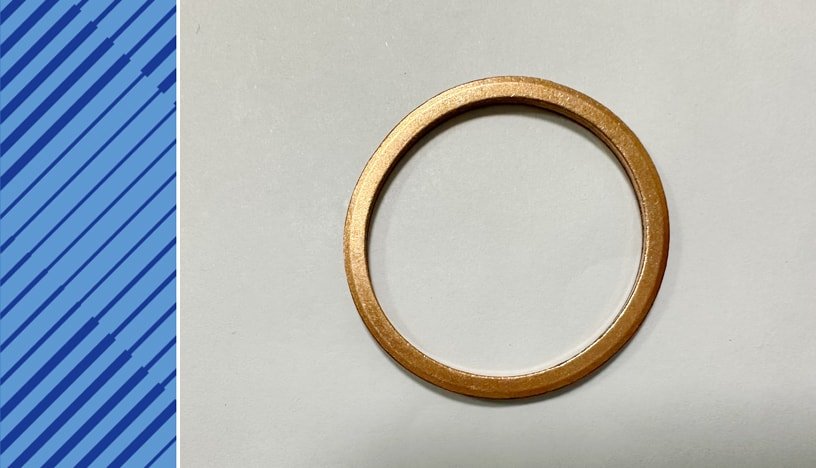

| DESCRIPTION | SEALING RING |
| DIMENSIONS | A 33 X 39 |
| NORM | DIN7603 |
| UNIT WEIGHT | 4.600 GRM |
| HS CODE | 74152900 |
| NATO-VERS.-NR. | 5330121564803 |
| C/N | Description | Part-Number | Qty |
|---|---|---|---|
| 000 | 2/2-WAY SOLENOID VALVE | 5840900595 | 001 |
| 01 | VALVE HOUSING | 5840900054 | 001 |
| 02 | 2/2-WAY SOLENOID VALVE | 5840980257 | 001 |
| 03 | PRESSURE SPRING | 5849931601 | 001 |
| 04 | PUMP TIMING PISTON | 5840982719 | 001 |
| 05 | GASKET | 0000981465 | 001 |
| 06 | GASKET | 0000981565 | 001 |
| 07 | HEX NUT | 206925008000 | 001 |
| 08 | SEALING RING | 007603033100 | 001 |
| 09 | SCREW-FITTING UNION | 5849970572 | 001 |
| C/N | New Part Number | Superseded Part Number | Valid From Date |
|---|---|---|---|
| 01 | 007603033100 | 06.56190-0736 | N/A |
| 02 | 007603033100 | 000N06461/1 | 2009/09/01 |
| 03 | 007603033100 | Z=01 901 02 033 | 2009/10/01 |
| 04 | 007603033100 | 000000001103 | 2009/11/01 |
| 05 | 007603033100 | 007603033100 | 2009/12/01 |
| Make | Year of construction | Power KW | U/MIN |
|---|---|---|---|
| 16V 1163 TB73L | N/A | 5200 | 1230 |
| 20V 1163 TB73 | N/A | 6000 | 1200 |
| 20V 1163 TB73L | N/A | 6500 | 1230 |
| 12V 1163 TB93 | N/A | 4440 | 1900 |
| 16V 1163 TB93 | N/A | 5920 | 1900 |
| 20V 1163 TB93 | N/A | 7400 | 1900 |
| 16V 1163 TB76 | N/A | 4320 | 1200 |
| 16V 1163 TB76L | N/A | 4800 | 1200 |
| 16V 1163 TB82 | N/A | 3580 | 1200 |
| 20V 1163 TB82 | N/A | 4480 | 1200 |
